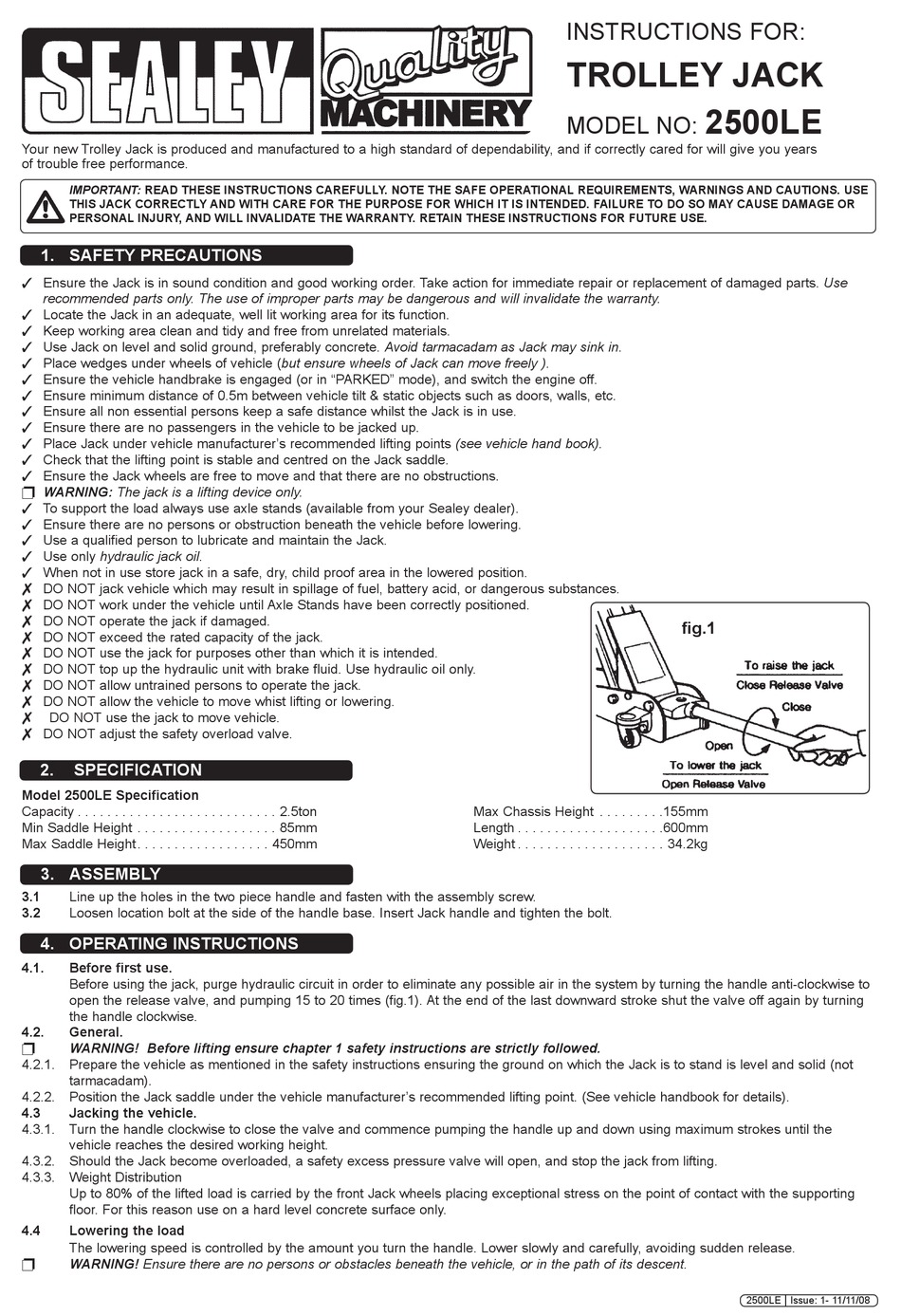

Sealey 2500LE Instructions

Your new Trolley Jack is produced and manufactured to a high standard of dependability, and if correctly cared for will give you years
of trouble free performance.
ImpoRtANt: read These insTrucTions carefully. noTe The safe oPeraTional reQuireMenTs, WarninGs and cauTions. use
This Jack correcTly and WiTh care for The PurPose for Which iT is inTended. failure To do so May cause daMaGe or
Personal inJury, and Will invalidaTe The WarranTy. reTain These insTrucTions for fuTure use.
1. safeTy PrecauTions
3 Ensure the Jack is in sound condition and good working order. Take action for immediate repair or replacement of damaged parts. Use
recommended parts only. The use of improper parts may be dangerous and will invalidate the warranty.
3 Locate the Jack in an adequate, well lit working area for its function.
3 Keep working area clean and tidy and free from unrelated materials.
3 Use Jack on level and solid ground, preferably concrete. Avoid tarmacadam as Jack may sink in.
3 Place wedges under wheels of vehicle (but ensure wheels of Jack can move freely ).
3 Ensure the vehicle handbrake is engaged (or in "PARKED" mode), and switch the engine off.
3 Ensure minimum distance of 0.5m between vehicle tilt & static objects such as doors, walls, etc.
3 Ensure all non essential persons keep a safe distance whilst the Jack is in use.
3 Ensure there are no passengers in the vehicle to be jacked up.
3 Place Jack under vehicle manufacturer's recommended lifting points (see vehicle hand book).
3 Check that the lifting point is stable and centred on the Jack saddle.
3 Ensure the Jack wheels are free to move and that there are no obstructions.
p WARNING: The jack is a lifting device only.
3 To support the load always use axle stands (available from your Sealey dealer).
3 Ensure there are no persons or obstruction beneath the vehicle before lowering.
3 Use a qualified person to lubricate and maintain the Jack.
3 Use only hydraulic jack oil.
3 When not in use store jack in a safe, dry, child proof area in the lowered position.
7 DO NOT jack vehicle which may result in spillage of fuel, battery acid, or dangerous substances.
7 DO NOT work under the vehicle until Axle Stands have been correctly positioned.
7 DO NOT operate the jack if damaged.
7 DO NOT exceed the rated capacity of the jack.
7 DO NOT use the jack for purposes other than which it is intended.
7 DO NOT top up the hydraulic unit with brake fluid. Use hydraulic oil only.
7 DO NOT allow untrained persons to operate the jack.
7 DO NOT allow the vehicle to move whist lifting or lowering.
7 DO NOT use the jack to move vehicle.
7 DO NOT adjust the safety overload valve.
2. sPecificaTion
Model 2500le specification
Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5ton
Min Saddle Height . . . . . . . . . . . . . . . . . . . 85mm
Max Saddle Height . . . . . . . . . . . . . . . . . . 450mm
3. asseMBly
3.1 Line up the holes in the two piece handle and fasten with the assembly screw.
3.2 Loosen location bolt at the side of the handle base. Insert Jack handle and tighten the bolt.
4. oPeraTinG insTrucTions
4.1. Before first use.
Before using the jack, purge hydraulic circuit in order to eliminate any possible air in the system by turning the handle anti-clockwise to
open the release valve, and pumping 15 to 20 times (fig.1). At the end of the last downward stroke shut the valve off again by turning
the handle clockwise.
4.2. General.
WARNING! Before lifting ensure chapter 1 safety instructions are strictly followed.
p
4.2.1. Prepare the vehicle as mentioned in the safety instructions ensuring the ground on which the Jack is to stand is level and solid (not
tarmacadam).
4.2.2. Position the Jack saddle under the vehicle manufacturer's recommended lifting point. (See vehicle handbook for details).
4.3 Jacking the vehicle.
4.3.1. Turn the handle clockwise to close the valve and commence pumping the handle up and down using maximum strokes until the
vehicle reaches the desired working height.
4.3.2. Should the Jack become overloaded, a safety excess pressure valve will open, and stop the jack from lifting.
4.3.3. Weight Distribution
Up to 80% of the lifted load is carried by the front Jack wheels placing exceptional stress on the point of contact with the supporting
floor. for this reason use on a hard level concrete surface only.
4.4 lowering the load
The lowering speed is controlled by the amount you turn the handle. Lower slowly and carefully, avoiding sudden release.
WARNING! Ensure there are no persons or obstacles beneath the vehicle, or in the path of its descent.
p
INSTRUCTIONS fOR:
Trolley Jack
MODEL NO:
Max Chassis Height . . . . . . . . .155mm
Length . . . . . . . . . . . . . . . . . . . .600mm
Weight . . . . . . . . . . . . . . . . . . . . 34.2kg
2500le
fig.1
2500LE Issue: 1- 11/11/08
