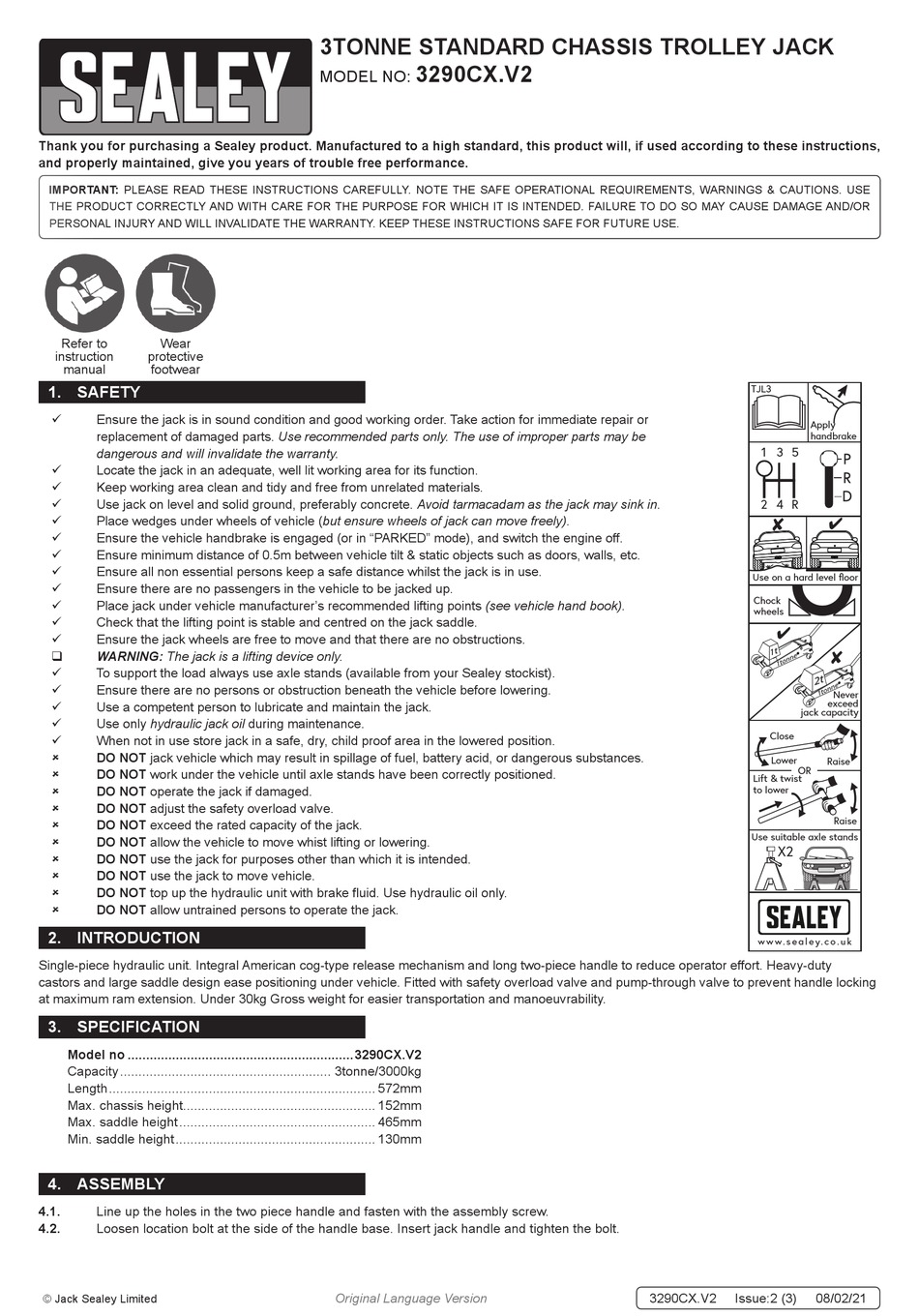

Sealey 3290CX.V2 Quick Start Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear
instruction protective
manual footwear
1. SAFETY
Ensure the jack is in sound condition and good working order. Take action for immediate repair or
9
replacement of damaged parts. Use recommended parts only. The use of improper parts may be
dangerous and will invalidate the warranty.
Locate the jack in an adequate, well lit working area for its function.
9
Keep working area clean and tidy and free from unrelated materials.
9
Use jack on level and solid ground, preferably concrete. Avoid tarmacadam as the jack may sink in.
9
Place wedges under wheels of vehicle (but ensure wheels of jack can move freely).
9
Ensure the vehicle handbrake is engaged (or in "PARKED" mode), and switch the engine off.
9
Ensure minimum distance of 0.5m between vehicle tilt & static objects such as doors, walls, etc.
9
Ensure all non essential persons keep a safe distance whilst the jack is in use.
9
Ensure there are no passengers in the vehicle to be jacked up.
9
Place jack under vehicle manufacturer's recommended lifting points (see vehicle hand book).
9
Check that the lifting point is stable and centred on the jack saddle.
9
Ensure the jack wheels are free to move and that there are no obstructions.
9
WARNING: The jack is a lifting device only.
‰
To support the load always use axle stands (available from your Sealey stockist).
9
Ensure there are no persons or obstruction beneath the vehicle before lowering.
9
Use a competent person to lubricate and maintain the jack.
9
Use only hydraulic jack oil during maintenance.
9
When not in use store jack in a safe, dry, child proof area in the lowered position.
9
DO NOT jack vehicle which may result in spillage of fuel, battery acid, or dangerous substances.
8
DO NOT work under the vehicle until axle stands have been correctly positioned.
8
DO NOT operate the jack if damaged.
8
DO NOT adjust the safety overload valve.
8
DO NOT exceed the rated capacity of the jack.
8
DO NOT allow the vehicle to move whist lifting or lowering.
8
DO NOT use the jack for purposes other than which it is intended.
8
DO NOT use the jack to move vehicle.
8
DO NOT top up the hydraulic unit with brake fluid. Use hydraulic oil only.
8
DO NOT allow untrained persons to operate the jack.
8
2. INTRODUCTION
Single-piece hydraulic unit. Integral American cog-type release mechanism and long two-piece handle to reduce operator effort. Heavy-duty
castors and large saddle design ease positioning under vehicle. Fitted with safety overload valve and pump-through valve to prevent handle locking
at maximum ram extension. Under 30kg Gross weight for easier transportation and manoeuvrability.
3. SPECIFICATION
Model no .............................................................3290CX.V2
Capacity ......................................................... 3tonne/3000kg
Length ........................................................................ 572mm
Max. chassis height .................................................... 152mm
Max. saddle height ..................................................... 465mm
Min. saddle height ...................................................... 130mm
4. ASSEMBLY
4.1. Line up the holes in the two piece handle and fasten with the assembly screw.
4.2. Loosen location bolt at the side of the handle base. Insert jack handle and tighten the bolt.
© Jack Sealey Limited
3TONNE STANDARD CHASSIS TROLLEY JACK
3290CX.V2
MODEL NO:
Original Language Version
TJL3
Apply
h ndbr ke
1 3 5
2 4 R
Use on h rd level floor
Chock
wheels
j ck c p city
Close
Lower
OR
Lift & twist
to lower
Use suit ble xle st nds
X2
w w w . s e l e y. c o . u k
3290CX.V2 Issue:2 (3) 08/02/21
Never
exceed
R ise
R ise
