Tema Telecomunicazioni FXO Series Technical Manual

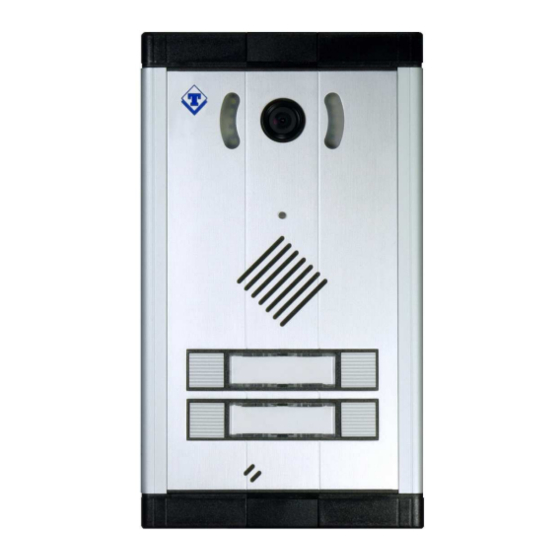

Analog doorphone with 4 buttons for connection to pbx extension (fxo)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
for connection to PBX extension (FXO)
AA-516P additional 8 buttons module
AA-516K additional keyboard module
TECHNICAL MANUAL – INSTALLATION
Recommendations
1.
Use only original spare parts and consumables supplied by Tema Telecomunicazioni Srl for this equipment. The company shall not be
held responsible for any damage caused by the use of materials that they have not supplied.
2.
The device has been carefully manufactured and tested. In any case, the product is not recommended for use in situations in which
incorrect operating may result in damage to persons and/or property.
3.
We recommend that you carefully read all this manual before starting to use the device.
4.
Do not expose the device to sunlight and protect it from sources of heat, dust, humidity and chemical agents.
5.
This manual is the property of Tema Telecomunicazioni Srl and any duplication and reproduction, even partial, as well as storage on
any type of media is forbidden without written permission from Tema Telecomunicazioni Srl.
Revision
Date
3
13-09-2016 Update
MAS-AA514-REV03EN
TEMA TELECOMUNICAZIONI S.r.l.
Telecommunications - Electronics
AA-514
Analog Doorphone with 4 buttons
AA-516R additional index module
PRELIMINARY DOCUMENTATION
AA-514 system manual - Version HW 2.0 – FW 2.8
Revision reason
Prepared
GM, GBC
Checked/Approved
DP
Page 1 of 56

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FXO Series and is the answer not in the manual?

Questions and answers

Related Manuals for Tema Telecomunicazioni FXO Series

Summary of Contents for Tema Telecomunicazioni FXO Series

  • Page 1 Do not expose the device to sunlight and protect it from sources of heat, dust, humidity and chemical agents. This manual is the property of Tema Telecomunicazioni Srl and any duplication and reproduction, even partial, as well as storage on any type of media is forbidden without written permission from Tema Telecomunicazioni Srl.
  • Page 2 Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL DECLARATION OF CONFORMITY (DoC) We, TEMA TELECOMUNICAZIONI SRL Via C. Girardengo, 1/4 - 20161 MILANO declare under our sole responsibility that the product: product name Interfaccia Citotelefonica – Door Phone trade name TEMA TELECOMUNICAZIONI Srl...
  • Page 3 Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL IMPORTANT INFORMATIONS REGARDING THE RECOVERY AND RECYCLING OF THIS ELECTRONIC DEVICE The crossed-out wheeled bin symbol below indicates that this electronic equipment is intended to be disposed in a separate collection and not in an unsorted municipal waste, in order to provide for the treatment of WEEE (Waste Electrical and Electronic Equipment) using best available recovery and recycling techniques.

  • Page 4: Table Of Contents

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL OVERVIEW..........................5 MAIN FEATURES ........................6 PARTS COMPRISING THE SYSTEM (PACKING LIST) ............7 3.1. C ........8 ROSS REFERENCE TABLE OF FEATURES SERVICES OF THE VARIOUS MODELS TECHNICAL SPECIFICATIONS....................10 OPERATION..........................12 5.1. B ................12...

  • Page 5: Overview

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL 1. OVERVIEW The AA-514 family of Doorphone is designed to manage a passage through an analog FXO extension line of the PBX and optionally provides a wired analog video connection on a monitor available to the operator.

  • Page 6: Main Features

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL 2. MAIN FEATURES AA-514 main features are: • Outdoor doorphone with FXO port, for PBX internal extension analog line • Self-powered from the telephone line only for notice service and conversation, AA-514 model • Self-powered from the telephone line for notice service, conversation and door opener, AA-514H model •...

  • Page 7: Parts Comprising The System (Packing List)

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL 3. PARTS COMPRISING THE SYSTEM (PACKING LIST) The AA-514 system consists of the parts included in the following list: • An AA-514 device (external unit with 4 buttons) • A special key for the front panel screws •...

  • Page 8: Cross-Reference Table Of Features / Services Of The Various Models

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL 3.1. Cross-reference table of features / services of the various models The following table shows for each system the main features that characterize it and the required needed configuration: AA-514 AA-514A AA-514H AA-514HA Amplified Audio Yes (▲)
  • Page 9 Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL The expansions AA-516P or AA-516K are connected and powered directly from the base unit via a supplied cable, expanding the functions of the base system: Expansion Expansion AA-516KA Expansion AA-516P Expansion AA-516KB AA-516R Expansion AA-516KC...

  • Page 10: Technical Specifications

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL 4. TECHNICAL SPECIFICATIONS Base Systems Power Supply voltage with power consumption: AA-514, AA-514H stand-by 10 - max. 150 mA AA-514A, AA-514HA stand-by 10 - max. 750 mA Conditions: system in conversation, audio presence on the loudspeaker and two relays activated AA-514C, AA-514HC stand-by 30 –...
  • Page 11 Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL Camera section (only for AA-514C systems) Sensor C-MOS color ¼” Resolution 420 TV lines System Sensitivity 1 Lux Viewing angle Wide angle 140° Gain adjustment Automatic White balance Automatic Video output Composite video 1Vp-p 75...

  • Page 12: Operation

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL 5. OPERATION When, in standby condition, someone press one of the call buttons on the AA-514 base system or on the AA-516P expansion or is dialed a number on the AA-516K numeric keypad, the doorphone automatically generates a telephone call through the connected internal extension of the PBX.
  • Page 13 Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL It is also possible to compose only the final part of the number using the operation mode with a root number. In this case the system prepends to the dialed number on the keypad a pre-programmed prefix. For example, if the root number is "3"...

  • Page 14: Operating Modes

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL 6. OPERATING MODES The system has the label holders combined with the buttons. When a visitor presses one of the buttons, the system make a call on a PBX extension associated with the pressed button.

  • Page 15: Day / Night Mode With Call Repetition To The Same Number

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL 6.2. DAY / NIGHT mode with call repetition to the same number To activate this mode should be set up properly its parameter (parameter 118). The operation is similar to that of the above described mode with in addition the possibility to perform a cycle of call attempts in order to increase the possibilities of handling the call with a positive outcome.

  • Page 16: 800 Numbers Feature

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL 150. This is a code that, if programmed, provides to prepend a number to the dialed number. If the numbers of operators are in the numbering plan of the PBX (internal extensions), it is sufficient to program the parameter 150 with the first digit of the numbering plan and expose the legend for visitors with numbers to reach without the first digit.

  • Page 17: 200 Additional Access Codes Special Function

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL If the system uses the AA-516K expansion, the opening codes must be typed directly on the keyboard preceded by the star key (*) to distinguish them from a normal telephone call. The visitor will get access without operator intervention (for example, useful to service personnel or external assistance, which for work reasons comes out and returns back frequently in the company).

  • Page 18: Calls To Aa-514

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL 6.9. Calls to AA-514 Call the system AA-514 from the PBX phones is useful to activate the conversation or issue commands for example when a visitor is detected near the doorphone, through a video surveillance system of the gate, or if some vehicle arrived at the entrance driveway or as announcer to serve certain areas of warehouses without using a more complex system of public address audio diffusion (i.e.

  • Page 19: Commands And Codes For The Internal Operator

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL 7. COMMANDS AND CODES FOR THE INTERNAL OPERATOR These are the main commands normally available when you are called by AA-514, the only ones that the operator might need to know. Upon receiving a call from AA-514, the communication will be activated and will be possible to send the commands...

  • Page 20: Signaling Led And Aa-514 Front Panel Description

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL 7.1. Signaling Led and AA-514 front panel description Positioned above the speaker, AA-514 has a frontal signaling LED with two different modes of operation. In the default mode, with the system in stand-by, the LED is off.

  • Page 21: Installation

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL 8. INSTALLATION 8.1. Installation of systems The units are presented with the exterior part elegant and compact, the only part that will be visible and with the wall plastic box to be recessed into the wall. The front part with the electronics of the system is separable from the bottom plastic wall box.
  • Page 22 Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL Wall flat metal COVER (Accessory option AA-517-C) As already mentioned in the assembly operations of the system, there exists the possibility of interposing between the front of the system and the wall (where you will find the rear flush plastic box) an optional flat frame which has two main purposes of use.
  • Page 23 Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL COMPLETE outdoor BOX (Accessory option AA-517-S) The complete box is a cover that completely houses the AA-514 system, both the front panel which is protected as using the AA-517-T shield, and also the plastic rear box of the system.

  • Page 24: Inserting Or Replacing The Names Associated With The Buttons

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL 8.2. Inserting or replacing the names associated with the buttons Die-cut paperboard nameplates The front panel has the label holder fields embedded in the body of the buttons. It is possible to access from the front of the system and you have to work with the supplied puller.

  • Page 25: Connections

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL 8.3. CONNECTIONS 8.3.1. Connection of the base system AA-514 Once that the bottom rear plastic box of the system is arranged in the wall, take the front panel with the electronic board, insert the two transparent plastic pins present on frame into the appropriate holes on the wall box and get ready to connect the wires to the terminal blocks.

  • Page 26: Connecting The System Expansion Aa-516P And Aa-516K

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL 8.3.2. Connecting the system expansion AA-516P and AA-516K Once that the bottom rear plastic box of the system is arranged in the wall, take the front panel with the electronic board, insert the two transparent plastic pins present on frame...

  • Page 27: Connecting The System Expansion Aa-516R

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL 8.3.3. Connecting the system expansion AA-516R Once that the bottom rear plastic box of the system is arranged in the wall, take the front panel with the electronic board, insert the two transparent plastic pins present on frame into...

  • Page 28: Connection Of The Base System Aa-514C With Camera

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL 8.3.4. Connection of the base system AA-514C with camera In the system AA-514C is housed a camera equipped with a video cable terminated with a female RCA connector. At this connector is already possible to connect a monitor that has a video input.

  • Page 29: Description Of The Terminal Blocks Of Relays

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL 8.4. Description of the terminal blocks of relays The circuits related to the relay 1 and relay 2 are equivalent but electrically separate and distinct. The blocks of their terminal connections in the system AA-54 are arranged in the same way. As described for the terminal block called TB1 (terminal block of relay 1) therefore applies also to the block called TB3 (terminal block of the relay 2).

  • Page 30: Description And Examples Of Operation Modes With The Internal Relays, Connections

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL 8.5. Description and examples of operation modes with the internal relays, connections 8.5.1. CASE 1: drive two electric locks with system powered with external power supply In this example AA-514 activates the two separate electric locks with a voltage pulse common to its own supply voltage.

  • Page 31: Case 2: Drive Of Two Electric Locks With System Powered With Telephone Line Only

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL 8.5.2. CASE 2: drive of two electric locks with system powered with telephone line only In this example AA-514H activates the two separate electric locks with a pulse of voltage common to the two electric locks. In the example the relay1 acts on the electric lock of driveway gate and triggers the relay2 to follow for activate the electric lock of the pedestrian gate.

  • Page 32: Case 3: Drive Of Two Electric Locks System Powered With 3 Different Power Supplies

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL 8.5.3. CASE 3: drive of two electric locks system powered with 3 different power supplies AA-514, as in the case 1, activates the two separate electric locks and takes the power supply itself. Case with three different and separate supply voltages.

  • Page 33: Case 4: System With Shared Power Supply Between The System And Electric Lock

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL 8.5.4. CASE 4: system with shared power supply between the system and electric lock Case in which the system uses the same power source that normally drives the electric lock. Can be realized when the external source is at 12Vac and power characteristics can support the load represented by the system (according to its version).

  • Page 34: Case 5: Drive Of An Electric Lock And An Opening Buzzer

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL 8.5.5. CASE 5: drive of an electric lock and an opening buzzer Case expected to automatically repeat the activation of the relay 1 (typically door opener) also on relay2 so it is possible to connect to the second relay a device to signal the successful opening of the gate. For example, to a warehouse where workers assume responsibility to pay attention to an adequate buzzer that indicates the effective opening of the passage.

  • Page 35: Case 6: Drive Of An Electric Lock And Automatic Backlight D/Nwith Powered System

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL 8.5.6. CASE 6: drive of an electric lock and automatic backlight D/N with powered system Case in which with the same operating voltage of AA-514 you want to control the backlight of the keys through the relay2 exploiting its special operating mode can be set using the parameter 144.

  • Page 36: Case 7: Connection Between Base Unit And Expansions

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL 8.5.7. CASE 7: connection between base unit and expansions Here are some examples of compositions obtainable by the various modules of the AA-514 system. In addition to the required connections to the AA-514 base system between a module and another one (as detailed in the descriptions and examples on previous pages), for the backlight of the AA-516R expansion legend module are required other connections as indicated in the following table.

  • Page 37: Connecting Aa-516R Modules In Cascade Starting From Aaa-514 Base Module

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL 8.5.8. Connecting AA-516R modules in cascade starting from a AA-514 base module Power supply 12Vac AA-514 AA-516R AA-516R 8.5.9. Connecting AA-516R modules in cascade starting from a AA-516R powered module Power supply 12Vac AA-516R AA-516R...

  • Page 38: Parameters Programming And Commands

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL 9. PARAMETERS PROGRAMMING AND COMMANDS Parameters programming 9.1. To enter in programming mode it is necessary to call AA-514 system, wait for the answer and then digit the code *** (3 time star key). Wait for a confirmation long beep, then digit the programming password code (parameter 154, default *1234): if the password matches the system will play one confirmation long beep.

  • Page 39: Reset Parameters To Factory Defaults

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL Reset parameters to factory defaults 9.2. There are 2 ways to reset the parameters to the factory default values, follow the next instruction: Using phone: - call the number where AA-514 is connected - wait for AA-514 answer, then insert *** (3 times star key digit)

  • Page 40: Parameters Table

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL 9.4. Parameters table In the following table are described the system parameters. All the values will be retained even if the system is powered off. Parameter Name Description Default Enter your Range = possible values...
  • Page 41 Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL Parameter Name Description Default Enter your Range = possible values settings Defines the minimum time (in seconds) between two Time between call 129 # subsequent calls. attempts Range : max 3 digits, values 0-999 Time in seconds within which AA-514 must receive the...
  • Page 42 Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL Parameter Name Description Default Enter your Range = possible values settings Relay 2 activation mode 0 = Activated from telephone command or from access code. It remains active for the time set in the parameter 142 (eg.
  • Page 43 Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL Parameter Name Description Default Enter your Range = possible values settings Maximum number of attempts for entering the access code. Maximum number of If this attempts are reached, the system will call a telephone 151 #...
  • Page 44 Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL Parameter Name Description Default Enter your Range = possible values settings The system detects the frequency of the tone to be recognized on the basis of between a maximum FH (set with this parameter) and a minimum FL (set with the next parameter).

  • Page 45: Standard Greeting Messages

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL Parameter Name Description Default Enter your Range = possible values settings It delays the deactivation of the AA-514 camera of the Switch-off camera number of seconds specified in this parameter (only active 172 # delay with parameter 171=2).
  • Page 46 Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL Additional parameters available for use when the system AA-514 is connected to the additional AA-516P buttons module. Parameter Name Description Default Enter your Range = possible values settings Telephone number Number associated to the button 5 in Day or Group1 mode.
  • Page 47 Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL Additional parameters available for use when the system AA-514 is connected to the additional full keyboard AA- 516K module. Parameter Name Description Default Enter your Range = possible values settings Number for the Speed Dial mode associated to the “0” key of Speed Dial the keyboard, in DAY mode.
  • Page 48 Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL Parametro Nome Descrizione Default Spazio per Range = valori possibili le vs scelte It contains the additional access code number 0 and its 3000 # Additional access associated realy. The code is always composed of 4 digits. In...

  • Page 49: Special Commands

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL The value of this field set the following table to be considered by the system as: - a dialing accepting table (numbers or parts of them that can be dialed must be present Operation mode of...

  • Page 50: Examples Of Programming / Operator Commands

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL 9.7. Examples of programming / Operator commands You want to set the Day / Night mode so that when a visitor press the button 1 the unit will call the appropriate extension (eg number 441) in Day mode, and the custodian cellphone when the system is set in Night mode (number 3451234567890).

  • Page 51: Informations For The Wall Installation Of The Systems

    Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL Informations for the wall installation of the systems 9.8. It is possibile to install AA-514 systems and its expansions in many ways. These ways can be different based on the fact of using only one system or one system with one or more expansions or using the protection accessories like frames, shields or full box.
  • Page 52 Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL Double system, composed of two elements, base system plus one expansion module If it is used a AA-514 system with one expansion module, for example one AA-516K or AA-516P pr AA-516R, please follow the next indications.
  • Page 53 Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL Triple system, composed of three elements, base system plus two expansion module If it is used a AA-514 system with two expansion module, for example one AA-516K + AA-516R, please follow the next indications. Provide to recess the plastic back box at the right distance between them. To facilitate the installation, with each back box is provided a particular tube cable that allows to horizzontaly hook the metallic shells side by side, in order to keep them in the right position to be recessed in the wall.
  • Page 54 Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL Page with measures for the installation of the system with only one element: MAS-AA514-REV03EN Page 54 of 56...
  • Page 55 Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL Page with measures for the installation of the system with two elements side by side: MAS-AA514-REV03EN Page 55 of 56...
  • Page 56 Doorphone AA-514 TEMA TELECOMUNICAZIONI SRL Page with measures for the installation of the system with three elements side by side: MAS-AA514-REV03EN Page 56 of 56...
