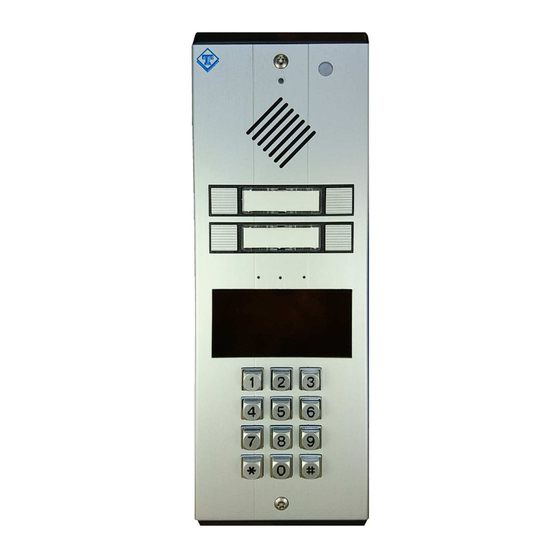

Tema Telecomunicazioni AA-500 Series Technical Manual - Installation Preliminary Documentation

Analog doorphone, 4 buttons, additional keyboard module, additional 8 buttons module, additional index module, 2 buttons, 4 buttons and keyboard, 4 buttons and keyboard and rfid
Hide thumbs Also See for AA-500 Series:
Table of Contents

Advertisement

Quick Links

TECHNICAL MANUAL – INSTALLATION
Recommendations
1.
Use only original spare parts and consumables supplied by Tema Telecomunicazioni Srl for this equipment. The company shall not be
held responsible for any damage caused by the use of materials that they have not supplied.
2.
The device has been carefully manufactured and tested. In any case, the product is not recommended for use in situations in which
incorrect operating may result in damage to persons and/or property.
3.
We recommend that you carefully read all this manual before starting to use the device.
4.
Do not expose the device to sunlight and protect it from sources of heat, dust, humidity and chemical agents.
5.
This manual is the property of Tema Telecomunicazioni Srl and any duplication and reproduction, even partial, as well as storage on
any type of media is forbidden without written permission from Tema Telecomunicazioni Srl.
Revision
Date
1
17-10-2016 Upgrade
MAS-AA500-REV01EN
TEMA TELECOMUNICAZIONI S.r.l.
Telecommunications - Electronics
AA-500
Analog Doorphone
AA-504
4 buttons
AA-506K additional keyboard module
AA-506P additional 8 buttons module
AA-506R additional index module
AA-502
2 buttons
AA-505
4 buttons and keyboard
AA-506
4 buttons and keyboard and RFID
PRELIMINARY DOCUMENTATION
AA-500 systems manual - Version HW 2.0 – FW 2.8
Revision reason
Prepared
GM, GBC
Checked/Approved
DP
Page 1 of 46

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AA-500 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Tema Telecomunicazioni AA-500 Series

Summary of Contents for Tema Telecomunicazioni AA-500 Series

  • Page 1 Do not expose the device to sunlight and protect it from sources of heat, dust, humidity and chemical agents. This manual is the property of Tema Telecomunicazioni Srl and any duplication and reproduction, even partial, as well as storage on any type of media is forbidden without written permission from Tema Telecomunicazioni Srl.
  • Page 2 Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL DECLARATION OF CONFORMITY (DoC) We, TEMA TELECOMUNICAZIONI SRL Via C. Girardengo, 1/4 - 20161 MILANO declare under our sole responsibility that the product: product name Interfaccia Citotelefonica – Doorphone trade name TEMA TELECOMUNICAZIONI Srl type or model...
  • Page 3 Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL IMPORTANT INFORMATIONS REGARDING THE RECOVERY AND RECYCLING OF THIS ELECTRONIC DEVICE The crossed-out wheeled bin symbol below indicates that this electronic equipment is intended to be disposed in a separate collection and not in an unsorted municipal waste, in order to provide for the treatment of WEEE (Waste Electrical and Electronic Equipment) using best available recovery and recycling techniques.

  • Page 4: Table Of Contents

    Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL Index Page OVERVIEW ............................5 MAIN FEATURES ..........................6 PARTS COMPRISING THE SYSTEM (PACKING LIST) .............. 7 3.1. C ........9 ROSS REFERENCE TABLE OF FEATURES SERVICES OF THE VARIOUS MODELS TECHNICAL SPECIFICATIONS ....................11 OPERATING MODES ........................12 5.1.

  • Page 5: Overview

    Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL 1. OVERVIEW The AA-500 family of Doorphone is designed to manage a passage through an analog FXO extension line of the PBX. When a visitor presses a button, the unit will call a programmed extension of the PBX. The person who answers the call can speak to the caller and can open the door by sending a DTMF command.

  • Page 6: Main Features

    Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL 2. MAIN FEATURES AA-500 main features are: • Outdoor doorphone with FXO port, for PBX internal extension analog line • Self-powered from the telephone line only for notice service and conversation (AA-504, AA-502, AA-505) •...

  • Page 7: Parts Comprising The System (Packing List)

    Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL 3. PARTS COMPRISING THE SYSTEM (PACKING LIST) The AA-504 system consists of the parts included in the following list: • An AA-504 device (external unit with 4 buttons) • Four anchors and four screws for wall mounting •...
  • Page 8 Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL The AA-502 system consists of the parts included in the following list: • An AA-502 device (external unit with 2 buttons) • Four anchors and four screws for wall mounting • A special key for the front panel screws •...

  • Page 9: Cross-Reference Table Of Features / Services Of The Various Models

    Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL 3.1. Cross-reference table of features / services of the various models The following table shows for each system the main features that characterize it and the required needed configuration: AA-504 AA-504A AA-504H AA-504HA Audio Amplifier Yes (▲)
  • Page 10 Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL AA-506 AA-502 AA-505 Doorphone and conversation Yes (▲) Relay drive EM (▲) EM (▲) Fixed Backlight Yes(▲) Yes (▲) Automatic Backlight Yes (▲) Yes (▲) Anti-condensation (internal heating) Yes (▲) Yes (▲) RFID Reader Yes (▲) ▲= AA-39AL power supply required, EM = electromechanical, SS = solid state, cells with gray background indicate the...

  • Page 11: Technical Specifications

    Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL 4. TECHNICAL SPECIFICATIONS Base Systems Power Supply voltage with power consumption: AA-504, AA-504H (typical 10) max.0 20 mA AA-504A, AA-504HA (typical 10/350) max. 750 mA AA-502 (typical 10) max. 020 mA AA-505 (typical 10/350) max. 020 mA AA-506 (typical 50/350) max.

  • Page 12: Operating Modes

    Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL 5. OPERATING MODES When, in standby condition, someone press one of the call buttons on the AA-500 base system or on the AA-506P expansion or is dialed a number on the AA-506K numeric keypad, the doorphone automatically generates a telephone call through the connected internal extension of the PBX.
  • Page 13 Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL It is also possible to compose only the final part of the number using the operation mode with a root number. In this case the system prepends to the dialed number on the keypad a pre-programmed prefix. For example, if the root number is "3"...

  • Page 14: Operating Modes

    Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL 6. OPERATING MODES The system has the label holders combined with the buttons. When a visitor presses one of the buttons, the system make a call on a PBX extension associated with the pressed button.

  • Page 15: Group Mode, Cyclic Calls

    Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL 6.3. GROUP Mode, cyclic calls To activate this mode should be set up properly its parameter (parameter 118). For each button it is possible to associate two contact numbers, normally used in the Day / Night mode described above.

  • Page 16: 800 Numbers Feature

    Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL AA-500 is equipped with a special table of up to 10 numbers that allows to create a filter on the selections made by the user, in order to allow or reject it, even without the control of the PBX. This table and this service are very useful for systems equipped with the full keyboard expansion module.

  • Page 17: 200 Additional Access Codes Special Function

    Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL 6.7. 200 additional access codes Special Function Starting from the 2.8 firmware version, are added 200 more access codes that allow to activate the integrated relays. The new additional codes can be inserted only by the numeric keyboard and follow the same rules of the 3 base access codes.

  • Page 18: Special Function 'Push To Talk

    Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL 6.11. Special Function ‘Push to Talk’ The AA-500 system allow to completely mute its microphone in order to obtain the unidirectional emission of the audio to the speaker. To do this, the contacted operator must digit the DTMF ‘Push to Talk’ code (parameter 179) and then get full control of the voice which is consequently emitted towards AA-500 system.

  • Page 19: Signaling Led And Aa-500 Front Panel Description

    Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL 7.1. Signaling Led and AA-500 front panel description Positioned above the speaker, the systems have a frontal signaling Led with two different modes of operation. In the default mode, with the system in stand-by, the Led is off. When receiving a call, the Led flashes according to the ring frequency, with the system in conversation the Led follows the level of voice and also indicates the presence or absence of dialing tones.

  • Page 20: Installation

    Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL 8. INSTALLATION 8.1. Wall mounting of the systems The units are elegant and compact, planned to be installed on the wall. The following describes how to install while the following pages will explain how to make cable connections.

  • Page 21: Connections

    Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL 8.3. CONNECTIONS 8.3.1. Connection of the AA-500 base systems Once the base is fixed to the wall, take the front panel of the system, turning it and you look at internal board present behind the front panel (part of the front itself).

  • Page 22: Connecting The System Expansion Aa-506P And Aa-506K (Only For Model Aa-504)

    Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL 8.3.2. Connecting the system expansion AA-506P and AA-506K (only for model AA-504) Once the base is fixed to the wall, take the front panel of the system, turning it and you look at internal board present behind the front panel (part of the front itself).

  • Page 23: Connecting The System Expansion Aa-506R

    Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL 8.3.3. Connecting the system expansion AA-506R Once the base is fixed to the wall, take the front panel of the system, turning it and you look at internal board present behind the front panel (part of the front itself).

  • Page 24: Description Of The Terminal Blocks Of Relays

    Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL 8.4. Description of the terminal blocks of relays The circuits related to the relay 1 and relay 2 are equivalent but electrically separate and distinct. The blocks of their terminal connections in the system AA-500 are arranged in the same way. As described for the terminal block called TB1 (terminal block of relay 1) therefore applies also to the block called TB3 (terminal block of the relay 2).

  • Page 25: Description And Examples Of Operation Modes With The Internal Relays, Connections

    Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL 8.5. Description and examples of operation modes with the internal relays, connections 8.5.1. CASE 1: drive two electric locks with system powered with external power supply In this example AA-500 activates the two separate electric locks with a voltage pulse common to its own supply voltage.

  • Page 26: Case 2: Drive Of Two Electric Locks With System Powered With Telephone Line Only

    Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL 8.5.2. CASE 2: drive of two electric locks with system powered with telephone line only Only AA-504H, in this example, activates the two separate electric locks with a pulse of voltage common to the two electric locks.

  • Page 27: Case 3: Drive Two Electric Locks, System Powered With 3 Different Power Supplies

    Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL 8.5.3. CASE 3: drive two electric locks, system powered with 3 different power supplies AA-500 system, as in the case 1, activates the two separate electric locks and takes the power supply itself. Case with three different and separate supply voltages. A first power source with a voltage of 12VAC is required for the system, a second power source of 30V maximum for the first electric lock and a third power source of 30V maximum for the second electric lock.

  • Page 28: Case 4: System With Power Supply Shared Between The System And Electric Lock

    Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL 8.5.4. CASE 4: system with power supply shared between the system and electric lock Case in which the system uses the same power source that normally drives the electric lock. Can be realized when the external source is at 12Vac and power characteristics can support the load represented by the system (according to its version).

  • Page 29: Case 5: Drive Of An Electric Lock And An Opening Buzzer

    Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL 8.5.5. CASE 5: drive of an electric lock and an opening buzzer Case expected to automatically repeat the activation of the relay 1 (typically door opener) also on relay2 so it is possible to connect to the second relay a device to signal the successful opening of the gate. For example, to a warehouse where workers assume responsibility to pay attention to an adequate buzzer that indicates the effective opening of the passage.

  • Page 30: Case 6: Drive Of An Electric Lock And Automatic Backlight D/Nwith Powered System

    Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL 8.5.6. CASE 6: drive of an electric lock and automatic backlight D/N with powered system Case in which with the same operating voltage of AA-500 you want to control the backlight of the keys through the relay2 exploiting its special operating mode can be set using the parameter 144.

  • Page 31: Case 7: Connection Between Base Unit And Expansions (Only For Aa-504 System)

    Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL 8.5.7. CASE 7: connection between base unit and expansions (only for AA-504 system) Here are some examples of compositions obtainable by the various modules of the AA-504 system. In addition to the required connections to the AA-504 base system between a module and another one (as detailed in the descriptions and examples on previous pages), for the backlight of the AA-506R expansion legend module are required other connections as indicated in the following table.
  • Page 32 Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL AA-504 + AA-506K and ten AA-506R modules 1.5A 1.5A 1.5A Leave at least 3 cm of space between the two rows of systems to not block the microphone of the base unit Connect with the same cascade criteria as detailed in AA-504.

  • Page 33: Connecting Aa-506R Modules In Cascade Starting From Aaa-502, Aa-504, Aa-505, Aa-506 Systems

    Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL 8.5.8. Connecting AA-506R modules in cascade starting from a AA-502, AA-504, AA-505, AA-506 systems AA-500 AA-506R AA-506R 8.5.9. Connecting AA-506R in cascade starting from a AA-506R powered base module Power supply 12Vac AA-506R AA-506R AA-506R...

  • Page 34: Parameters Programming And Commands

    Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL 9. PARAMETERS PROGRAMMING AND COMMANDS Parameters programming 9.1. To enter in programming mode it is necessary to call AA-504 system, wait for the answer and then digit the code *** (3 times star key). Wait for a confirmation long beep, then digit the programming password code (parameter 154, default *1234): if the password matches the system will play one confirmation long beep.

  • Page 35: Reset Parameters To Factory Defaults

    Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL Reset parameters to factory defaults 9.2. There are 2 ways to reset the parameters to the factory default values, follow the next instruction: Using phone: - call the number where AA-500 is connected - wait for AA-500 answer, then insert *** (3 times star key digit)

  • Page 36: Parameters Table

    Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL 9.4. Parameters table In the following table are described the system parameters. All the values will be retained even if the system is powered off. Parameter Name Description Default Enter your Range = possible values...
  • Page 37 Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL Parameter Name Description Default Enter your Range = possible values settings Defines the minimum time (in seconds) between two Time between call 129 # subsequent calls. attempts Range : max 3 digits, values 0-999 Time in seconds within which AA-500 must receive the answer...
  • Page 38 Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL Parameter Name Description Default Enter your Range = possible values settings Relay 2 activation mode 0 = Activated from telephone command or from access code. It remains active for the time set in the parameter 142 (eg.
  • Page 39 Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL Parameter Name Description Default Enter your Range = possible values settings Maximum time (in seconds) to enter the access code. If the Max time to insert 128 # access code starts with “1” the call is delayed by this time.

  • Page 40: Standard Greeting Messages

    Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL Parameter Name Description Default Enter your Range = possible values settings The system detects the frequency of the tone to be recognized on the basis of between a maximum FH (set with this parameter) and a minimum FL (set with the next parameter).
  • Page 41 Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL Additional parameters available for use when the system AA-504 is connected to the additional AA-506P buttons module. Parameter Name Description Default Enter your Range = possible values settings Telephone number Number associated to the button 5 in Day or Group1 mode.
  • Page 42 Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL Additional parameters available for use when the system AA-504 is connected to the additional full keyboard AA-506K module or with AA-505 and AA-506 models (with integrated keyboard). Parameter Name Description Default Enter your Range = possible values settings Number for the Speed Dial mode associated to the “0”...
  • Page 43 Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL Parameter Name Description Default Enter your Range = possible values settings code number 000 addition it is necessary to insert an additional digit that will be the number of the relay which is activate according to the...
  • Page 44 Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL Below is shown the system with the AA-506K expansion. Entering the door opener code (the one that is set in the parameters 124-125-126) must be made on the numeric keypad preceded by the star key (*).

  • Page 45: Special Commands

    Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL 9.6. Special commands Special commands active during the programming steps End of Finish the current programming. programming Firmware version 300# Plays 2 series of tones indicating the installed firmware version. of the device Special commands active before the programming stage, after calling the system and have entered only the *** (3 times star) code, to request entry into programming, but without having entered the correct password.
  • Page 46 Doorphone AA-500 TEMA TELECOMUNICAZIONI SRL REMARKS: MAS-AA500-REV01EN Page 46 of 46...
