2309872COM
Lift top coffee table-Black
Date of Purchase ___ / ___ / ___
Lot Number:
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
WARNING
Easy
Assembly Difficulty Meter
Tough

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Her Majesty 2309872COM and is the answer not in the manual?

Questions and answers

Related Manuals for Novogratz Her Majesty 2309872COM

Summary of Contents for Novogratz Her Majesty 2309872COM

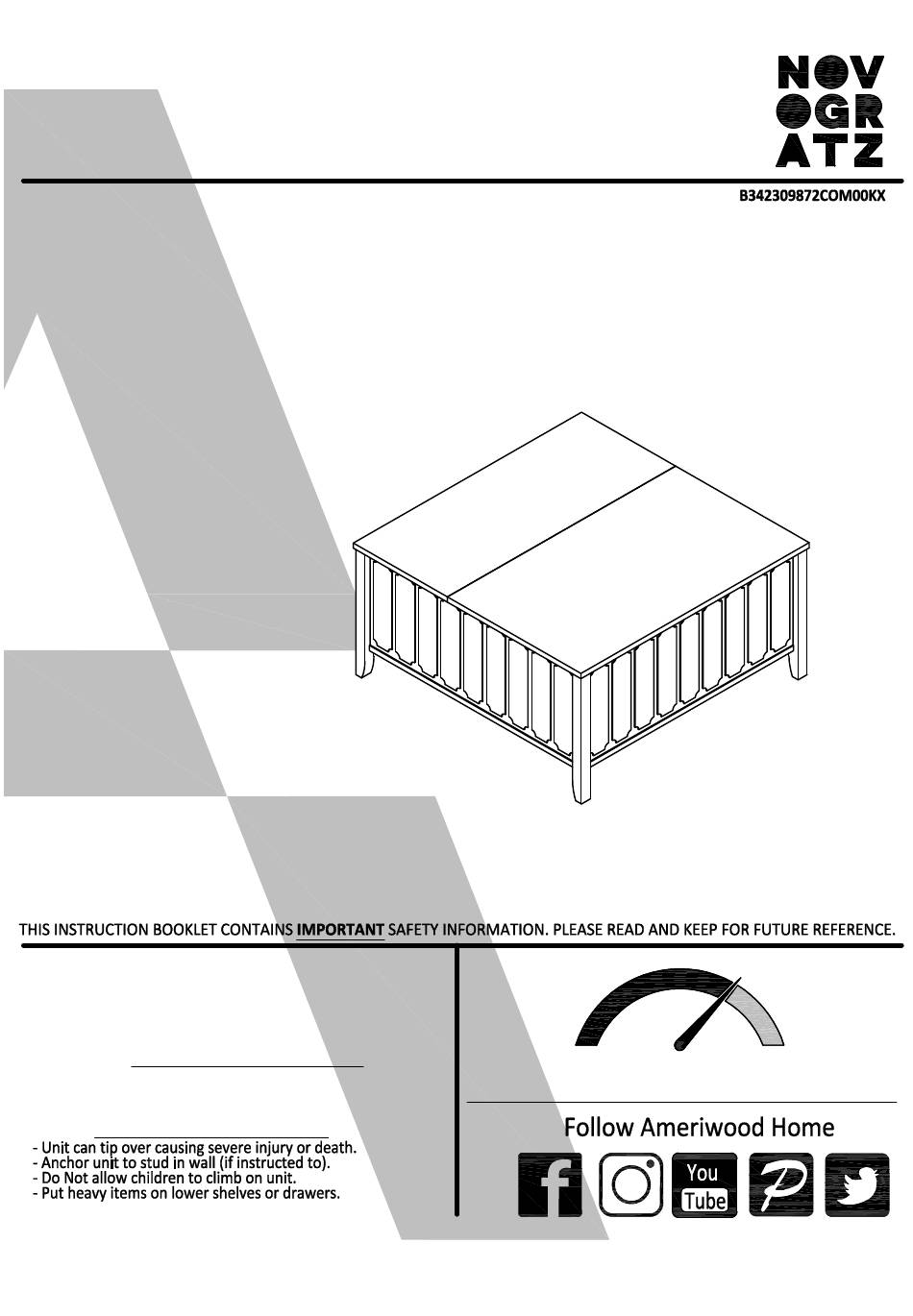

  • Page 1 2309872COM Lift top coffee table-Black Date of Purchase ___ / ___ / ___ Lot Number: Do Not Return This Product! Contact our customer service team for help first. Call: 1-800-489-3351 (toll free) Monday-Friday 9am - 5pm CST Easy Visit: www.ameriwoodhome.com Tough Assembly Difficulty Meter WARNING...

  • Page 2: Helpful Hints

    Contact Us! Helpful Hints PEOPLE NEEDED FOR ASSEMBLY: 2 ESTIMATED ASSEMBLY TIME: 1-2 HOUR ameriwoodhome.com...

  • Page 3: Before You Start

    Before You Start Read through each step carefully and follow the proper order Separate and count all your parts and hardware Give yourself enough room for the assembly process Have the following tools: Flat Head Screwdriver, #2 Phillips Head Screwdriver and Hammer Caution: If using a power drill or power screwdriver for screwing, please be aware to slow down and stop when screw is tight.

  • Page 4: Board Identification

    Board Identification Not Actual Size Top panel Top panel T2309872010KX T2309872020KX Front leg frame Rear leg frame Left side panel T2309872030KX T2309872040KX T2309872050KX Preassembled parts Preassembled parts Front leg frame T2309872030KX1 Rear leg frame T2309872040KX1 Tack glide Ø15 (2) Tack glide Ø15 (2) TKX1116 TKX1116 Right side panel...
  • Page 5 Board Identification Not Actual Size Support tube Support tube T2309872110KX T2309872090KX T2309872100KX QTY:2PCS Preassembled parts T2309872090KX1 Adjustable foot Ø19 TKX1035 CAUTION Mechanism spring under tension. Use caution when removing strap. Left lift up mechanism Right lift up mechanism T2309872120KX T2309872130KX ameriwoodhome.com...
  • Page 6 Board Identification Not Actual Size ameriwoodhome.com...

  • Page 7: Part List

    Hardware Bag Reference Number: 22309872COM0KX Part List Actual Size Ø8X30mm M6X20mm Ø1/4"X12mm Ø1/4"X35mm × 34 × 33 × 10 × 8 Wood dowel Bolt Bolt Cam bolt TKX1005 TKX1033 TKX1342 TKX1270 Not Actual Size Ø15X12mm Ø21mm Ø1/4" × 33 × 15 ×...
  • Page 8 STEP 1 Ø8X30mm M6X20mm × 21 × 4 1.1 Attach (1) to (C)&(D) as illustrated. 1.2 Attach (2) to (A),(C)&(D) as illustrated. ameriwoodhome.com...
  • Page 9 STEP 2 Ø8X30mm M6X20mm × 12 × 30 2.1 Attach (1) to (E),(F),(G)&(H) as illustrated. 2.2 Attach (2) to (E)&(F) as illustrated. ameriwoodhome.com...
  • Page 10 STEP 3 3.1 Attach (G) to (H) as illustrated. ameriwoodhome.com...
  • Page 11 STEP 4 Ø1/4"X35mm × 4 4.1 Attach (J) to (C)&(D) with (4) as illustrated. ameriwoodhome.com...
  • Page 12 STEP 5 Ø15X12mm × 12 5.1 Attach (G),(H) to (E) & (F) with (5) as illustrated. 5.2 Attach (I) to (H) as illustrated. ameriwoodhome.com...
  • Page 13 STEP 6 Ø15X12mm Ø21mm × 14 × 8 6.1 Attach (C),(D) to sample from previous step with (5) as illustrated. 6.2 Use (6) to cover cam lock holes as illustrated. Proper orientation of CAM LOCK ameriwoodhome.com...
  • Page 14 STEP 7 Ø15X12mm Ø21mm × 7 × 7 7.1 Attach (A) to sample from previous step with (5) as illustrated. 7.2 Use (6) to cover cam lock holes as illustrated. Proper orientation of CAM LOCK ameriwoodhome.com...
  • Page 15 STEP 8 Ø1/4" Ø1/4"X35 mm × 4 × 4 8.1 Attach (K) to (L)&(M) with (4) as illustrated. ameriwoodhome.com...
  • Page 16 STEP 9 Ø1/4"X12 mm × 6 9.1 Attach (L),(M) to (B) with (3) as illustrated. ameriwoodhome.com...
  • Page 17 STEP 10 Ø1/4"X12mm × 4 10.1 Attach (L),(M) to (J) with (3) as illustrated. ameriwoodhome.com...

  • Page 18: Safety Warning

    Maximum Loads This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. SAFETY WARNING! · Do not allow children to play on the mechanized furniture or operate the mechanism. ·...
  • Page 19 Register your product to receive the following: * New trend details - sneak peek on what's new * Surveys - have a voice within our community * Exclusive deals and discount codes * Quick and easy replacement part service To register your product, visit ameriwoodhome.com Visit your local retailer's website, rate your purchased product and leave us some feedback! We would like to extend a big "Thank You"...
