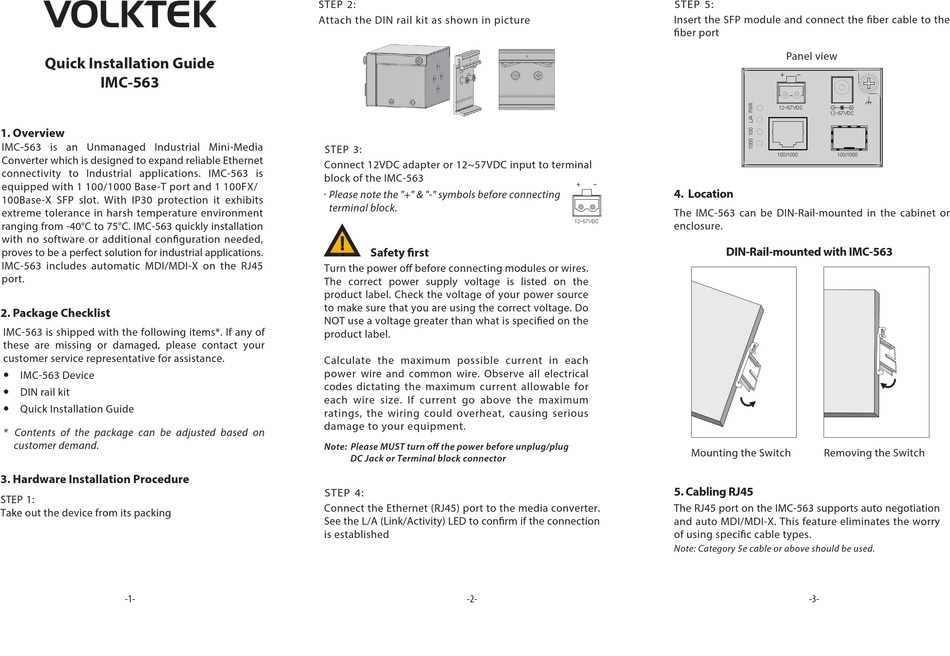

Quick Installation Guide
IMC-563
1. Overview
IMC-563 is an Unmanaged Industrial Mini-Media
Converter which is designed to expand reliable Ethernet
connectivity to Industrial applications. IMC-563 is
equipped with 1 100/1000 Base-T port and 1 100FX/
100Base-X SFP slot. With IP30 protection it exhibits
extreme tolerance in harsh temperature environment
ranging from -40°C to 75°C. IMC-563 quickly installation
with no software or additional con guration needed,
proves to be a perfect solution for industrial applications.
IMC-563 includes automatic MDI/MDI-X on the RJ45
port.
2. Package Checklist
IMC-563 is shipped with the following items*. If any of
these are missing or damaged, please contact your
customer service representative for assistance.
 IMC-563 Device
 DIN rail kit
 Quick Installation Guide
* Contents of the package can be adjusted based on
customer demand.
3. Hardware Installation Procedure
STEP 1:
Take out the device from its packing
-1- -1-
STEP 2:
Attach the DIN rail kit as shown in picture
STEP 3:
Connect 12VDC adapter or 12~57VDC input to terminal
block of the IMC-563
. Please note the "+" & "-" symbols before connecting
terminal block.
!
Safety rst
Turn the power o before connecting modules or wires.
The correct power supply voltage is listed on the
product label. Check the voltage of your power source
to make sure that you are using the correct voltage. Do
NOT use a voltage greater than what is speci ed on the
product label.
Calculate the maximum possible current in each
power wire and common wire. Observe all electrical
codes dictating the maximum current allowable for
each wire size. If current go above the maximum
ratings, the wiring could overheat, causing serious
damage to your equipment.
Note: Please MUST turn o the power before unplug/plug
DC Jack or Terminal block connector
STEP 4:
Connect the Ethernet (RJ45) port to the media converter.
See the L/A (Link/Activity) LED to con rm if the connection
is established
-2- -2-
STEP 5:
Insert the SFP module and connect the ber cable to the
ber port
+ -
4. Location
The IMC-563 can be DIN-Rail-mounted in the cabinet or
12~57VDC
enclosure.
DIN-Rail-mounted with IMC-563
Mounting the Switch
5. Cabling RJ45
The RJ45 port on the IMC-563 supports auto negotiation
and auto MDI/MDI-X. This feature eliminates the worry
of using speci c cable types.
Note: Category 5e cable or above should be used.
Panel view
+ -
12~57VDC
12~57VDC
100/1000 100/1000
Removing the Switch
-3- -3-
