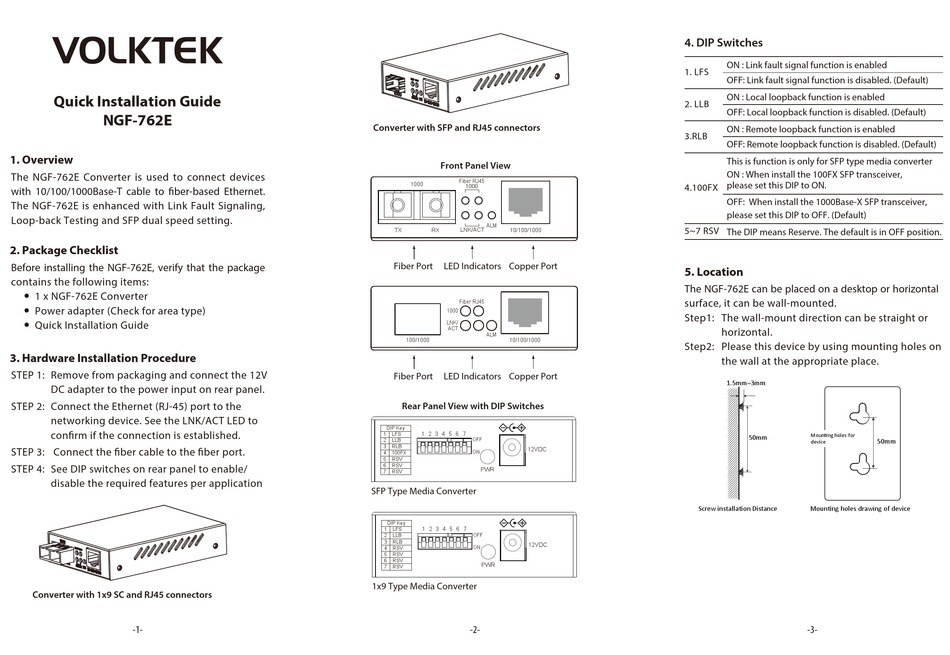

Quick Installation Guide
NGF-762E
1. Overview
The NGF-762E Converter is used to connect devices
with 10/100/1000Base-T cable to ber-based Ethernet.
The NGF-762E is enhanced with Link Fault Signaling,
Loop-back Testing and SFP dual speed setting.
2. Package Checklist
Before installing the NGF-762E, verify that the package
contains the following items:
 1 x NGF-762E Converter
 Power adapter (Check for area type)
 Quick Installation Guide
3. Hardware Installation Procedure
STEP 1: Remove from packaging and connect the 12V
DC adapter to the power input on rear panel.
STEP 2: Connect the Ethernet (RJ-45) port to the
networking device. See the LNK/ACT LED to
con rm if the connection is established.
STEP 3: Connect the ber cable to the ber port.
STEP 4: See DIP switches on rear panel to enable/
disable the required features per application
Converter with 1x9 SC and RJ45 connectors
-1-
Converter with SFP and RJ45 connectors
Front Panel View
Fiber RJ45
1000
1000
ALM
TX RX LNK/ACT 10/100/1000
Fiber Port LED Indicators Copper Port
Fiber RJ45
1000
LNK/
ACT
ALM
100/1000 10/100/1000
Fiber Port LED Indicators Copper Port
Rear Panel View with DIP Switches
DIP Key
1 2 3 4 5 6 7
1 LFS
OFF
2 LLB
3 RLB
12VDC
ON
4 100FX
5 RSV
6 RSV
PWR
7 RSV
SFP Type Media Converter
DIP Key
1 2 3 4 5 6 7
1 LFS
OFF
2 LLB
3 RLB
12VDC
ON
4 RSV
5 RSV
6 RSV
PWR
7 RSV
1x9 Type Media Converter
-2-
4. DIP Switches
ON : Link fault signal function is enabled
1. LFS
OFF: Link fault signal function is disabled. (Default)
ON : Local loopback function is enabled
2. LLB
OFF: Local loopback function is disabled. (Default)
ON : Remote loopback function is enabled
3.RLB
OFF: Remote loopback function is disabled. (Default)
This is function is only for SFP type media converter
ON : When install the 100FX SFP transceiver,
please set this DIP to ON.
4.100FX
OFF: When install the 1000Base-X SFP transceiver,
please set this DIP to OFF. (Default)
5~7 RSV The DIP means Reserve. The default is in OFF position.
5. Location
The NGF-762E can be placed on a desktop or horizontal
surface, it can be wall-mounted.
Step1: The wall-mount direction can be straight or
horizontal.
Step2: Please this device by using mounting holes on
the wall at the appropriate place.
1.5mm ~ 3mm
Moun�ng holes for
50mm
device
Screw installa�on Distance Moun�ng holes drawing of device
-3-
50mm
