10GbE SFP+ Card
COM Express Type 7 10GbE Optical Fiber Network Adapter Card
Leading EDGE COMPUTING
User's Manual
Manual Rev.:
Revision Date:
Part Number:
0.1 preliminary
July 5, 2017
50-1J090-1000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COM Express 7 and is the answer not in the manual?

Questions and answers

Summary of Contents for ADLINK Technology COM Express 7

  • Page 1 10GbE SFP+ Card User’s Manual COM Express Type 7 10GbE Optical Fiber Network Adapter Card Manual Rev.: 0.1 preliminary Revision Date: July 5, 2017 Part Number: 50-1J090-1000 Leading EDGE COMPUTING...
  • Page 2 Preface Copyright Copyright 2017 ADLINK Technology, Inc. This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
  • Page 3: Table Of Contents

    10GbE SFP+ Card Table of Contents Preface ..........................ii List of Figures ........................iv List of Tables........................v Introduction........................1 Specifications ......................3 2.1. Interface........................3 2.2. 10GbE PHY ........................3 2.3. Dimensions .........................3 2.4. Operating Temperature ....................3 2.5. Specification Compliance ...................3 2.6. I/O Expander.......................4 2.7. Functional Diagram.....................5 2.8.
  • Page 4: List Of Figures

    List of Figures Figure 1: 10GbE SFP+ Card Functional Block Diagram ................5 Figure 2: 10GbE SFP+ Card Mechanical Drawing...................6 Figure 3: 10GbE SFP+ Card Connector and LED Locations..............9 Figure 4: 10GbE Adapter Card Installed on Express-BASE7 with Type 7 COM Express Module ..10 Preface...
  • Page 5: List Of Tables

    10GbE SFP+ Card List of Tables Table 1: I2C Data Mapping to Carrier Board Based PCA9539 I/O Expander..........4 Table 2: SFP+ Card Pin Definitions......................7 Table 3: LED Descriptions........................12 Preface...
  • Page 6 This page intentionally left blank. Preface...
  • Page 7: Introduction

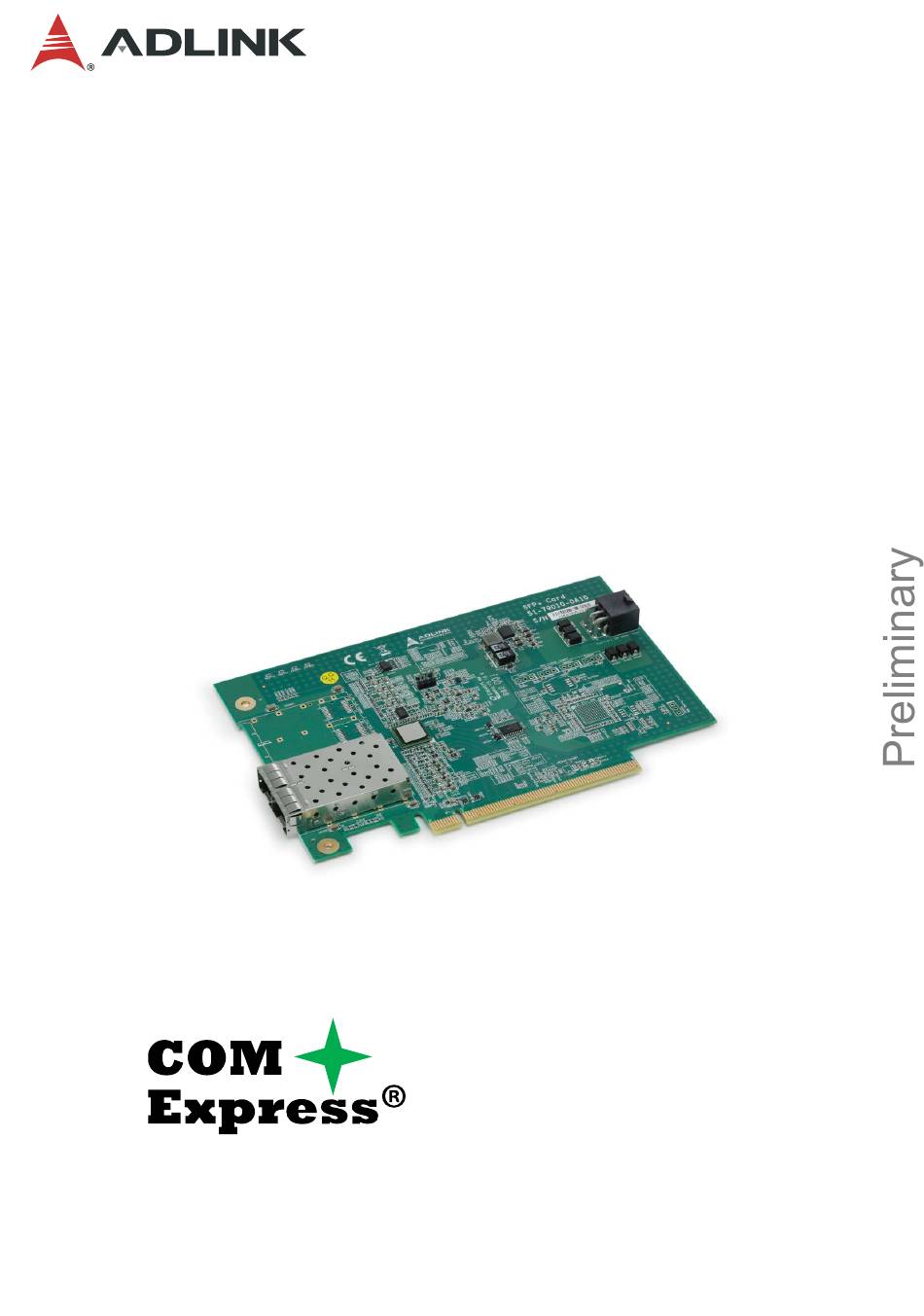

    10GbE SFP+ Card 1. Introduction The ADLINK 10GbE SFP+ Card is a 10GbE optical fiber network adapter card that delivers fast 10Gbps network access. It converts up to four 10GBASE-KR interfaces & related sideband signals to four 10GbE optical fiber interfaces and SFP+ transceivers, through up to two 10GbE optical fiber PHY.
  • Page 8 This page intentionally left blank. Introduction...
  • Page 9: Specifications

    10GbE SFP+ Card 2. Specifications 2.1. Interface Input Up to four 10GBASE-KR & related sideband signals from COM Express Type7 module through 164-pin edge connector (PCIe x16 slot PCIEKR on Express-BASE7) Output Up to four 10GbE optical fiber signals (10GBASE-SR, 10GBASE-LR) through SFP+ connectors to connect to SFP+ transceivers Note: Number of 10GbE ports dependent on the selection of PHY, entry level PHY is selected as default to support two 10GbE ports...
  • Page 10: I/O Expander

    2.6. I/O Expander Chip TI PCA9539 I/O Expander Function A two wire I2C bus (designated 10G_LED_SDA and 10G_LED_SCL on COM Express Type 7 module) is defined to serialize the outbound (module - to-carrier) MAC LED. The PCA9539 is mapped to I2C address 1110 100x (x=R/W bit). The table below defines the port pin mapping for the I/O expander.
  • Page 11: Functional Diagram

    10GbE SFP+ Card 2.7. Functional Diagram Figure 1: 10GbE SFP+ Card Functional Block Diagram Specifications...
  • Page 12: Mechanical Drawing

    2.8. Mechanical Drawing 101.80 85.40 3.40 4.85 All dimensions are shown in millimeters. Tolerances should be ± 0.25mm, unless otherwise noted. The tolerances of the holes (dimensions [0, 0] and [0, 85.40]) should be ± 0.10mm. Figure 2: 10GbE SFP+ Card Mechanical Drawing Specifications...
  • Page 13: Pinouts And Signal Descriptions

    10GbE SFP+ Card 3. Pinouts and Signal Descriptions 3.1. Input Interface Definitions The SFP+ Card is a COM Express Type 7 compliant 10GbE adapter card that receives 10GBASE-KR and sideband signals from the COM Express Type7 module and converts them to 10GbE optical fiber signals. Table 2: SFP+ Card Pin Definitions Row B Row A...
  • Page 14 Row B Row A Name Name 10G_KR_TX1- 10G_PHY_MDIO_SDA0 10G_PHY_MDC_SCL0 10G_KR_RX0+ 10G_KR_RX0- 10G_KR_TX0+ 10G_KR_TX0- 10G_SDP3 10G_SDP2 10G_PHY_CAP_23 10G_SDP1 10G_PHY_CAP_01 10G_SDP0 Note: Four 10GbE ports is supported by project basis Pinouts and Signal Descriptions...
  • Page 15: Module Interfaces And Configuration

    10GbE SFP+ Card 4. Module Interfaces and Configuration This chapter describes connectors and pinouts, LEDs and switches that are used on the 10GbE adapter card. 4.1. Connector, Switch and LED Locations Reserved Connector SFP+ Cage Reserved LEDs 10GbE Status LEDs Figure 3: 10GbE SFP+ Card Connector and LED Locations Note: See 4.4 LED Indicators for detailed 10GbE port status LED information.
  • Page 16: 10Gbe Adapter Card Installation

    4.2. 10GbE Adapter Card Installation Below is an example of a 10GbE adapter card installed on the Express-BASE7 carrier board with a Type 7 COM Express Module (or illustration purposes only). COM Express Type 7 module Express-BASE7 10GbE adapter card PCIe x16 slot (PCIEKR) dedicated for 10GbE adapter card Figure 4: 10GbE Adapter Card Installed on Express-BASE7 with Type 7 COM Express Module Module Interfaces and Configuration...
  • Page 17: Sfp+ Cage And Connector

    10GbE SFP+ Card 4.3. SFP+ Cage and Connector SFP+ Cage: 1x2 SFP+ Cage (R-SH-008040-6-F-19, All Best Electronics) SFP+ Connector: SFP+ connector inside the SFP+ cage (R-SS-008020-9-N-F29, All Best Electronics) List of Tables...
  • Page 18: Led Indicators

    4.4. LED Indicators There are two status LEDs for each 10GbE SFP+ port (link and activity). Reserved LEDs Link (yellow) Port 3 Activity (green) Link (yellow) Port 2 Activity (green) Link (yellow) Port 1 Activity (green) Link (yellow) Port 0 Activity (green) Name Color...
  • Page 19: Getting Service
