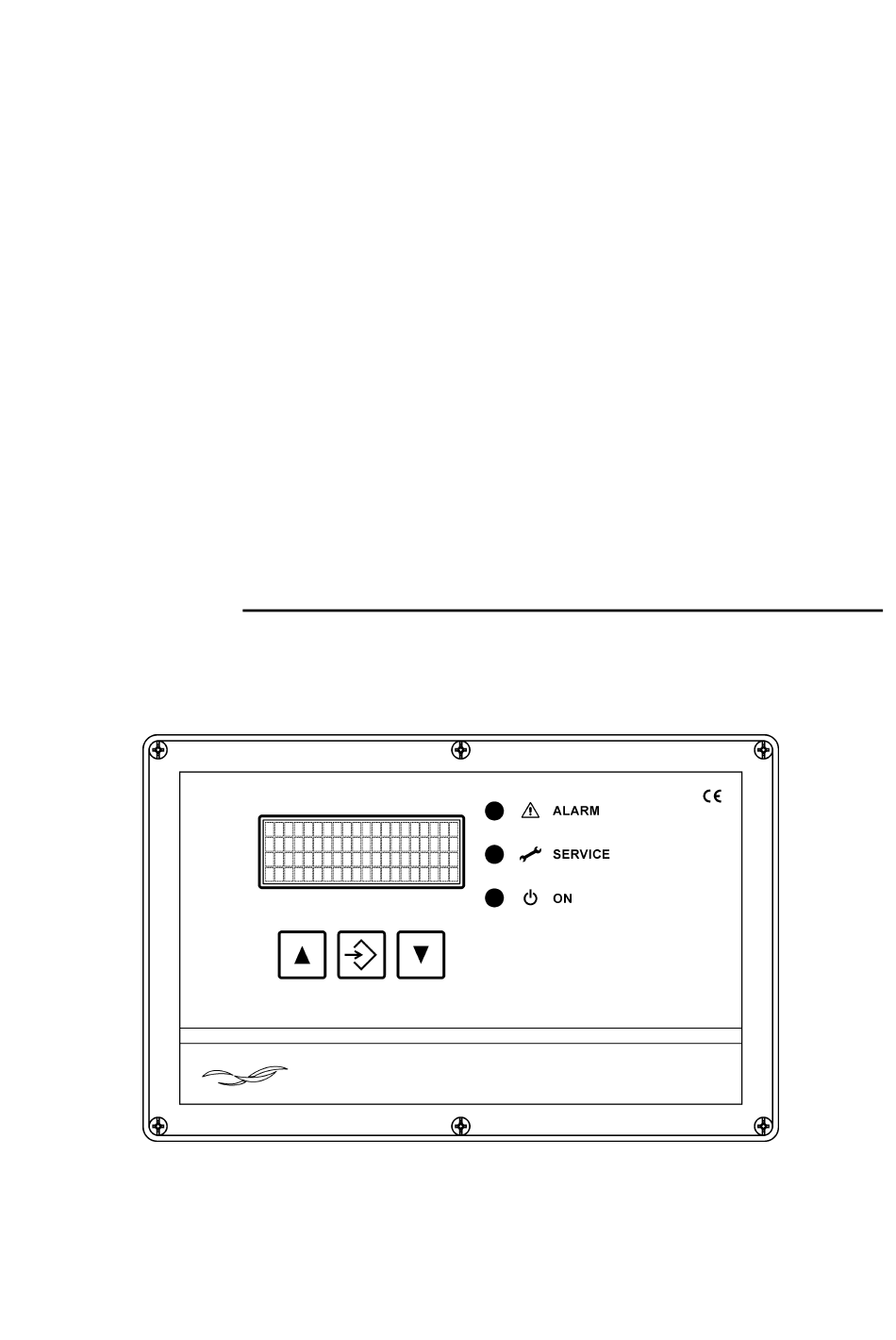

  • Page 1 Operating and installation instructions R-IMC-BUS Filter control systems RM-310 C RM-310 CT RM-310 C Plug and Play RM-310 CT Plug and Play...

  • Page 2: Table Of Contents

    Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play Contents 1 Safety instructions ............................. 3 2 Device descriptions ............................ 4 3 Assembly ..............................7  -  4 Installation ............................9 5 Setting procedure ............................

  • Page 3: Safety Instructions

    Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play 1 Safety instructions The filter controls RM-310 C / RM-310 CT or RM-310 C Plug and Play / RM-310 CT Plug and Play carry hazardous electrical voltage when connected to the mains. Improper installation of the connected electrical equipment may cause device failure, serious or even fatal injuries.

  • Page 4: Device Descriptions

    The following diagram shows the general layout of an R-IMC bus controller environment with the controller RM-310 C / RM-310 CT and the I/O modules RM-V 8 and RM-V 16 provided for this controller type for use as a pulse filter.
  • Page 5 The controller types RM-310 C Plug and Play / RM-310 CT Plug and Play differ from the types RM-310 C / RM-310 CT in that the prefabricated cables from RECO are used to connect the I/O modules. This means that the time required for electrical installation is considerably less. The RM-V 6 I/O modules intended for this plug-and-play system are available with 6 (RM-V 6/6), 5 (RM-V 6/5), 4 (RM-V 6/4) or 3 (RM-V 6/3) valves.
  • Page 6 Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play Comparison of controller types Controller type Plug-and-play I/O module types With a Δp sensor on system* the controller board RM-310 C –...

  • Page 7: Assembly

    Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play 3 Assembly RM-310 C RM-310 CT RDN 10001104 14.07.2020...
  • Page 8 Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play RM-310 C Plug and Play RM-310 CT Plug and Play RDN 10001104 14.07.2020...

  • Page 9: Installation

    Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play  -  4 Installation RDN 10001104 14.07.2020...
  • Page 10 Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play  Power supply  Connection of the I/O modules RM-V8 / RM-V16 to the controller types RM-310 C / RM-310 CT The prefabricated cables from RECO are...
  • Page 11 Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play  4-20mA input / 4-20mA output / 0-10V output The function depends on the position of the jumpers JP 401 and JP 402 ...
  • Page 12 Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play  Relay outputs A1 ... A4 connection, potential-free Output Factory-set function The relay contact closes as soon as the supply voltage is applied to RM-310 C / RM-310 CT. It opens any time an alarm is present (Group Alarm).
  • Page 13 Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play  Differential pressure measurement cables (only types RM-310 CT and RM-310 CT Plug and Play) RDN 10001104 14.07.2020...

  • Page 14: Setting Procedure

    Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play 5 Setting procedure 5.1 Function in "as delivered" condition The following parameters must be set before operating the RM-310 C / RM-310 CT:...

  • Page 15: Parameter Selection Level

    Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play "ALARM" LED Lights when an alarm is present "SERVICE" LED Lights when the filter requires maintenance. "ON" LED Lights when the device is in operation...
  • Page 16 Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play Parameter block C0, activated Display Meaning Parameter block C0 "Service operating hours" C0 Ser.ope.hours 1 act.w/o mess. The group is active (activated without message)

  • Page 17: Parameter Setting Level

    Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play 5.4 Parameter setting level To change the value of a selected parameter or to activate and deactivate or fade in or fade out a parame- ter block the user must switch from the parameter selection level to the parameter setting level.

  • Page 18: Short Guide For Parameter Setting

    Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play 5.7 Short guide for parameter setting The ON LED indicates the current level of LED lights Operating level the device. LED off...

  • Page 19: Overview Of Menu Navigation

    Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play 5.8 Overview of menu navigation RDN 10001104 14.07.2020...
  • Page 20 Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play RDN 10001104 14.07.2020...
  • Page 21 Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play RDN 10001104 14.07.2020...
  • Page 22 Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play RDN 10001104 14.07.2020...

  • Page 23: Parameter List

    Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play 5.9 Parameter list Factory Text in display, line 1 Meaning setting Setting range B0 Disp.language — Language of the display text 0 … 2 25 Parameter block C0-C3 "Service operating hours counter"...
  • Page 24 Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play Factory Text in display, line 1 Meaning setting Setting range Parameter block E0-EC “Cleaning control functions” E0 Clean control Cleaning control functions …...

  • Page 25: Parameter Description And Explanation Of Function

    Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play 5.10 Parameter description and explanation of function Parameter B0 “Display language” The display texts can be shown in different national languages. The text output is in German when the system is delivered.
  • Page 26 Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play Parameter block D0-D8 “Δp-controls“ Parameter D0 “Δp-controls“ Parameters D1-D8 can be faded in or out with parameter D0. Parameter D0 is factory-set to 1. The "Δp control"...
  • Page 27 Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play Parameter D3 “Sensor alarm” The RM-310 CT indicates a sensor alarm when the sensor 1 is faulty or the measuring hoses on the sen- sor 1 are connected incorrectly.
  • Page 28 Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play Parameter block E0-E8 “Cleaning control functions” Parameter E0 “Cleaning control functions” Cleaning control functions can be activated or deactivated with parameter E0. The parameter value is factory- set to 0 (= active).
  • Page 29 Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play Parameter group J0-J5 see appendix 1 "Cleaning monitoring" Parameter groups F0-F8, G0-G8, T0-T6 and U0-U1 see appendix 7 "Input and output signal parametrisation, special parameters"...

  • Page 30: Operating Modes

    Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play 6 Operating modes 6.1 Time-controlled cleaning (parameter E1, E5, D1) Cleaning takes place continuously with the control times E1, E5 set. Interval 2 (E3) becomes active only in the event of downtime.

  • Page 31: Troubleshooting

    Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play 7 Troubleshooting Fault Possible causes Recommended action The “ON” LED does not light No mains voltage Check the power supply Fuse in device defective...
  • Page 32 Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play Fault Possible causes Recommended action On the display, the message The valve setting of the I/O mod- Check the EA parameter setting „RM-VXX alarm setting"...

  • Page 33: Text Messages On The Display

    Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play 8 Text messages on the display In the operating mode of the filter control RM-310 C / RM-310 CT the following operating messages are either displayed directly or they can be retrieved in sequence by pressing the ...
  • Page 34 Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play Display Meaning Row 1 The input "Cleaning on" carries 1-signal at factory setting. Ext.cleaning on The function of the inputs can be individually set via parameter group F0- F8.

  • Page 35: Operating Messages 2 To 4

    Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play 8.3 Operating messages 2 to 4 Operating messages 2 to 4 are the currently valid parameter values. The effective differential pressure is displayed only when parameter D0 "Δp control"...

  • Page 36: Service And Alarm Messages

    Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play 8.5 Service and alarm messages The service and alarm messages are shown in the first row. If several messages are present, the other messages can be retrieved in sequence by pressing the ...
  • Page 37 Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play Display Meaning Cleaning Alarm Row 1 Cleaning Alarm Valve current Row 2 No valve current present or No pressure Row 2 cleaning pressure too low or...

  • Page 38: Glossary

    Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play 9 Glossary Term Meaning Acknowledge alarm Clearing a stored alarm message. Cleaning Cleaning the filter elements with compressed air pulses Cleaning Alarm Alarm triggered in case of faulty cleaning.
  • Page 39 Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play Term Meaning Parameterisation mode State of the RM-310 C / RM-310 CT in which the operator can parametrise the device (the RM-310 C / RM-310 CT is at the parameter selection or pa- rameter setting level).

  • Page 40: Technical Specifications

    Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play 10 Technical specifications Item Data Supply voltages Device version 100 V … 240 V AC: 100 V … 240 V AC 50/60 Hz...
  • Page 41 Documentation RM-310 C / RM-310 CT / RM-310 C Plug and Play / RM-310 CT Plug and Play Item Data Signal inputs, analog 1 input 4-20 mA, 4-20 mA 0 ... X Pa, burden 250 Ω Electrical connections Screw terminals...
