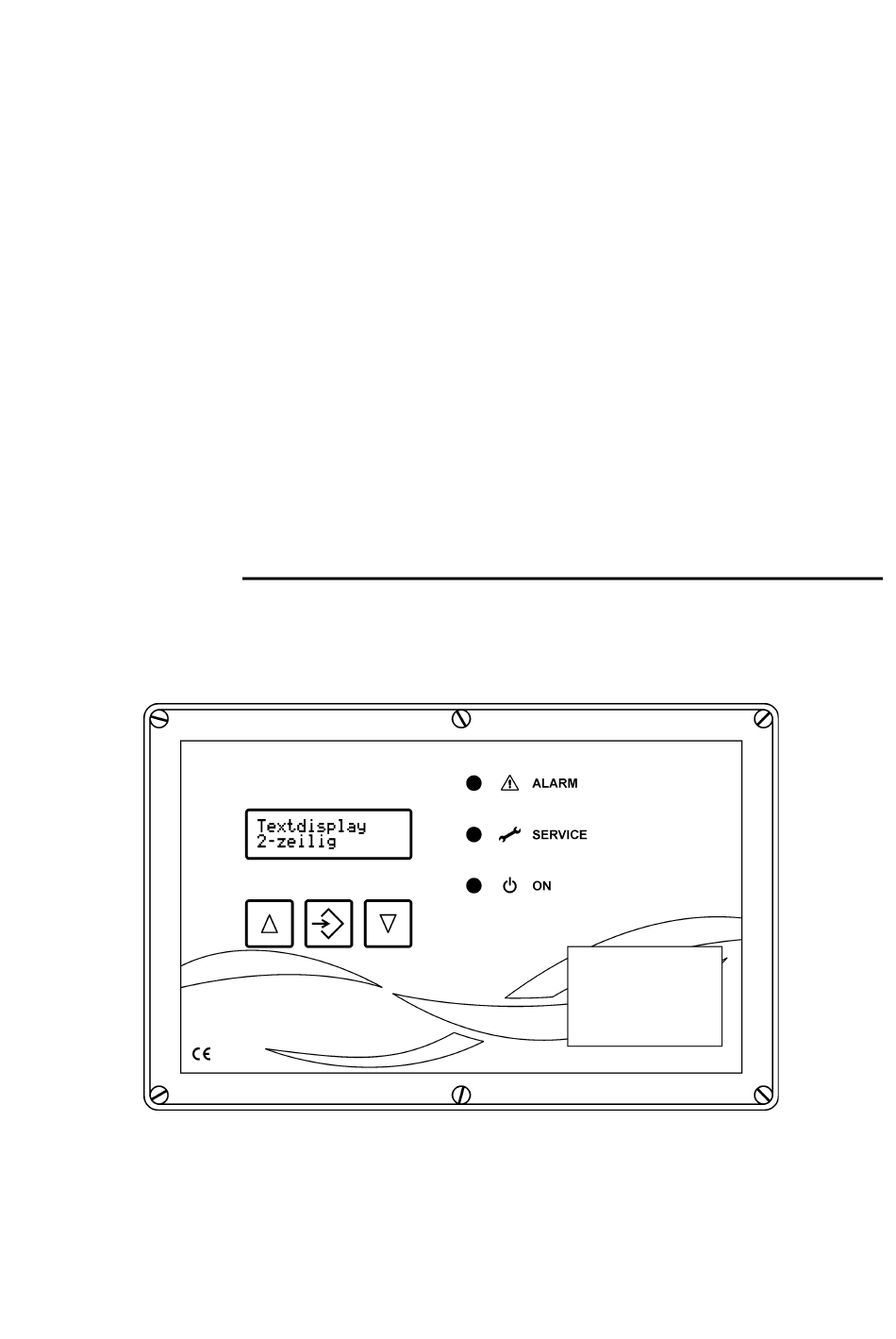

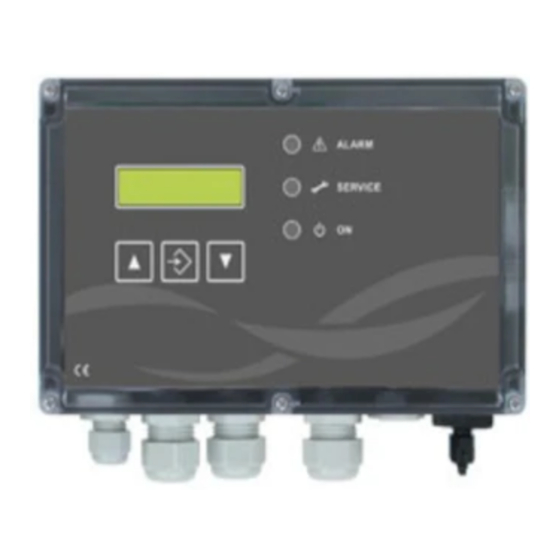

- Page 1 Operating and Installation Instructions Filter control system RM-216 CB.11 EasyLine...
-
Page 2: Table Of Contents
RM-216 CB.11 Easy Line Documentation Table of Contents 1 Safety instructions ........................... 3 2 Equipment specification .......................... 3 3 Assembly ..............................4 4 “Step by step” installation ........................4 5 “Step by step” settings ..........................7 5.1 Function when shipped ........................7 5.2 Setting parameters ........................ -
Page 3: Safety Instructions
RM-216 CB.11 Easy Line Documentation 1 Safety instructions The filter control system RM-216 C when connected to the mains poses an electrical hazard. Device failure, serious or even fatal injuries may occur as a result of improper installation of the connected equipment. -
Page 4: Assembly
RM-216 CB.11 Easy Line Documentation 3 Assembly Wall-mounting of the filter controls is not permitted! The device may only be mounted to machine parts. 4 “Step by step” installation Supply voltage connection A UL class 2 power supply unit is recommended for the operation of the filter controller with extra low voltage. - Page 5 RM-216 CB.11 Easy Line Documentation Solenoid valve connection Connection of expansion modules RM-LV8 / RM-LV16 RDN 10000796 15.12.2014...
- Page 6 RM-216 CB.11 Easy Line Documentation Other connections A device (switch, power circuit breaker) must be located in the proximity of the filter controller RM-216 C, which enables the disconnection of all poles of the device from the mains voltage / supply voltage. The device (switch, power circuit breaker) has to be easy accessible for the user and to be marked as disconnecting device for the equipment.
-
Page 7: "Step By Step" Settings
RM-216 CB.11 Easy Line Documentation 5 “Step by step” settings 5.1 Function when shipped The down time cleaning input E1, E2 (terminals 10, 11) is bridged at the factory. Once the supply voltage is at RM-216 CB, the solenoid valves are controlled consecutively in sequence. The filter control system automatically detects how many valves are connected. - Page 8 RM-216 CB.11 Easy Line Documentation RDN 10000796 15.12.2014...
-
Page 9: Parameter List
RM-216 CB.11 Easy Line Documentation 5.3 Parameter list Text on the display Explanation Factory settings Setting range P01 Pulse time Pulse time 60 ms 15 ... 2500 ms Interval Pause time 10 s 1 ... 500 s P03 DT interval Down time interval time 1 ...100 s P04 tot Valve no Total no. -
Page 10: Operating Modes
RM-216 CB.11 Easy Line Documentation 6 Operating modes 6.1 Test mode In test mode, the most important functions in the control sequence are checked and shown on the text display. To start test mode, call up parameter no. P08 “Test mode” (see section 5.2 for more information) and select one of the following test modes: Test mode 1 (Valve test) Each valve connected is activated in sequence and shown in the text display. -
Page 11: Troubleshooting
RM-216 CB.11 Easy Line Documentation 7 Troubleshooting Error Possible causes Recommended action The “ON” LED is not lit and input No mains voltage Check power feed E1, E2 is bridged. Device fuse is defective Replace fuse EMERGENCY STOP Check EMERGENCY STOP activated No valve activity No control system release... -
Page 12: Instructions For The Replacement Of The Device Fuse
RM-216 CB.11 Easy Line Documentation 7.1 Instructions for the replacement of the device fuse Switch off the supply voltage of the device at the in-line fuse element or main switch and take precautions against reactivation. Check whether main supply line carries no voltage. ... -
Page 13: Manufacturing
RM-216 CB.11 Easy Line Documentation 7.3 Manufacturing The filter control system RM-216 CB was manufactured by: RECO Gesellschaft für Industriefilterregelung mbH Junkersring 11 D-53844 Troisdorf Germany +49 (0) 2241 39704-0 for: Norbert Heinrich Automatisierungstechnik Feldstraße 16 32549 Bad Oeynhausen Germany Tel.: +49 (0) -
Page 14: Text Messages On The Display
RM-216 CB.11 Easy Line Documentation 8 Text messages on the display Display Explanation Reset status and text version Reset RM204VXX The text message is displayed for approx. 1 second after the voltage is switched on. Controller is not enabled through inputs I1 and I2. Stand By Val.No The control has been enabled via input E1, E2 and stopped via input D1,... -
Page 15: Details On The Equipment Function
RM-216 CB.11 Easy Line Documentation 9 Details on the equipment function Cleaning Cleaning starts at the first valve. If the cleaning is interrupted via the starstop input D1, D2, the control sequence is continued at the next cleaning procedure. The cleaning then starts at the valve following the last valve activated. -
Page 16: Glossary
RM-216 CB.11 Easy Line Documentation 10 Glossary Term Explanation Cleaning Cleaning the filter elements using compressed air pulses. Compressed air pulse Cleaning of the filter elements using compressed air pulses cleaning Down time cleaning Cleaning the filter elements after the system is shut down for a set duration or number of cycles. -
Page 17: Technical Specifications
RM-216 CB.11 Easy Line Documentation 11 Technical specifications Application Data Supply voltages 230 V AC ±10% 50-60 Hz 110 V ... 120 V AC ±10% 50-60 Hz Power consumption: max. 53 VA Back-up fuse: max. 4 A 26 V … 28 V DC Power consumption: max. - Page 18 RM-216 CB.11 Easy Line Documentation Disclaimer The contents of this documentation has been verified for correctness and completeness. Nevertheless, errors can not be excluded so that we cannot guarantee the correctness of this information. Subject to alterations at any time. RDN 10000796 15.12.2014...
