RECO EasyLine RM-216 CB.10 Operating And Installation Instructions

Filter control system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Operating and Installation Instructions
Filter control system
RM-216 CB
EasyLine

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EasyLine RM-216 CB.10 and is the answer not in the manual?

Questions and answers

Related Manuals for RECO EasyLine RM-216 CB.10

Summary of Contents for RECO EasyLine RM-216 CB.10

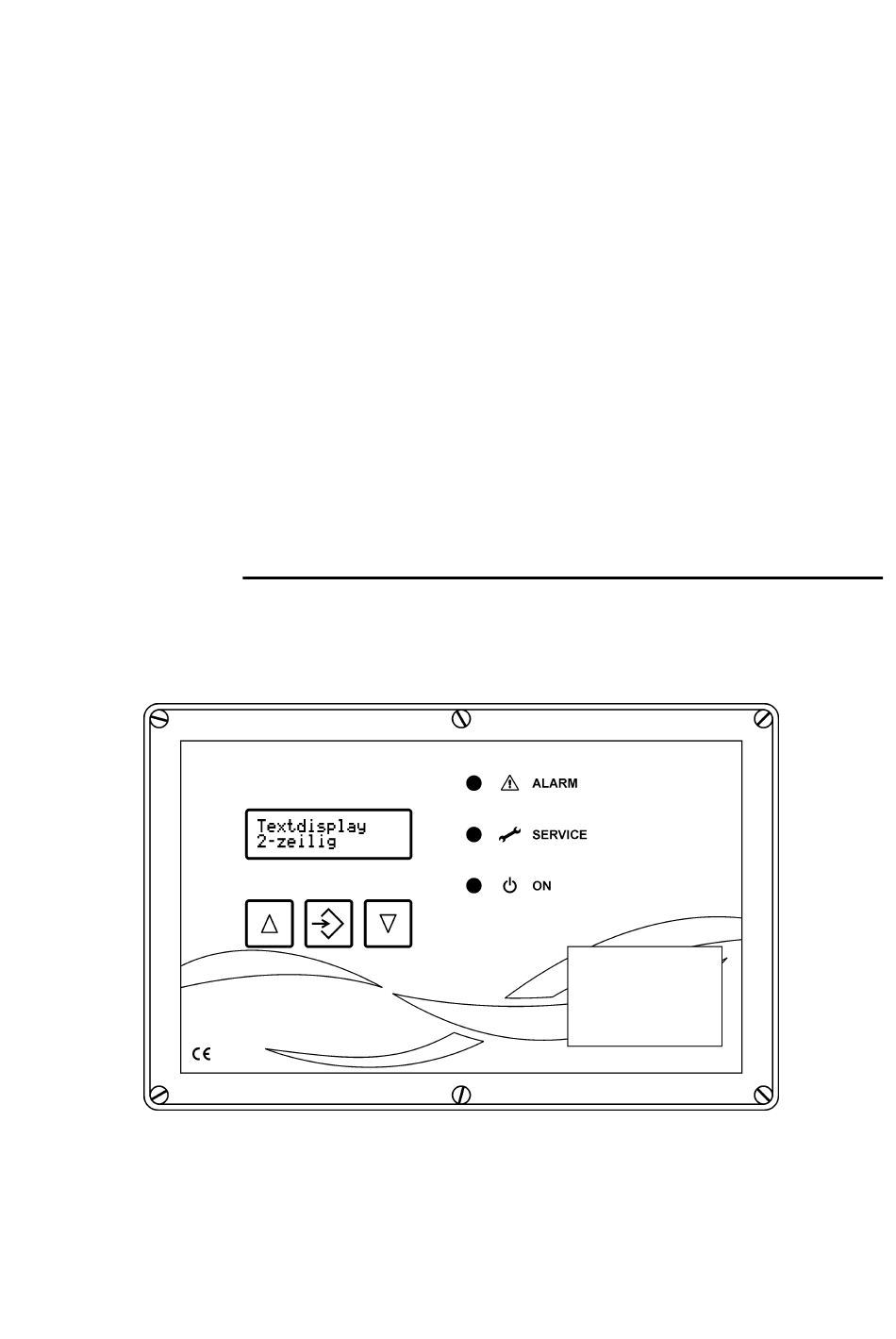

  • Page 1 Operating and Installation Instructions Filter control system RM-216 CB EasyLine...

  • Page 2: Table Of Contents

    RM-216 CB.10 Easy Line Documentation Table of Contents 1 Safety instructions ............................. 3 2 Equipment specification ..........................3 3 Assembly ..............................4 4 “Step by step” installation .......................... 4 5 “Step by step” settings ..........................7 5.1 Function when shipped ........................7 5.2 Setting parameters ..........................

  • Page 3: Safety Instructions

    RM-216 CB.10 Easy Line Documentation 1 Safety instructions The filter control system RM-216 CB when connected to the mains poses an electrical hazard. Device failure, serious or even fatal injuries may occur as a result of improper installation of the connected equipment.

  • Page 4: Assembly

    RM-216 CB.10 Easy Line Documentation 3 Assembly 4 “Step by step” installation  Supply voltage connection A separate power supply unit is recommended for the operation of the filter controller with extra low voltage. The unit can be operated with a supply voltage of 24 V DC, if no expansion modules are connected and if the electric cables to the solenoid valves are shorter than 3 meters long.
  • Page 5 RM-216 CB.10 Easy Line Documentation  Solenoid valve connection  Connection of expansion modules RM-LV8 / RM-LV16  Use shielded cable for all bus lines! The shielding must be connected unilaterally to the protective earthing (PE).  Signal cables must not be laid parallel to power cables. ...
  • Page 6 RM-216 CB.10 Easy Line Documentation  Other connections RDN 10000088 07.07.2016...

  • Page 7: "Step By Step" Settings

    RM-216 CB.10 Easy Line Documentation 5 “Step by step” settings 5.1 Function when shipped The down time cleaning input E1, E2 (terminals 10, 11) is bridged at the factory. Once the supply voltage is at RM-216 CB, the solenoid valves are controlled consecutively in sequence. The filter control system automatically detects how many valves are connected.
  • Page 8 RM-216 CB.10 Easy Line Documentation RDN 10000088 07.07.2016...

  • Page 9: Parameter List

    RM-216 CB.10 Easy Line Documentation 5.3 Parameter list Text on the display Explanation Factory settings Setting range P01 Pulse time Pulse time 60 ms 15 ... 2500 ms Interval Pause time 10 s 1 ... 500 s P03 DT interval Down time interval time 1 ...100 s P04 tot Valve no Total no.

  • Page 10: Operating Modes

    RM-216 CB.10 Easy Line Documentation 6 Operating modes 6.1 Test mode In test mode, the most important functions in the control sequence are checked and shown on the text display. To start test mode, call up parameter no. P08 “Test mode” (see section 5.2 for more information) and select one of the following test modes: Test mode 1 (Valve test) Each valve connected is activated in sequence and shown in the text display.

  • Page 11: Troubleshooting

    RM-216 CB.10 Easy Line Documentation 7 Troubleshooting Error Possible causes Recommended action The “ON” LED is not lit and input No mains voltage Check power feed E1, E2 is bridged. Device fuse is defective Replace fuse EMERGENCY STOP Check EMERGENCY STOP activated No valve activity No control system release...

  • Page 12: Text Messages On The Display

    RM-216 CB.10 Easy Line Documentation 8 Text messages on the display Display Explanation Reset status and text version Reset RM204VXX The text message is displayed for approx. 1 second after the voltage is switched on. Controller is not enabled through inputs I1 and I2. Stand By Val.No The control has been enabled via input E1, E2 and stopped via input D1,...

  • Page 13: Details On The Equipment Function

    RM-216 CB.10 Easy Line Documentation 9 Details on the equipment function Cleaning Cleaning starts at the first valve. If the cleaning is interrupted via the starstop input D1, D2, the control sequence is continued at the next cleaning procedure. The cleaning then starts at the valve following the last valve activated.

  • Page 14: Glossary

    RM-216 CB.10 Easy Line Documentation 10 Glossary Term Explanation Cleaning Cleaning the filter elements using compressed air pulses. Compressed air pulse Cleaning of the filter elements using compressed air pulses cleaning Down time cleaning Cleaning the filter elements after the system is shut down for a set duration or number of cycles.

  • Page 15: Technical Specifications

    RM-216 CB.10 Easy Line Documentation 11 Technical specifications Application Data Supply voltages 230 V AC ±10% 110 V ... 120 V AC ±10% 26 V … 28 V DC* Signal inputs 24 V DC, operate ensuring isolation Signal output Relay outputs, max. 2 A, 250 V or 1 A, 30 V DC Control outputs for valves For valves with a rated voltage of 24 V DC,...
