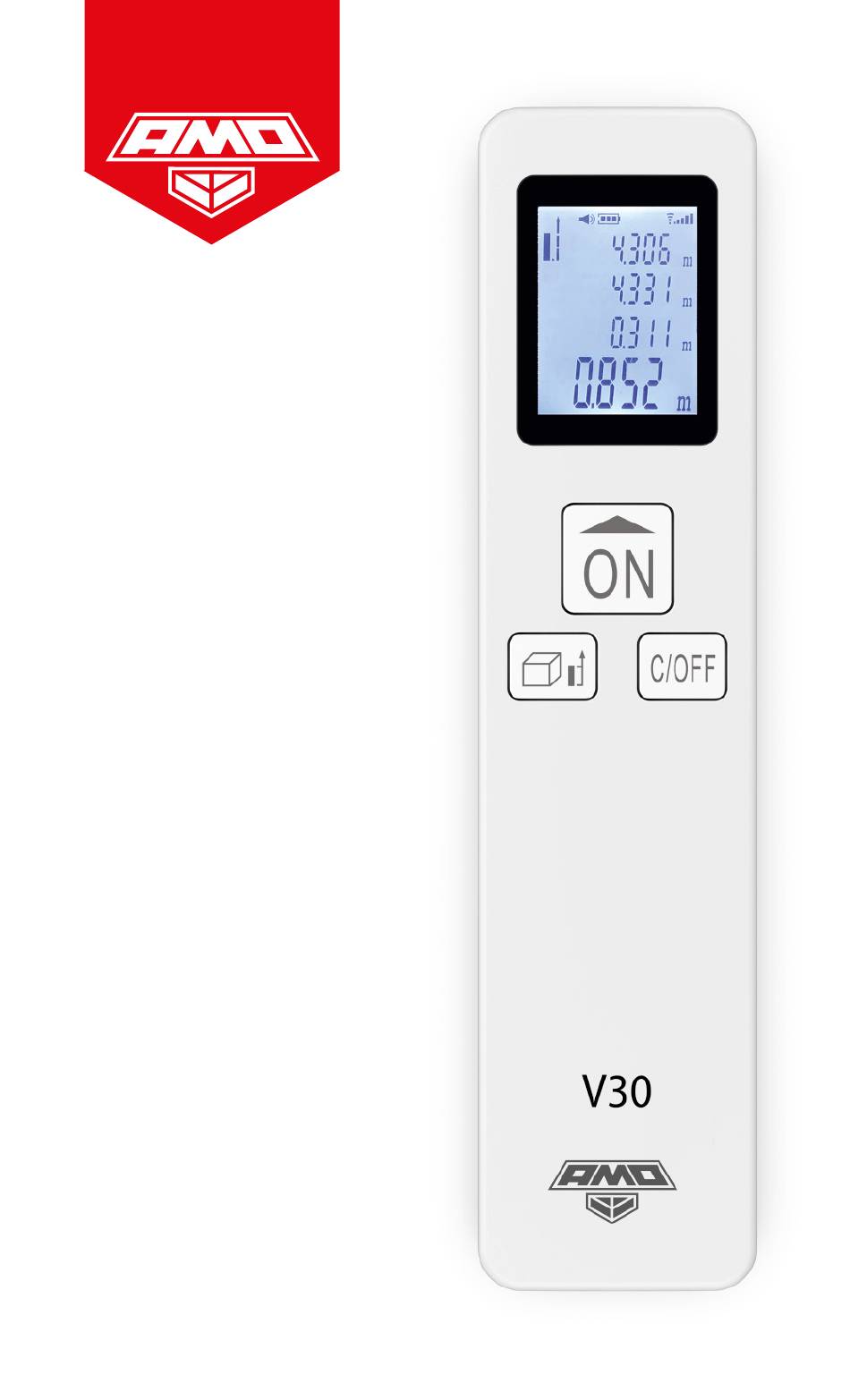

- Page 1 User Manual LASER RANGEFINDER АМО V30...
- Page 3 We recommend that you carefully read this manual before using the device for the first time. Failure to comply with the recommendations given in this manual may cause harm to the health of the user or other people. This product uses Class II laser radiation. It is strictly forbidden to direct the laser beam into your eyes or at people or animals.
- Page 4 1. Display and buttons Sound on Battery indicator Sound off Signal strength Laser on indicator Reference point Auxiliary screen Area/Volume/ Pythagoras Measurements Main screen Turning on the device/ Switching on the Laser/ Measurement/Settings Square/Volume/ Pythagorean measurements/ Changing Clear/ the reference Turn off point...
- Page 5 2. Installing and replacing batteries Open the battery cover, insert two 1.5V AAA batteries. Observe the polarity of the installation. Then close the cover. If you do not use the rangefinder for a long time, remove the batteries to avoid battery leakage and damage to the device.
- Page 6 Turning off. Press button for 1 second to turn off the EDM. The device turns off automatically after 45 seconds of inactivity. Instrument settings. Long (about 5 seconds) pressing of button with the device turned off starts the setup mode (see the figure below). Pressing and holding button again for 1 second switches the settings of different functions of the device.
- Page 7 2. Pressing and holding button for 1 second starts setting the units of measure (ft/inch/meter). Select the required unit of measure by short pressing the button inch meter 3. Pressing and holding button again for 1 second starts the sound setting. Select the mode "mute"...
- Page 8 4. Press button again for 1 second to adjust the display backlight. Select "backlight" or "no backlight" mode by short pressing button Area measurement. Turn on the device, briefly press button , the area measurement mode is started. The screen will display –...
- Page 9 lengths of the sides will be reflected on the sub screen, the resulting area value - below on the main screen. Volume measurement. Press button briefly until icon is displayed on the screen. The device has entered the volume measurement mode. Take three measurements (length, width, height), the device will automatically calculate the volume - similar to the calculation of the area from the previous paragraph of this manual.
- Page 10 On-screen problem messages and how to fix them Message Message Solution meaning B. L Low battery Replace the battery T. L Temperature Use the device only too low within the permissible temperature range. T. H Temperature Use the device only too high within the permissible temperature range.
-
Page 11: Specifications
Specifications Measurement range 0,03-35 m* Accuracy of measurements ± 3 mm Units of measurement meter/ft/inch Measurement time 0.3-4 sec class II, 620 ~ 670 nm, Laser type <1 mW Automatic laser shutdown 15 sec Automatic device shutdown 45 sec Display backlight Changing the measurement reference point Area/Volume Measurement... - Page 12 Made in China...
