- Page 1 QUICK INSTALL 快速安装 北京炜煌科技发展有限公司 Beijing Bright Technology Development Co.,Ltd ...
-
Page 2: Operation Specification

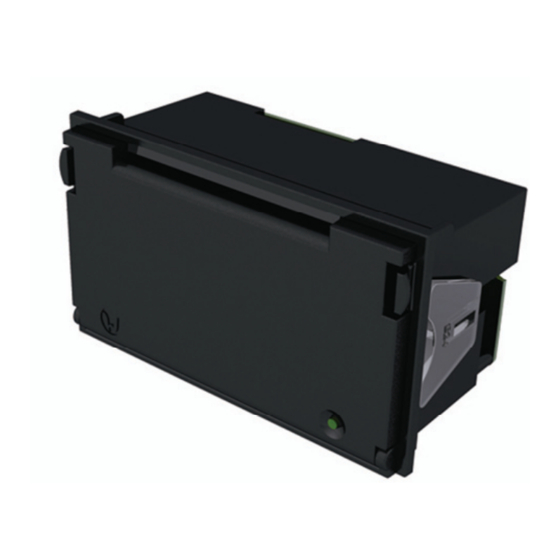

快速安装手册 ●打印机各部件一览 Printer Parts Names 1.色带 Ribbon 6.面板 Panel 2.纸仓 Paper Case 7.数据接口 Interface Connector 3.纸轴 Paper Roller 8.电源接口 Power Connector 4.纸卷 Paper Roll 9.固定架 Holder 5.LF 键/状态指示灯 LF Button/Status Light 按钮开关的操作及指示灯 打印机上电后指示灯保持常亮状态。 正常上电后，LF 键为走纸键，SET 键无效。 自检测方式 打印机断电，按 LF 键不放手同时给打印机上电，松手，打印机就会打印出 自检条。... - Page 3 快速安装手册 ●尺寸 Size WH-E24 型尺寸 Product Size: 外形尺寸：Outline Dimension： 107.4mm×61.4mm×66.2mm 开口尺寸：Installation Dimension：102.4mm（W）×56.4mm（H） 嵌入深度：Inlaid Deepness： 58.2mm http://www.whkj.com.cn 010‐51655555 ...
-
Page 4: Installation Method
快速安装手册 ●安装 Installation 安装方法： 把打印机嵌入部分插入仪器或设备面板的安装孔内，并把塑料卡子从设备面板后面固定, 螺钉从前面穿入并与塑料卡子中的螺母连接拧紧(如图)，左右对称各一套,安装方法相同。 所安装的面板厚度为 0.5～8mm 厚的金属板或塑料板;厚薄不会影响打印机安装的牢固性。 开口尺寸：102.4mm+0.5×56.4mm+0.5 Installation Method Insert the built-in part of printer into the installing orifice of instrument or equipment. As the picture show, fix the fastener onto the printer and tighten the screws in the front of panel. - Page 5 Attention： Do not connect AC to the printer directly, operating voltage should be within ± 5% rated voltage. Power polarity must be correct, otherwise it will cause permanent damage to printer, brightek company do not assume maintenance compulsory upon this.
-
Page 6: Replacing The Paper Roll
快速安装手册 ●装纸 Paper Roll 安装步骤： 1.按图 1 所示,用手指夹住打印机两侧的活动舌头,并打开面板盖。 2.将纸轴装入纸卷,然后装入打印机纸仓内，将纸轴两边固定在卡槽内(如图 2)。 3.接通打印机的电源,并将打印纸送到进纸口，然后按 LF 键使机头转动直至纸走出来，这 时看一下纸是否走歪,再按一下 SEL 键或关上电源。 4.合上纸仓盖即可。 Replacing the Paper Roll 1. As the Fig.1 show, champ the movable handles both side with fingers, and open the panel. 2. Put the new paper on the paper roller, and install the roller firmly on the printer. -
Page 7: Printer Cleaning
快速安装手册 ●色带 Ribbon 色带更换： 1．翻开纸仓盖，接着如图 2 箭头指示方向抽出打印机。 2．从打印机头上轻轻取下旧色带盒。注意:请先抬起色带盒的左端,然后再抬起色带盒的 右端,取下色带盒。 3．换新的色带盒。首先将色带盒的右端轻轻放在机头右端的齿轮轴上,左端稍微抬起,不 要放下。如色带盒右端未落到底,请按住色带盒上的旋钮,顺时针方向稍微转动一下,直 到色带盒的右端落到底后再放下色带盒的左端。 4．推回机体，并关上纸仓盖即可。 Printer Cleaning 1. Open the paper cover, and draw out the printer follow the arrow as shown in the Fig2. 2. Take down the old ribbon cassette, notice: lift up the left end of the ribbon cassette, then lift up the right end, and then take down the ribbon cassette. - Page 8 ●产品规格一览表 Product Specification 项目 ITEMS 规格 SPECIFICATION 打印方式 Printing method 针式打印 Dot matrix printing method 纸宽 Paper width 44mm/57mm 打印宽度 Print width 32mm/48mm 分辨率 resolution ration 96 dots/line / 144 dots/line / 240 dots/line 每行字符数 Character per line 16/24/40 打印速度...
