Summary of Contents for Svan SVMW700

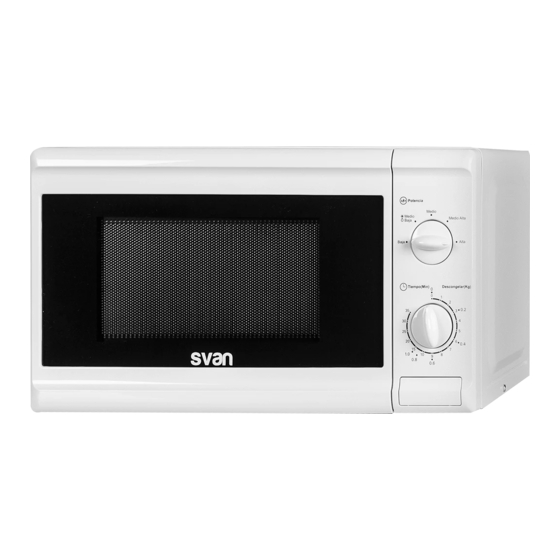

- Page 1 SERVICE MANUAL SVMW700...
- Page 15 Normal: Approx.10~30K Ω Measure the resistance. TIMER MOTOR Ω Abnormal: ∞ or several (Ohm-meter scale: R x 1000) (Wire leads removed) Note: A is TIME S/W and microwave ON/OFF TIME...
- Page 17 (TROUBLE 1) Oven lamp does not turn on when the timer is set with door closed. CONDITION CHECK RESULT CAUSE REMEDY Malfunction of the Replace fuse, Check continuity 1. Fuse blows. Continuity. monitor switch. primary, monitor of monitor and secondary switch (with switches.
- Page 18 CONDITION CHECK RESULT CAUSE REMEDY No continuity. Check the Malfunction of the replace. continuity of the timer switch. timer switch contacts. Check the continuity of the No continuity. Faulty thermostat. replace. thermostat. (TROUBLE 3) Grill. CONDITION CHECK RESULT CAUSE REMEDY 1.
- Page 19 (TROUBLE 4) Oven does not cook at all even though turntable rotates. CONDITION CHECK RESULT CAUSE REMEDY No microwave Replace the power Malfunction of the No continuity. Check the oscillation. control switch. power control power control switch. switch(cooking state). Continuity. Check the Abnormal or burn Defective monitor...
