TP-Link Tapo Smart C720 Quick Start Manual

Quick Start Guide

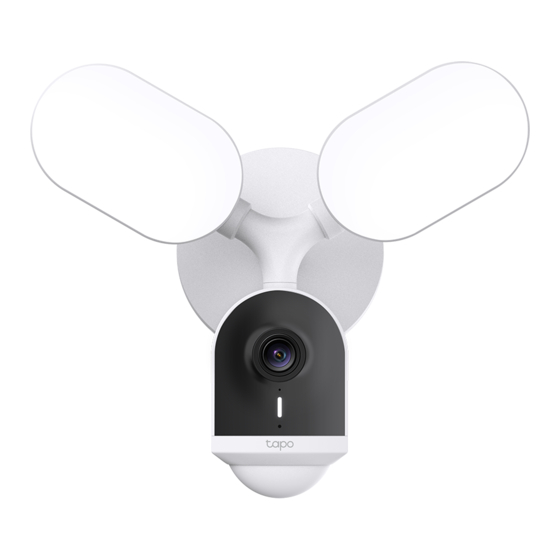

Tapo Smart Floodlight Camera
*Images may differ from actual products.
©2022 TP-Link 7106509785 REV1.0.0
01

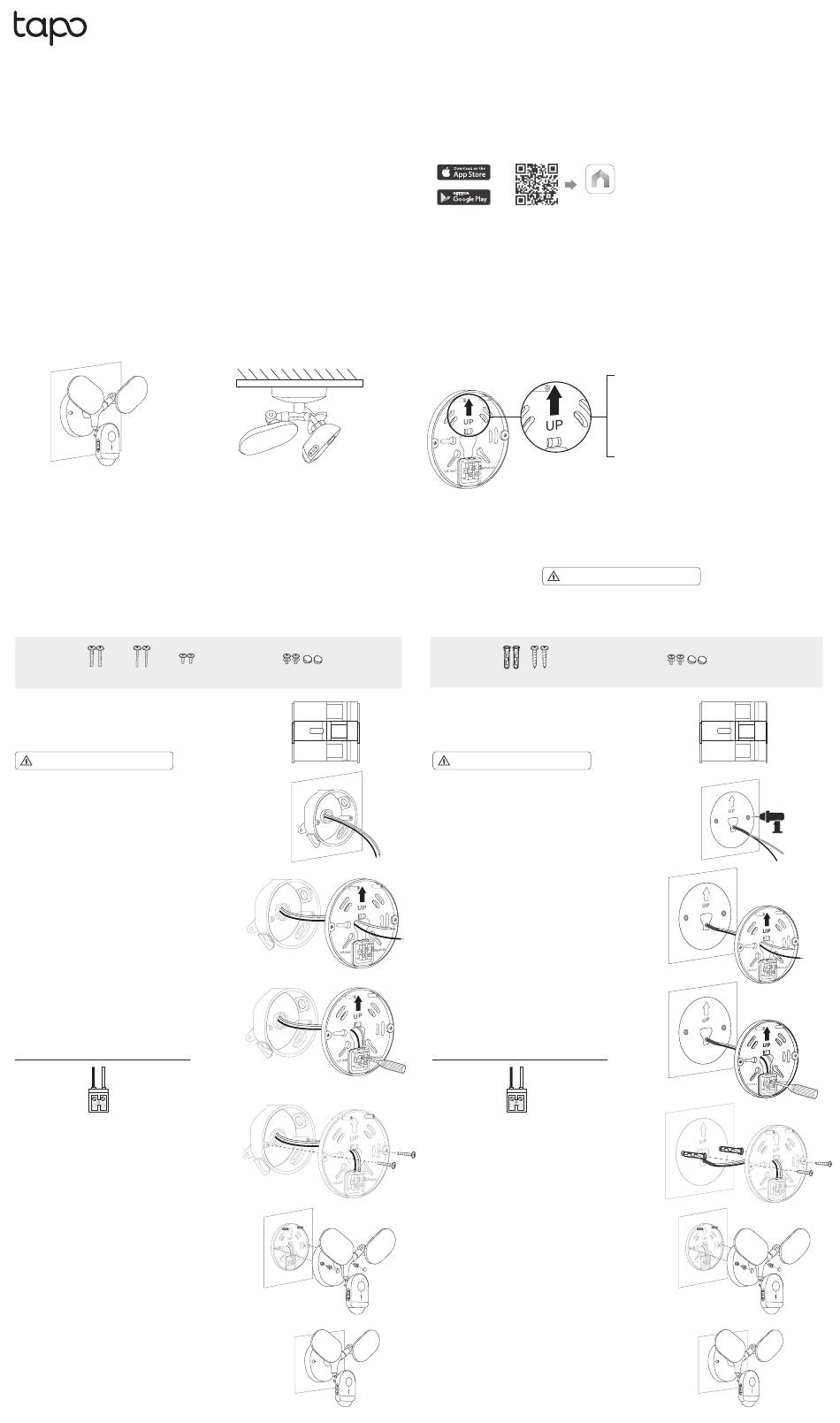

/ Mounting Options
You can mount your Tapo floodlight camera vertically on a wall or overhang under an eave. Make sure the area has a strong Wi-Fi signal.
Wall Mount
02
/ Connect Wires and Install Floodlight Camera
*Wire colors vary by region. If you are unfamiliar with basic electrical wiring, please consult a licensed electrician.
Option 1: Install on an existing junction box
The floodlight camera can be mounted on a junction box on a wall or under an eave.
Type A Type B Type C
Screws ×2 (Choose based on your junction box)
1
Turn off the circuit breaker. Make sure the power
is off by turning your light on and off a few times.
Take care to avoid electric shocks.
2
Remove the existing floodlight camera and
disconnect wires from the junction box.
3
Route the wires through the bracket.
4
Connect the Neutral wire (usually white/blue)
and the Line wire (usually black/brown/red) to
the bracket. Secure the wires with a screwdriver.
Note: To identify wire colors, you can refer to
https://www.tp-link.com/support/faq/3474/
L (Line) N (Neutral)
5
Attach the bracket to the junction box with
screws.
6
Align the mounting posts on the bracket with
the holes on the floodlight camera.
Secure the floodlight camera to the bracket
with screws and insert the screw caps into the
screw holes.
7
Adjust the camera and light position to the
desired angles.
8
Turn on the circuit breaker.
OR
Eave Mount
Screws ×2 + Screw Caps ×2
OFF
Before You Start
WARNING: Risk of Electric Shocks
• Disconnect power at the fuse or circuit breaker before installing.
• Verify that the power supply voltage is correct. Connect fixture to a 110-240 VAC
50/60 Hz power source.
• Always follow code standards when installing wired connections.
• Install only on a UL-listed junction box or on a wall with a Neutral wire and a Line wire.
• An all-pole mains switch shall be incorporated in the electrical installation of the
building. And the contact separation of the switch shall not be less than 3 mm.
• You can always find detailed wiring and mounting instructions in the Tapo app.
OR
If you are unfamiliar with basic electrical wiring, please consult a licensed electrician.
NOTICE
• Do not install near combustible or flammable surfaces.
• Do not connect this light fixture to a dimmer switch or timer.
Take care to avoid electric shocks.
Option 2: Install with existing electrical wires
Install where the Neutral wire and Line wire are available.
Wall Anchors ×2 + Self-tapping Screws ×2
1
Turn off the circuit breaker. Make sure the power
is off by turning your light on and off a few times.
Take care to avoid electric shocks.
2
Route the wires through the mounting
template and place the template. Drill two
holes where indicated.
3
Route the wires through the bracket.
4
Connect the Neutral wire (usually white/blue)
and the Line wire (usually black/brown/red) to
the bracket. Secure the wires with a screwdriver.
Note: To identify wire colors, you can refer to
https://www.tp-link.com/support/faq/3474/
L (Line) N (Neutral)
5
Use the screws to affix the bracket
over the anchors.
6
Align the mounting posts on the bracket with
the holes on the floodlight camera.
Secure the floodlight camera to the bracket
with screws and insert the screw caps into the
screw holes.
7
Adjust the camera and light position to the
desired angles.
8
Turn on the circuit breaker.
Tapo
For Wall Mount
Ensure the UP arrow on the
bracket points up.
*To install horizontally, adjust the bracket to ensure
the air bubble in the level is centered.
For Eave Mount
Point the UP arrow on the bracket
towards your house.
Screws ×2 + Screw Caps ×2
OFF
