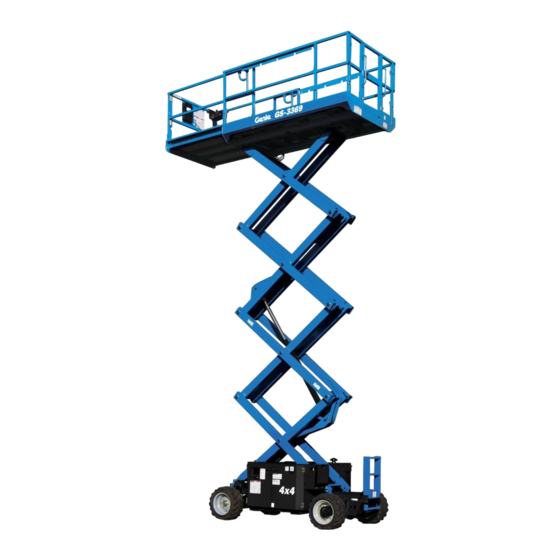

Operator's Manual Supplement
Lift Tools™ Material Carrier
GS
-2669
™
GS
-3369
™
GS
-3384
™
GS
-3390
™
GS
-4069
™
GS
-4390
™
GS
-5390
™
ANSI/CSA Models
from GS6914-3662
from GS6914-5000
from GS69F-10500
from GS84-40000
from GS90-40001
Original Instructions
First Edition
Third Printing
Part No. 1288240GT
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Terex Genie Lift Tools GS-2669
Summary of Contents for Terex Genie Lift Tools GS-2669
- Page 1 Operator's Manual Supplement Lift Tools™ Material Carrier -2669 ™ from GS6914-3662 from GS6914-5000 from GS69F-10500 -3369 ™ from GS84-40000 from GS90-40001 -3384 ™ -3390 ™ -4069 ™ -4390 ™ -5390 ™ ANSI/CSA Models Original Instructions First Edition Third Printing Part No. 1288240GT...
- Page 2 Copyright © 2021 by Terex Corporation First Edition: Third Printing, July 2021 Genie is a registered trademark of Terex South Dakota, Inc. in the U.S.A. and many other countries. “GS” is a trademark of Terex South Dakota, Inc. These machines comply with ANSI/SAIA A92.20...
-
Page 3: Symbol And Hazard Pictorials Definitions
First Edition • Third Printing Operator's Manual Supplement Introduction Symbol and Hazard Pictorials Definitions Material Carrier weighs 80 lbs/36 kg. Danger Read the supplement manual, Failure to obey the instructions and part number 1288240GT. safety rules in this manual will result in death or serious injury. -
Page 4: Pre-Operation Inspection
First Edition • Third Printing Operator's Manual Supplement Introduction Pre-operation Inspection Be sure that the operator’s, safety manual, responsibilities manual and any necessary supplements are complete, legible and in the storage container located in the platform. Be sure that all decals are legible and in place. ... -
Page 5: Installation Instructions
First Edition • Third Printing Operator's Manual Supplement Installation Instructions Installation Instructions Tools Required: 3/8 inch wrench 7/16 inch wrench 9/16 inch wrench 3/4 inch wrench Observe and Obey: 3/8 inch socket This procedure shall be completed by a 7/16 inch socket person authorized to install the Material Carrier. - Page 6 First Edition • Third Printing Operator's Manual Supplement Installation Instructions Note: Perform this procedure on a firm, level Insert the material carrier post assemblies into surface with the machine in the stowed position. the rail attachments. Genie part number 1289762GT. Note: Refer to the illustrations for the material carrier mounting locations.
- Page 7 First Edition • Third Printing Operator's Manual Supplement Installation Instructions Deck Retracted 4 main deck 1 material carrier 5 extension deck 2 U-bolt and nylock flange nut 3 swing gate ™ Part No. 1288240GT Lift Tools Material Carrier...
- Page 8 First Edition • Third Printing Operator's Manual Supplement Installation Instructions Deck Extended 1 material carrier 2 U-bolt and nylock flange nut 3 swing gate 4 main deck 5 extension deck ™ Lift Tools Material Carrier Part No. 1288240GT...
- Page 9 First Edition • Third Printing Operator's Manual Supplement Installation Instructions Optional Location - Deck retracted ™ Part No. 1288240GT Lift Tools Material Carrier...
- Page 10 First Edition • Third Printing Operator's Manual Supplement Installation Instructions Optional Locations - Deck Tip-over hazard. Do not install more than one set of material Extended carriers in the platform. The illustration represents the two Note: Ensure the location of the Material possible locations the material Carrier with load does not interfere with carrier can be installed when the...
- Page 11 First Edition • Third Printing Operator's Manual Supplement Installation Instructions Deck Retracted 4 main deck 1 material carrier 5 extension deck 2 U-bolt and nylock flange nut 3 swing gate ™ Part No. 1288240GT Lift Tools Material Carrier...
- Page 12 First Edition • Third Printing Operator's Manual Supplement Installation Instructions Deck Extended 1 material carrier 2 U-bolt and nylock flange nut 3 swing gate 4 main deck 5 extension deck ™ Lift Tools Material Carrier Part No. 1288240GT...
- Page 13 First Edition • Third Printing Operator's Manual Supplement Installation Instructions Optional Location - Deck retracted ™ Part No. 1288240GT Lift Tools Material Carrier...
- Page 14 First Edition • Third Printing Operator's Manual Supplement Installation Instructions Optional Locations - Deck Extended Tip-over hazard. Do not install more than one set of material carriers in the platform. The illustration represents the two possible locations the material carrier can be installed when the platform is extended.
- Page 15 First Edition • Third Printing Operator's Manual Supplement Operating Instructions Operating Instructions Material Carrier Operation Keep the load secured when the machine is in motion. Verify the material carrier assembly and installation instructions have been followed Tip-over hazard. If the load on properly;...
- Page 16 First Edition • Third Printing Operator's Manual Supplement Operating Instructions Model Maximum Maximum Maximum Material Material Sail Occupancy Carrier Area (h x w) Capacity GS-2669 700 lbs 140" x 7" 317 kg GS-3369 500 lbs 140" x 7" 227 kg GS-4069 350 lbs 140"...
