RPS1

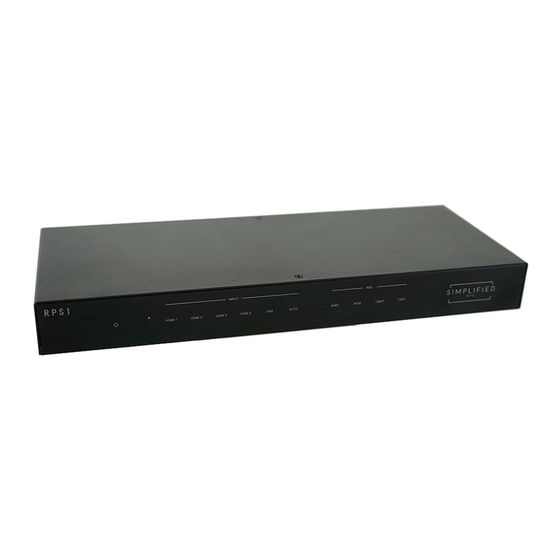

4K 5x1 Multi-format
Scaler Switcher
Thank you for purchasing this device
The Simplified MFG EX1 is designed to provide years of reliable service. At
Simplified MFG, we want the experience with this device to be the best possible and
are committed to helping achieve that experience.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge
protection such as the HDSURGE and other systems is highly recommended in
order to protect and extend the life of your equipment.
1 / 15
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Simplified MFG RPS1
Summary of Contents for Simplified MFG RPS1
- Page 1 Thank you for purchasing this device The Simplified MFG EX1 is designed to provide years of reliable service. At Simplified MFG, we want the experience with this device to be the best possible and are committed to helping achieve that experience.
-
Page 2: Table Of Contents
HDMI port. The resolution and aspect ratios are adjustable. The system can be controlled via front touch- panel button, IR remote, and RS-232. The RPS1 is 18gbps 4K capable and can accept nearly any resolution input making it a great solution for class rooms, courtrooms, and boardrooms. -
Page 3: Features
2. Features • Compliant with HDMI2.0/1.4b, HDCP2.2/1.4 • Supports multi inputs: 4 x HDMI, 1 x VGA ( YPbPr, CVBS) • Supports HDMI input resolutions up to 4K UHD 4:4:4 @50/60 • Supports output resolutions up to 4K UHD 4:4:4 @60 •... -
Page 4: Specifications
4. Specifications Technical HDMI Compliance HDMI 2.0/1.4b HDCP Compliance HDCP 2.2/1.4 HDMI: up to 4K2K@50/60Hz(4:4:4) C-Video: PAL/NTSC3.58/NTSC4.43/SECAM/PAL M/PAL N Video Input Resolutions YPBPR: 480i to1080p VGA: 640x480 to1920x1200 • 4K2K60,4K2K30,1920X1080p/50, 1920X1080p/60, HDMI Output • 1280X720p/50, 1280X720p/60 1024x768/60,1280x800/60, Resolutions • 1360x768/60,1400x1050/60,1680x1050/60,1920x1200/60; Audio Formats LPCM 2.0CH ESD Protection... -
Page 5: Operation Controls And Functions
When switching to work mode, the indicator turns blue IR Window: Receives the IR signal from remote control unit provided with RPS1 switch Input Source & Auto buttons: These buttons are for source selection. The active source will be indicated on the front panel via illumination. - Page 6 5.2 Rear Panel Output: HDMI output for connecting to an HDMI display or other HDMI device L/R stereo audio output to the analog audio input port of your amplifier Input: The input ports include 4 HDMI & 1 VGA input ports. The VGA ports supports YPbPr, C-video and VGA input formats.
- Page 7 5.3 OSD MENU The RPS1 provides a powerful OSD operation menu. Press MENU button on IR remote to enter in OSD menu, Users can then change settings through the OSD menu. 5.3.1 Main MENU The Main MENU includes Picture, Aspect ratio, Screen, EDID, and Software update options.
- Page 8 5.3.3. Aspect Ratio The user can adjust picture output aspect ratio to 4:3 or 16:9 . 5.3.4 Screen The screen MENU is an adjustment for VGA input only. The user can adjust horizontal, vertical position, size and phase. 8 / 15...
- Page 9 Standard, and EDID AUTO for copy the display EDID Mode. 5.3.6 Software update The RPS1 supports software updates via USB flash disk. The procedure is as follows: 1) Copy the file “MERGE.bin” to the root directory of a USB flash disk. (Make sure the file is copied to the root directory.
- Page 10 5.3.7 Resolution The RPS1’s HDMI output can be set to multiple different resolutions. Press the “RES” button on the IR remote, the resolution menu will display. The user can select suitable resolution for HDTV or monitor. Auto means that the HDMI resolutions based on the EDID information read from the display device.
- Page 11 5.5.1. New input principle Once a new input signal is detected, the RPS1 will switch to this new signal automatically. 5.5.2. Power rebooting principle The RPS1 offers the function to remember the signal last used after rebooting. Once rebooted, it will automatically enter auto-switching mode, and then detect all inputs and memorize their connection status for future reboots.
- Page 12 5.7 Operations of RS232 Control Please connect the RPS1 with input devices and output device needed, then connect it with a computer that is installed with RS232 control software. Double-click the software icon to run this software on your computer. The interface of the control software is showed as below:...
-
Page 13: Connection Diagram
HDMI cable. Connect VGA source device (eg. PC/note-book) to VGA input ports of the scaler switcher with a VGA cable. 2. Connect HDMI display device to the HDMI output port of the RPS1 with a HDMI cable. 3. Connect speaker, headphone or specialized amplifier to AUDIO output port of the RPS1. - Page 14 Replace it with a new or refurbished product. All Simplified MFG products are covered by a 3 year PARTS and LABOR warranty. During this period there will be no charge for unit repair, replacement of unit components or replacement of product if necessary.
- Page 15 WHETHER EXPECTED OR NOT. Simplified MFG reserves the right to change software, control codes and specifications without notice. Simplified MFG will not be liable for any use of this information or any changes it may make to those products. The use of this information constitutes an agreement by the user to these limitations and exclusions.
- Page 16 ̶ ̶ ̶ ̶ ̶ ̶ Ir RX Ir RX ̶ ̶ ̶ ̶ ̶ ̶ ̶ ̶ ̶ ̶ ̶ ̶ RS232 RS232 Simplified MFG • 550 W Baseline Road Ste 102-121 • Mesa, AZ 85210 • www.simplifiedmfg.com • 833-HDMI-411 (436-4411)
- Page 17 In: 480i/p, 576i/p, 720p, 1080i/p, 800x600, 1024x768, 1280x720, 1920x1080, 4Kx2K @30Hz, 4Kx2K@60Hz. C Video PAL/NTSC3.58/NTSC4.43/SECAM/PAL M/PAL N Video VGA 640x480 to 1920x1080p The RPS1 is a 5 input presentation Resolutions switch (4HDMI/1 VGA/Component). Output; 480i/p, 576i/p, 720p, 1080i/p, 800x600, 1024x768, 1280x720, 1920x1080, 4Kx2K @30Hz, The front panel is capacitive touch 4Kx2K@60Hz.
