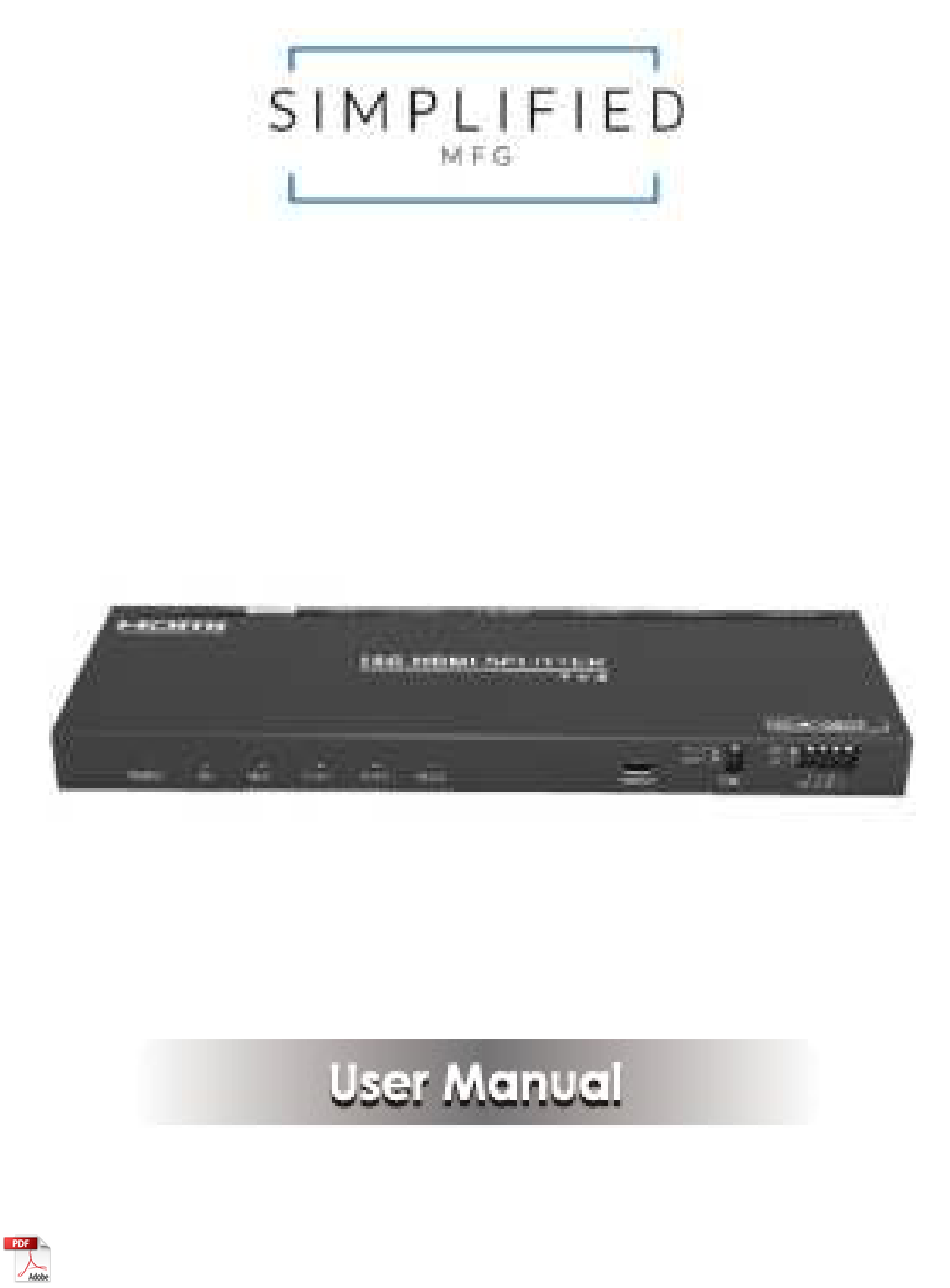

  • Page 1 SP14S VER 1.0...
  • Page 2 Thank you for purchasing this product The Simplified MFG SP14S is designed to provide years of reliable service. At Simplified MFG, we want the experience with this device to be the best possible and are committed to helping achieve that experience.

  • Page 3: Table Of Contents

    Table of Contents 1. Introduction ............3 2. Features ............3 3. Package Contents ..........4 4. Specifications ............ 4 5.Operation Controls and Functions ...... 6 5.1 Front Panel ..........6 5.2 Rear Panel ..........8 6. Application Example ......... 9 7.

  • Page 4: Introduction

    1. Introduction The SP14S is an HDMI2.0b splitter with scaling, EDID management, and audio breakout. It supports resolutions up to 4K2K@60Hz (4:4:4) and HDCP 2.2/1.4. The EDID can be copied (output 1) or mixed. Each output can be set to 1080p or to the EDID setting.

  • Page 5: Package Contents

    In “copy” mode, Output 1 is shown to the source and the splitter treats all displays as the same as output 1 In “auto” mode, the splitter compares the four outputs and adjusts to the lowest common denominator • Supports all HDMI audio formats including; LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD 1.
  • Page 6 Video Resolutions 720P50/60Hz, 1080P50/60Hz, 4K2K24Hz, 4K2K30Hz, 4K2K@50/60Hz (4:4:4) Color Depth 4K60Hz 8-bit, 1080P 12-bit Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 HDMI Audio Formats LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, L/R Audio Formats PCM 2.0 Optical Audio...

  • Page 7: Operation Controls And Functions

    Housing Metal Enclosure Color Black Dimensions 180mm(W)×62mm(D)×14mm(H) Weight 227g Power Supply Input: AC100~240V 50/60Hz, Output: DC5V/1A (US/EU standards, CE/FCC/UL certified) Power Consumption 3.5W (max) Operating 0°C ~ 40°C / 32°F ~ 104°F Temperature Storage -20°C ~ 60°C / -4°F ~ 140°F Temperature Relative Humidity 20~90% RH (non-condensing)
  • Page 8 Numb Name Function description This blue LED will illuminate when the unit POWER has connected power supply. This blue LED will illuminate when the HDMI HDMI IN has connected an active HDMI INPUT LED source device with a HDMI cable. HDMI These blue LEDs will illuminate when the HDMI OUT port has connected an avtice...

  • Page 9: Rear Panel

    downscale(4k->1080P ) output 5.2 Rear Panel Numbe Name Function description HDMI Connect to HDMI display device such as TV OUTPUT or monitor. OPTICAL Optical audio output. (This port outputs audio from HDMI IN port.) L/R OUT Analog audio output. (This port outputs audio from HDMI IN port.) HDMI IN Connect to HDMI source device such as...

  • Page 10: Application Example

    (starting from the original date of the purchase) either a) repair the product with new or refurbished parts. Or b) Replace the product with new or refurbished product. All Simplified MFG products are covered by a 3-year PARTS and LABOR warranty.

  • Page 11: Contact

    7. Contact Sales and Tech Support P. 833-HDMI-411 (833-436-4411) info@simplifiedmfg.com Simplified MFG • 550 W Baseline Rd Ste 102-121 • Mesa AZ 85210 10 10...
  • Page 12 The SP14S can be used for a myriad of HDMI Source HDMI Source things including; scaling, splitting, EDID fix, and audio breakout Simplified MFG • 550 W Baseline Road Ste 102-121 • Mesa, AZ 85210 • www.simplifiedmfg.com • 833-HDMI-411 (436-4411)
  • Page 13 Tech Bulletin 6/13/2022 Re: Non-Scaling Splitter (RSP1:2 & SP1:8) Description of terms used in this paper: EDID = Extended Display Identification Data. This is information that the display sends when the communication is set up between the source and the display. The display send this information and the source decides what signal to send.
  • Page 14 Simplified MFG makes other solutions that will allow you to use a 4K/UHD display and a 1080p display simultaneaously and still process both signals and the device is called a SP12S or SP14S. These devices have a simple scaling circuit that is designed for mixing 1080p and 4K/UHD displays.
