- Page 1 SW4:1 4×1 4K@60 HDMI Switch User manual...
- Page 2 Thank you for purchasing this device The Simplified MFG SW4:1 is designed to provide years of reliable service. At Simplified MFG, we want the experience with this device to be the best possible and are committed to helping achieve that experience.
- Page 3 I. Introduction The SW4:1 a high-performance HDMI 4x1 switch that supports HDTV formats up to 4Kx2K@60Hz and all HDMI 3D TV formats. It can extract HDMI stream audio to separate digital and analog audio output. This product supports HDCP repeater/CEC/ARC functions.
- Page 4 • Digital and analog audio output • Supports smart EDID management (Auto/2CH/5.1CH/7.1CH selectable) • Supports input port auto switching or manual switching mode • Audio Return Channel (ARC) support III. Package • 1 x HDMI 4x1 Switch • 1 x 5V/1A Power Adapter •...
-
Page 5: Specifications
IV. Specifications Frequency Bandwidth 18Gbps Input Ports 4 HDMI Female ports, 1 IR Receive port and 1 RS232 port Output port 1 HDMI Female port and 1 L/R & Optical port HDMI Audio Output PCM2.1/5.1/7.1CH, Dolby5.1,DTS5.1, Dolby-TrueHD, DTS-HD ESD Protection Human Body Model: ±... - Page 6 V. Switch Operation controls and Functions Front Panel: ① Input indicator LED, corresponding port LED will be illuminated when its port is selected. ② Auto or manual select button: Press this button >2 seconds to select auto switching or manual switching mode. Under manual switching mode, short pressing this button to select input port.

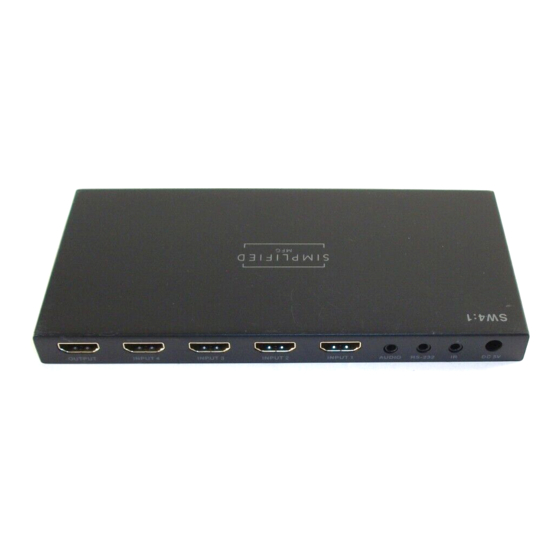

- Page 7 ⑤ ARC status LED (this LED will be illuminated if ARC is enabled successfully) ⑥ ARC function on/off button Rear Panel: ① HDMI output port, connect to display via HDMI cable ②③④⑤ HDMI input ports, connect with HDMI source via HDMI cable ⑥...
- Page 8 VI. IR Remote ARC: Press this button to enable or disable ARC function. ARC LED on front panel will be illuminated if ARC function is enabled successfully. Auto/2.1ch/5.1ch/7.1ch: Press these buttons to select different EDID setting and corresponding LED on front panel will be illuminated.
- Page 9 VII. Application Example...
- Page 10 Replace it with a new or refurbished product. All Simplified MFG products are covered by a 3 year PARTS and LABOR warranty. During this period, there will be no charge for unit repair, replacement of unit components or replacement of product if necessary.
- Page 11 This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship and DOES NOT COVER normal wear and tear or cosmetic damage. The limited warranty also DOES NOT COVER damage that occurs in shipment or failures caused by products not supplied by the warrantor, failures resulting from accident, misuse, abuse, neglect, mishandling, misapplication, alteration, incorrect installation, set-up adjustment, implementation of/to consumer controls, improper maintenance, power line surge, lightening damage, modification, service by...
- Page 12 The material contained in this document consists of information that is the sole property of Simplified MFG. This document is intended to provide information to allow interfacing to the relevant Simplified MFG equipment by third party products. Simplified MFG IS NOT...
- Page 13 MFG reserves the right to change software, control codes and specifications without notice. Simplified MFG will not be liable for any use of this information or any changes it may make to those products. The use of this information constitutes an agreement by the user to these limitations and exclusions.
- Page 14 SW4:1 HDMI Blu-Ray Blu-Ray SW4:1 HDMI Optical or Stereo Up to 4 inputs HDMI Sound Bar Sound Bar Note: SW4:1 does not convert audio Can be switched automatically or with IR remote also supports ARC from display...
