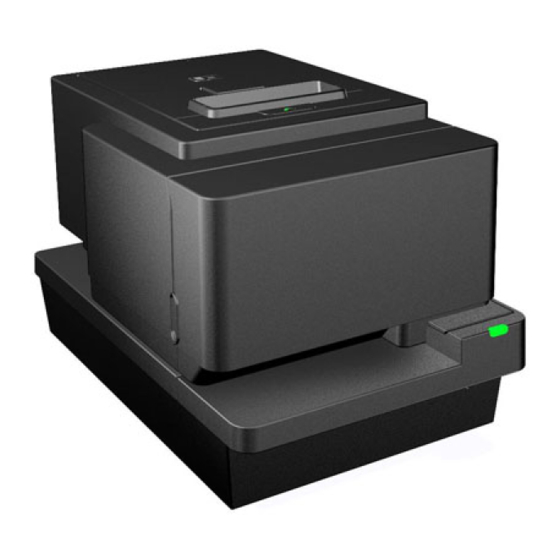

DIEBOLD NIXDORF P1300 Programming Manual

Hybrid printer
Hide thumbs Also See for P1300:
Table of Contents

Advertisement

Quick Links

Download this manual
P1300 Hybrid Printer
Programming Guide
01750359620 B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P1300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DIEBOLD NIXDORF P1300

Summary of Contents for DIEBOLD NIXDORF P1300

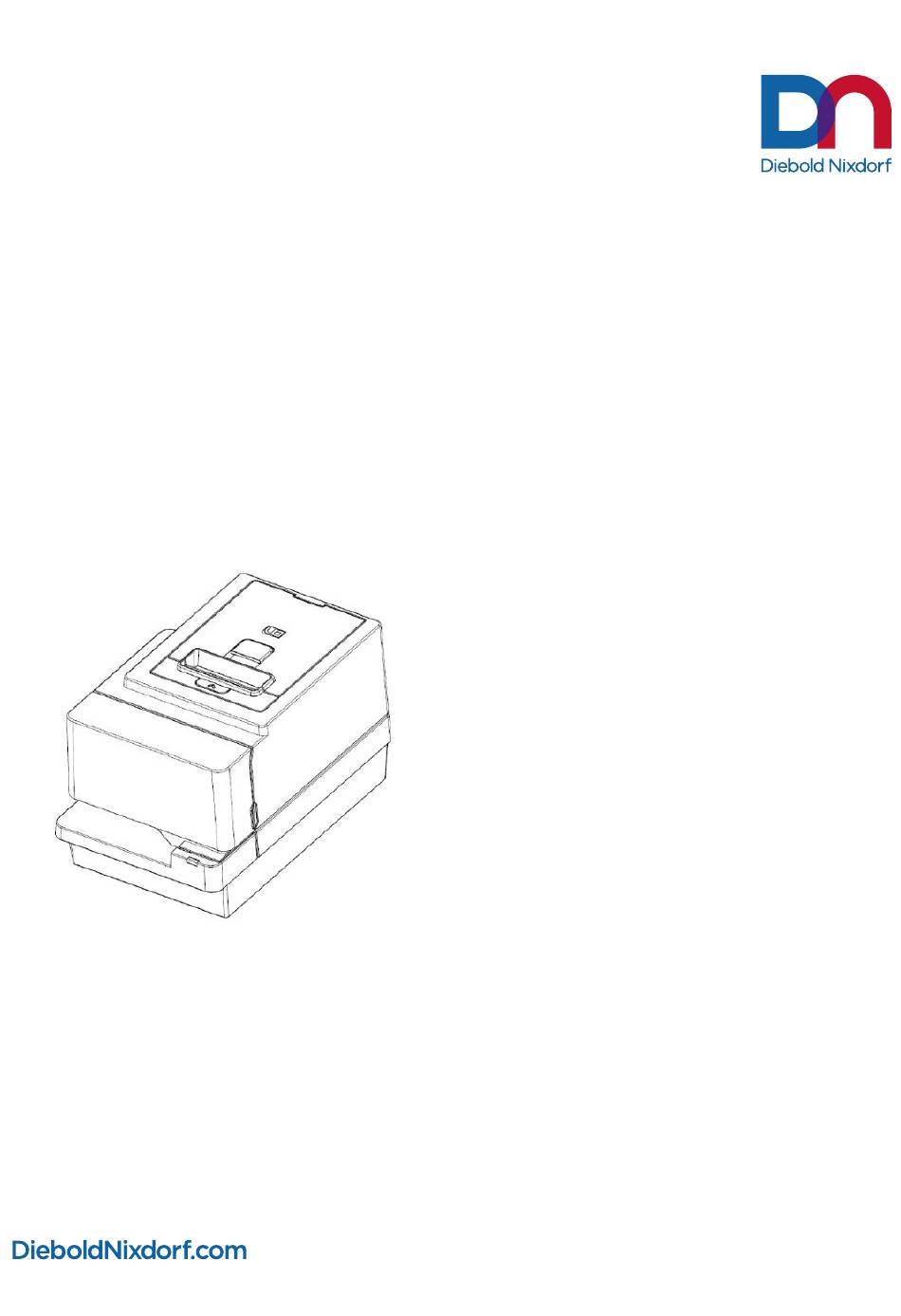

  • Page 1 P1300 Hybrid Printer Programming Guide 01750359620 B...

  • Page 2: Table Of Contents

    PROGRAMMING GUIDE Contents General ..........................i Printer basic functions ....................i Receipt ..............................i Slip ................................. ii Internal Buffers ............................ii 1.3.1 RAM (Total Size: IRAM 3MB, DRAM 16MB) ................. ii 1.3.2 Flash Memory (Total Size: 8MB) ....................ii Summary of Option Interface ..................iii RS232C Interface ..........................
  • Page 3 PROGRAMMING GUIDE 3.1.23 Release Paper ..........................xx Vertical Positioning and Print Commands ..................xxi 3.2.1 Print and Feed Paper One Line ....................xxi 3.2.2 Print and Carriage Return ......................xxi 3.2.3 Feed n Print Lines ........................xxi 3.2.4 Feed n Dot Rows ........................xxi 3.2.5 Add n Extra Dot Rows .........................
  • Page 4 PROGRAMMING GUIDE 3.4.11 Cancel User-defined Characters ....................xxxiii 3.4.12 Select or Cancel Emphasized Mode ..................xxxiii 3.4.13 Select Double Strike ......................... xxxiii 3.4.14 Select or Cancel Italic Print ..................... xxxiv 3.4.15 Select International Character Set (DN Emulation) ..............xxxiv 3.4.16 Select International Character Set.(ESCPOS emulation) ............xxxv 3.4.17 Select character code table(ESCPOS emulation) ..............
  • Page 5 PROGRAMMING GUIDE 3.5.24 Print User-defined Logo in Flash Memory ................... liii 3.5.25 Transmit the key code for User-defined Logo in RAM ..............liii 3.5.26 Delete all User-defined Logo in RAM ................... liv 3.5.27 Delete User-defined Logo in RAM ....................lv 3.5.28 Define Logo in RAM by the key code ....................
  • Page 6 PROGRAMMING GUIDE 3.6.3 Transmit Printer ID ........................lxxviii 3.6.4 Transmit Printer ID, Remote Diagnostics Extension ..............lxxxi 3.6.5 Enable/disable Automatic Status Back (ASB)................. lxxxiii 3.6.6 Initialize maintenance counter....................lxxxv 3.6.7 Transmit maintenance counter ....................lxxxvii 3.6.8 Transmit Status ........................lxxxix 3.6.9 Send Printer Firmware Version ....................
  • Page 7 PROGRAMMING GUIDE 3.8.15 PDF417: Set the error correction level ..................cxvi 3.8.16 PDF417: Select the options ..................... cxvii 3.8.17 PDF417: Store the data in the symbol storage area ..............cxvii 3.8.18 PDF417: Print the symbol data in the symbol storage area ............ cxvii 3.8.19 PDF417: Transmit the size information of the symbol data in the symbol storage area ..
  • Page 8 PROGRAMMING GUIDE 3.11.3 Select Memory Type for User Defined Data ................cxxxvi 3.11.4 Flash Memory Allocation for User-defined Storage Area ............. cxxxvii 3.11.5 Erase User-defined storage area in Flash Memory .............. cxxxvii 3.11.6 Printer Setting Change ......................cxxxviii 3.11.7 Read Printer Setting ......................... cxliv 3.11.8 LED Configuration ........................
  • Page 9 PROGRAMMING GUIDE 3.12.2 Select Asian character mode ....................clxx 3.12.3 Turn underline mode ON/OFF in Asian mode ................clxx 3.12.4 Cancel Asian character mode ....................clxx 3.12.5 Define user-defined Asian characters ..................clxxi 3.12.6 Select Asian character code system ..................clxxii 3.12.7 Set Asian character spacing ....................
  • Page 10 PROGRAMMING GUIDE 4.12 Character code table Page 11 (PC874: Thai): ................clxxxvi 4.13 Character code table Page 12 (PC857: Turkish): ................ clxxxvii 4.14 Character code table Page 13 (WPC1251: Cyrillic): ..............clxxxvii 4.15 Character code table Page 14 (WPC1255: Hebrew):..............clxxxviii 4.16 Character code table Page 15 ((KZ_1048: Kazakh):..............
  • Page 11 GS ( k Print 2-dimensional Barcode ....................ccxix Diagnostics ......................... ccxxi Offline Diagnostic....................ccxxi 10.1 Offline Printer Configuration ......................ccxxi 10.2 P1300 Diagnostic Functions ......................ccxxxv 10.2.1 Selftest Printout ........................ccxxxv 10.2.2 Sensor Test ......................... ccxxxvii Printer Errors ......................ccxxxviii Error Detection ....................

  • Page 12: General

    PROGRAMMING GUIDE General 1. Printer basic functions Receipt Resolution 203.2 dpi x 203.2 dpi (8 dots/mm) Interface (communicate with a USB Type-B 2.0 High Speed / Full Speed system) Printer class Emulation Mode DN POS receipt(P1200) ESC/POS Character set SBCS CP437 (DOS USA),CP720(Arabic),CP737(Greek),CP775(Baltic), CP850 (DOS Latin 1), CP852 (DOS Latin 2), CP857(Turkish), CP858...

  • Page 13: Slip

    PROGRAMMING GUIDE Slip Resolution - Font A 139 DPI x 72 DPI (Font A) - Font B 171 DPI x 72 DPI (Font B) Printable area - Font A 45 char = 82.2 mm - Font B 55 char = 81.7 mm - Graphics 82.2 mm Character configuration...

  • Page 14: Summary Of Option Interface

    PROGRAMMING GUIDE 2. Summary of Option Interface The printer initially has USB type-B interface as the primary interface. It additionally allows an operator to install RS232C interface card as an option. In order to make the option interface card available, the USB interface cable has to be disconnected. It is because the option interface card is not activated if USB connection is established with a system.

  • Page 15: Emulation

    PROGRAMMING GUIDE Emulation The printer supports the following commands. ESC/ Rcpt Slip Command sequence Function P1200 TH320 Printer Function Commands Clear Printer EM or ESC i 19H or 1BH 69H Perform Full Knife Cut SUB or ESC m 1AH or 1BH 6DH Perform Partial Knife Cut ESC BEL 1BH 07H...
  • Page 16 PROGRAMMING GUIDE ESC e 1BH 65H Print and Reverse Feed n Lines GS DC4 1DH 14H Reverse Feed n Lines GS NAK 1DH 15H Reverse Feed n Dots Print and Eject Slip ESC F 1BH 46H Set/cancel cut sheet reverse eject Set print position to the beginning of print GS T 1DH 54H...
  • Page 17 PROGRAMMING GUIDE ESC/ Rcpt Slip Command sequence Function P1200 TH320 Print Characteristic Commands Select Double-Wide Characters Select Single-Wide Characters Select 90 Degrees Counter-Clockwise ESC DC2 1BH 12H Rotated Print ESC SYN 1BH 16H Select Pitch (Column Width) ESC SP 1BH 20H Set Character Right-Side Spacing (Setting) ESC !
  • Page 18 PROGRAMMING GUIDE FS 2 1CH 32H Define user-defined Asian characters FS C 1CH 43H Select Asian character code system FS S 1CH 53H Set Asian character spacing Set quadruple mode ON/OFF in Asian FS W 1CH 57H mode...
  • Page 19 PROGRAMMING GUIDE ESC/ Rcpt Slip Command sequence Function P120 TH320 Graphics Commands DC1 or GS 11H or 1DH 82H Print Raster Graphics 0x82 GS 0x83 1DH 83H Print Color Raster Graphics ESC “BMP file” 1BH “BMP file” Define Bitmap File as Logo ESC * 1BH 2AH Select Bit Image Mode...
  • Page 20 PROGRAMMING GUIDE FS ( E 1CH 28H 45H Set bottom logo printing Make extended settings for top/bottom FS ( E 1CH 28H 45H logo printing FS ( E 1CH 28H 45H Enable/disable top/bottom logo printing Define Windows BMP graphics data in GS D 1DH 44H Flash Memory...
  • Page 21 PROGRAMMING GUIDE GS ETX or 1DH 03H or Real Time Request to Printer DLE ENQ 10H 05H GS ( D 1DH 28H 44H Enable/disable real-time command DLE DC4 10H 14H Generate pulse in real-time DLE DC4 or 10H 14H or 10H 0EH Execute power-off sequence DLE SO DLE DC4...
  • Page 22 PROGRAMMING GUIDE ESC/ Rcpt Slip Command sequence Function P1200 TH320 GS a 1DH 61H Enable/disable Automatic Status Back (ASB) Barcode Commands GS H 1DH 48H Select Printing Position of HRI Characters GS f 1DH 66H Select Pitch for HRI Characters GS h 1DH 68H Select Bar Code Height...
  • Page 23 PROGRAMMING GUIDE GS ( k pL pH 33H 1DH 28H 6BH pL pH 2-dimensional GS1 DataBar: Store data in the 33H 50H symbol storage area GS ( k pL pH 33H 1DH 28H 6BH pL pH 2-dimensional GS1 DataBar: Print the symbol data 33H 51H in the symbol storage area 2-dimensional GS1 DataBar: Transmit the size...
  • Page 24 PROGRAMMING GUIDE ESC/ Rcpt Slip Command sequence Function P1200 TH320 User Data Storage Commands ESC ‘ 1BH 27H Write User Defined Data ESC 4 1BH 34H Read User Defined Data GS “ 1DH 22H Select Memory Type for User Defined Data Flash Memory Allocation for User-defined Storage GS “...
  • Page 25 PROGRAMMING GUIDE US ETX & STX 1FH 03H 25H 02H Enables or disables the 1B20 n command US ETX & ETX 1FH 03H 25H 03H Enables or disables the 1D50 x y command US ETX & EOT Enables or disables the 1D4 C n L n Hand 1D57 n L 1FH 03H 25H 04H n H commands US ETX &...

  • Page 26: Command Descriptions

    PROGRAMMING GUIDE 3. Command Descriptions Printer Function Command 3.1.1 Clear Printer ASCII: Hexadecimal: Decimal: It clears the print buffer and resets the printer settings to the condition when the printer is turned on except the barcode related settings. Sets the printer to the following condition related to slip station when some other command is sent after this command: Receipt station is selected Slip platen is opened...

  • Page 27: Select Sensors To Stop Printing

    PROGRAMMING GUIDE 3.1.6 Select Sensors to Stop Printing ASCII: ESC c 4 n Hexadecimal: 1B 63 34 n Decimal: 27 99 52 n Value of n: Function To determine if it suspends printing when it detects paper low. Ignore Suspend To determine if it suspends printing when it detects paper low.

  • Page 28: Print Configuration Form

    • Receipt shooting flushing is executed only if Receipt shooting was enabled by memory switch (command GS ( E). • Printing of barcode PDF417 will stopped the printout for a short time (see GS k) Diebold Nixdorf specific function 3.1.12...

  • Page 29: Switch The Printer Into Sleep-Mode

    2300 Hz / 100 ms 1150 Hz / 100 ms 2300 Hz / 100 ms 1150 Hz / 100 ms 2300 Hz / 100 ms Notes: Diebold Nixdorf specific function 3.1.13 Switch the printer into Sleep-Mode ASCII: ESC w n c...

  • Page 30: Return Home

    PROGRAMMING GUIDE 3.1.16 Return Home ASCII: ESC < Hexadecimal: 1B 3C Decimal: 27 60 Moves the impact print head (unless already there) to the home position. This command is performed regardless receipt unit or slip unit. Related Information: The printer is able to detect carriage motor jams, eliminating the need to home the print head after each slip transaction.

  • Page 31: Set Slip Paper Waiting Time

    PROGRAMMING GUIDE 3.1.20 Set Slip Paper Waiting Time ASCII: ESC f m n Hexadecimal: 1B 66 m n Decimal: 27 102 m n Value of m : Minutes Value of n: Tenths of seconds Sets the time (in m minutes) that the printer waits for a slip to be inserted into the slip station. The default is forever, but it can be set to 1, 3, or 5 minutes using the configuration menu.

  • Page 32: Vertical Positioning And Print Commands

    PROGRAMMING GUIDE Vertical Positioning and Print Commands 3.2.1 Print and Feed Paper One Line ASCII: Hexadecimal: Decimal: It prints data in the print buffer and performs one line feed. LF command will be ignored after CR(if automatic linefeed enabled) 3.2.2 Print and Carriage Return ASCII: Hexadecimal:...

  • Page 33: Print

    PROGRAMMING GUIDE 7.81 7.52 7.25 7.00 6.77 6.55 6.35 6.16 5.98 5.81 5.64 Slip Station Lines Per Extra Rows Dot Rows Inch 10.29 9.00 8.00 7.20 6.55 6.00 5.54 5.14 4.80 4.50 4.24 4.00 3.79 Limitation: On slip station, the behavior is dependent on rotate command (1B 56). When rotate is enabled, line spacing is not effective on slip station.

  • Page 34: Print And Feed Paper

    PROGRAMMING GUIDE n / 144 inches in slip Default: Receipt .13 inch (3.37 mm or 7.52 lines per inch, 3 extra dot rows.) Slip .14 inch (3.53 mm or 7.2 lines per inch, 3 extra dot rows.) It defines the default line spacing to n/406 inches. For the slip, the line spacing is set to n/144 inches.

  • Page 35: Print And Reverse Feed N Lines

    PROGRAMMING GUIDE Hexadecimal: 1B 4B n Decimal: 27 75 n Value of n: Slip = n / 144 of an inch 0 – 255 Range of n: Prints one line from the buffer and reverse feeds the paper n/144 of an inch on the slip station. Exceptions: The receipt station cannot be reverse fed.

  • Page 36: Set Print Position To The Beginning Of Print Line (Escpos Emulation Only)

    PROGRAMMING GUIDE Decimal: 27 70 n Value of n: 0: cancels slip reverse eject, 1: sets slip reverse eject 0 – 255 Range of n: Default: Sets or cancels the reverse eject setting for slip paper. • When the LSB of n is 0, cancels slip reverse eject. •...

  • Page 37: Set Column

    PROGRAMMING GUIDE 3.3.2 Set Column ASCII: ESC DC4 n Hexadecimal: 1B 14 n Decimal: 27 20 n Value of n: Receipt Slip 1 - 44 (Standard, 80mm) 1 - 45 (Standard) 1 - 56 (Compressed, 80mm) 1 - 55 (Compressed) 1 - 32 (Standard, 58mm) 1 - 42 (Compressed, 58mm) It defines number of characters to be printed in the current line.

  • Page 38: Select Justification

    PROGRAMMING GUIDE It moves the print position to the relative position specified by ((n1 + n2 x 256) x (horizontal motion unit)) from the current print position. The horizontal motion unit follows Set Horizontal and Vertical Minimum Motion Units (1D 50) command.

  • Page 39: Set Print Area Width

    PROGRAMMING GUIDE Receipt: Printable Area: 576 dots for 80 mm width, dots for 58 mm width GS L GS W Left margin Print Area Width Slip: Printable Area: 448 dots for slip GS L GS W Left margin Print Area Width Exceptions: The command is valid only when it is specified at the beginning of a line.

  • Page 40: Print Characteristic Commands

    PROGRAMMING GUIDE Print Characteristic Commands 3.4.1 Select Double-Wide Characters ASCII: Hexadecimal: Decimal: It prints characters in double width. It automatically comes back to single-wide mode after one line data has been printed or Initialize Printer (1B 40) / Clear Printer (10) command is received. 3.4.2 Select Single-Wide Characters ASCII:...

  • Page 41: Select Print Modes

    PROGRAMMING GUIDE It sets the right side character spacing to [n x (horizontal or vertical motion units)]. Values for this command are set independently in Standard and Page Mode. The horizontal and vertical motion unit follows Set Horizontal and Vertical Minimum Motion Units (1D 50) command.
  • Page 42 PROGRAMMING GUIDE Value of n: 0= Code Page 437 / Code Page GB18030 1= User-defined 2= Code Page 850 (Only TH320 Emulation) Range of n: 0 - 1 P1200 Emulation 0 - 2 TH320 Emulation 0 - 255 ESCPOS Emualation (Only the lowest bit of n is effective) Default: 0 (Code Page 437/ Code Page GB18030) It selects or cancels the user-defined character set.
  • Page 43 PROGRAMMING GUIDE Total bytes of all user-defined characters (n) defined by this command is 12 X (c2-c1+1) bytes. Not referred Code Page 437 will be selected when Standard DBCS (CP 932, 936, 949, 950) is loaded. Code Page GB18030 will be selected when GB18030 DBCS is loaded xxxii...

  • Page 44: Select Or Cancel Underline Mode

    PROGRAMMING GUIDE 3.4.10 Select or Cancel Underline Mode ASCII: ESC - n Hexadecimal: 1B 2D n Decimal: 27 45 n Value of n: 0, 48 = Cancel underline mode 1, 49 = Select underline mode (1 dot height) 2, 50 = Select underline mode (2 dots height) Default of n: 0 (Cancels underline mode) It turns the underline mode on or off.

  • Page 45: Select Or Cancel Italic Print

    PROGRAMMING GUIDE 0 – 255 Range of n: Default: 0 (Bit0): Off It turns double strike mode on or off for the slip and receipt. Overprints a second pass of the print line on the slip station to improve penetration of multi-part forms and increase print contrast.

  • Page 46: Select International Character Set.(Escpos Emulation)

    PROGRAMMING GUIDE 27 = Code page 775 (Receipt Only) 28 = Code page 1257 (Receipt Only) 29 = Code page 28594 (Receipt Only) 30 = Code page 1253 (Receipt Only) Default: 0 (Code Page 437) It selects the international character set. See “SPAA-xxx POS Printer Character Set Specification” for the detail of each character set.

  • Page 47: Select Character Code Table(Escpos Emulation)

    PROGRAMMING GUIDE Sweden ¤ É Ä Ö Å Ü é ä ö å ü Italy ° é ù ä ò è ì Spain I Ñ ¨ ñ ¡ ¿ Japan ¥ Norway ¤ É Æ Ø Å Ü é å ü...

  • Page 48: Select Or Cancel Unicode(Utf-16) Mode

    PROGRAMMING GUIDE [PC862 (Hebrew)] (Receipt and Slip) [PC864 (Arabic)] (Receipt Only) Reserved Reserved Reserved Reserved Reserved Reserved Reserved [WPC1250 (Central Europe)] (Receipt Only) [WPC1251 (Cyrillic)] (Receipt and Slip) [WPC1253 (Greek)] (Receipt Only) [WPC1254 (Turkish)] (Receipt Only) [WPC1255 (Hebrew)] (Receipt and Slip) [WPC1256(Arabic)] (Receipt Only) [WPC1257(Baltic)] (Receipt Only) Reserved...

  • Page 49: Select Print Color

    PROGRAMMING GUIDE 3.4.21 Select Print Color ASCII: ESC r n Hexadecimal: 1B 72 n Decimal: 27 114 n Value of n: 0: Monochrome 1: Color Default: 0: Monochrome It turns the color mode on or off. Color printing is available when the printer is configured to the two color paper mode, and setting the two color thermal paper is required to actualize the color printing.

  • Page 50: Select Or Cancel White/Black Reverse Printing Mode

    PROGRAMMING GUIDE 1 time (normal) 2 times 3 times 4 times 5 times 6 times 7 times 8 times Character Height Selection Decimal Height 1 time (normal) 2 times 3 times 4 times 5 times 6 times 7 times 8 times Exceptions: This command is not effective for bar code HRI characters.

  • Page 51: Select Character Font (Escpos Emulation Only)

    PROGRAMMING GUIDE Toggles between unidirectional and bi-directional printing on the slip station. Unidirectional printing increases column alignment and provides higher quality printing. Printing is normally bi-directional because of the faster speed. 3.4.27 Select character font (ESCPOS emulation only) ASCII: ESC M n Hexadecimal: 1B 4D n Decimal:...

  • Page 52: Graphics Commands

    PROGRAMMING GUIDE Graphics Commands 3.5.1 Print Raster Graphics DC1 n1 … nk or GS 0x82 n1 … nk ASCII: 11 n1 … nk or 1D 82 n1 … nk Hexadecimal: 17 n1 … nk or 29 130 n1 … nk Decimal: Value of n: n specifies the defined data (Raster image format)

  • Page 53: Select Bit Image Mode

    PROGRAMMING GUIDE 3.5.4 Select Bit Image Mode ASCII: ESC * m n1 n2 d1 ... dn Hexadecimal: 1B 2A m n1 n2 d1 ... dn Decimal: 27 42 m n1 n2 d1 ... dn It prints the bit image data defined by “d” according to the mode specified by m as follows. Values: Mode Vertical direction...

  • Page 54: Select Bit-Image Mode - Line Graphics

    PROGRAMMING GUIDE 24 Dots Single Density Mode – Receipt Only 3.5.5 Select bit-image mode - Line Graphics ASCII: ESC * 1 n1 n2 d1 ... dn Hexadecimal: 1B 2A 31 n1 n2 d1 ... dn Decimal: 27 42 49 n1 n2 d1 ... dn Description: Selects a bit-image mode for a single line graphics Notes:...

  • Page 55: Turn On/Off Tiff Compression

    PROGRAMMING GUIDE even if the graphics data stream was interrupted. • If two-color paper is selected, two lines will be merged to one line. The first line defines the secondary color (i.e. red) and second line defines the primary color (black).

  • Page 56: Select Single Density Graphics

    PROGRAMMING GUIDE Exceptions: Advanced Raster graphics is not available in Page Mode. 3.5.8 Select Single Density Graphics ESC K n1 n2 d1 … dn ASCII: Hexadecimal: 1B 4B n1 n2 d1 ... dn Decimal: 27 75 n1 n2 d1 ... dn Values: [ n1 + (256 x n2)] Number of Bytes of Data...

  • Page 57: Define Bit Image As Logo

    PROGRAMMING GUIDE It selects the current user-defined logo according to ID specified by “n” when a user defines a logo or prints a logo. 1. Logo definition Whenever a user defines a logo, first of all, the logo ID has to be specified by this command so that the logo is defined with this ID.

  • Page 58: Print Current Logo

    PROGRAMMING GUIDE y  8 dots y(max)=64 Exceptions: If the logo size of this command is larger than the free space of the user-defined logo area of the flash memory, a logo is tentatively stored into RAM and this status is reflected to bit 3 in Flash memory user sector status (parameter n=4, 52) of Transmit Status(1D 72) command.

  • Page 59: Define Logo In Flash Memory

    PROGRAMMING GUIDE As for the detail of logo definition sequence, please refer to “Select the Current Logo” command. Exception: This command is available only with receipt station. 3.5.15 Define Logo in Flash Memory FS q n [xL xH yL yH d1…dk] 1…[xL xH yL yH d1… dk]n ASCII: 1C 71 n [xL xH yL yH d1…dk] 1…[xL xH yL yH d1…...

  • Page 60: Transmit Remaining Size For User-Defined Logo Area In Flash Memory

    PROGRAMMING GUIDE Response format: The decimal value is converted to text data and sent starting from the high order end. (Example: 123456 byte -> 0x37 0x30 0x31 0x32 0x33 0x34 0x35 0x36 0x00) Response Decimal Data Header 37 H 1 byte Identifier 30 H 1 byte...

  • Page 61: Transmit The Key Code For User-Defined Logo In Flash Memory

    PROGRAMMING GUIDE Header 37 H 1 byte Identifier 32 H 1 byte Data 30 H to 39H 48 to 57 1 to 8 byte 00 H 1 byte 3.5.20 Transmit the key code for User-defined Logo in Flash Memory ASCII: GS ( L pL pH m fn d1 d2 Hexadecimal: 1D 28 4C pL pH m fn d1 d2...

  • Page 62: Define Logo In Flash Memory By The Key Code

    PROGRAMMING GUIDE Hexadecimal: 1D 28 4C pL p m fn kc1 kc2 Decimal: 29 40 76 pL pH m fn kc1 kc2 0 ≤ (pL + pH × 256) ≤ 65535 Range of pL, pH: It indicates the total number of bytes of subsequent data after pH. Value of pL, pH: 4 (pL = 4, pH = 0) Value of m:...
  • Page 63 PROGRAMMING GUIDE The maximum width of each logo is 576/203 inches, and the maximum height of each logo is 2304/203 inches. If a logo size is more than this, it is not printed. If the graphic size defined by this command is larger than the free space of the user defined logo area of the flash memory, it firstly erases all logo data in the user-defined area and defines this new logo data.

  • Page 64: Print User-Defined Logo In Flash Memory

    PROGRAMMING GUIDE Graphic data format and Formula Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 7 6 5 4 3 2 1 0 ・・・ 7 6 5 4 3 2 1 0 level 12 level 6 level 16 level 2 level 1 level 15 level 3...

  • Page 65: Delete All User-Defined Logo In Ram

    PROGRAMMING GUIDE Hexadecimal: 1D 38 4C p1 p2 p3 p4 m fn d1 d2 Decimal: 29 56 76 p1 p2 p3 p4 m fn d1 d2 Range of pn: (p1 + p2 x 256 +p3 x 65536 + p4 x 16777216) = 4 (p1 =4 , p2 = 0, p3 = 0, p4 = 0) Value of m: m = 48 Value of fn: fn = 80 Value of d1: d1 = 75...

  • Page 66: Delete User-Defined Logo In Ram

    PROGRAMMING GUIDE 3.5.27 Delete User-defined Logo in RAM ASCII: GS ( L pL pH m fn kc1 kc2 Hexadecimal: 1D 28 4C pL pH m fn kc1 kc2 Decimal: 29 40 76 pL pH m fn kc1 kc2 0 ≤ (pL + pH × 256) ≤ 65535 Range of pL, pH: It indicates the total number of bytes of subsequent data after pH.

  • Page 67: Print User-Defined Logo In Ram

    PROGRAMMING GUIDE The colors of the selectable defined data (c) are Color 1 ~ Color 4 when a = 52 (multi-tone). d: specifies the defined data (raster format). Exceptions: The maximum width of each logo is 576/203 inches, and the maximum height of each logo is 2304/203 inches.
  • Page 68 PROGRAMMING GUIDE 4: Roll 2 (Right -> Center -> Left -> Right -> ...) 5: Twist (Left -> Center -> Right -> Center -> Left -> ...) yL, yH: It specifies the offset from the bottom of one watermark to the top of the next watermark by the number of dots in the vertical direction as (yL + yH ×...

  • Page 69: Transmits Set Values For Watermark

    PROGRAMMING GUIDE 3.5.31 Transmits set values for Watermark ASCII: GS ( L pL pH m fn Hexadecimal: 1D 28 4C pL pH m fn Decimal: 29 40 76 pL pH m fn Range: (pL + pH x 256) = 2 (pL = 2, pH = 0) m = 48 fn = 100 Data to be transmitted is as follows:...

  • Page 70: Store The Graphics Data In The Print Buffer

    PROGRAMMING GUIDE 3.5.33 Store the graphics data in the print buffer GS 8L p1, p2, p3, p4 m fn a bx by c xL xH yL yH d1 … dk ASCII: 1D 38 4C p1, p2, p3, p4 m fn a bx by c xL xH yL yH d1 … dk Hexadecimal: 29 40 76 p1, p2, p3, p4 m fn a bx by c xL xH yL yH d1 …...

  • Page 71: Download Logo Image

    PROGRAMMING GUIDE 3.5.35 Download logo image ASCII: GS 0x84 m n1 n2 d1 ... dn Hexadecimal: 1D 84 m n1 n2 d1 ... dn Decimal: 29 132 m n1 n2 d1 ... dn Value of m : 1 = Monochrome 2 = two-color Value of n1: See the following table.

  • Page 72: Cancel Set Values For Top/Bottom Logo Printing

    PROGRAMMING GUIDE 3.5.36 Cancel set values for top/bottom logo printing ASCII: FS ( E pL pH fn m c d1 d2 d3 Hexadecimal: 1C 28 45 pL pH fn m c d1 d2 d3 Decimal: 28 40 69 pL pH fn m c d1 d2 d3 Range: (pL + pH x 256) = 6 (pL = 6, pH = 0) fn = 60...
  • Page 73 PROGRAMMING GUIDE Fixed value 32 H 0 or 1 byte Flash graphics key codes 20 H to 7E H 32 to 126 0 or 2 bytes Justification setting 30 H to 32 H 48 to 50 0 or 1 byte When c = 50 is specified.

  • Page 74: Set Top Logo Printing

    PROGRAMMING GUIDE 3.5.38 Set top logo printing ASCII: FS ( E pL pH fn m kc1 kc2 a n Hexadecimal: 1C 28 45 pL pH fn m kc1 kc2 a n Decimal: 28 40 69 pL pH fn m kc1 kc2 a n Range: (pL + pH x 256) = 6 (pL = 6, pH = 0) fn = 62...

  • Page 75: Make Extended Settings For Top/Bottom Logo Printing

    PROGRAMMING GUIDE 3.5.40 Make extended settings for top/bottom logo printing FS ( E pL pH fn m a1 n1 … [ak nk] ASCII: 1C 28 45 pL pH fn m a1 n1 … [ak nk] Hexadecimal: 28 40 69 pL pH fn m a1 n1 … [ak nk] Decimal: 4 ≤...

  • Page 76: Define Windows Bmp Graphics Data In Flash Memory

    PROGRAMMING GUIDE Settings set by this command are maintained even after power off. 3.5.42 Define Windows BMP graphics data in Flash Memory GS D m fn a kc1 kc2 b c d1…dk ASCII: 1D 44 m fn a kc1 kc2 b c d1…dk Hexadecimal: 29 68 m fn a kc1 kc2 b c d1…dk Decimal:...
  • Page 77 PROGRAMMING GUIDE Monochrome (digital) Multi-tone c specifies the color of data to define. Color of data to define Color 1 d specifies the data to define (Windows BMP format). Monochrome BMP (1bpp) and color BMP (24bpp, 8bpp, 4bpp) are supported. lxvi...

  • Page 78: Reverse Color Text Mode

    PROGRAMMING GUIDE 3.5.44 Reverse color text mode ASCII: GS 0x85 m n Hexadecimal: 1D 85 m n Decimal: 29 133 m n Value of m : 0 = white, 1 = black, 2 = paper color Value of n : 0 = white, 1 = black, 2 = paper color Default : m =0 (off)

  • Page 79: Color Shade Mode

    PROGRAMMING GUIDE 3.5.46 Color shade mode ASCII: GS 0x87 m Hexadecimal: 1D 87 m Decimal: 29 135 m This applies a mixing of color into any monochrome objects such as text and monochrome logos. Rather than fading away, this mode transitions a character or logo from the current color in which it would normally be printed to the other color.

  • Page 80: Merge Watermark Mode

    PROGRAMMING GUIDE 3.5.49 Merge watermark mode ASCII: GS 0x8C n m Hexadecimal: 1D 8C n m Decimal: 29 140 n m This command will insert the logo m as a repeated background image, similar to printing a visible watermark, into the print stream. The space between repetitions of this usually shaded logo will be every n*8 dot rows.

  • Page 81: Save Graphics Buffer As Logo

    PROGRAMMING GUIDE surround graphic, and may be changed before any subsequent surround graphics and/or printing output. This command may be used in page mode. Exceptions: This command is ignored. 3.5.51 Save graphics buffer as logo ASCII: GS 0x91 n Hexadecimal: 1D 91 n Decimal: 29 145 n...

  • Page 82: Apply Margin Message Mode

    PROGRAMMING GUIDE When a specific item request is made, a returned CRC value of 0 0 indicates that no item is stored at that index. There is a practically negligible possibility that a valid object will have a 0 0 CRC; if this is concern, applications should check the object downloaded byte sequence to verify that this is not the case (as well as store the CRC as an “ID ”...

  • Page 83: Shade And Store Logo

    PROGRAMMING GUIDE overlap region. This command with the first parameter l = 0 turns all margin message merging to off. Exceptions: This command is ignored. 3.5.55 Shade and store logo ASCII: GS 0x9A n m o Hexadecimal: 1D 9A n m o Decimal: 29 154 n m o Value of n: n is ID (logo index value) of an existing logo in either flash or RAM memory...

  • Page 84: Set Colorization

    PROGRAMMING GUIDE Value of n: 0-FF (Hex) n= 01 will cause 1B7201 to printed. Any other value for 1B72 will print black. n= 00 will cause 1B7200 to printed and all other values to print black. This command defines how to interpret the 1B 72 command for legacy environments. It provides a method to resolve any differences in the definition of command 1B 72 between the TH320 mode and earlier implementations in other printers.
  • Page 85 PROGRAMMING GUIDE is usually needed above the logo. The default value is s = 0 and turns off the f = 1 logo after knifecut link. f = 2 link water mark printing Example: Activate watermark printing using logo #F1 (1F 03 16 02 s r) with “s” being the skip distance in dot rows before activation and “r”...

  • Page 86: Set Attribute Mapping

    PROGRAMMING GUIDE definition a = 1 mapping definition (of two available) selects a = 2 second attribute a = 1 or 2, if m = 0 mapping 1 or 2, respectively, is turned off A word (2 bytes) is used to identify the attribute mapping, with “m ” bits 0 – 6 identifying which original attributes should be mapped: turn off margin message at the position of a knife cut and leave a clear space at the top of the next receipt.

  • Page 87: Set Interpretation Of "Set Current Color" Command

    PROGRAMMING GUIDE This command configures into EEPROM (permanent configuration switch setting) one or two combinations of character attribute mappings, including substitute attribute settings for color effects. The attributes of the character code are used to form the desired pixel character when the code is placed into the raster print buffer.

  • Page 88: Status Commands

    PROGRAMMING GUIDE Status Commands Status Command Introduction There are three methods to provide an application the printer status, Batch Status Commands, Real Time Status Commands and Auto Status Back Commands as follows. Batch Status Commands – The batch status command is sent based on the same manner as other commands/data.

  • Page 89: Transmit Peripheral Device Status

    It transmits the printer ID specified by n as follows: Printer ID Definition ID(hex) 1, 49 Printer model ID Printer model = 0x29 (P1300 Emulation) 0x27 (ESC/POS Emulation) 2, 50 Type ID Installed options Refer to the following table 1 Byte – FW version in binary...
  • Page 90 0x00 1 byte • If the printer information is not prepared, [Header + NUL] (2 bytes) are sent. • Be sure to use this function when the host can receive data. P1300 sends the Bare PCB Number (“_A”..”_Z”) lxxix...
  • Page 91 PROGRAMMING GUIDE • When using GS I, GS ( E or GS g 2 together with Automatic Status Back (ASB status, the status transmitted must be differentiated according to table Transmit Status Identification (see page 196). • When n is out of the specified range, this command is ignored. •...

  • Page 92: Transmit Printer Id, Remote Diagnostics Extension

    PROGRAMMING GUIDE “_10” MF interface – USB connected. Type ID (n=254) Sensor Plug Info: Byte# (from left) Sensor Mark sensor Undefined Undefined Undefined Undefined Undefined  Undefined  Undefined Value (ASCII) Meaning ‘0’ Not plugged ‘1’ Plugged ‘2’ No information available 3.6.4 Transmit Printer ID, Remote Diagnostics Extension ASCII:...
  • Page 93 PROGRAMMING GUIDE Write to non-volatile memory (max 99,999,999) Receipt length tally Write to non-volatile memory and print on receipt (Front Head, unit : Meter), Clear receipt length tally to 0. (8 digits ASCII numeric) Return receipt length tally, Total 10 bytes Write to non-volatile memory (max 99,999,999) Knife cut tally, Write to non-volatile memory and print on receipt...

  • Page 94: Enable/Disable Automatic Status Back (Asb)

    PROGRAMMING GUIDE (8 digits ASCII numeric) Write to non-volatile memory and print on receipt Clear Receipt cover open tally to 0. Return Receipt cover open tally, Total 10 bytes Reserved Max temperature tally, Reserved (8 digits ASCII numeric) Clear Thermal head over heat tally Return Thermal head over heat tally, Total 10 bytes Write to non-volatile memory (max 99,999,999) Slip lines tally,...
  • Page 95 PROGRAMMING GUIDE ⚫ Second byte (printer information) Off/On Decimal Status 0 – 1 Reserved. No mechanical error. Mechanical error occurred. No autocutter error. Autocutter error occurred. Fixed. No unrecoverable error. Unrecoverable error occurred. No automatically recoverable error. Automatically recoverable error occurred. Fixed.

  • Page 96: Initialize Maintenance Counter

    PROGRAMMING GUIDE ⚫ Third byte (paper sensor information) Off/On Decimal Status 0, 1 Roll paper near-end sensor: paper adequate. Roll paper near-end sensor: paper near end. 2, 3 Roll paper end sensor (Paper sensor): paper present. And Roll paper jam sensor: no paper jam Roll paper end sensor (Paper sensor): paper not present Or Roll paper jam sensor: paper jam Fixed.
  • Page 97 PROGRAMMING GUIDE The number of print characters (for the face of a slip and validation) The number of carriage driving (for the face of a slip) The number of platen/roller opening/closing mechanism driving Note: “Number of lines fed. [Lines]”, “Number of head energizations [Times]” are calculated with “Receipt length tally”...

  • Page 98: Transmit Maintenance Counter

    PROGRAMMING GUIDE 3.6.7 Transmit maintenance counter ASCII: GS g 2 m nL nH Hexadecimal: 1D 67 32 m nL nH Decimal: 29 103 50 m nL nH Range: m = 0 (nL + nH x 256) = 20, 21, 22, 50,52,53,54,55,56,57,59, 70, 148, 149, 150, 178,198 ,200,238,239,240 It transmits the value of the maintenance counter specified by (nL + nH x 256) (nL + nH x 256)
  • Page 99 PROGRAMMING GUIDE Transmission data is as follows. Data group of Decimal Data maintenance counter (1) Header 1 byte (2) Data 30H ~39H 48 ~ 57 1 byte ~ (3) NULL 1 byte Example: When autocut operations is 123 times, “0x1D 0x67 0x00 0x32 0x00” command response is “0x5F 0x31 0x32 0x33 0x00”...

  • Page 100: Transmit Status

    PROGRAMMING GUIDE 3.6.8 Transmit Status ASCII: GS r n Hexadecimal: 1D 72 n Decimal: 29 114 n Values of n: 1, 49 = printer status 2, 50 = cash drawer status 3, 51 = slip paper status 4, 52 = Flash Memory status Transmits the status specified by n.

  • Page 101: Send Printer Firmware Version

    PROGRAMMING GUIDE Off/On Decimal Function Undefined Undefined User data storage write successful Failed to write to User data storage area. User defined area not erased properly. Flash Logo area is adequate. Flash logo area was not adequate for the latest logo registration.

  • Page 102: Execute Head Failure Detection

    PROGRAMMING GUIDE Head Failure 0x15 Counter for number of dots damaged Byte : Number of damaged dots Byte : Reserved (Null) The printer executes Impact Head Failure Detection and returns the result (3bytes). The first byte indicates the result (OK/NG) and 2nd byte indicates the number of dots damaged in NG case. The 3 byte is reserved, so it’s always null.

  • Page 103: Set Control Point

    PROGRAMMING GUIDE 3.6.14 Set control point ASCII: ESC [ ! t nl nh Hexadecimal: 1B 5B 21 74 nl nh Decimal: 27 91 33 116 nl nh 0 ≤ (nL + nH * 256) ≤ 0xFFFF Range: Description: The printer sends the answer to a control point as soon as all mechanical activities are finished Notes: The answer which is sent to the host consists of the complete escape command...

  • Page 104: Real Time Commands

    PROGRAMMING GUIDE Real Time Commands Real Time Commands are immediately processed regardless of the condition of the receiving buffer and the printer status as soon as it's received. For example, even if the printer is in an error condition, it properly responds to a real time status command sent.
  • Page 105 PROGRAMMING GUIDE Undefined Not used. Fixed to off. Transmit 0ffline status (n=2) Off/On Decimal Function Undefined. Fixed to off. Undefined. Fixed to on Cover(Receipt Top & Receipt Front & Slip) is closed Cover(Receipt Top & Receipt Front & Slip) is opened Paper Feed Button is not pressed Paper Feed Button is pressed Not used.

  • Page 106: Real Time Request To Printer

    PROGRAMMING GUIDE Slip station: Transmit slip paper status (n=5) Off/On Decimal Function Undefined. Fixed to off. Undefined. Fixed to on Slip station is selected Receipt station is selected Not waiting for slip to insert Waiting for slip to insert Not used. Fixed to on. Slip leading edge (TOF) sensor : paper present Slip leading edge (TOF) sensor : no paper Slip trailing edge (BOF) sensor : paper present...

  • Page 107: Enable/Disable Real-Time Command

    PROGRAMMING GUIDE 3 = Cancel slip waiting The printer immediately takes the recovery action from an error condition in accordance with the parameter n once it receives this command. This command is valid when the printer is in an error condition.

  • Page 108: Generate Pulse In Real-Time

    PROGRAMMING GUIDE pL,pH specify (pL + pH x 256) as the number of bytes after pH (m and [a1 b1] … [ak bk]). Function 0, 48 DLE DC4 fn m t (fn = 1): Not processed (disabled). 1 (Default), 49 DLE DC4 fn m t (fn = 1): Processed (enabled).

  • Page 109: Control Buzzer (Internal Buzzer)

    PROGRAMMING GUIDE 3.7.6 Control Buzzer (Internal buzzer) ASCII: DLE DC4 fn a n r t1 t2 Hexadecimal: 10 14 03 a n r t1 t2 Decimal: 16 20 3 a n r t1 t2 Value: fn = 3 a = 0 n = 0 r = 0 t1 = 1...

  • Page 110: Extended Real-Time Status Transmission

    PROGRAMMING GUIDE 3.7.9 Extended Real-Time Status Transmission ASCII: DLE EM n Hexadecimal: 10 19 n Decimal: 16 25 n Values of n: 0x01 = (Reserved) 0x02 = Error status 0x10 = Detail Cutter Error status 0x11 = Detail Printer Jam Error status 0x12 = Detail Thermal Head 1 Error status 0x14 = Detail Memory Error status 0x15 = (Reserved)
  • Page 111 PROGRAMMING GUIDE Undefined Fixed Fixed to off Jam sensor is OFF. (No paper on jam sensor) It is not an error. Jam sensor is ON. (Paper on jam sensor) Sensor status. Fixed Fixed to off Undefined Undefined Fixed Fixed to on These status bits are detail error status of Jam Error which is assigned at Bit2 in Error status (n=0x02) of Extended Real-Time Status Transmission.
  • Page 112 PROGRAMMING GUIDE (Reserved) Fixed Fixed to off Sensor calibration has been successfully done. Sensor calibration failed or hasn’t been conducted yet. (Reserved) Fixed Fixed to on Bit 0 indicates actual paper low sensor status. Based on this sensor status, the printer firmware detects the paper low according to “Paper Low Detection”...
  • Page 113 PROGRAMMING GUIDE Slip Paper Jam in forward feed. (BOF sensor becomes OFF while feeding a paper) No Shutter Jam Shutter motor Jam (Shutter motor did not exit the home position) Fixed Fixed to on Bit 0, Bit 1, Bit 3, Bit 5 and Bit 6 are the detail of Slip Paper Jam which are assigned at Bit 2 in Transmit error status (n=3) of Real Time Status Transmission.
  • Page 114 PROGRAMMING GUIDE Fixed Fixed to off No Carriage Motor Jam Carriage Motor Jam (It did not return to the home position) No Carriage Motor Jam Carriage Motor Jam (It did not exit the home position) Fixed Fixed to on Bit 5 and Bit 6 are the detail of Slip Paper Jam which are assigned at Bit 2 in Transmit error status (n=3) of Real Time Status Transmission.

  • Page 115: Real Time Printer Status Transmission

    PROGRAMMING GUIDE Flash firmware version It returns flash firmware version, Total 6 bytes Flash cycles tally It returns Flash cycles tally, Total 10 bytes Knife jams tally It returns Knife jams tally, Total 10 bytes Cover openings tally It returns Cover opening tally, Total 10 bytes Thermal head over heat tally It returns Thermal head over heat tally, Total 10 bytes...

  • Page 116: Real-Time Printer Maintenance

    PROGRAMMING GUIDE When this command is received, the printer resets (turns off) the current state of all color of LED, and then it changes the LED state according to the new parameter specified by this command. Exceptions: If the printer is in Auto mode of LED, this command is ignored. The command is ignored if n is out of range.
  • Page 117 PROGRAMMING GUIDE It transmits one cycle time of the full cut at the very beginning of the printer. Value of Status Byte: One cycle full cut time. Unit is 10 msec. Return Latest Cut cycle time (0x11) It transmits the latest one cycle time of the knife cut. Value of Status Byte: One cycle full cut time.

  • Page 118: Bar Code Commands

    PROGRAMMING GUIDE Bar Code Commands 3.8.1 Select Printing Position of HRI Characters ASCII: GS H n Hexadecimal: 1D 48 n Decimal: 29 72 n Value of n: Printing Position of HRI Characters 0, 48 = Not printed 1, 49 = Above the bar code 2, 50 = Below the bar code 3, 51 = Both above and below the bar code Default:...
  • Page 119 PROGRAMMING GUIDE is not sent from a system. Start/Stop characters of Code 39 are automatically added and processed by the printer if they are not sent from a system. First Formula: String terminated by NULL m = 0 – 6, 10 d = 32 - 126 (see the table) n = 1 - 255 (see the table) First Formula...
  • Page 120 PROGRAMMING GUIDE 48 – 57, CODE39 Variable length 65 – 90 (ASCII alphabet), 32, 36, 37, 43, 45, 46, 47 (ASCII special characters) d1=dk=42 (start/stop code is supplied by printer if necessary) 48 – 57 Interleaved 2 of 5 Variable length (ITF) (Even number) Start / stop code : 65 –...
  • Page 121 PROGRAMMING GUIDE The AI is ‘(01)’. Omnidirectional GS1 DataBar Limited GS1 DataBar Expanded Input data: Neither AI nor {(01{)15012345678907{(30{)23{1{(17{)950827 C/D is added GS1 DataBar Expanded HRI print: automatically. Stacked (01)15012345678907(30)23(17)950827 In order to express AI in HRI, AI is surrounded by the bracket and printed. Because this parenthesis needs to distinguish from the usual data, it is necessary to use special data.
  • Page 122 PROGRAMMING GUIDE 48 – 57, CODE39 Variable length 65 – 90 (ASCII alphabet), 32, 36, 37, 43, 45, 46, 47 (ASCII special characters) d1=dk=42 (start/stop code is supplied by printer if necessary) 48 – 57 Interleaved 2 of 5 Variable length (ITF) (Even number) Start / stop code : 65 –...

  • Page 123: Print Bar Code(2D Mode)

    PROGRAMMING GUIDE In all GS1 DataBar except Expanded and Expanded Stacked, the printer automatically adds Application Identifier (AI), Check Digit (C/D). Hence n (Length) is 13(Fixed Length) Fig. about the addition of AI & C/D Type of GS1 DataBar example AI &...

  • Page 124: Print Gs1Databar (Rss), Data Length Specified

    PROGRAMMING GUIDE Truncated CC-A,CC-B Variable length(j) GS1 DataBar 48 - 57 Fixed Length: 13 (k) Stacked CC-A,CC-B Variable length(j) GS1 DataBar 48 - 57 Fixed Length: 13 (k) Stacked Omnidirectional CC-A,CC-B Variable length(j) GS1 DataBar Limited 48 - 57 Fixed Length: 13 (k) [However d1= 48, 49] CC-A,CC-B Variable length(j)

  • Page 125: Pint Gs1Databar (Rss Barcode), Null Terminated

    PROGRAMMING GUIDE 3.8.8 Pint GS1DataBar (RSS barcode), null terminated ASCII: GS k n d1... 00 Hexadecimal: 1D 6B n d1... 00 Decimal: 29 107 n d1... 00 Value of m: n Type 51 GS1 52 GS1 Truncated 53 GS1 Stacked 54 GS1 Stacked Omni-directional 55 GS1 Limited 56 GS1 Expanded and Expanded Stacked...

  • Page 126: Pdf417: Set The Number Of Rows

    PROGRAMMING GUIDE Hexadecimal:1D 28 6B pL pH cn fn n Decimal: 29 40 107 pL pH cn fn n Range: (pL + pH x 256) = 3 (pL = 3, pH = 0) cn = 48 fn = 65 0 ≤ n ≤ 30 Default: n = 0 It sets the number of columns in the data region for PDF417.

  • Page 127: Pdf417: Set The Row Height

    PROGRAMMING GUIDE 3.8.14 PDF417: Set the row height ASCII: GS ( k pL pH cn fn n Hexadecimal:1D 28 6B pL pH cn fn n Decimal: 29 40 107 pL pH cn fn n Range: (pL + pH x 256) =3, (pL = 3, pH = 0) cn = 48 fn = 68 2 ≤...

  • Page 128: Pdf417: Select The Options

    PROGRAMMING GUIDE 3.8.16 PDF417: Select the options ASCII: GS ( k pL pH cn fn m Hexadecimal: 1D 28 6B pL pH cn fn m Decimal: 29 40 107 pL pH cn fn m Range: (pL + pH x 256) = 3 (pL = 3, pH = 0) cn = 48 fn = 70 m = 0, 1...

  • Page 129: Pdf417: Transmit The Size Information Of The Symbol Data In The Symbol Storage Area

    PROGRAMMING GUIDE 3.8.19 PDF417: Transmit the size information of the symbol data in the symbol storage area ASCII: GS ( k pL pH cn fn m Hexadecimal: 1D 28 6B pL pH cn fn m Decimal: 29 40 107 pL pH cn fn m Range: (pL + pH x 256) = 3 (pL = 3, pH = 0) cn = 48...

  • Page 130: Qr Code: Select The Error Correction Level

    PROGRAMMING GUIDE Range of n: 1-16 Default n : It sets the size of the module for QR Code as n dots. User must secure the quiet zone (left, right, upward, and downward space areas defined by the QR Code symbol specifications) for QR Code printing.

  • Page 131: Qr Code: Store The Data In The Symbol Storage Area

    PROGRAMMING GUIDE 3.8.24 QR Code: Store the data in the symbol storage area cn fn m d1…dk ASCII: GS ( k p cn fn m d1…dk Hex: 1D 28 6B p cn fn m d1…dk Decimal: 29 40 107 p 4 - 255, Here 4 ≤...

  • Page 132: 2-Dimensional Gs1 Databar: Set The Module Width

    PROGRAMMING GUIDE In the above, “Other information” represents the possibility of printing QR Code. Other Information: 0x30 - Printing is possible 0x31 - Printing is impossible Horizontal and vertical sizes are specified as ASCII value of received byte. They can be obtained by following equations.

  • Page 133: 2-Dimensional Gs1 Databar: Store Data In The Symbol Storage Area

    PROGRAMMING GUIDE 3.8.29 2-dimensional GS1 DataBar: Store data in the symbol storage area ASCII: GS ( k pL pH cn fn m n d1,,,dk Hexadecimal: 1D 28 6B pL pH cn fn m n d1,,,dk Decimal: 29 40 107 pL pH cn fn m n d1,,,dk 6 ≤...

  • Page 134: Select Pdf 417 Parameters

    PROGRAMMING GUIDE 3.8.31 2-dimensional GS1 DataBar: Transmit size information of the symbol data in the symbol storage area ASCII: GS ( k pL pH cn fn m Hexadecimal: 1D 28 6B pL pH cn fn m Decimal: 29 40 107 pL pH cn fn m Range of pL, pH: (pL + pH ×...
  • Page 135 PROGRAMMING GUIDE 1 ≤ e ≤ 7 X dimension Width of a single Supported module in dots. 2 ≤ f ≤ 25 Y dimension Height of the code Not supported word in dots. PDF 417 is a multi-row, continuous, variable length symbolism which has high data capacity. Each symbol has between 3 and 90 rows, with each row containing a start pattern, a left row indicator, 1 to 30 data characters, a right row indicator and a stop pattern.

  • Page 136: Datamatrix: Set The Symbol Type, Number Of Columns, Number Of Rows

    PROGRAMMING GUIDE 3.8.33 DataMatrix: Set the symbol type, number of columns, number of rows ASCII: GS ( k pL pH cn fn m d1 d2 Hexadecimal: 1D 28 6B pL pH cn fn m d1 d2 Decimal: 29 40 107 pL pH cn fn m Range of pL, pH: (pL + pH ×...
  • Page 137 PROGRAMMING GUIDE following table provides a useful guide to estimating size of symbol depending on number of data to be encoded: Symbol Maximum Data Type Numeric Alphanumeric Square 10,10 12,12 14,14 16,16 18,18 20,20 22,22 24,24 26,26 32,32 36,36 40,40 44,44 48,48 52,52...

  • Page 138: Datamatrix: Set The Size Of The Module

    PROGRAMMING GUIDE 3.8.34 DataMatrix: Set the size of the module ASCII: GS ( k pL pH cn fn n Hexadecimal: 1D 28 6B pL pH cn fn n Decimal: 29 40 107 pL pH cn fn n Range of pL, pH: (pL + pH ×...

  • Page 139: Datamatrix: Print The Symbol Data In The Symbol Storage Area

    PROGRAMMING GUIDE DataMatrix: 3.8.36 Print the symbol data in the symbol storage area ASCII: GS ( k pL pH cn fn m Hexadecimal: 1D 28 6B pL pH cn fn m Decimal: 29 40 107 pL pH cn fn m Range of pL, pH: (pL + pH ×...

  • Page 140: Datamatrix: Transmit The Size Information Of The Symbol Data In The Symbol Storage Area

    PROGRAMMING GUIDE DataMatrix: Transmit the size information of the symbol data in the symbol storage 3.8.37 area ASCII: GS ( k pL pH cn fn m Hexadecimal: 1D 28 6B pL pH cn fn m Decimal: 29 40 107 pL pH cn fn m Range of pL, pH: (pL + pH ×...

  • Page 141: Page Mode Commands

    PROGRAMMING GUIDE Page Mode Commands Standard Mode is the default mode which prints data as soon as one line data in the print buffer is ready to print. One line data is printed once a print command such as LF (0x0A) is processed or one line buffer is full.

  • Page 142: Select Standard Mode

    PROGRAMMING GUIDE 3.9.4 Select Page Mode ASCII: ESC L Hexadecimal: 1B 4C Decimal: 27 76 It switches from Standard Mode to Page Mode. Exceptions: The command is valid at the beginning of a line in Standard Mode. The Select Paper (1B 63 30) command can not be used in Page Mode. The command is available only when the receipt is selected.

  • Page 143: Set Printing Area In Page Mode

    PROGRAMMING GUIDE n = 0 n = 3 n = 1 n = 2 Default: 0 (Upper left corner proceeding across page to the right) Exceptions: This command is valid in Page Mode. This command is ignored if the value of n is out of the range. 3.9.7 Set Printing Area in Page Mode ASCII:...
  • Page 144 PROGRAMMING GUIDE Default values Receipt Slip 576, 2.8 in. 420, 3 in. 576, 2.8 in. 1500, 10 in Receipt: The maximum printable area in the x direction is 576/203 inches. Slip: The maximum printable area in the x direction is 3 inches. Receipt and Slip: The maximum printable area in the y direction depends on the available memory.
  • Page 145 PROGRAMMING GUIDE When the starting position specified by “Select Print Direction in Page Mode” command (1B 54) is set to the upper right or lower left of the printing area, Horizontal Motion Unit is used for this formula. Exceptions: This command is valid in Page Mode. If the position specified exceeds the print area, this command is ignored.

  • Page 146: Macro Commands

    PROGRAMMING GUIDE 3.10 Macro Commands 3.10.1 Start and Terminate Macro Definition ASCII: GS : Hexadecimal: 1D 3A Decimal: 29 58 It starts and terminates a macro definition to the target memory specified by Select Memory Type for User Defined Data(1D 22 n) command. Only one macro can be stored in Macro area of each target memory (RAM and Flash memory).

  • Page 147: User Data Storage Commands

    PROGRAMMING GUIDE 3.11 User Data Storage Commands 3.11.1 Write User Defined Data ESC ‘ m a0 a1 a2 d1 ... dm ASCII: Hexadecimal: 1B 27 m a0 a1 a2 d1 ... dm Decimal: 27 39 m a0 a1 a2 d1 ... dm 1 –...

  • Page 148: Flash Memory Allocation For User-Defined Storage Area

    PROGRAMMING GUIDE characters are printed according to the character code irrespective of the storage area. n = 52 (ASCII n = 4) It specifies RAM as Macro definition area. The subsequent commands to define Macro are stored into RAM. It also specifies RAM as the target memory to read Macro defined. n = 53 (ASCII n = 5) It specifies the flash memory as Macro definition area.

  • Page 149: Printer Setting Change

    PROGRAMMING GUIDE 3.11.6 Printer Setting Change US 6 [m n], [m n] … [m n] 0FFH ASCII: 1F 36 [m n], [m n] … [m n] 0FFH Hexadecimal: 31 54 [m n], [m n] … [m n] 0FFH Decimal: Value of m, n: It sets the printer configuration specified by m and n.
  • Page 150 PROGRAMMING GUIDE m (Hex) Function n (Hex) Option Effect Reserved 28-29 Reserved Receipt Shooting Disable(Defalut) Immediate Enable Receipt Shooting time Endless(Defalut) Immediate 01-FF Time out value (250ms~63.75s) Compatible Top Margin Disable (Default) Power off/on Enable Compatible top margin time out Disable (Default) Power off/on 01-FF...
  • Page 151 PROGRAMMING GUIDE - 2 : 90% - 1 : 95% 0 : 100% 1 : 105% 2 : 110% 3 : 115% 4 : 120 5 : 125% 6 :130% Paper mode 0-15 0 : NPI paper Immediate 1 : FA paper 2 : PF paper 3 : Blue4est paper 4~15 : User defined paper...
  • Page 152 PROGRAMMING GUIDE m (Hex) Function n (Hex) Option Effect 437 (Default) Immediate Default code page(Recipt) 1252 1251 1255 KZ 1048 1254 1250 28591 28592 28599 28605 1256 28596 KATAKANA. 1257 28594 1253 41 - 45 Reserved Remove Upper Space Disable (Default) Power off/on (ECO funtionality) Enable...
  • Page 153 PROGRAMMING GUIDE m (Hex) Function Option Effect (Hex) 51 - 56 Reserved ECO function Disable/Enable Disable (Default) Power off/on Enable Remove lines containing only Disable (Default) Power off/on spaces (ECO funtionality) Enable 59 – 5C Reserved Slip Left margin F1 – 0F -15 (F1), -14 (F2),…., -1 (FF), 0 Immediate (00), +1(01), +2(02),…., +15 (0F)
  • Page 154 PROGRAMMING GUIDE Denmark II Spain II Latin America Korea Slovenia/ Croatia China Reserved Arabia Immediate Top logo alignment Left justification (Default) Centering Right justification Immediate Bottom logo alignment Left justification (Default) Centering Right justification Immediate Top logo while paper Disable feeding to the cutting Enable (Default) position...

  • Page 155: Read Printer Setting

    PROGRAMMING GUIDE 3.11.7 Read Printer Setting ASCII: US DC2 m Hexadecimal: 1F 12 m Decimal: 31 18 m Value of m: 16 (0x10) to 191 (0xBF). Refer to 3.11.6 Printer Setting Change Command in detail. This command is to read the setting specified by m. 3.11.8 LED Configuration ASCII:...

  • Page 156: Read Led Configuration

    PROGRAMMING GUIDE …. Blink pattern Example: LED ON: These parameters are 0xFF 0xFF 0xFF 0xFF LED OFF: These parameters are 0x00 0x00 0x00 0x00 Range of q: 0 to 255 It specifies ON time of bit specified as ON (=1) in blink pattern. Unit is 100 m sec, so Actual time = Parameter (q) x Unit time (100 ms) Range of r: 0 to 255...

  • Page 157: End The User Setting Mode Session

    PROGRAMMING GUIDE use setting mode notice (4) Header 1 byte (5) Identifier 1 byte (6) NULL 1 byte 3.11.11 End the user setting mode session ASCII: GS ( E pL pH fn d1 d2 d3 Hexadecimal: 1D 28 45 pL pH fn d1 d2 d3 Decimal: 29 40 69 pL pH fn d1 d2 d3 Range:...
  • Page 158 PROGRAMMING GUIDE 2-4 to 2-7 Reserved Listen to Real-Time-Commands – Always Listen to Real-Time-Commands – Only if Receive-Buffer is not full When a = 2, memory switch 1 is set as follows: Setting Function value(b) 128-1 Power button is enabled Power button is disabled 128-2 In Sleep-Mode is Interface Power On...

  • Page 159: Transmits The Host The Value For The Memory Switch

    PROGRAMMING GUIDE (original controller) this Memory switch is 0. After a controller change this Memory switch is set to 1. • Memory switch “Power Button Delay” (Memory switch 2-7): The delay time is effective when switching off the device. When switching on the power button reacts always with no delay. •...
  • Page 160 PROGRAMMING GUIDE Value of a: Parameters in Setting Type pf customized value Change Command (1F 36) Roll paper width 1F 36 32 n Print density when printing in monochrome and multi-tone 1F 36 30 n Default international character 1F 36 A0 n Maximum power 1F 36 36 n Print speed...
  • Page 161 PROGRAMMING GUIDE 120% 125% 130% Default international character (When a = 7) See (n) of the ESC R command to select international character. Power supply output (a = 9) (nL +nH x 256) Power Supply Output Default Auto(default) Auto 48…110 48W…110W Print speed setting (a = 10) (nL + nH x 256)
  • Page 162 PROGRAMMING GUIDE (nL +nH x 256) Flush time Default Endless 1…255 Time in 0.25 Sec This value sets the time how long the printer is waiting for print commands from the host before the receipt is printed out. The value must be multiplied by 250 milliseconds (i.e. CV13 = 8 -> Receipt shooting flush time = 2 sec).
  • Page 163 PROGRAMMING GUIDE Paper auto-cut after closing the roll paper cover (when a = 100) (nL + nH x 256) Paper auto-cut after closing the roll paper cover Disabled Enabled (Default) Enabling/disabling reduction of excessive top margin (when a = 101) (nL + nH x 256) Reduction of excessive top margin Disabled (Default)
  • Page 164 PROGRAMMING GUIDE (nL + nH x 256) Buzzer frequency No sound 1 time 65535 Continuous (Default) Buzzer function: Sound Pattern (when a = 121,123, 125) (nL + nH x 256) Sound pattern Pattern A (Default) Pattern B Pattern C Pattern D Pattern E Buzzer function: Buzzer frequency (when a = 122, 124, 126) (nL + nH x 256)

  • Page 165: Transmit The Customized Setting Values

    PROGRAMMING GUIDE 3.11.15 Transmit the customized setting values ASCII: GS ( E pL pH fn a Hexadecimal: 1D 28 45 pL pH fn a Decimal: 29 40 69 pL pH fn a Range: (pL + pH x 256) = 2 (pL = 2, pH = 0) fn = 6 a = 3, 5, 6, 8 ≤...
  • Page 166 PROGRAMMING GUIDE (6) NULL 1 byte Example: When “Roll paper width” setting is 82.5mm, command “0x1D 0x28 0x45 0x02 0x00 0x06 0x03” response is “0x37 0x27 0x33 0x1F 0x36 0x00”. Print density Settings (a = 5,a = 12) Hexadecimal Print Density 0x36 0x35...

  • Page 167: Set The Configuration Item For The Serial Interface

    PROGRAMMING GUIDE 3.11.16 Set the configuration item for the serial interface GS ( E pL pH fn a d1 … dk ASCII: Hexadecimal: 1D 28 45 pL pH fn a d1 … dk 29 40 69 pL pH fn a d1 … dk Decimal: 3 ≤...

  • Page 168: Transmit The Configuration Item For The Serial Interface

    PROGRAMMING GUIDE 3.11.17 Transmit the configuration item for the serial interface ASCII: GS ( E pL pH fn a Hexadecimal: 1D 28 45 pL pH fn a Decimal: 29 40 69 pL pH fn a Range: (pL + pH x 256) = 2 (pL = 2, pH = 0) fn = 12 a = 1 It transmits the configuration item for the serial interface specified by a.
  • Page 169 PROGRAMMING GUIDE Hexadecimal: 1D 28 45 pL pH fn a Decimal: 29 40 69 pL pH fn a Range: (pL + pH x 256) = 2 (pL =2, pH = 0) fn = 16 a = 1 It transmits the set values for USB communication specified by a. Configuration item Class Transmission data is as follows:...

  • Page 170: Set Serial Number

    PROGRAMMING GUIDE 3.11.20 Set Serial number GS ( E pL pH fn d1 … dk ASCII: Hexadecimal: 1D 28 45 pL pH fn d1 … dk 29 40 69 pL pH fn d1 … dk Decimal: 2 ≤ (p x256) ≤ 11 Range: fn = 129 32 ≤...

  • Page 171: Text Strike-Through Mode

    PROGRAMMING GUIDE types: (m n = 1 0) red/black paper. When issuing this command a value of n = 0xFF can always be use: that is interpreted as requested the setting of the highest version defined in the printer of that category. This is a save way for an application to always select the latest of a manufacturer’s paper category, thus choosing “latest standard red/black”.
  • Page 172 PROGRAMMING GUIDE Item offset size note Paper category Version in type category Target print head type. Print head type Valid for pre-load parameter. structure format type Fixed 1 Monochrome Density offset. Same as GS ( E density -10 ~ 6 : 50% ~ 130% Density offset.
  • Page 173 PROGRAMMING GUIDE Value note -15 ~ 15 : (-7.5m ~ F1-0F +7.5m) ・ Max speed : set max speed adjustment this area is same as GS ( E fn=5,a = 10 or 1F 36 AA ・ Print quality adjustment(txt) : This area able to adjust print speed for txt print Value note 0 ~ 50 : reduce duty...

  • Page 174: Set Temporary Max Target Speed

    PROGRAMMING GUIDE 3.11.26 Set temporary max target speed ASCII: GS 0xA0 nl nh Hexadecimal: 1D A0 nl nh Decimal: 29 160 nl nh 0x15 ≤ (nL + nH * 256) ≤ 0x162 monochrome Range: 0x15 ≤ (nL + nH * 256) ≤ 0x6E color Default : (nL + nH * 256) = 0 = normal speed Description: This command sets a specific speed for an operation, allowing the user more control of the print...

  • Page 175: Enable/Disable Transmission Of Paper Status (Escpos Emulation Only)

    PROGRAMMING GUIDE 3.11.27 Enable/disable transmission of paper status (ESCPOS emulation only) ASCII: GS ( H pL pH fn m Hexadecimal: 1D 28 48 pL pH fn m Decimal: 29 40 72 pL pH fn m Range: (pL + pH x 256) = 2 (pL = 2, pH = 0) fn = 64 n = 0, 1, 48, 49 Value of n:...
  • Page 176 PROGRAMMING GUIDE 5, 53 Print speed level 5 6, 54 Print speed level 6 7, 55 Print speed level 7 8, 56 Print speed level 8 9, 57 Print speed level 9 Print speed level 10 Print speed level 11 Print speed level 12 Print speed level 13 fast...

  • Page 177: Select Slip Lines Per Inch

    PROGRAMMING GUIDE 3.11.29 Select Slip lines per inch ASCII: US ETX % EOTn Hexadecimal: 1F 03 25 04 n Decimal: 31 03 37 04 n Range of n: 0: 7.2 LPI 1: 6.0 LPI Description: This command sets the slip station lines per inch setting. 3.11.30 Select Narrow Slip Configuration Option to Ignore n Leading Spaces ASCII:...

  • Page 178: Select Narrow Slip 51 -Column Compressed Print Option

    PROGRAMMING GUIDE Select Narrow slip 51 –column Compressed Print Option 3.11.32 ASCII: US ETX % LF n Hexadecimal: 1F 03 25 0A n Decimal: 31 03 37 0A n Range of n: 0: Disable (default) 1: Enable Description: When enabled, all normal text is printed in 51 – column compressed print. This accommodates existing applications printing up to 51 columns on the slip station.

  • Page 179: Select Slip Stop Options

    PROGRAMMING GUIDE 3.11.35 Select Slip Stop Options ASCII: US ETX % CR n Hexadecimal: 1F 03 25 0D n Decimal: 31 03 37 14 n Range of n: 0: No slip stop emulation 1: TH420 Slip Stop emulation (default) Description: The TH420/A758/A756 mechanism has a positive slip stop for positioning a form at its top right corner.

  • Page 180: Enables Or Disables The 1D 4C N L N H And 1D 57 N L N H Commands

    PROGRAMMING GUIDE 3.11.39 Enables or disables the 1D 4C n L n H and 1D 57 n L n H commands ASCII: US ETX & EOT n Hexadecimal: 1F 03 26 04 n Decimal: 31 03 38 04 n Range of n: 0: Disable Set left margin (1D 4C n L n H) and print width (1D 57 n L n H) on the slip station commands 1: Enable Set left margin (1D 4C n L n H) and print width (1D 57 n L n H) on the slip stationcommands...

  • Page 181: Asian Character Command

    PROGRAMMING GUIDE 3.12 Asian character command 3.12.1 Select print modes for Asian characters ASCII: FS ! n Hexadecimal: 1C 21 n Decimal: 28 33 n Value of n: The character attribute for Asian character Off/On Decimal Function Undefined Undefined Double width mode is not selected Double width mode is selected Double height mode is not selected Double height mode is selected...

  • Page 182: Define User-Defined Asian Characters

    PROGRAMMING GUIDE 3.12.5 Define user-defined Asian characters FS 2 c1 c2 d1 … dn ASCII: 1C 32 c1 c2 d1 … dn Hexadecimal: 28 50 c1 c2 d1 … dn Decimal: Value of c1: Specified the first Asian character code Value of c2: Specified the second Asian character code Value of d:...

  • Page 183: Select Asian Character Code System

    PROGRAMMING GUIDE 3.12.6 Select Asian character code system ASCII: Hexadecimal: 1C Decimal: Range: n = 0, 1, 48, 49 Default: n = 0 It selects a Kanji character code system for the Japanese model. Kanji character code system 0, 48 JIS code 1, 49 SHIFT JIS code...

  • Page 184: Ipl(Initial Program Loader) Command

    PROGRAMMING GUIDE 3.13 IPL(Initial Program Loader) Command There are two ways to update the firmware in online. 1) Update the firmware in IPL mode 2) Update the firmware in Main firmware mode Following commands are to update the firmware in IPL mode provided for the serious malfunction such as the corruption of the main firmware.

  • Page 185: Erase All Flash Memory

    PROGRAMMING GUIDE 3.13.5 Erase all Flash Memory ASCII: GS SO Hexadecimal: 1D 0E Decimal: 29 14 Response: ACK (0x06) This command is not used in the sequence of the firmware flashing in IPL. Therefore, it does not do anything except returning the acknowledgement. This command is available only in IPL mode. 3.13.6 Return Main Firmware CRC ASCII:...

  • Page 186: Flash Download Commands In Main Firmware

    PROGRAMMING GUIDE 3.14 Flash Download Commands in Main Firmware These commands are used to download the firmware in online. Since it does not switch to IPL mode, the flashing firmware is performed without disconnecting the interface. Those are not allowed to use in an application. Otherwise, it may cause the printer failure, or it may become not operational in worst case.
  • Page 187 PROGRAMMING GUIDE Error Code: 00H: Unknown error 01H: Illegal Parameter (n and p) 05H: No firmware in alternative area 06H: Fail to activate This command is not available in IPL mode. clxxvi...

  • Page 188: Diagnostic Commands

    PROGRAMMING GUIDE 3.15 Diagnostic Commands All diagnostic commands are supported for the printer production. Those are not allowed to use in an application. Otherwise, it may cause the printer failure, or it may become not operational in worst case. 3.15.1 Execute test print ASCII: GS ( A pL pH n m...
  • Page 189 PROGRAMMING GUIDE Range of n: n = 01H: execute sensor calibration n = 02H: execute sensor calibration for the slip station Response: ACK (0x06) + AA + EE + GG Index Sensor Value Jam Sensor If the respective sensor If the respective sensor calibration is successful or calibration is not done or if Paper Low Sensor...

  • Page 190: Retrieve Detail Log

    PROGRAMMING GUIDE TOF Sensor If the respective sensor If the respective sensor calibration is successful or calibration is not done or if BOF Sensor already if calibration is done the calibration is failed after after power up power up This command is to calibrate the following sensors. - TOF Sensor - BOF Low Sensor Steps to calibrate sensors in the slip station:...
  • Page 191 PROGRAMMING GUIDE Cutter Error Recoverable Error (operator intervention is not required) Thermal head over heat 3) Warning (This will not affect any printer behavior) Maintenance Information (m=02) It transmits 1556 bytes detail maintenance information. The content of this information is exactly same information as two QR barcode. clxxx...

  • Page 192: Appendix 1 Character Sets

    PROGRAMMING GUIDE 4. Appendix 1 Character sets Character code table page 0 (PC437 : USA,Standard Europe) Character code table Page 1 (PC850: Multilingual Latin I): clxxxi...

  • Page 193: Character Code Table Page 2 (Pc852: Latin Ii)

    PROGRAMMING GUIDE Character code table Page 2 (PC852: Latin II): Character code table Page 3 (PC860: Portuguese): clxxxii...

  • Page 194: Character Code Table Page 4 (Pc863: Canadian French)

    PROGRAMMING GUIDE Character code table Page 4 (PC863: Canadian French): Character code table Page 5 (PC865: Nordic): clxxxiii...

  • Page 195: Character Code Table Page 6 (Pc858: Multilingual I + Euro)

    PROGRAMMING GUIDE Character code table Page 6 (PC858: Multilingual I + Euro): Character code table Page 7 (PC866: Russian): clxxxiv...

  • Page 196: Character Code Table Page 8 (Wpc1252: Latin I)

    PROGRAMMING GUIDE Character code table Page 8 (WPC1252: Latin I): 4.10 Character code table Page 9 (PC862: Hebrew): clxxxv...

  • Page 197: Character Code Table Page 10 (Pc737: Greek)

    PROGRAMMING GUIDE 4.11 Character code table Page 10 (PC737: Greek): 4.12 Character code table Page 11 (PC874: Thai): clxxxvi...

  • Page 198: Character Code Table Page 12 (Pc857: Turkish)

    PROGRAMMING GUIDE 4.13 Character code table Page 12 (PC857: Turkish): 4.14 Character code table Page 13 (WPC1251: Cyrillic): clxxxvii...

  • Page 199: Character Code Table Page 14 (Wpc1255: Hebrew)

    PROGRAMMING GUIDE 4.15 Character code table Page 14 (WPC1255: Hebrew): 4.16 Character code table Page 15 ((KZ_1048: Kazakh): clxxxviii...

  • Page 200: Character Code Table Page 16 (Wpc1254: Turkish)

    PROGRAMMING GUIDE 4.17 Character code table Page 16 (WPC1254: Turkish): 4.18 Character code table Page 17 (WPC1250: Central Europe): clxxxix...

  • Page 201: Character Code Table Page 18 (Wpc28591: Latin 1)

    PROGRAMMING GUIDE 4.19 Character code table Page 18 (WPC28591: Latin 1): 4.20 Character code table Page 19 (WPC28592: Latin 2):...

  • Page 202: Character Code Table Page 20 (Wpc28599: Turkish)

    PROGRAMMING GUIDE 4.21 Character code table Page 20 (WPC28599: Turkish): 4.22 Character code table Page 21 (WPC28605: Latin 9): cxci...

  • Page 203: Character Code Table Page 22 (Pc864: Arabic)

    PROGRAMMING GUIDE 4.23 Character code table Page 22 (PC864: Arabic): 4.24 Character code table Page 23 (PC720: Arabic): cxcii...

  • Page 204: Character Code Table Page 24 (Wpc1256: Arabic)

    PROGRAMMING GUIDE 4.25 Character code table Page 24 (WPC1256: Arabic): 4.26 Character code table Page 25 (WPC28596: Arabic): cxciii...

  • Page 205: Character Code Table Page 26 (Katakana: Asia)

    PROGRAMMING GUIDE 4.27 Character code table Page 26 (KATAKANA: Asia): 4.28 Character code table Page 27 (PC775: Baltic): cxciv...

  • Page 206: Character Code Table Page 28 (Wpc1257: Baltic)

    PROGRAMMING GUIDE 4.29 Character code table Page 28 (WPC1257: Baltic): 4.30 Character code table Page 29 (WPC28594: Baltic): cxcv...

  • Page 207: Character Code Table Page 30 (Wpc1253: Greek)

    PROGRAMMING GUIDE 4.31 Character code table Page 30 (WPC1253: Greek): cxcvi...

  • Page 208: Appendix 2 Printable Area

    PROGRAMMING GUIDE 5. Appendix 2 Printable area Physical Right Margin Physical Printable Area GS L GS W Left margin Logical Printing Area The left margin can be set using GS L command. While printing area width is set by GS W command. These commands are ignored in page mode.

  • Page 209: Appendix 3 Eco Function

    PROGRAMMING GUIDE 6. Appendix 3 Eco function Please refer the specification of Utility(T.B.D) for the detail of each Eco function. Eco function is available for the receipt station only. General Eco settings configured are stored into the non-volatile memory. Therefore, even if the printer is powered off, the settings remain.

  • Page 210: Remove Lower Space

    PROGRAMMING GUIDE 6.2.2 Remove Lower Space It eliminates the extra lower space and rectifies the cutting position at the end of print data regardless of the original cutting position. Lower space implies the area from the end edge of the last printable data until the cutting position. Enabled Disabled Physical margin...

  • Page 211: Line Feed Reduction

    PROGRAMMING GUIDE 6.2.4 Line Feed Reduction It reduces the height of space created by the vertical feed command without printable data according to the ratio setting (Disable* / 25% / 50% / 75% / 100%). e.g. If it is configured to 50%, space height becomes half of the original height. If it is 100%, the space is completely removed.

  • Page 212: Registered Logo Removal

    PROGRAMMING GUIDE 6.2.6 Registered Logo Removal It ignores the registered Logo print command. Disabled Enabled AAAAAAAAAAA LOGO BBBBBBBBBBBB CCCCCCCCCCCC AAAAAAAAAAA BBBBBBBBBBBB CCCCCCCCCCCC This setting is ignored when the compatible top margin mode is enabled. 6.2.7 Force Single High Font It ignores the attribute commands which make character’s height higher. Disabled Enabled Physical margin...

  • Page 213: Power Reduction

    PROGRAMMING GUIDE Power reduction 6.3.1 Bold Font Removal It ignores the Bold Font attribute settings. Disabled Enabled LOGO LOGO AAAAAAAAAAA AAAAAAAAAAA BBBBBBBBBBBB BBBBBBBBBBBB CCCCCCCCCCC CCCCCCCCCCCC 6.3.2 Force Single Wide Font It ignores the Double Width and wider Font attribute settings. Disabled Enabled LOGO...

  • Page 214: No White/Black Reverse Printing

    PROGRAMMING GUIDE 6.3.3 No White/Black Reverse Printing It ignores the White/Black Reverse Printing attribute setting. Disabled Enabled LOGO LOGO AAAAAAAAAAA AAAAAAAAAAA BBBBBBBBBBBB BBBBBBBBBBBB CCCCCCCCCCCC CCCCCCCCCCCC 6.3.4 Stand-by Mode It disables / enables the stand-by mode. 6.3.5 Power Off Mode It disables / enables the power off mode. The power off mode is enabled by selecting the duration (60min, 120min, 180min, 240min and 300min) of idle time which triggers going in to the power off mode.

  • Page 215: Affected Commands

    PROGRAMMING GUIDE Affected commands Below commands are affected by each eco functions Paper Reduction Power Reduction Line Line Barcode Registere Force Force No White Remove Remove Bold Space Feed Height Single Single /Black functions Upper Lower Font Reductio Reductio Reductio Logo High Wide...

  • Page 216: Appendix 4 Thai Font Support

    PROGRAMMING GUIDE 7. Appendix 4 Thai font support Outline The printer supports Thai font (Code Page 874). It prints each character one by one according to the code number specified. However, Thai character basically consists of the combination of multiple characters. The printer provides the functionality to automatically construct Thai character according to the order of specified Thai character.

  • Page 217: Thai Character Data Procedure

    PROGRAMMING GUIDE Each character type is explained below. Baseline characters Circled by Red, Purple and pink characters are baseline characters. The characters circled by purple will not have below level characters, but they rarely use. The characters circled by pink will not have top level and above level, but only ฬ rarely use. Every character in red and purple must have a top and below level.
  • Page 218 PROGRAMMING GUIDE ESC 2 Set Line Spacing to 1/6 Inch ESC 3 Set Line Spacing The line pitch is changed by below commands because the code page is changed by below commands. ESC R Select international character set ESC t Select character code table (same as ESC R) ESC % Set/cancel user defined character set...

  • Page 219: Appendix 5 Paper Low Detection

    PROGRAMMING GUIDE 8. Appendix 5 Paper low detection Paper low sensor is located in receipt station to detect the paper roll when there is certain amount of paper remaining. Depend on diagnostic setting FW will calculate remaining paper length. There are three parameters to calculate paper remaining length. : Paper core diameter : Paper thickness : Length Adjustment.

  • Page 220: Appendix 6 Barcode Information

    PROGRAMMING GUIDE 9. Appendix 6 Barcode Information GS k Print Barcode • Modular check character is processed as following: - Automatically added when processing data is 11 byte. - The 12th byte data is processed as a modular check character when processing data is 12 byte.
  • Page 221 PROGRAMMING GUIDE Data (0331230|Composite) Command 0x1D 0x6B 0x42 0x0C "012345600007|Composite" Output • Modular check character is processed as follows: - Automatically added when processing data is 13 byte. - The 13th byte data is processed as a modular check character when processing data is 13 byte.
  • Page 222 PROGRAMMING GUIDE Data (1234567|CompositeAbcdefghij) Command 0x1D 0x6B 0x44 0x1B "1234567|CompositeAbcdefghij" Output • The printer processes the start code (ASCII = */Hex = 2Ah/Decimal = 42) as follows: - When the first bar code (d1) is “*”, the printer processes the data as a first character. - If the first bar code (d1) is not “*”, the printer adds a start character (*) automatically.
  • Page 223 PROGRAMMING GUIDE • Start code and stop code are not added automatically. Transmit data including the codes. • Check digits are not calculated and added. Example: Data (0123456789 CODABAR Command (m = 6, 71) 0x1D 0x6B 0x06 "A0123456789A" 0x00 process: 0x1D 0x6B 0x47 0x0C "A0123456789A"...
  • Page 224 PROGRAMMING GUIDE • The printer does not print HRI characters that correspond to the shift character or code set selection character (CODE A, CODE B, or CODE C). • HRI characters of the function characters (FNC1, FNC2, FNC3, or FNC4) and control characters (0x00 to 0x1F and 0x7F) are printed as spaces.
  • Page 225 PROGRAMMING GUIDE (m=13, 78) • Barcode will not be printed if the separator is given without composite process: code • If encoding of composite code failed, barcode will not be printed Data (2001234567890|Composite) Command 0x1D 0x6B 0x4E 0x17 "2001234567890|Composite" Output •...
  • Page 226 PROGRAMMING GUIDE Composite CC-B (m=16, 81) • Separator to composite code is ‘|’ (ASCII), 7C (HEX), 124 (DEC) process: • Barcode can be printed without the composite part • Barcode will not be printed if the separator is given without composite code •...
  • Page 227 PROGRAMMING GUIDE 0x1D 0x6B 0x53 0x1D 0x69 105 66 0 20 0 1 0 4 START_C 66 00 20 00 01 00 0x42 0x00 0x14 0x00 0x01 04 55 0x00 0x04 0x37 "|1234567890123456789” 0x1D 0x6B 0x52 0x15 0x68 104 34 99 40 3 79 START_B B CODE C 40 03 0x22 0x63 0x28 0x03 0x4F 61 13 8 100...
  • Page 228 PROGRAMMING GUIDE Table 9.1 Code 128 – Code table conversion Value Value Code A Code B Code C (decimal) (hex) “00“ Space Space “01“ “ “ “02“ “03“ “04“ “05“ “06“ & & ‘ ‘ “07“ “08“ “09“ “10“ “11“ “12“...
  • Page 229 PROGRAMMING GUIDE “54“ “55“ “56“ “57“ “58“ “59“ “60“ “61“ “62“ “63“ “64“ “65“ “66“ “67“ “68“ “69“ “70“ “71“ “72“ “73“ “74“ “75“ “76“ “77“ “78“ “79“ “80“ “81“ “82“ “83“ “84“ “85“ “86“ “87“ “88“ “89“ “90“ “91“ “92“...
  • Page 230 PROGRAMMING GUIDE GS ( k Print 2-dimensional Barcode • PDF417: Print the symbol data in the symbol storage area Data (0123456789) Command 0x1D 0x28 0x6B 0x0D 0x00 0x30 0x50 0x30 0x30 0x31 0x32 0x33 0x34 0x35 0x36 0x37 0x38 0x39 PDF417 ;...
  • Page 231 PROGRAMMING GUIDE • DataMatrix: Print the symbol data in the symbol storage area Data (123456789012345678901234567890) Command 0x1D 0x28 0x6B 0x05 0x00 0x36 0x42 0x00 0x16 0x16 ; Set the symbol type, number of columns, number of rows 0x1D 0x28 0x6B 0x03 0x00 0x36 0x43 0x04 ;...

  • Page 232: Diagnostics

    PROGRAMMING GUIDE Diagnostics 10. Offline Diagnostic 10.1 Offline Printer Configuration It configures the printer by Feed Key operation in offline mode. When the printer is turned on while Feed Key is pressed down, it enters Offline Printer Configuration mode. In this mode, all the interfaces are not available. Service Menu Structure –...
  • Page 233 PROGRAMMING GUIDE Main Menu / Diagnostic Diagnostic Exit Rolling Pattern Test Rolling Pattern Test Exit Sensor Test Print Pattern Once Print Pattern Unlimited Cutter Test(Full Cut) Print Pattern 10 Times Print Pattern 50 Times Cutter Test(Partial Print Pattern 100 Times Cut) Print Pattern 500 Times Print Pattern Once for slip...
  • Page 234 PROGRAMMING GUIDE Main Menu / Configuration / Hardware Hardware Exit/Save Power Button Power Button Exit Max. Power Enable Button Disable Button Sleep Mode Max. Power Exit Set Max. Power to Auto Set Max. Power to 48W Set Max. Power to 55W Set Max.
  • Page 235 PROGRAMMING GUIDE Main Menu / Configuration / Software Diagnostic Exit Power-ON Power-ON notice Notice Exit Paper-NE Transmit Don’t Transmit Notice Automatic Line Feed Paper-NE Notice Legacy Printer Exit Support Enable Paper-NE Notice Listen To RT- Disable Paper-NE Notice Cmds Asian font Automatic Line Feed Exit Enable Automatic Line Feed...
  • Page 236 PROGRAMMING GUIDE Main Menu / Configuration / Print Options Hardware Exit/Save Print Speed Print Speed Exit Paper Width PaperWidth 1.5 IPS Exit 2 IPS Paper Type 58mm 4 IPS 80mm 6 IPS Print Density 8 IPS Paper Type 10 IPS Color Print Density Exit 12 IPS...
  • Page 237 PROGRAMMING GUIDE Main Menu / Configuration / Print Options Configuration & Counters Exit Set Configuration to Default Main Menu / Configuration / RS232 Diagnostic Exit Baud Rate Baud Rate Exit Parity 9600 bps 19200 bps Flow Control 38400 bps 57800 bps Bit Length 115200 bps Receive Buffer...
  • Page 238 PROGRAMMING GUIDE Main Menu / Configuration / Slip Options Slip Options Wait for Slip Paper Exit 1 Exit Wait for Slip paper 2 Forever 3 1 minute 4 3 minutes 5 5 minutes Clamp Delay Clamp Delay Exit 1 second Print Justification Print Justification 0.5 second...
  • Page 239 PROGRAMMING GUIDE Diagnostic - Menu Every diagnostic function will be explained in the table below. Menu Description Available Options Exit/Save Rolling Pattern Test 1, 10, 50, 100, 500, The rolling pattern menu allows you to print out a endless, rolling pattern in numerous ways. Once for slip You can print it out once, endless, which will be interrupted by a long click of the LF button, and a...
  • Page 240 PROGRAMMING GUIDE during Sleep Mode 4.2.5.4 Sleep Mode Cash Drawer Delay 0 sec, 0.5 sec, 1 sec, The minimum time between leaving 1.7 sec, 2.5 sec, 5 sec Sleep Mode and opening cash drawer 4.2.5.5 ccxxix...
  • Page 241 PROGRAMMING GUIDE software Menu Description Available Options 4.3.1 Exit Exit this menu level and give a save request, if there are unsaved changes. 4.3.2 Power-ON Notice Transmit, Don’t Transmit Select a power up notification on the communication interface 4.3.3 Paper-NE Notice Enable Paper-NE Notice, Select the usage of the Paper-Near- Disable Paper-NE Notice...
  • Page 242 PROGRAMMING GUIDE Print Options In this menu section is it possible to change some printer parameter. It is very important to know what effects a change of a value. The procedure to save settings should be read. To leave this menu, choose “Exit/Save”. Menu Description Available Options...
  • Page 243 PROGRAMMING GUIDE RS232 Configuration In this configuration menu, you can configure the parameters for use with one RS232 communications Interface. This interfaces boards are available with different options. This menu is available with RS232 option card. Menu Description Available Options 4.6.1 Exit Exit this menu level and gives a...
  • Page 244 PROGRAMMING GUIDE Slip Options In this menu section is it possible to change slip function parameter. It is very important to know what effects the change of a value. The procedure to save settings should be read to leave this menu, choose “Exit/Save”.
  • Page 245 PROGRAMMING GUIDE Information - Menu Menu Description Available Options Exit Exit this menu level. Print Installed Code Pages That prints a printout with printer data and an overview of installed codepages. Print Code Pages That prints a collection of printouts of all chars of installed codepages.

  • Page 246: P1300 Diagnostic Functions

    PROGRAMMING GUIDE 10.2 P1300 Diagnostic Functions Diagnostic Description Selection Function • Entering diagnostic mode Selftest Printout printer info, settings and statistic data. • Diagnostic mode menu Sensor test Allow to test sensor functions. • LED diagnostic menu • Diagnostic mode menu...
  • Page 247 Table : xx.xx 6 : PC858 7 : PC866 8 : WPC1252 Printer Settings : 9 : PC862 Emulation : P1300 10 : PC737 Automatic LF : enabled 11 : PC874 Power Button : enabled 12 : PC857 : don’t transmit...
  • Page 248 PROGRAMMING GUIDE Statistic Report : Dots Total Dots Actual Printhead Changes : 0 Linefeeds Total Linefeeds Actual Mechanic Changes : 0 Cuts Total Cuts Actual Cutter Changes Cutter Errors Max. Head Temp. : 35℃ Thermistor Error Low Volt. Error High Volt. Error Cover Open FW Starts Power On (Hours)

  • Page 249: Printer Errors

    PROGRAMMING GUIDE Printer Errors 11. Error Detection The followings are errors and warnings detected in this printer. 1) Unrecoverable Error Those are very critical errors that the printer may not be functional at all and may require the repair. Once those errors are detected, it is not able to recover from an error condition unless the printer is reset.
  • Page 250 PROGRAMMING GUIDE The printer is not able to recover from this error condition unless the printer is turned off. Even if it is rebooted, there is a high possibility that same error is detected because this is the fatal error. Thermal Head Abnormal Temperature Error When the printer observes that the thermal head temperature is too high, it is detected as Thermal Head Abnormal Temperature Error.
  • Page 251 PROGRAMMING GUIDE Note: Even if the cutter overshoots (cannot stop at) the home position while performing cut, it is not considered as the abnormal condition as long as returning to the home position is recognized. Cover Open Error / Slip Cover Open Error When the printer recognizes that the cover sensor implies the cover open, it is detected as Cover Open Error.

  • Page 252: 12. Led Indication

    PROGRAMMING GUIDE 12. LED Indication 11.1 LED Pattern in Auto Mode This is the default LED pattern in “Auto Mode” which printer itself controls LED according to the printer status. This pattern can be changed by LED configuration command. Stage Printer Status Cycle Color...
  • Page 253 PROGRAMMING GUIDE State 33 to 64 are for LED on Slip Station. State Printer Status Cycle Color Control Boot Up AMBER AMBER -> OFF Idle Slip Active GREEN (Reserved) (Reserved) (Reserved) (Reserved) Standby mode (Reserved) Waiting for Paper to insert 2 Hz GREEN BLINK...

  • Page 254: Led Pattern In User Mode

    PROGRAMMING GUIDE 11.2 LED Pattern in User Mode When the printer is configured to “User Mode”, a system controls LED by “LED Control Request” command according to the printer status. The printer itself does not control the LED at all. For example, if a system recognizes that the cover is opened, it may send LED Control Request command (1D 7A 25) so that LED starts blinking RED in 3Hz.
  • Page 255 PROGRAMMING GUIDE ID 33 to 64 are for LED on Slip Station. Color Pattern Cycle (Hz) Control Green Blink 3 Hz 1 Blink Pause 3 seconds Green Blink 3 Hz 2 Blink Pause 3 seconds Green Blink 3 Hz 3 Blink Pause 3 seconds Green Blink 3 Hz...
