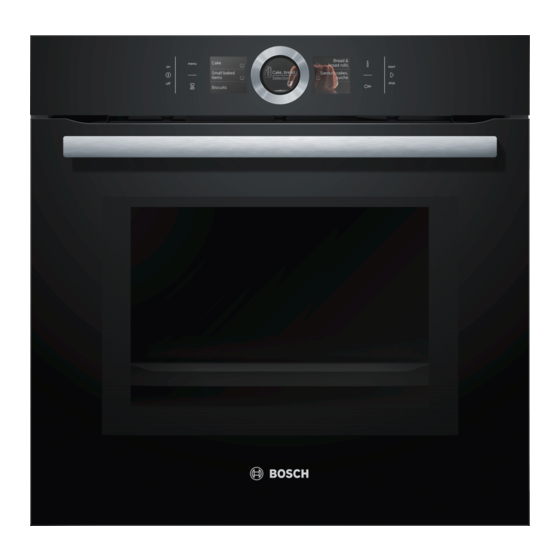

Oven
HMG6764.1
User manual and installation instructions
[en]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HMG6764 1 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bosch HMG6764 1 Series

Summary of Contents for Bosch HMG6764 1 Series

  • Page 1 Oven HMG6764.1 User manual and installation instructions [en]...

  • Page 2: Table Of Contents

    en Safety Futher information and explanations are available on- line: Table of contents 1 Safety Observe the following safety instructions. 1.1 General information INFORMATION FOR USE ¡ Read this instruction manual carefully. Safety ..............   2 ¡ Keep the instruction manual and the Preventing material damage .......

  • Page 3: Safety

    Safety en When the cooking compartment is hot, any al- been instructed on how to use the appliance coholic vapours inside may catch fire. The ap- safely and have understood the resulting dangers. pliance door may spring open. Hot steam and jets of flame may escape.

  • Page 4: Preventing Material Damage

    en Safety Alcoholic vapours may catch fire in the hot WARNING ‒ Risk of suffocation! cooking compartment, and the appliance Children may put packaging material over door may spring open and may fall off. The their heads or wrap themselves up in it and door panels may shatter and fragment.
  • Page 5 Safety en Using the appliance for anything other than its WARNING ‒ Risk of explosion! intended purpose is dangerous. This is be- Liquids and other food may easily explode cause, for instance, overheated slippers, pil- when in containers that have been tightly lows filled with grain or cereal, sponges and sealed.
  • Page 6 en Safety The outside of the appliance gets very hot WARNING ‒ Risk of electric shock! when the cleaning function is in progress. The appliance uses a high voltage. ▶ Never hang combustible objects, e.g. tea ▶ Never remove the casing. towels, on the door handle. WARNING ‒ Risk of serious harm to ▶...
  • Page 7 Preventing material damage en 2  Preventing material damage Fruit juice dripping from the baking tray leaves stains 2.1 General that cannot be removed. ATTENTION! When baking very juicy fruit flans, do not pack too ▶ Alcoholic vapours may catch fire in the hot cooking much on the baking tray.

  • Page 8: Environmental Protection And Saving En- Ergy

    en Environmental protection and saving energy Operating the appliance without food in the cooking If you prepare microwave popcorn at a microwave compartment may lead to overloading. power level that is too high, the door pane may crack Do not switch on the microwave unless there is food due to overloading.

  • Page 9: Familiarising Yourself With Your Appliance

    Familiarising yourself with your appliance en 4  Familiarising yourself with your appliance 4.1 Control panel Buttons The buttons on the left- and right-hand side of You can use the control panel to configure all functions the control panel have a pressure point. Press- of your appliance and to obtain information about the ing a button will execute its function.
  • Page 10 en Familiarising yourself with your appliance ¡ Residual heat indicator 4.5 Control ring When the appliance is switched off, the display ring You can use the control ring to change the setting val- shows the residual heat in the cooking compart- ues that are shown in the display and scroll in the ment.
  • Page 11 Operating modes en 5  Operating modes This is where you can find an overview of your appli- Operating ance's operating modes and main functions. mode Press ​ ⁠ to open the menu. MicroCombi To reduce the cooking time, switch on the microwave for a type of heating. Operating → "MicroCombi", Page 18 mode...

  • Page 12: Accessories

    en Accessories Symbol Type of heating Temperature What it's used for and how it works range Possible additional options Pizza setting 30–275 °C Cook pizza or dishes that require a lot of heat from below. The bottom heating element and the ring-shaped heating ele- ment in the back wall heat the cooking compartment.
  • Page 13 Accessories en Accessories Baking tray ¡ Tray bakes ¡ Small baked items Meat thermometer High-precision roasting or cooking. → "Meat probe", Page 19 6.1 Information on accessories Wire rack Push the wire rack in with the curvature  ​ ⁠ pointing downwards. The Some accessories are only suitable for certain types of word "microwave"...

  • Page 14: Basic Operation

    Press ​ ⁠ to switch the appliance on. You must start each operation. ▶ a The Bosch logo appears in the display. The types of ATTENTION! heating then appear. If there is water on the cooking compartment floor when operating the appliance at temperatures above 120 °C, this will damage the enamel.

  • Page 15: Rapid Heating

    Rapid heating en 8.4 Pausing or cancelling operation a The appliance starts heating. a The target temperature, the time and how long the You can briefly pause operation and then continue. If appliance has already been in operation are shown you cancel operation completely, the settings will be re- in the display.
  • Page 16 en Time-setting options 10  Time-setting options Your appliance has different time-setting options, with Press ​ ⁠ to confirm. which you can control its operation. a The red symbol goes out. 10.1 Overview of the time-setting options 10.3 Setting the cooking time You can set a cooking time and end time for the opera- You can set a cooking time for operation of up to 23 tion.

  • Page 17: Microwave

    Microwave en Press "End time". To stop the signal early, press any touch field. ‒ Use the control ring to delay the end time. To set another cooking time, press "Cooking ‒ Once the operation has started, the end time can no time"...
  • Page 18 en Microwave a The microwave starts and the cooking time counts ATTENTION! down. The heating line does not appear. Operating the appliance without food in the cooking a When the time has elapsed, a signal sounds. The compartment may lead to overloading. time shown in the display is zero.

  • Page 19: Meat Probe

    Meat probe en Press the cooking time and use the control ring to Changing the cooking time set the cooking time. After the start of the MicroCombi operation, you can Press ​ ⁠ to start. change the cooking time at any time. a The appliance starts to heat and the cooking time Press "Cooking time".
  • Page 20 en Meat probe a The appliance starts heating. Poultry Insert the meat probe into the thickest part of the breast, pushing it in as far as a The time, how long the appliance has already been possible. The meat probe can be inser- in operation, and the core temperature are shown in ted horizontally or vertically depending the display.
  • Page 21 Assist en Poultry Core temperature Veal Core temperature in °C in °C Turkey breast 80 - 85 Joint of veal, shoulder 75 - 80 Goose 80 - 90 Veal knuckle 85 - 90 Pork Core temperature Lamb Core temperature in °C in °C Shoulder of pork 85 - 90...
  • Page 22 en Assist Microwave dishes Category Food/dishes The appliance activates the microwave automatically Cakes, Cakes for certain dishes. This significantly reduces the cook- bread ¡ Cakes in tins ing time. ¡ Cakes on a baking tray Take note of the information for the microwave. ¡...
  • Page 23 Childproof lock en Note: During operation with the baking sensor, do If you do not want to continue cooking, press "End" not open the appliance door. The baking result and switch off the appliance using ​ ⁠ . would no longer be correct and the baking sensor To continue cooking the dish, press "Continue cook- mode is terminated.

  • Page 24: Assist

    en Basic settings 16  Basic settings You can configure the appliance to meet your needs. Basic setting Selection Night-time dimming Switched off 16.1 Overview of the basic settings Switched on Brand logo Display Here you can find an overview of the basic settings Do not display and factory settings.

  • Page 25: Cleaning And Servicing

    Cleaning and servicing en Using oven cleaner in a hot cooking compartment New sponge cloths contain residues from production. damages the enamel. Wash new sponge cloths thoroughly before use. ▶ Never use oven cleaner in the cooking compartment ▶ when it is still warm. Remove all food remnants from the cooking com- ▶...
  • Page 26 en Cleaning function "Pyrolytic self-cleaning" Area Suitable cleaning agents Information Rails ¡ Hot soapy water Soak any heavily soiled areas and use a brush or steel wool. Note: To clean thoroughly, detach the rails. → "Rails", Page 28 Pull-out system ¡ Hot soapy water Use a brush to remove very heavy soiling.
  • Page 27 Cleaning assistance en Select a higher cleaning setting for heavier or older 18.2 Setting the cleaning function soiling. Ventilate the kitchen while the cleaning function is run- The duration cannot be changed. ning. Press ​ ⁠ . a A notification stating that you should carry out the WARNING ‒ Risk of harm to health! necessary preparatory work for the cleaning func- The cleaning function heats up the cooking compart-...

  • Page 28: Drying

    en Drying Clean the smooth surfaces in the cooking compart- 19.2 Wiping down the cooking compartment ment with a dish cloth or a soft brush. Remove stub- ATTENTION! born food remnants using a stainless steel scouring The prolonged presence of moisture in the cooking pad.
  • Page 29 Appliance door en Hook the rear retainers with the hook into the top 21.2 Fitting the retainers hole ​ ⁠ and push them into the bottom hole ​ ⁠ . The retainers may fall out when you detach the rails. Note: The retainers at the front differ from those at the rear. 21.3 Attaching the rails Notes ¡...
  • Page 30 en Appliance door 22.2 Removing the door panes WARNING ‒ Risk of serious harm to health! If the screws are undone, the safety of the appliance WARNING ‒ Risk of injury! can no longer be guaranteed. Microwave energy Scratched glass in the appliance door may develop may escape.

  • Page 31: Troubleshooting

    Troubleshooting en Push the front pane to the appliance until the left- Screw both screws back in on the left and right of and right-hand hook ​ ⁠ is opposite the support ​ ⁠ ​ ⁠ . the appliance door. Put the door cover in position and push down on it ​...
  • Page 32 en Troubleshooting Fault Cause and troubleshooting Appliance does not Demo mode is activated in the basic settings; ​ ⁠ appears in the display. heat up. Briefly disconnect the appliance from the power supply by switching the circuit breaker in the fuse box off and back on again. Deactivate demo mode within three minutes in the → "Basic settings", Page 24.

  • Page 33: How It Works

    Setting values, e.g. temperature or cooking time, depend on the recipe, quantity and food. Next time, set lower or higher values. ▶ Tip: A lot of information about the food preparation and corresponding setting values can be found on our website www.bosch-home.com. 24  Disposal 24.1 Disposing of old appliance This appliance is labelled in accord- ance with European Directive Valuable raw materials can be reused by recycling.
  • Page 34 en How it works ¡ Silicone moulds are not suitable. Roasting on the wire rack ¡ If you are cooking bakes directly in the universal Food roasted on the wire rack will become very crispy pan, place the universal pan into the cooking com- on all sides.
  • Page 35 How it works en ¡ For cereal products, e.g. rice, use deep cookware Notes ¡ The grill element switches on and off continuously. with a lid. Cereal products foam a lot during cook- This is normal. The grill setting that you use determ- ing.
  • Page 36 en How it works Food Accessory/cook- Shelf pos- Heating Temperature in Microwave Cooking ware ition function °C power setting time in → Page 11 in W mins Sponge cake, 6 eggs Springform cake ​ ⁠ 150–160 50–60 tin, diameter 28 cm Shortcrust tart with moist Universal pan ​...
  • Page 37 How it works en Food Accessory/cook- Shelf pos- Heating Temperature in Microwave Cooking ware ition function °C power setting time in → Page 11 in W mins Small chicken portions, Uncovered cook- ​ ⁠ 190 - 210 20 - 30 x 4, 250 g each ware Goose, unstuffed, 3 kg Wire rack...
  • Page 38 en How it works Remove the popcorn bag after 1½ minutes and Heat 1 litre of whole milk (3.5% fat) to 90 °C on the shake it to ensure that the popcorn doesn't burn. hob and then leave it to cool down to 40 °C. Place the popcorn bag back into the oven and It is sufficient to heat UHT milk to 40 °C.
  • Page 39 How it works en Food Accessory/cook- Shelf pos- Searing Heating function Temperature Cooking ware ition time in → Page 11 in °C time in mins mins Veal medallions, 4 cm Uncovered cook- ​ ⁠ 30 - 50 thick ware Saddle of lamb, bone- Uncovered cook- ​...
  • Page 40 en How it works ¡ Wipe the cooking compartment dry after using it to ATTENTION! warm up food. Metal touching the wall of the cooking compartment will cause sparks, which may damage the appliance or WARNING ‒ Risk of scalding! the inner door pane. There is a possibility of delayed boiling when a liquid is Metal (e.g.
  • Page 41 How it works en 26.9 Test dishes The information in this section is provided for test institutes to facilitate testing of the appliance in accordance with EN 60350-1:2013 or IEC 60350-1:2011 and EN 60705:2012 or IEC 60705:2010. Baking ¡ The setting values apply to food that is placed into a Baking tray: Shelf position 1 cold cooking compartment.

  • Page 42: 27.1 General Installation Instructions

    en Installation instructions Recommended settings for grilling Food Accessory/cookware Shelf posi- Heating Temperature in °C/ Cooking time tion function grill setting in mins → Page 11 Toasting bread Wire rack ​ ⁠ 3–5 Do not preheat the appliance. Microwave cooking ¡ If you use the wire rack, slide it into the cooking ¡...
  • Page 43 Installation instructions en ¡ The safe operation of this appliance can WARNING ‒ Danger: Magnetism! only be guaranteed if it has been installed Permanent magnets are used in the control to a professional standard in accordance panel or in the controls. They may affect elec- with these installation instructions.
  • Page 44 en Installation instructions ¡ To ventilate the appliance, the intermediate floor 27.3 Installation below a worktop must have a ventilation cut-out. Observe the installation dimensions and the installation ¡ The worktop must be secured to the fitted unit. instructions when installing below a worktop. ¡...
  • Page 45 Installation instructions en ¡ To ensure that the appliance door can be opened, 27.5 Installation in a tall unit you must take the minimum dimensions into consid- Observe the installation dimensions and the installation eration when installing in a corner. The dimension ​...
  • Page 46 en Installation instructions 27.8 Installing the appliance Slide the appliance in fully and centre it. Screw the appliance into place. For handleless kitchens with vertical bar handle strips: Attach a suitable filling piece ​ ⁠ in order to cover ‒ any sharp edges and to guarantee a safe install- ation.
