Summary of Contents for x-sense SD19-W

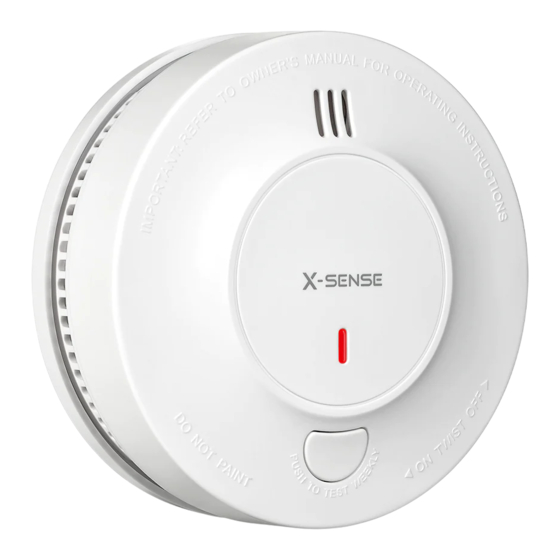

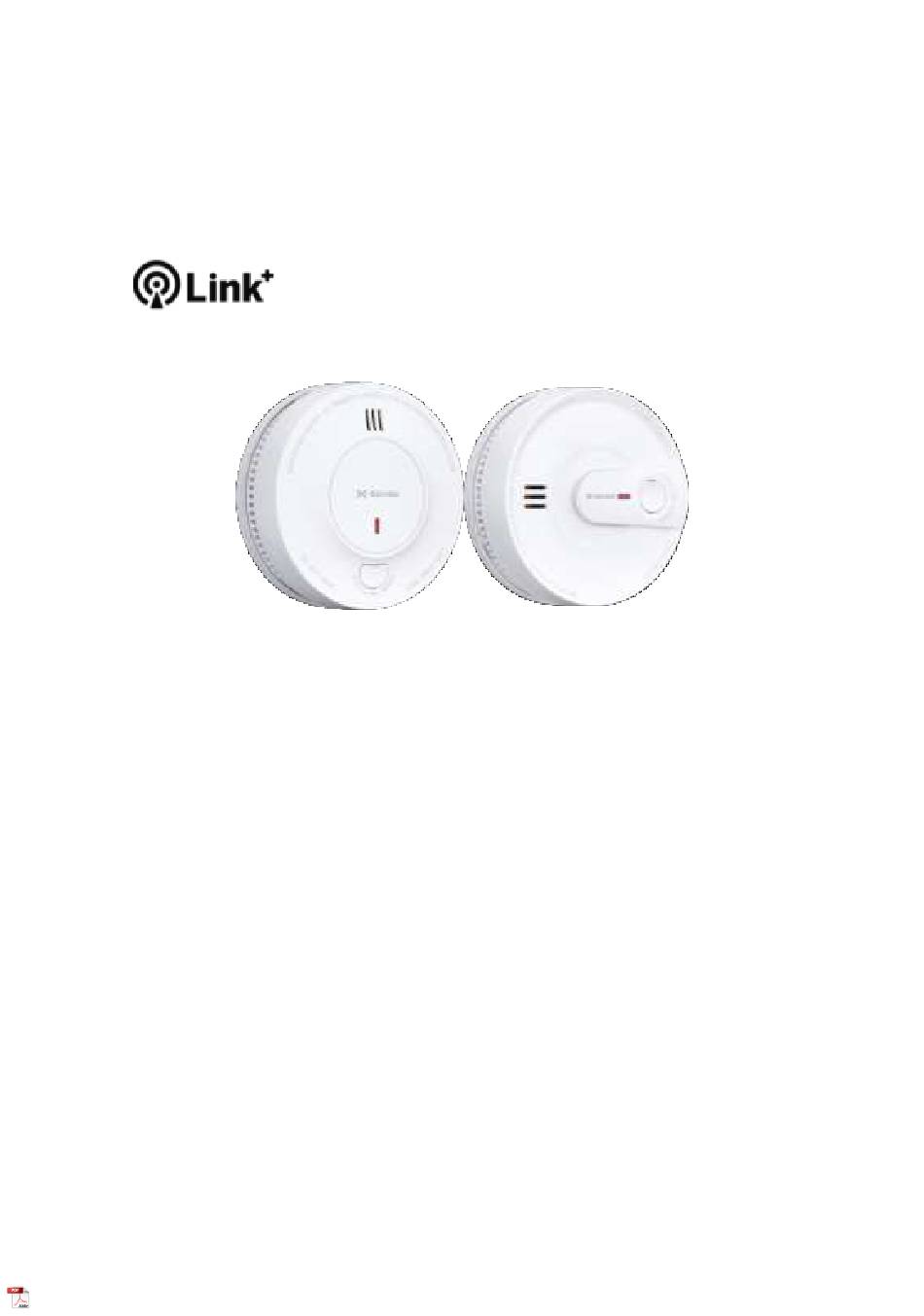

- Page 1 X-Sense Wireless Interlinked Smoke Alarm Model: SD19-W/SD20-W SD19-W SD20-W...
-
Page 2: Package Contents
User Manual This user manual contains important information regarding the operation of your X-Sense smoke alarm. Ensure you read this user manual fully before installing and operating the alarm. If you are installing this smoke alarm for use by others, you must leave this manual (or a copy of it) with the end user. - Page 3 Make sure you only work with 2 units at a time, and make sure that they are both turned on to ensure successful connection. NOTE: To turn on SD19-W/SD20-W, attach the alarm to the mounting bracket and turn clockwise to lock it. To learn how to turn on different models of wireless interlinked alarms, please refer to their specific user manual for more details.
- Page 4 connect to. After the third unit successfully joins the interconnected network, both units will beep once and automatically exit the interconnection mode. If you want to connect more units, simply repeat step 4.Up to 24 alarms can be interconnected this way.
-
Page 5: How To Disconnect
3. A maximum of 24 wireless alarms can be interconnected on the same network. 4. The model can only be interconnected with other X-Sense Link wireless interlinked alarms. How to Disconnect Quickly press the test/silence button 4 times; the smoke alarm will beep once. Then, hold down the button until it beeps once more to disconnect. -
Page 6: Installation Positioning
automatically enter standby mode. NOTE: The test function accurately tests the alarm’s smoke sensing circuit without the need to test with smoke. If your smoke alarm fails to em it an audible test signal, refer to the troubleshooting guide at the end of this manual immediately. Never use an open flame to test this device. Installation Positioning NOTE: If a smoke alarm is installed in a kitchen, ensure it has an accessible silence button, and install it as far away from the stove and sink as possible to avoid false alarms. -
Page 7: Locations To Avoid
where possible, and not in a basement or furnace room. 2. Install an alarm above the stairway and on every floor of the house. 3. Smoke, heat and anything burning will spread horizontally after rising to the ceiling, so install the alarm in the middle of the ceiling where possible. -
Page 8: Installation Method
WARNING 1. THIS ALARM SHOULD BE INSTALLED BY A COMPETENT PERSON. 2. ALARMS SHOULD NOT BE USED AS A SUBSTITUTE FOR PROPER INSTALLATION, USE AND MAINTENANCE OF FUEL BURNING APPLIANCES INCLUDING APPROPRIATE VENTILATION AND EXHAUST SYSTEMS. 3. TO PREVENT INJURY, THIS DEVICE SHOULD BE SECURELY ATTACHED TO THE CEILING OR WALL IN ACCORDANCE WITH THE INSTALLATION INSTRUCTIONS. - Page 9 button on the back of the alarm to turn it on while testing and connecting. Otherwise, it will not turn LED Indicators and Audible alarm Status LED indicator Audible alarm Note Normal Red LED flashes None. once every 60 seconds. Red LED flashes All alarms in 3 quick beeps...
-
Page 10: Silence Mode
seconds. 60 seconds independent warning. Malfunction Red LED flashes 2 beeps every Each alarm twice every 40 40 seconds gives an seconds. independent warning. Silence Mode If you press the silence button during an alarm state, the unit will be in the silence mode for 9 minutes. During the silence mode, the red LED will flash once every 5 seconds. -
Page 11: Maintenance
Maximum Number of 24 wireless units (Only compatible with X-Sense wireless Interconnected Units alarms) Transmission Range Over 820 ft (250 m) in open air NOTES 1. Battery life is calculated on the current ratings in the standby mode with weekly testings. If its operation mode changes to an alarming condition, the battery life will be decreased accordingly. -
Page 12: Fcc Statement
might be blocked or out of range. Check the location of your smoke alarm (see “Installation False alarms triggered Positioning”). intermittently or when residents are cooking, taking showers, etc. Clean the smoke alarm (see “Maintenance”). The battery is low. Replace the device immediately, as the Red LED flashes and the alarm battery is sealed inside the device and can’t be replaced. - Page 13 Manufacturer and Service Information X-Sense Innovations Co., Ltd. Address: B4-503, Kexing Science Park, 15 Keyuan Road, Shenzhen, 518057, CHINA Email: support@x-sense.com...
Need help?
Do you have a question about the SD19-W and is the answer not in the manual?
Questions and answers
Hi, I have 6 SD-20 that need to sync up. I have put them all on the wall and locked them. I started with one pressing the test button 4 times and then going to another room and pressing that alarm 2 x. After a short period of time all the alarms go off. I have not been able to then sync them all.
To sync multiple X-Sense SD19-W alarms together, follow these steps:
1. Turn on the alarms: Attach each alarm to its mounting bracket and turn it clockwise to lock it.
2. Work with two units at a time: Ensure both alarms are turned on before proceeding.
3. Enter pairing mode:
- Quickly press the test/silence button on one of the two units four times. It will beep once and the red LED will flash slowly, indicating it is in pairing mode.
- Quickly press the test/silence button on the second unit two times. It will beep once and the red LED will flash rapidly, indicating it is searching for a device to connect to.
4. Complete the connection: Once the search is successful, both alarms will beep once and automatically exit interconnection mode.
5. Verify normal standby mode: The alarms will flash once every 60 seconds, indicating they are in normal standby mode.
6. Add more alarms: Repeat the process with additional alarms by first pairing them with an already connected unit.
This process ensures all alarms are interconnected and will trigger together in case of an emergency.
