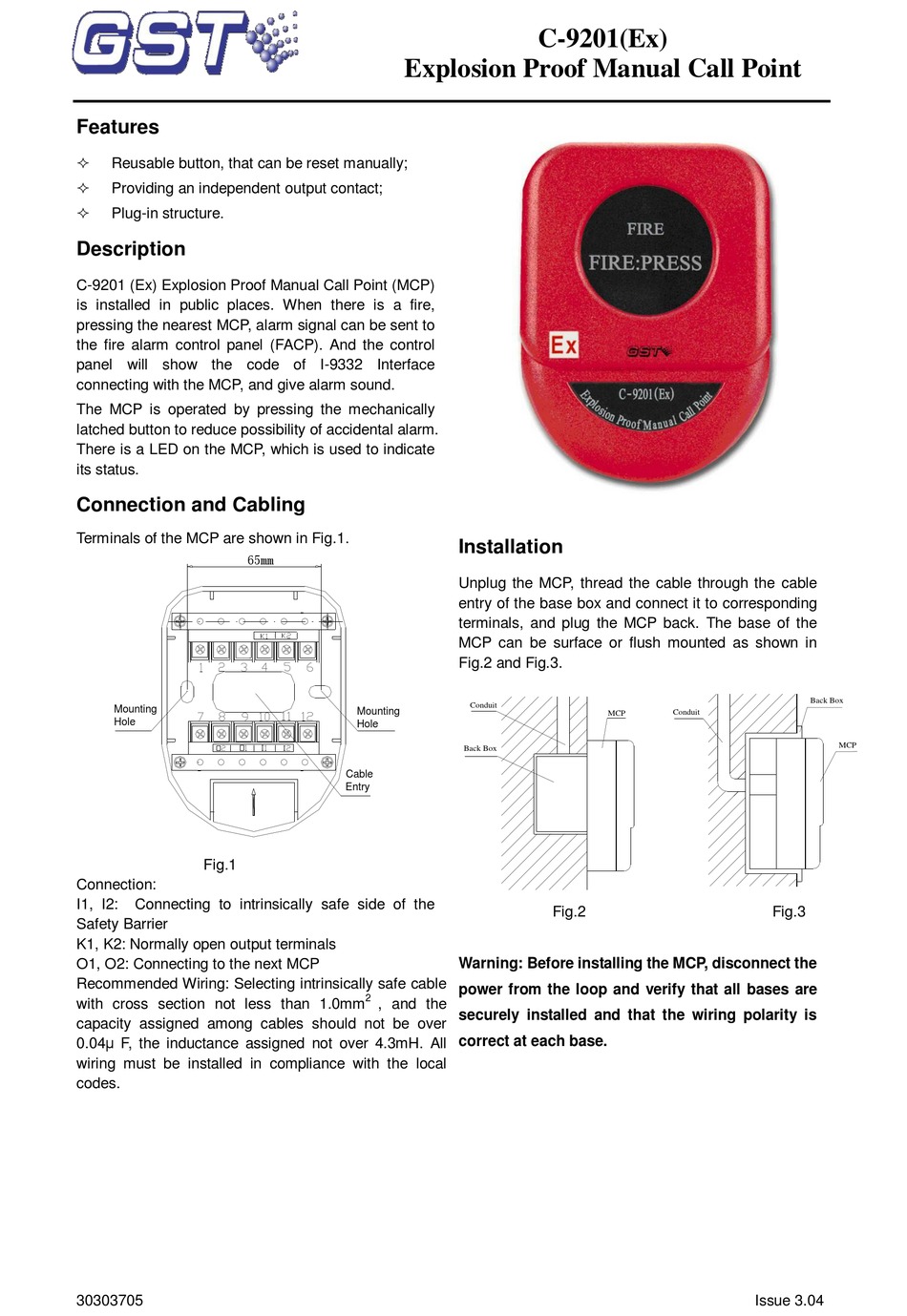

GST C-9201 Manual

Features

Reusable button, that can be reset manually;

Providing an independent output contact;

Plug-in structure.
Description

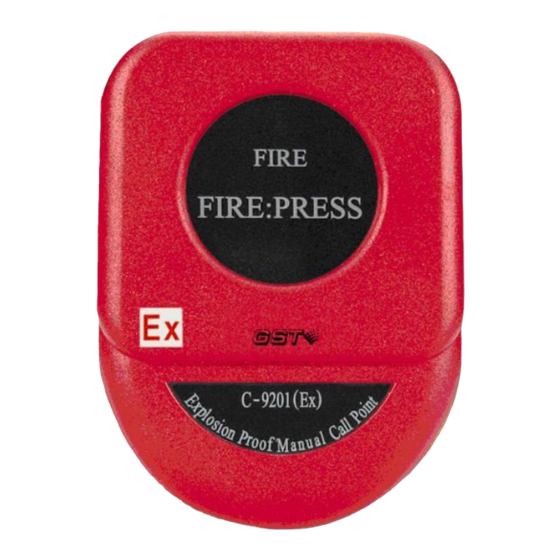

C-9201 (Ex) Explosion Proof Manual Call Point (MCP)
is installed in public places. When there is a fire,
pressing the nearest MCP, alarm signal can be sent to
the fire alarm control panel (FACP). And the control
panel will show the code of I-9332 Interface
connecting with the MCP, and give alarm sound.
The MCP is operated by pressing the mechanically
latched button to reduce possibility of accidental alarm.
There is a LED on the MCP, which is used to indicate
its status.
Connection and Cabling
Terminals of the MCP are shown in Fig.1.
Mounting
Hole
Fig.1
Connection:
I1, I2: Connecting to intrinsically safe side of the
Safety Barrier
K1, K2: Normally open output terminals
O1, O2: Connecting to the next MCP
Recommended Wiring: Selecting intrinsically safe cable
with cross section not less than 1.0mm
capacity assigned among cables should not be over
0.04μ F, the inductance assigned not over 4.3mH. All
wiring must be installed in compliance with the local
codes.
30303705
Explosion Proof Manual Call Point
65mm
Mounting
Hole
Cable
Entry
2
, and the
C-9201(Ex)
Installation
Unplug the MCP, thread the cable through the cable
entry of the base box and connect it to corresponding
terminals, and plug the MCP back. The base of the
MCP can be surface or flush mounted as shown in
Fig.2 and Fig.3.
Conduit
MCP
Back Box
Fig.2
Warning: Before installing the MCP, disconnect the
power from the loop and verify that all bases are
securely installed and that the wiring polarity is
correct at each base.
Back Box
Conduit
MCP
Fig.3
Issue 3.04
