OPTILAB DFB-4-B User Manual page 7

DFB-B Benchtop User's Manual
F
EATURE
 AC P
S
OWER OCKET
 M
AC P
AIN OWER
S
WITCH
 LAN P
ORT
 USB F
S
EMALE OCKET
 V
F
ENTILATION ANS
 I
NTERLOCK
Optilab, LLC
600 E. Camelback Road, Phoenix, AZ 85012
Phone: (602) 343-1496, Fax: (602) 343-1489, Email: sales@oequest.com

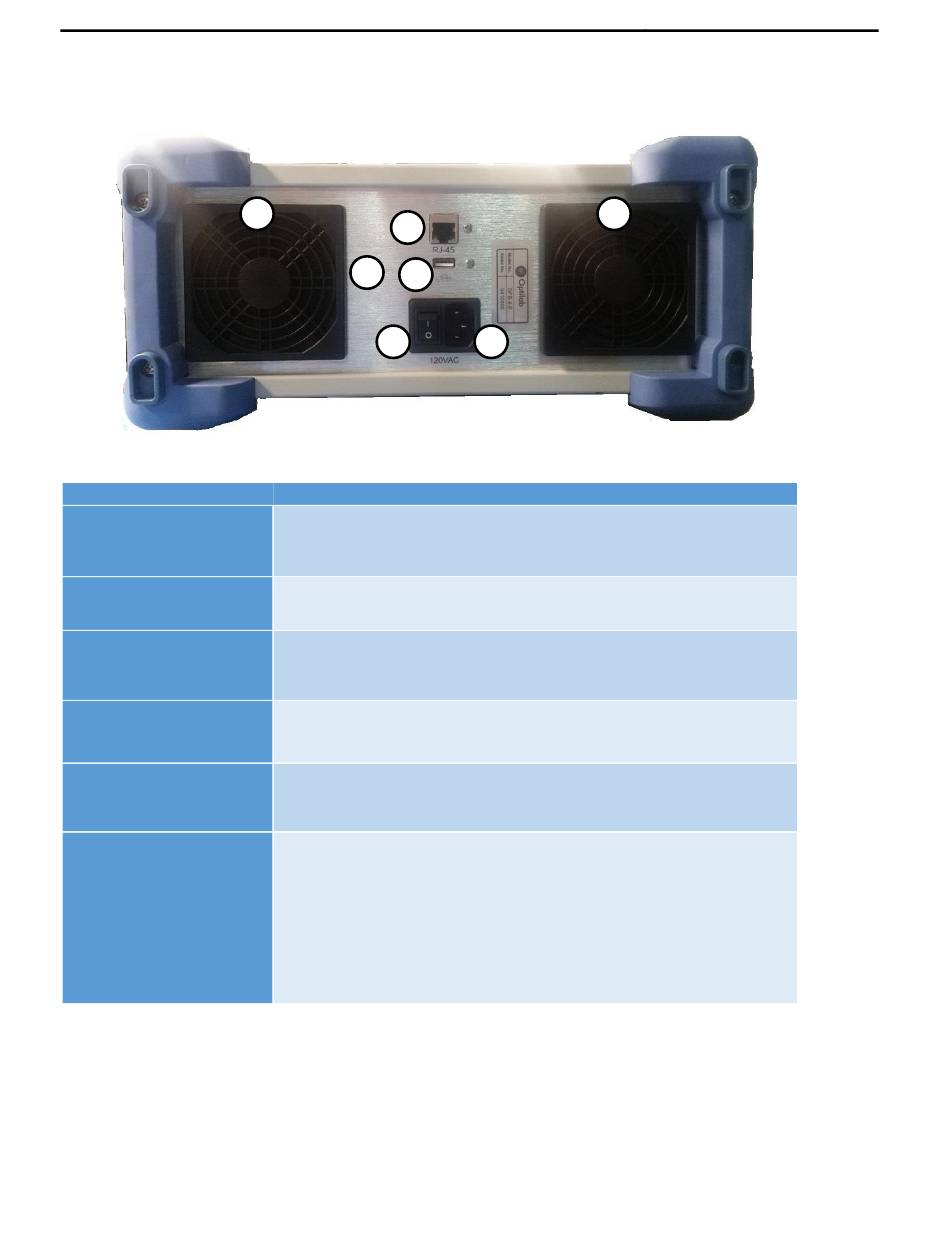

DFB-4-B Benchtop Rear Panel
5
3
6
4
2
The AC power socket is the input for the AC power source. A
three-pin standard power cord should be used to connect this
equipment to any 110 or 220VAC main supply.
This switch enables the electrical power to the DFB-4-B unit.
This terminal is used allow for Ethernet connection to the DFB-4-B
for remote operation and monitoring.
This feature is not enabled on all units.
Using a USB cable, this port allows for remote control and
monitoring through a PC workstation.
This feature is not enabled on all units.
The ventilation fans ensure proper ventilation inside the unit. The
back panel of this equipment should be placed at least 3 inches
from the wall to dissipate heat effectively.
This BNC female connector is a safety interlock. It must be
shorted in order for the DFB lasers to enable. Use the provided
accessory to short this port or connect it to a compatible interlock
device. If the interlock is open during normal operation, the pump
lasers will be turned off. To re-enable the pump laser output, turn
the output switch on the front panel to "OFF" position first and
start over.
This feature is not enabled on all units (not pictured).
5
1
F
UNCTION
Page 4 of 12
