DFB-B Benchtop User's Manual

5. DFB-4-B Command Set

5.1. Serial Port Connection Details

• Baud Rate: 9600
• Data Bits: 8
• Stop Bits: 1
• Parity: None
• Flow Control: None

5.2. Query Commands

READ{CR/LF}
HELP{CR/LF}

5.3. Set Commands

SET[ADD]C:XXX{CR/LF}
e.g. SET2C:075{CR/LF}
SET[ADD]T:XX.X{CR/LF}
e.g. SET3T:28.2{CR/LF}
Optilab, LLC
600 E. Camelback Road, Phoenix, AZ 85012
Phone: (602) 343-1496, Fax: (602) 343-1489, Email: sales@oequest.com

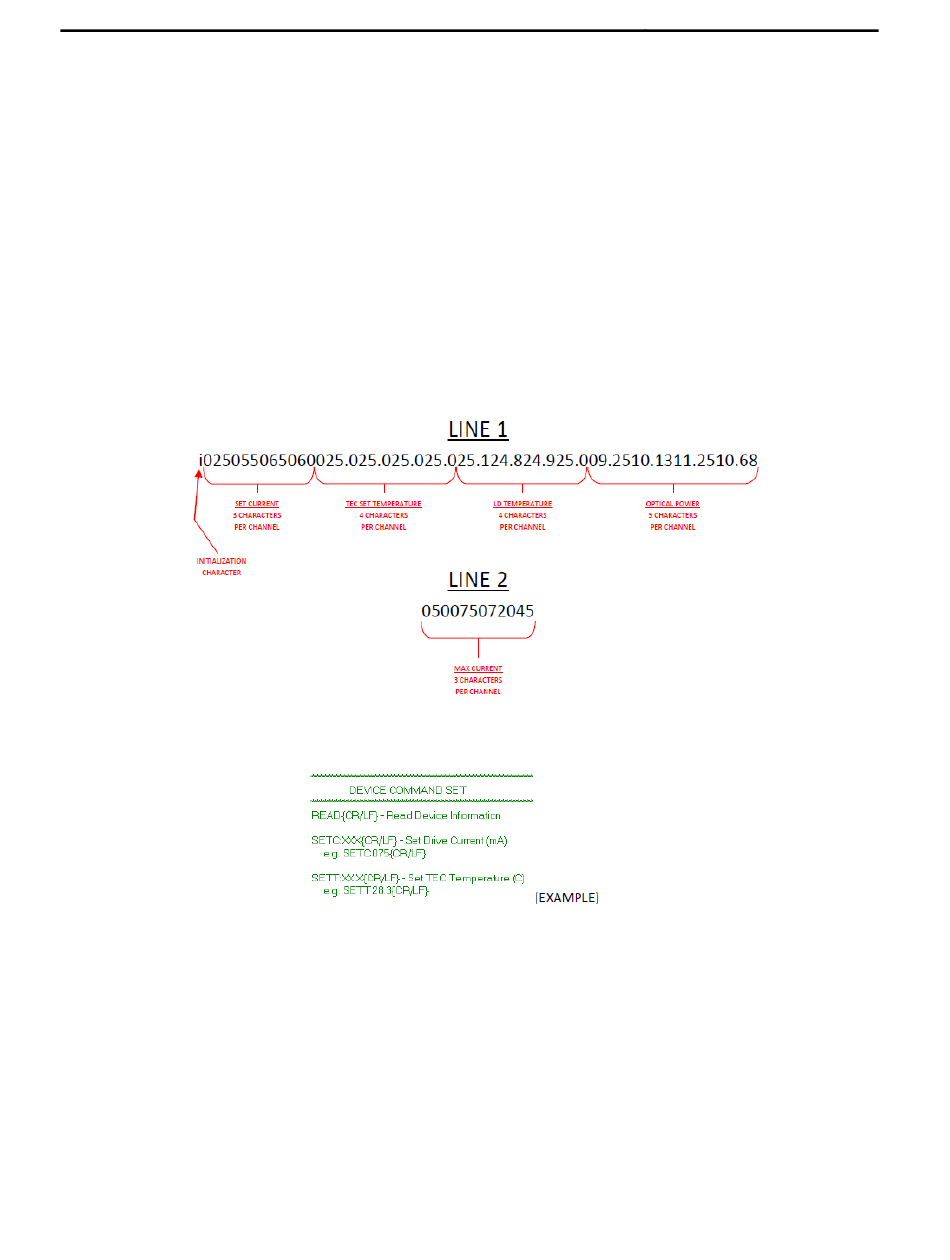

– Read the device information (see format below)
– Read the device command set
– Set the laser drive current in mA; 3 digits required.
– Sets the drive current of channel 2 to 75mA.
– Set the TEC temperature in C; First 2 digits required.
– Sets the TEC temperature of channel 3 to 28.2°C.
Page 12 of 12
