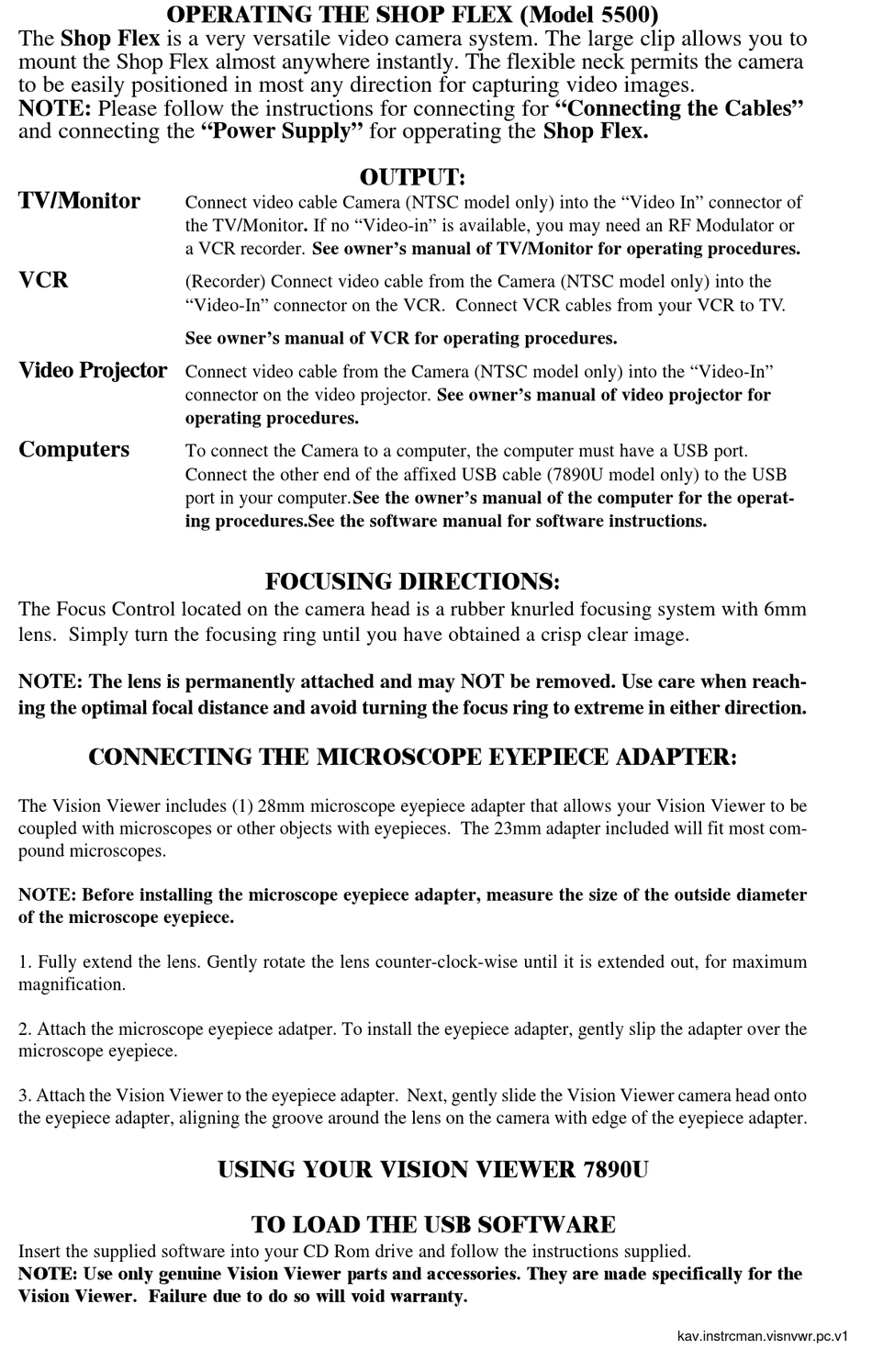

OPERATING THE SHOP FLEX (Model 5500)

The Shop Flex is a very versatile video camera system. The large clip allows you to
mount the Shop Flex almost anywhere instantly. The flexible neck permits the camera
to be easily positioned in most any direction for capturing video images.
NOTE: Please follow the instructions for connecting for "Connecting the Cables"
and connecting the "Power Supply" for opperating the Shop Flex.
TV/Monitor
VCR
Video Projector
Computers
The Focus Control located on the camera head is a rubber knurled focusing system with 6mm
lens. Simply turn the focusing ring until you have obtained a crisp clear image.
NOTE: The lens is permanently attached and may NOT be removed. Use care when reach-
ing the optimal focal distance and avoid turning the focus ring to extreme in either direction.

CONNECTING THE MICROSCOPE EYEPIECE ADAPTER:

The Vision Viewer includes (1) 28mm microscope eyepiece adapter that allows your Vision Viewer to be
coupled with microscopes or other objects with eyepieces. The 23mm adapter included will fit most com-
pound microscopes.
NOTE: Before installing the microscope eyepiece adapter, measure the size of the outside diameter
of the microscope eyepiece.
1. Fully extend the lens. Gently rotate the lens counter-clock-wise until it is extended out, for maximum
magnification.
2. Attach the microscope eyepiece adatper. To install the eyepiece adapter, gently slip the adapter over the
microscope eyepiece.
3. Attach the Vision Viewer to the eyepiece adapter. Next, gently slide the Vision Viewer camera head onto
the eyepiece adapter, aligning the groove around the lens on the camera with edge of the eyepiece adapter.
Insert the supplied software into your CD Rom drive and follow the instructions supplied.
NOTE: Use only genuine Vision Viewer parts and accessories. They are made specifically for the
Vision Viewer. Failure due to do so will void warranty.
Connect video cable Camera (NTSC model only) into the "Video In" connector of
the TV/Monitor. If no "Video-in" is available, you may need an RF Modulator or
a VCR recorder. See owner's manual of TV/Monitor for operating procedures.
(Recorder) Connect video cable from the Camera (NTSC model only) into the
"Video-In" connector on the VCR. Connect VCR cables from your VCR to TV.
See owner's manual of VCR for operating procedures.
Connect video cable from the Camera (NTSC model only) into the "Video-In"
connector on the video projector. See owner's manual of video projector for
operating procedures.
To connect the Camera to a computer, the computer must have a USB port.
Connect the other end of the affixed USB cable (7890U model only) to the USB
port in your computer.See the owner's manual of the computer for the operat-
ing procedures.See the software manual for software instructions.

FOCUSING DIRECTIONS:

USING YOUR VISION VIEWER 7890U

TO LOAD THE USB SOFTWARE

OUTPUT:

kav.instrcman.visnvwr.pc.v1
