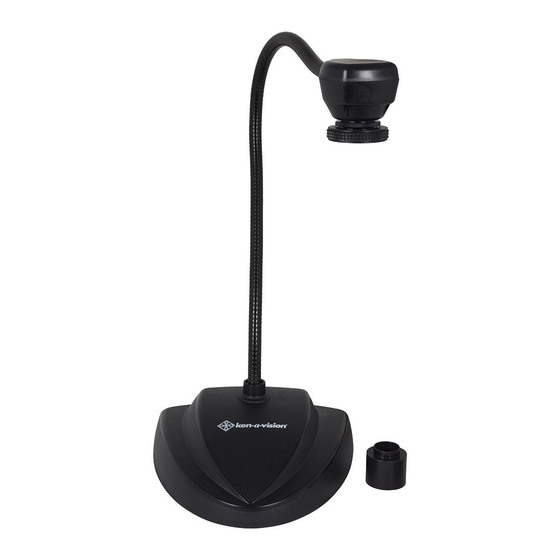

Ken A Vision Vision Viewer 7890B Instruction Manual

Hide thumbs Also See for Vision Viewer 7890B:

Table of Contents

Download this manual

Vision Viewer

Instruction Manual

Table of Contents

Need help?

Do you have a question about the Vision Viewer 7890B and is the answer not in the manual?

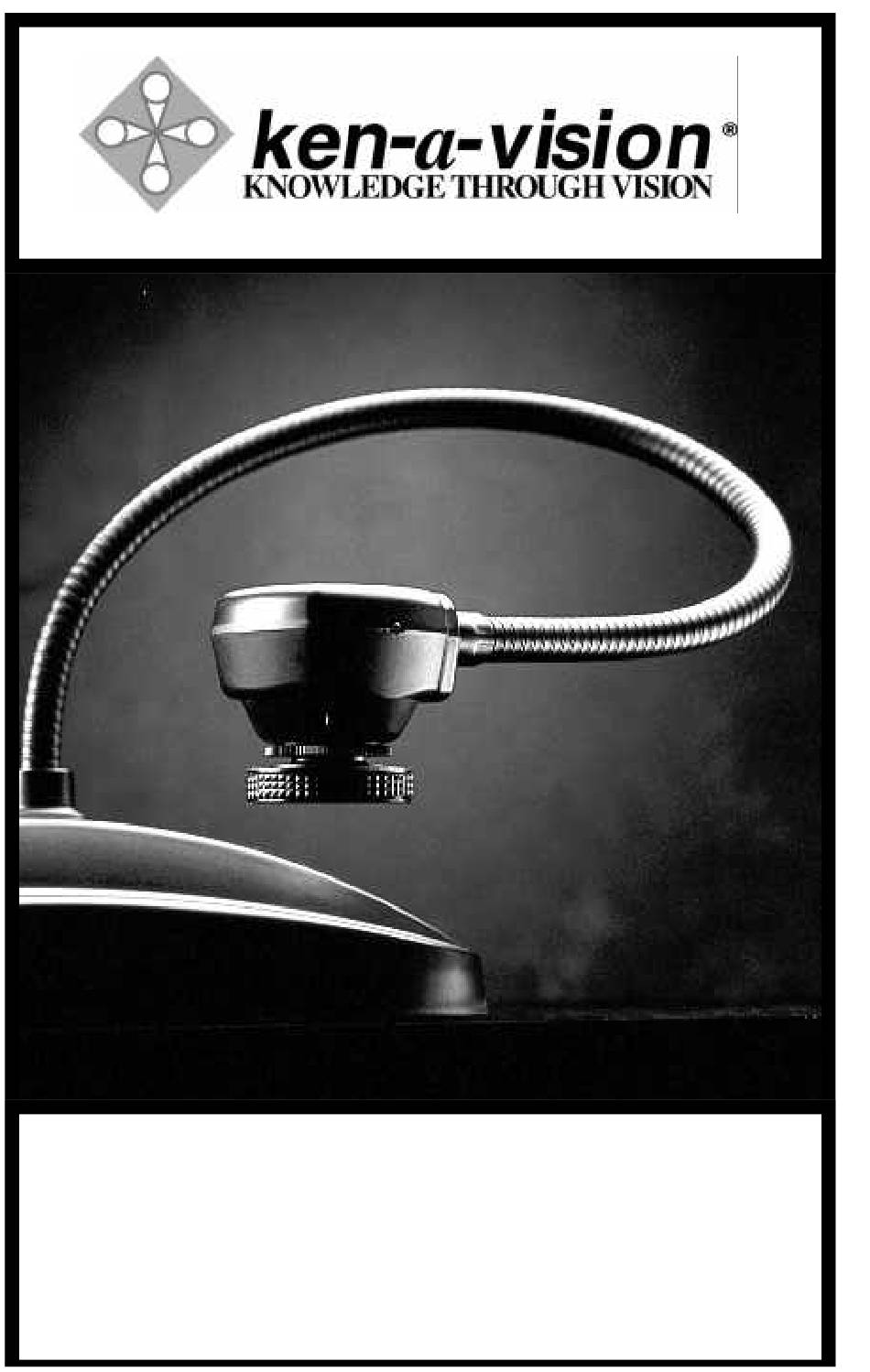

Page 1 Vision Viewer Instruction Manual...
Page 2 USING YOUR VIDEO IMAGING DEVICE: 1. Remove the Camera from the shipping carton. 2. Connect the Video and Power cables. 3. Turn on the On/Off Button It’s ready to go, No assembly required! 7890B includes: 7890U includes: NTSC/PAL Attached USB Cable Power Supply 28mm Eyepiece Adapter Video/Power Cable Attached...
Page 3 OPERATING THE SHOP FLEX (Model 5500) The Shop Flex is a very versatile video camera system. The large clip allows you to mount the Shop Flex almost anywhere instantly. The flexible neck permits the camera to be easily positioned in most any direction for capturing video images. NOTE: Please follow the instructions for connecting for “Connecting the Cables”...
Page 4 SYSTEM REQUIREMENTS TO OPERATE USB: PC 64 MEG of RAM or higher 233 Mhz or higher processor with USB port Microsoft Windows 98+ Microsoft Internet Explorer 4.0 (NT is not video compatible) Mac OS 8.6 or 9 LIGHTING: Never point your Vision Viewer at direct sunlight. Subjecting the Camera “eye” to direct sunlight will discolor the filter over the CMOS chip and create an adverse picture WARRANTY: To activate the one year limited warranty on your new Vision Viewer simply complete the warranty card...
