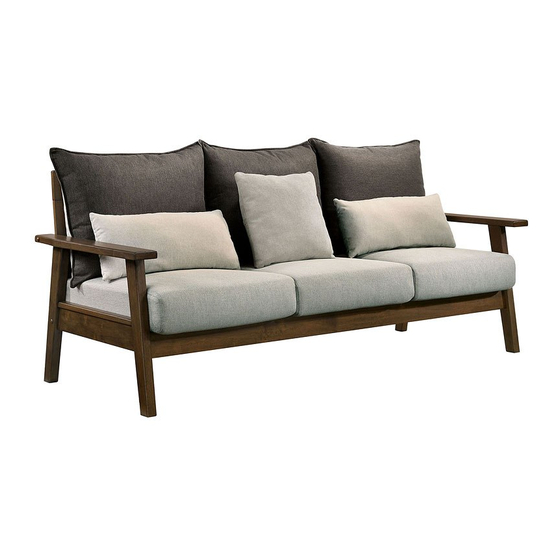

MODEL #
CM6911-SF
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - Persons
Recommended
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
Advertisement
Related Manuals for Furniture of America CM6911-SF
Summary of Contents for Furniture of America CM6911-SF

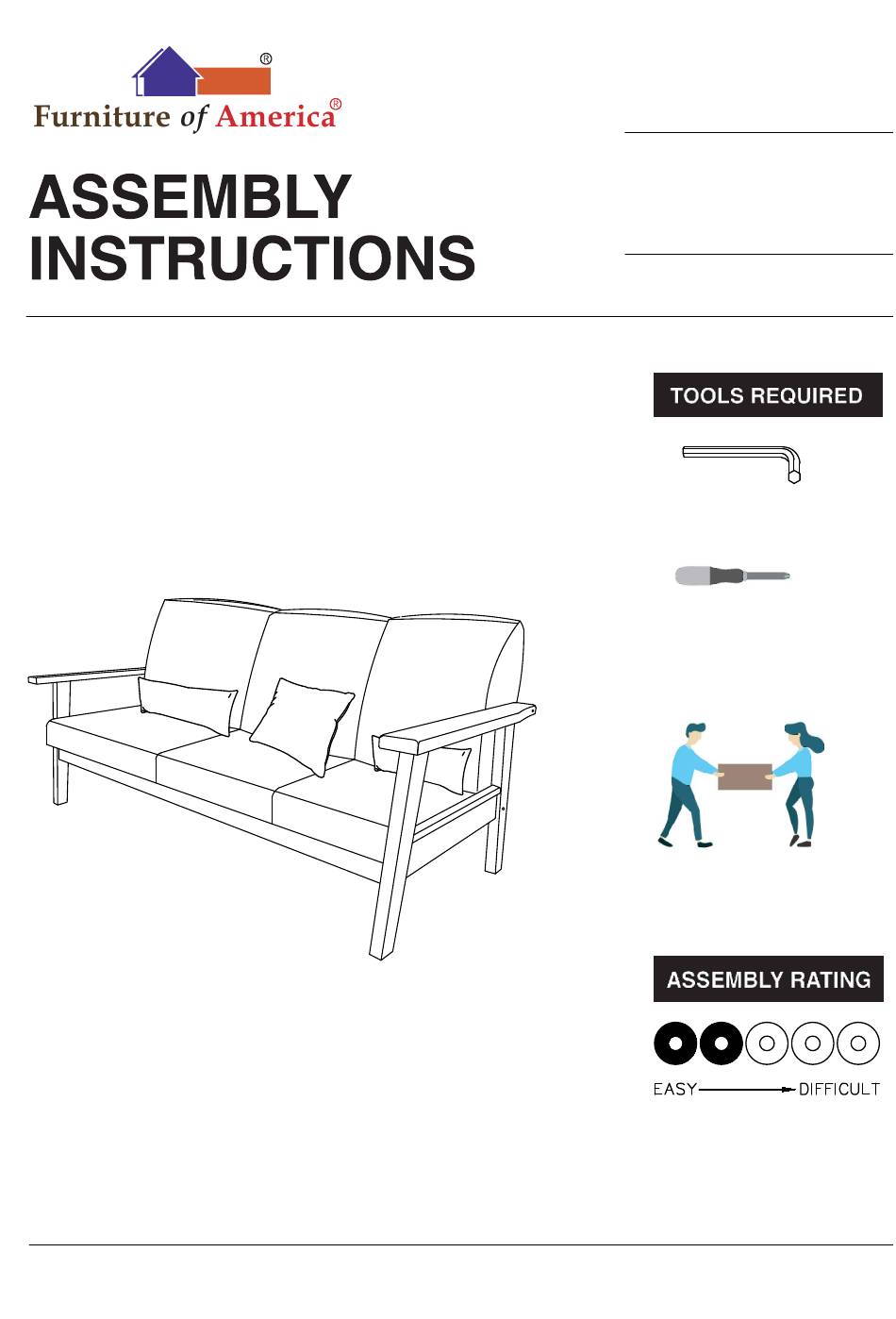

- Page 1 MODEL # CM6911-SF Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - Persons Recommended The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 5 SOFA CM6911-SF #1 1pc #2 1pc #3 1pc #4 1pc #5 3pcs #6 3pcs Arm Right Front Rail Back Deck Back Rest Cushion Seat Arm Left Cushion #7 2pcs #8 1pc #9 1pc #10 2pcs #11 1pc Lumber Seat Deck Center Seat...
- Page 6 ASSEMBLY INSTRUCTIONS Ensure that the rail support on the front rail (#3) is as shown in the diagram. Part #1 x1pc Part #3 x1pc Part #4 x1pc Hardware #H x6pcs Insert dowels (#H) to back desk (#4) and front rail (#3), then align them both to left arm (#1).
- Page 7 ASSEMBLY INSTRUCTIONS Secure arms to back deck by aligning L brackets (#K) and securing with screws (#K). Part #7 x2pcs Part #8 x1pc Hardware #I x12pcs Hardware #K x4pcs Hardware #L x8pcs Align seat decks (#7,8) to frame, then secure by using screw (I). Attach support rail (#9) to center seat deck (#8) by using bolts (#A) with washers (#D).
- Page 8 ASSEMBLY INSTRUCTIONS Part #5 x3pcs Part #6 x3pcs Part #10 x2pcs Part #11 x1pc Hardware #J x4pcs Attach caps (#J) to bolt holes. 8 / 8...
