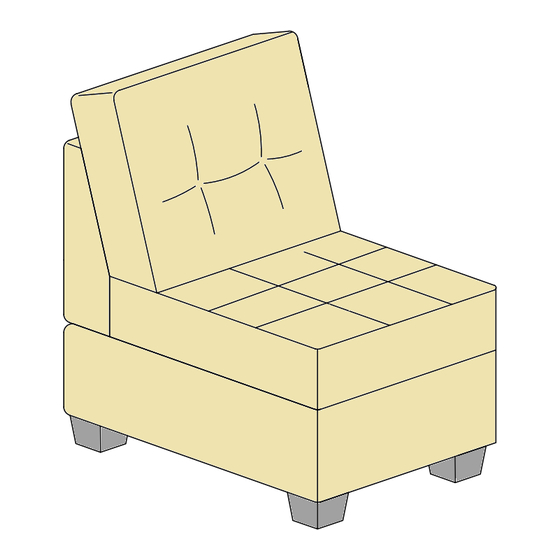

Furniture of America CM6957AC Assembly Instructions Manual

For more information contact our team: service.ec@foagroup.com

ASSEMBLY RATING

The Assembly Rating is a 5-point system that

shows the degree of effort needed in

assembling a specific product (with 1 being

easy and 5 being difficult). For some

products, two persons are recommended.

EASY

Assembly Instructions

CM6957AC

DIFFICULT

Tools Required For Assembly:

Wrench

Phillips Screwdriver

2 PERSONS RECOMMENDED

Page 1 of 6

(Included)

(Not Included)

Rev: 19-01-08

Table of Contents

Do you have a question about the CM6957AC and is the answer not in the manual?

Page 1 Assembly Instructions For more information contact our team: service.ec@foagroup.com CM6957AC ASSEMBLY RATING Tools Required For Assembly: The Assembly Rating is a 5-point system that shows the degree of effort needed in Wrench assembling a specific product (with 1 being (Included) easy and 5 being difficult).
Page 2 LOOSEN OVER TIME AND MAY CAUSE THE FURNITURE TO BE WOBBLY AND UNABLE TO SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE SERIOUS INJURY. FAILURE TO FOLLOW THE GUIDELINES ABOVE MAY RESULT IN INJURY AND/OR PROPERTY DAMAGE. FURNITURE OF AMERICA.ALL RIGHTS RESERVED. Page 2 of 6...
Page 3 Before you begin, please read Page 2 of "Assembly and Care Advice". And remember, do not tighten until each step is completed or instructed. #A x 2pcs #1 x 1pc Bolt Ø5/16 x 3-1/2" Chair Seat #2 x 1pc #B x 2pcs Seat Cushion Flat Washer Ø5/16 x 22mm #3 x 1pc...
Page 4 Secure 1/3 overall length of bolts (#A) to chair back (#4), then align chair back (#4) to seat (#1). Secure by using hex nuts (#C) with washers (#B). #A x 2pcs #B x 2pcs #C x 2pcs Align and attach feet (#5) with washers (#G) to the bottom of the seat (#1).
Page 5 Align corner seat with center seat together, then secure by using brackets (#E) with screws (#F). #E x 2pcs #F x 4pcs Page 5 of 6...
Page 6 ASSEMBLY IS COMPLETED Page 6 of 6...
