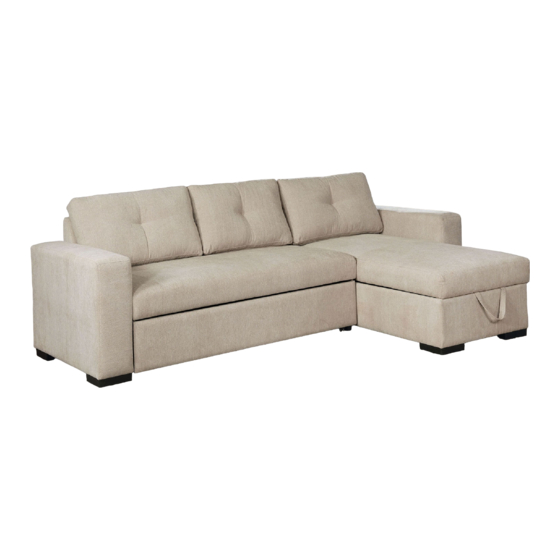

Furniture of America CM6949 Assembly Instructions Manual

Download this manual

For more information contact our team: service.ec@foagroup.com

ASSEMBLY RATING

The Assembly Rating is a 5-point system that

shows the degree of effort needed in

assembling a specific product (with 1 being

easy and 5 being difficult). For some

products, two persons are recommended.

EASY

Assembly Instructions

CM6949

DIFFICULT

Tools Required For Assembly:

Phillips Screwdriver

2 PERSONS RECOMMENDED

Page 1 of 6

(Not Included)

Rev: 19-01-21

Need help?

Do you have a question about the CM6949 and is the answer not in the manual?

Page 1 Assembly Instructions For more information contact our team: service.ec@foagroup.com CM6949 ASSEMBLY RATING Tools Required For Assembly: The Assembly Rating is a 5-point system that shows the degree of effort needed in assembling a specific product (with 1 being Phillips Screwdriver easy and 5 being difficult).
Page 2 LOOSEN OVER TIME AND MAY CAUSE THE FURNITURE TO BE WOBBLY AND UNABLE TO SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE SERIOUS INJURY. FAILURE TO FOLLOW THE GUIDELINES ABOVE MAY RESULT IN INJURY AND/OR PROPERTY DAMAGE. FURNITURE OF AMERICA.ALL RIGHTS RESERVED. Page 2 of 6...
Page 3 Before you begin, please read Page 2 of "Assembly and Care Advice". And remember, do not tighten until each step is completed or instructed. #1 x 1pc #A x 9pcs Love seat Screw #4 x 50mm #2 x 1pc #B x 4pcs Chaise Legs #3 x 1pc...
Page 4 Align and attach the metal brackets of the chaise (#2) to the metal brackets of the arm (#3). Align legs (#B,C) to the chaise (#2) as shown in the diagram, then secure by using screws (#A). There will be no pre-drilled holes. #A x 9pcs #B x 4pcs #C x 1pc...
Page 5 Align and attach the brackets of the backrests (#4,5) to the chaise (#2) and loveseat (#1). Attach the metal brackets of the loveseat (#1) to the chaise (#2). Page 5 of 6...
Page 6 Page 6 of 6...
