MODEL #
CM6911-LV
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - Persons
Recommended
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
Advertisement
Related Manuals for Furniture of America CM6911-LV
Summary of Contents for Furniture of America CM6911-LV

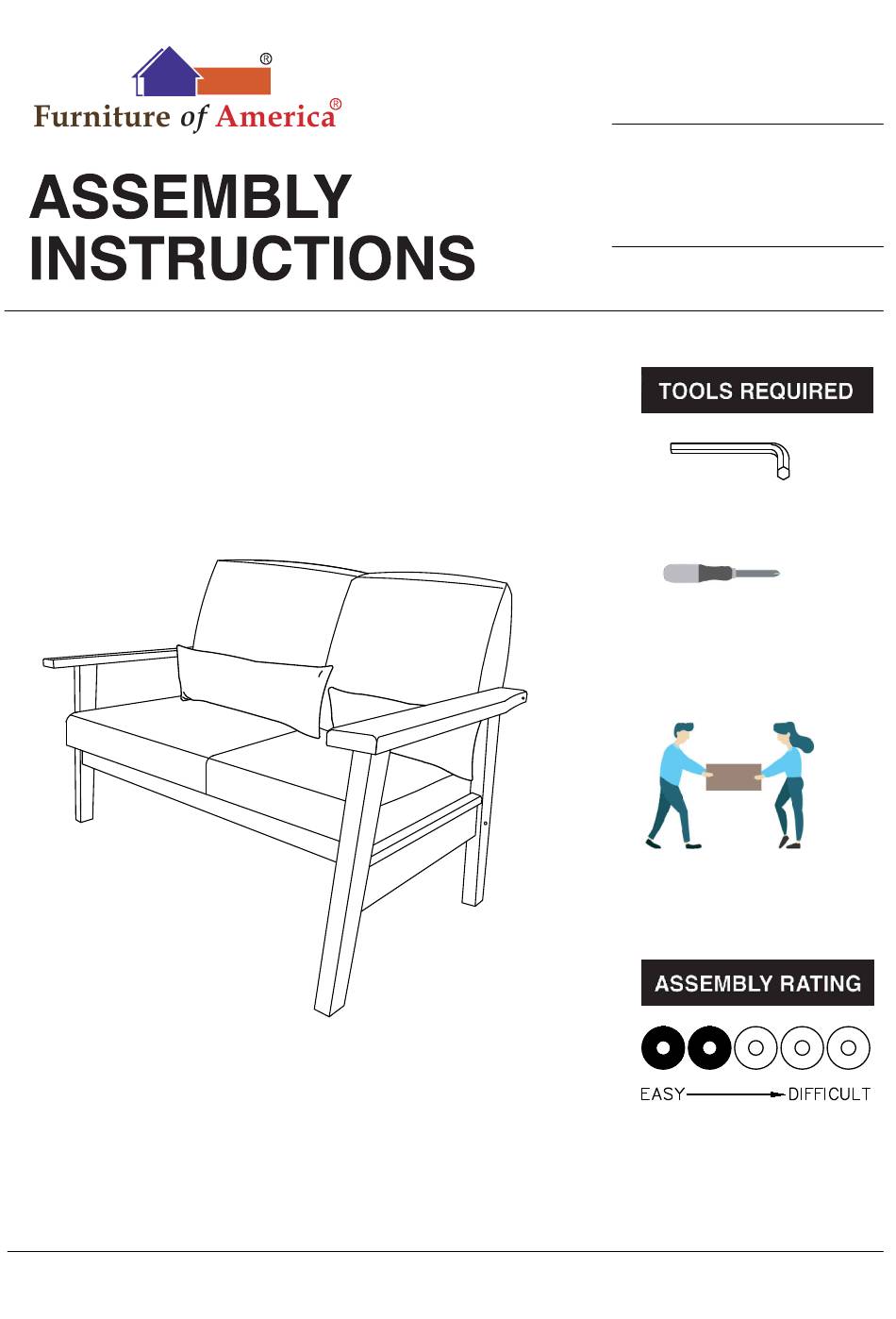

- Page 1 MODEL # CM6911-LV Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - Persons Recommended The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 5 LOVESEAT CM6911-LV #1 1pc #2 1pc #3 1pc #4 1pc Arm Right Front Rail Back Deck Arm Left #5 2pcs #6 2pcs #7 2pcs #8 2pcs Cushion Seat Seat Deck Lumber Pillow Back Rest Cushion #A 2pcs #B 4pcs #C 6pcs...
- Page 6 ASSEMBLY INSTRUCTIONS Ensure that the rail support on the front rail (#3) is as shown in the diagram. Part #1 x1pc Part #3 x1pc Part #4 x1pc Hardware #G x6pcs Insert dowels (#G) to back desk (#4) and front rail (#3), then align them both to left arm (#1).
- Page 7 ASSEMBLY INSTRUCTIONS Secure arms to back deck by aligning L brackets (#K) and securing with screws (#K). Part #7 x2pcs Hardware #H x8pcs Hardware #J x4pcs Hardware #K x8pcs Align seat decks (#7) to frame, then secure by using screw (H). Part #5 x2pcs Part #6 x2pcs Attach caps (#I) to bolt holes.
