Digital Multifunction Cooking Pot
INSTRUCTION MANUAL
Model: MRMP3GN / MRMP3RD
Read these instructions carefully before
using this appliance for the first time
STORE THESE INSTRUCTIONS CAREFULLY
For product hints and tips plus more join us at
www.morphyrichards.com.au
facebook.com/MorphyRichardsAUS
instagram.com/morphyrichardsau

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MRMP3GN and is the answer not in the manual?

Questions and answers

Summary of Contents for Morphy Richards MRMP3GN

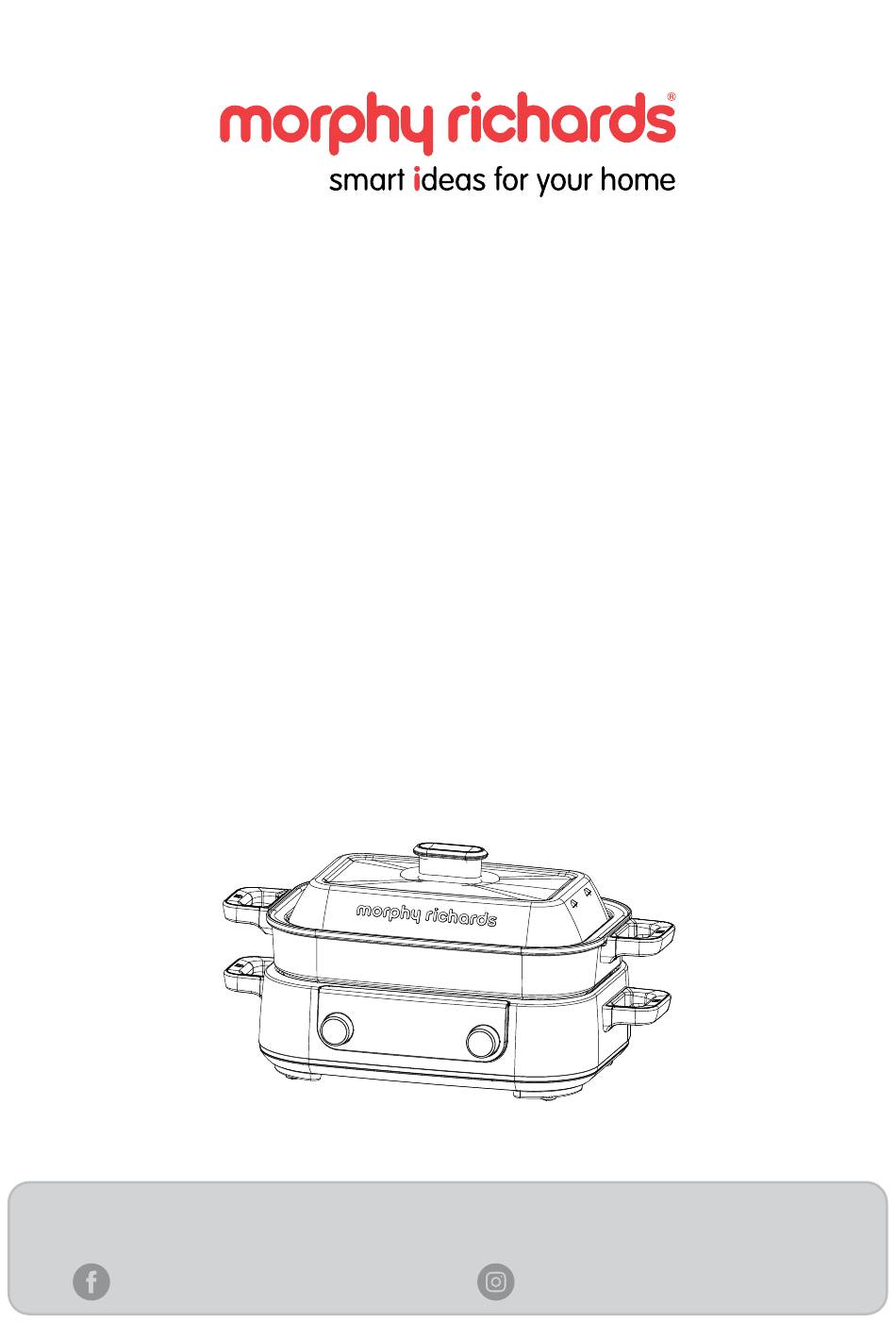

  • Page 1 Digital Multifunction Cooking Pot INSTRUCTION MANUAL Model: MRMP3GN / MRMP3RD Read these instructions carefully before using this appliance for the first time STORE THESE INSTRUCTIONS CAREFULLY For product hints and tips plus more join us at www.morphyrichards.com.au facebook.com/MorphyRichardsAUS instagram.com/morphyrichardsau...
  • Page 2: Specifications

    SPECIFICATIONS Model: MRMP3GN MRMP3RD Colour: Green Rated Voltage: 220-240V~50-60Hz Rated Power: 1350-1600W Max Capacity: 3L (Deep Pan) External Dimensions (W x D x H): 450 x 283 x 225mm Net Weight: 4.95kg NAMES OF PARTS AND ACCESSORIES 1. Lid Handle 2.
  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of fire, electric shock, injury to persons or damage to property, follow basic precautions including the following: If the power cord is damaged, it must be replaced by the • manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
  • Page 4 This appliance must be used in accordance with the • instructions and must not be used for other purposes. This appliance is intended to be used in household and similar • applications such as: - staff kitchen areas in shops, offices and other working environments;...
  • Page 5 Personal safety The temperature of accessible surfaces may be high when the • appliance is operating. Do not touch hot surfaces. Use oven gloves or a cloth when • removing the lid or handling hot containers as hot steam will escape.
  • Page 6: Read Carefully And Keep For Future Reference

    Treating scalds Run cold water over the affected area immediately. Do not • stop to remove clothing, get medical help quickly. Electrical requirements Check that the voltage on the rating plate of your appliance • corresponds with your house electricity supply which must be A.C.
  • Page 7 DIGITAL CONTROL PANEL EXPLANATIONS TIME DIAL - The operating times can be adjusted by rotating the dial to the left or right. For the relevant functions below: COOK - Rotate clockwise increases 10 minute increments & • anti-clockwise decreases 1 minute increments (Max 2 hours). GRILL - Rotate clockwise increases 5 minute increments &...
  • Page 8 DIGITAL CONTROL PANEL EXPLANATIONS PRESET BUTTON - The Preset button operates a countdown program where the user can choose when the element starts heating. It operates ONLY with the STEAM or STEW function. STEAM - After selecting STEAM from the MENU button, •...
  • Page 9 DIGITAL CONTROL PANEL EXPLANATIONS COOK/GRILL DIAL - Depending on the function selected, the operating power or temperature can be adjusted by rotating the dial to the left or right. For the relevant functions below: COOK - Press the MENU button to select COOK and rotate the •...
  • Page 10: Before First Use

    BEFORE FIRST USE Before using this product for the first time, please: Wash the Deep Pan, Griddle Pan and Steam Tray accessories • in warm soapy water and dry before use. Before placing any accessory onto the element, make sure •...
  • Page 11: Preheat Function

    DEEP PAN The Deep Pan accessory is great for soups, curries, stews, slow cooking and anything that requires the lid on and a larger capacity pan. Plug the power cord into the base and place the Deep Pan (4) onto the heating element. The display lights on the control panel flash and the appliance enters the function selection mode and prepares for preheating.
  • Page 12 DEEP PAN Note: At any time, the heating process can be paused or stopped. A short press of the START/STOP button pauses the cooking process. After 30 seconds the appliance will revert back to the start menu. Holding the START/STOP button for longer than 2 seconds stops the unit from heating and it will revert back to the start menu.
  • Page 13 GRIDDLE PAN The Griddle Pan accessory is great for cooking meat, frying, and anything that requires a high heat. Plug the power cord into the base and place the Griddle Pan (6) onto the heating element. The display lights on the control panel flash and the appliance enters the function selection mode and prepares for preheating.
  • Page 14: Steam Tray

    STEAM TRAY The Steam Tray accessory is great for vegetables, dumplings, fish or any food that benefits from the gentle and healthy method of cooking with steam. Plug the power cord into the base and place the Deep Pan (4) onto the heating element.
  • Page 15 STEAM TRAY PREHEAT FUNCTION The Preset button operates an optional countdown program where the user can choose when the element starts heating. It operates ONLY with the STEAM or STEW function. Press MENU and select STEW. Rotate the TIME dial to the desired cooking duration (15 to 60 minutes).
  • Page 16: Maintenance

    CLEANING WARNING: NOT Dishwasher safe NOTE: Ensure the appliance is turned off, unplugged from the • socket and all accessories are cool before cleaning. Wash the Deep Pan, Griddle Pan and Steam Tray and Lid in • warm soapy water after use. Dry with a soft cloth. Do NOT submerge the base in water.
  • Page 17 NOTES...
  • Page 18 Recycling: Do not dispose of electrical appliances as unsorted municipal waste. Use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the ground water, polluting the food chain and damaging health and wellbeing.

This manual is also suitable for:

Mrmp3rd
