- Page 1 Multifuntion 5 in 1 Effects Light Effets lumineux multifonction 5 en 1 Owner’s Manual SAVE THIS MANUAL FOR FUTURE REFERENCE Manuel du Propriétaire CONSERVEZ CE MANUEL POUR RÉFÉRENCE FUTURE...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER ON THIS LIGHT. THERE ARE NO USER-SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO A QUALIFIED TECHNICIAN. NEVER look directly at the laser emitter as serious eye injury can occur. This symbol indicates that there is laser radiation emitted from this unit.
- Page 3 CONSIGNES DE SÉCURITÉ IMPORTANTES ATTENTION : POUR RÉDUIRE LE RISQUE DE CHOC ÉLECTRIQUE, NE PAS RETIRER LE COUVERCLE DE CETTE APPAREIL D’ÉCLAIRAGE. IL N'Y A AUCUNE PIÈCE RÉPARABLE PAR L'UTILISATEUR À L'INTÉRIEUR. CONFIEZ TOUTE RÉPARATION À UN TECHNICIEN QUALIFIÉ. Ne regardez JAMAIS directement l'émetteur laser, car vous pourriez vous blesser gravement aux yeux. Ce symbole indique qu'un rayonnement laser est émis par cet appareil.

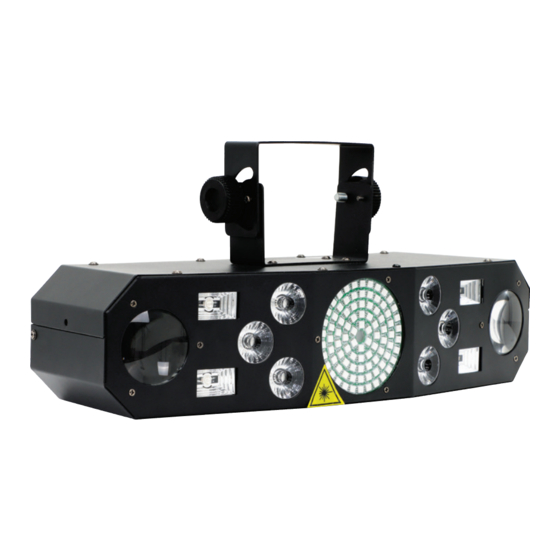

- Page 4 Star Cluster Multifunction 5 in 1 Effect Light Features Voltage: 100V-240V~, 50/60Hz Power: 150W Light source: SMD5050 x 90 pcs 3 in 1 color 3w x 4 pcs UV 4in1 x 6 pcs single color +La- ser:R=100MW , G=70MW +Derby: 5mm LED R16,G12,B12 ,W16 4 operation modes: Automatic running, DMX, Sound Active, Primary/Secondary Sound controlled via built-in microphone 0-100 linear dimmer, high power led and low power consumption...
-
Page 5: Dmx Controller
DMX controller 11 CH Mode Effect Channel DMX Value Function 0-255 See show table mix color 0-255 Mix color effect from slow to fast 4in1 LED+UV 0-008 NO strobe 009-255 LED strobe from slow to fast 0-255 See show table strobe SMD5370 0-255 Strobe effect from slow to fast 5050Strobe... - Page 6 00--255 Strobe all dimmer 000-08 NO Strobe 009-255 Strobe from slow to fast 5050Strobe 10CH 00--255 Strobe effect 11CH 00--255 Strobe effect from slow to fast 12CH 00--255 spot all dimmer 0-08 NO Strobe 13CH 009-255 Strobe from slow to fast 00-255 Color mix 1 14CH...
- Page 7 Star Cluster Lampe à Effets Multifonctions 5 en 1 Caractéristiques Voltage : 100V-240V~, 50/60Hz Puissance : 150W Source lumineuse : SMD5050 x 90 pièces 3 en 1 couleur 3w x 4 pièces UV 4in1 x 6 pièces couleur unique +Laser:R=100MW , G=70MW +Derby : DEL 5mm R16,G12,B12,W16 4 modes de fonctionnement : Fonctionnement automatique, DMX, son actif, Primaire / Secondaire.
- Page 8 Contrôleur DMX Mode 11 C Effect Channel DMX Value Function 0-255 See show table mix color 0-255 Mix color effect from slow to fast 4in1 LED+UV 0-008 NO strobe 009-255 LED strobe from slow to fast 0-255 See show table strobe SMD5370 0-255 Strobe effect from slow to fast 5050Strobe...
- Page 9 00--255 Strobe all dimmer 000-08 NO Strobe 009-255 Strobe from slow to fast 5050Strobe 10CH 00--255 Strobe effect 11CH 00--255 Strobe effect from slow to fast 12CH 00--255 spot all dimmer 0-08 NO Strobe 13CH 009-255 Strobe from slow to fast 00-255 Color mix 1 14CH...
- Page 12 One Year Limited Warranty: If this product should fail within one year of the original purchase date due to a manufacturing defect, simply return the product to your Orion dealer with the original proof of purchase and it will be repaired free of charge. This warranty excludes damage considered by the vendor to be the result of improper installation, normal wear, abuse or shipping damage.
Need help?
Do you have a question about the STAR Cluster ORFX107 and is the answer not in the manual?
Questions and answers

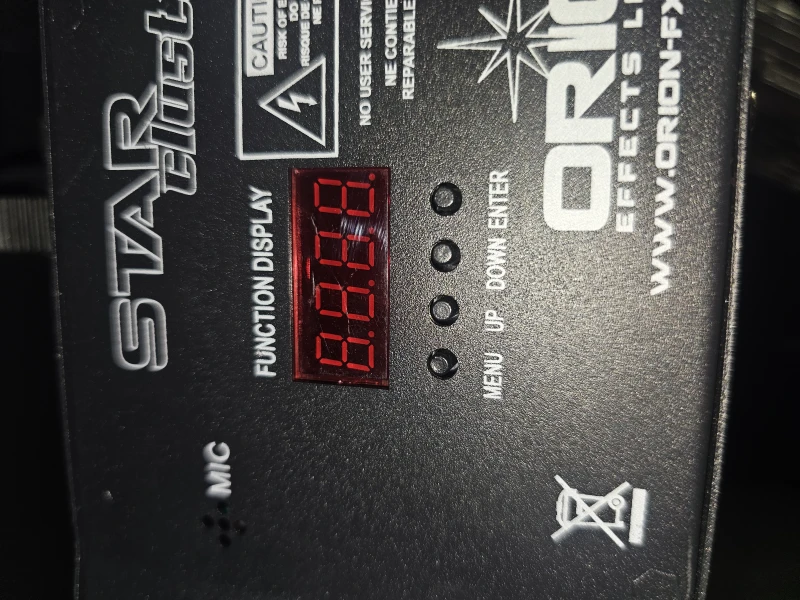

The function display doesn't light up/come on
The function display on the Orion STAR Cluster ORFX107 light may not light up due to the following reasons:
1. The unit is not connected to the power source.
2. There is a blown fuse (must be replaced with the same type and rating).
3. The display is turned off (check if the LED display is set to OFF).
4. There may be internal damage requiring service by a qualified technician.
Always disconnect the unit from power before servicing.
This answer is automatically generated
