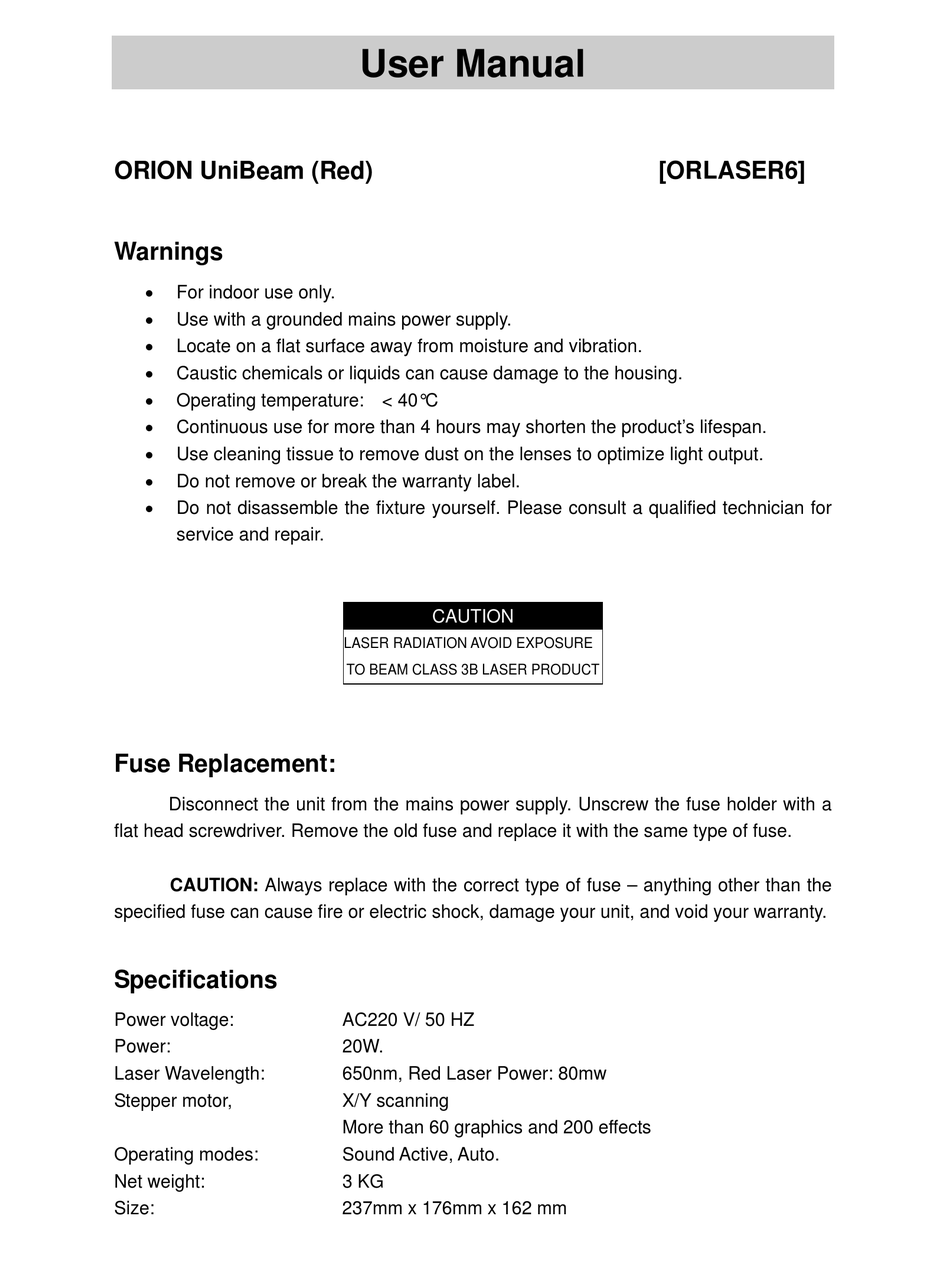

Orion UniBeam ORLASER6 User Manual

ORION UniBeam (Red)

Warnings


For indoor use only.

Use with a grounded mains power supply.

Locate on a flat surface away from moisture and vibration.

Caustic chemicals or liquids can cause damage to the housing.

Operating temperature: < 40°C

Continuous use for more than 4 hours may shorten the product's lifespan.

Use cleaning tissue to remove dust on the lenses to optimize light output.

Do not remove or break the warranty label.

Do not disassemble the fixture yourself. Please consult a qualified technician for
service and repair.

Fuse Replacement:

Disconnect the unit from the mains power supply. Unscrew the fuse holder with a
flat head screwdriver. Remove the old fuse and replace it with the same type of fuse.
CAUTION: Always replace with the correct type of fuse – anything other than the
specified fuse can cause fire or electric shock, damage your unit, and void your warranty.

Specifications

Power voltage:
Power:
Laser Wavelength:
Stepper motor,
Operating modes:
Net weight:
Size:

User Manual

CAUTION
LASER RADIATION AVOID EXPOSURE
TO BEAM CLASS 3B LASER PRODUCT
AC220 V/ 50 HZ
20W.
650nm, Red Laser Power: 80mw
X/Y scanning
More than 60 graphics and 200 effects
Sound Active, Auto.
3 KG
237mm x 176mm x 162 mm
[ORLASER6]
