Orion LED PAR64 Flat User Manual

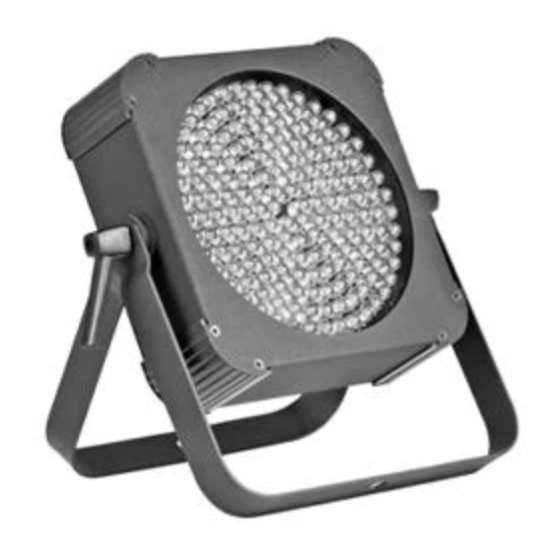

ORION LED PAR64 (Flat)
Introduction
With 168 power efficient red, blue and green LEDs, the ePAR64 lighting fixture is a cost effective, easy to
operate lighting effect suitable for a wide range recreational and professional installations.
Warnings

For indoor use only.

Caustic chemicals or liquids can cause damage to the housing.

Operating temperature: < 40°C

Do not try to disassemble the fixture yourself. Please consult a qualified technician for service
and repair.
Specifications

Voltage: AC110-120V 60Hz

Fuse: 125V 1A

Power: 14.4W

Light Source: 168 LEDs (60 red, 54 green, 54 blue)

Operating modes: DMX, audio, auto, hand, self-connecting.

Connector: DMX (3-pin XLR connector)

Weight: 2.3KG

Size: L302mm x W96mm x H264mm
Power hookup
Up to ten LEDPAR64F lighting fixtures can be daisy chained with the Power Link connectors.
Operation
The LEDPAR64F can be used in the following operating modes:
1. Audio - Controlled by sound input
2. Auto - Controlled internally
3. Hand - Does not respond to external control
4. DMX - Controlled by external DMX data
All manuals and user guides at all-guides.com

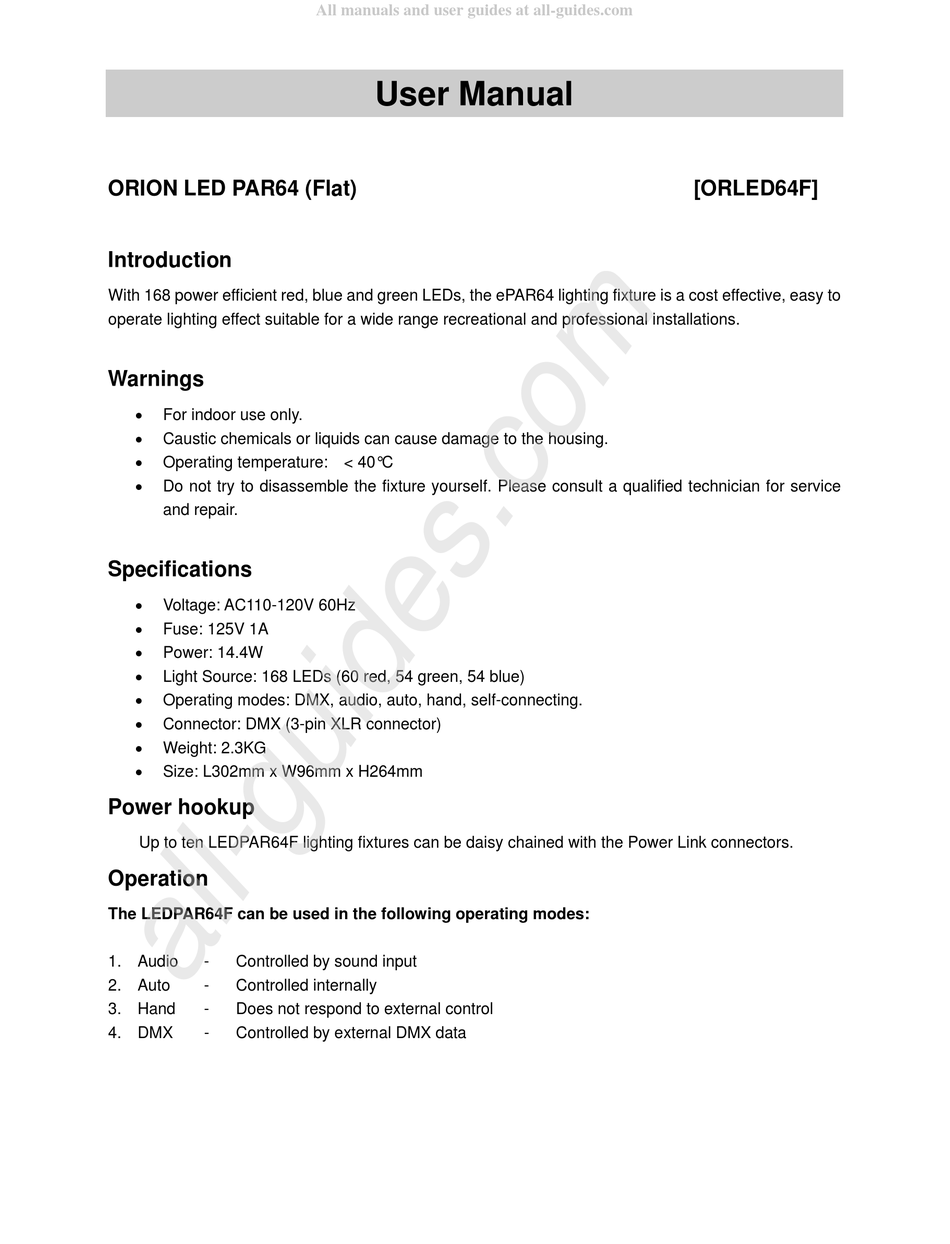

User Manual
[ORLED64F]
