6201-WA-MNET ♦ ProLinx Wireless
High Speed Wireless Modbus TCP/IP Gateway
3.1

Complete the ProSoft Configuration Builder Sections

3.1.1
Double-click the
1

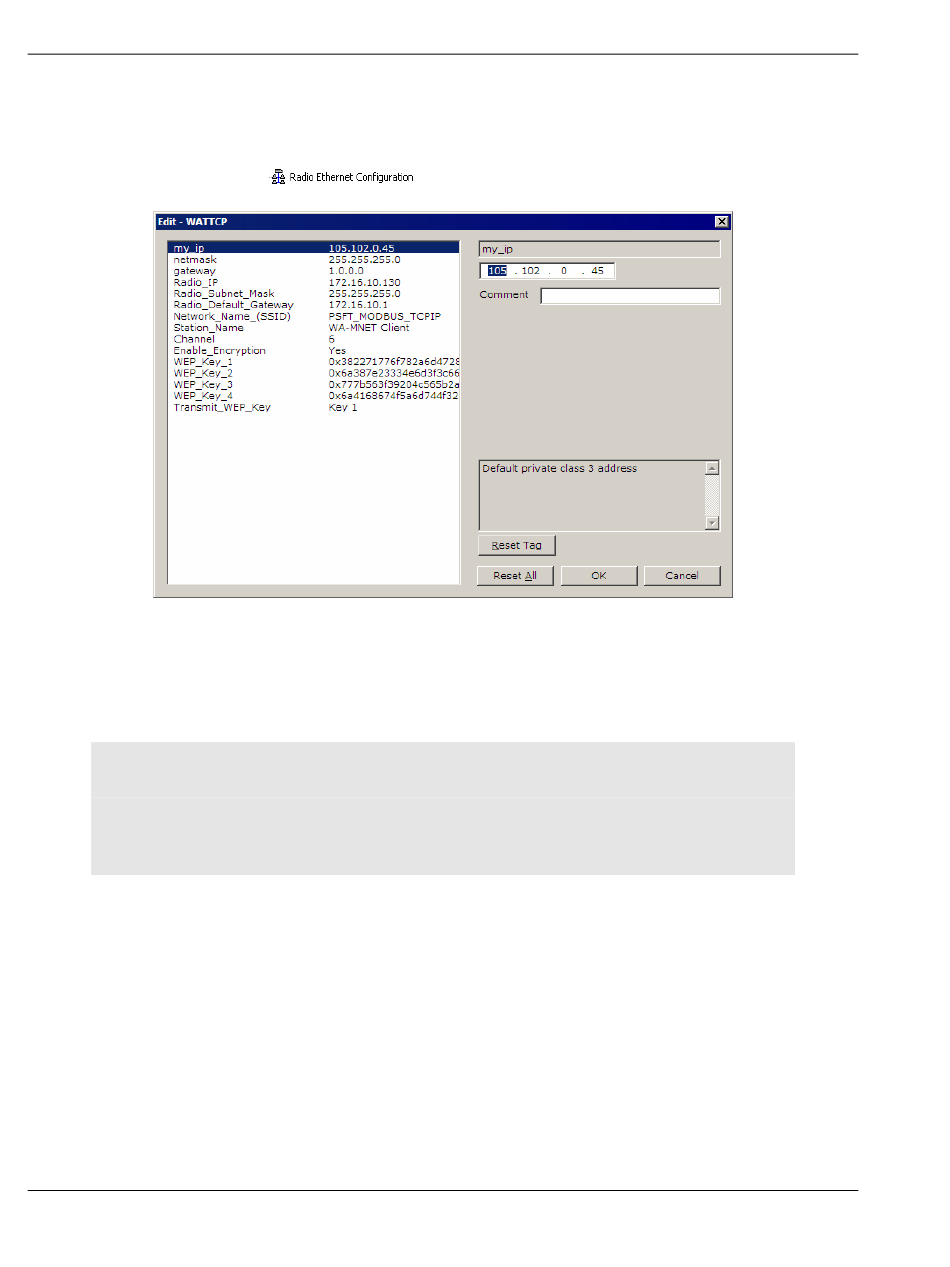

Every Modbus TCP/IP module is set up with the defaults shown in the example.
You may have to modify values such as the Radio Default Gateway, the Network
Name (SSID), and the Station Name to suit the needs of your network. The
Station Name may be modified when using more than one Modbus TCP/IP
module.
Note: All modules must have the same Subnet Mask, Default Gateway, and
Network Name (SSID) if they are all located on the same network. Only the
fourth octet in the Radio_IP address must be different for each module. Please
refer to Default Module Configuration Assignments (page 37) for a list of
pre-assigned ProSoft product IP addresses.
The PWP Driver Manual located on the ProLinx Solutions CD contains a
description of the remaining parameters. If you are making changes, be sure to
save your changes before moving on to the next step.
Page 14 of 48

Radio Ethernet Configuration

icon.
Configure the MNET Client Module
ProSoft Technology, Inc.
June 27, 2007
