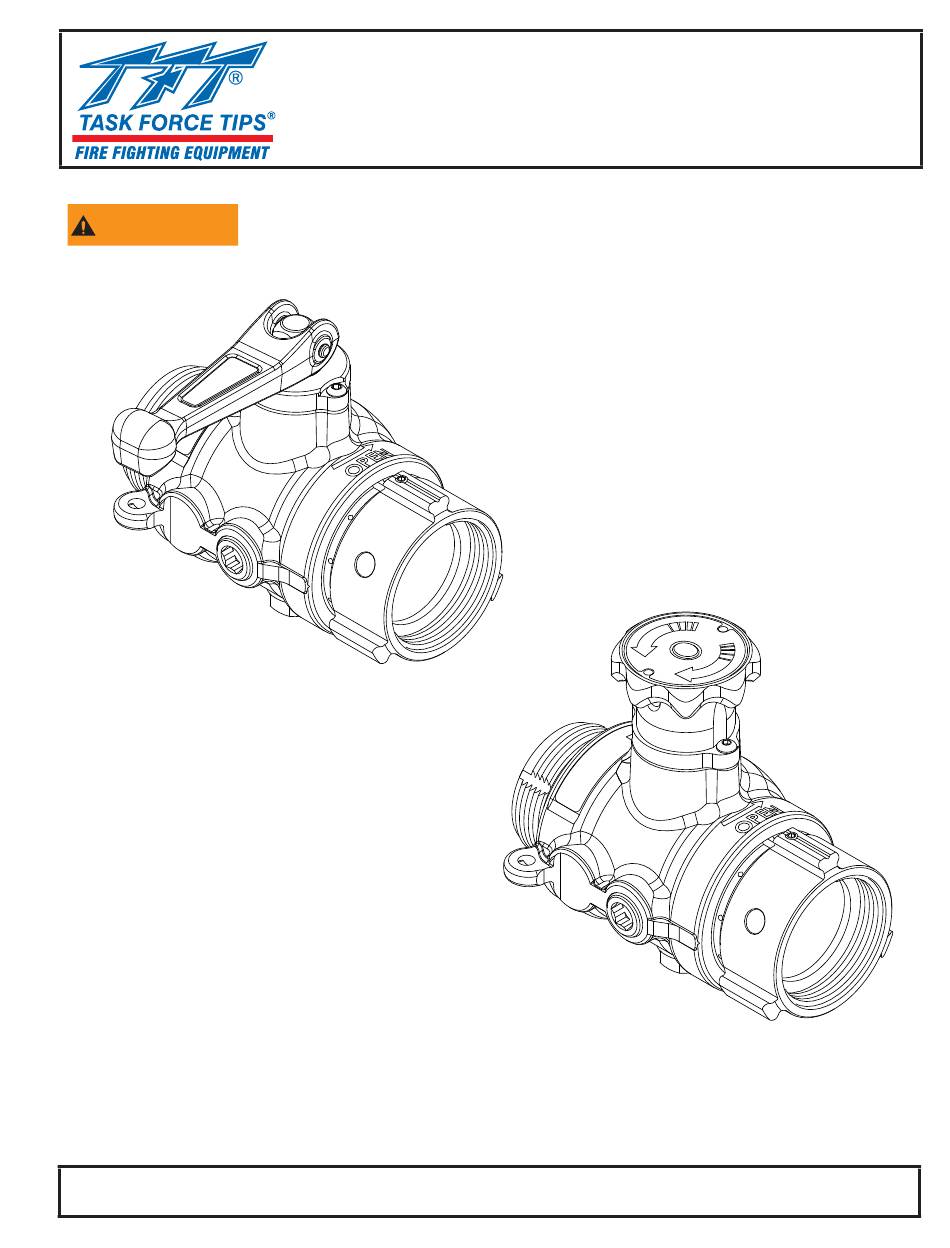

INSTRUCTIONS FOR SAFE OPERATION AND MAINTENANCE
WARNING
2.5" Hydrant Valve
TASK FORCE TIPS, INC.
MADE IN USA • www.tft.com
©Copyright Task Force Tips, Inc. 2008-2016
MANUAL: 2.5" HYDRANT VALVE
Understand manual before use. Operation of this device without understanding the manual and receiving
proper training is a misuse of this equipment. Obtain safety information at www.tft.com/serial-number
AV5NJ-NJ
OPERATING RANGE
Pressure Max 300 PSI
Pressure Min Full Vac.
Hydrostatic
Proof Test:
900 PSI

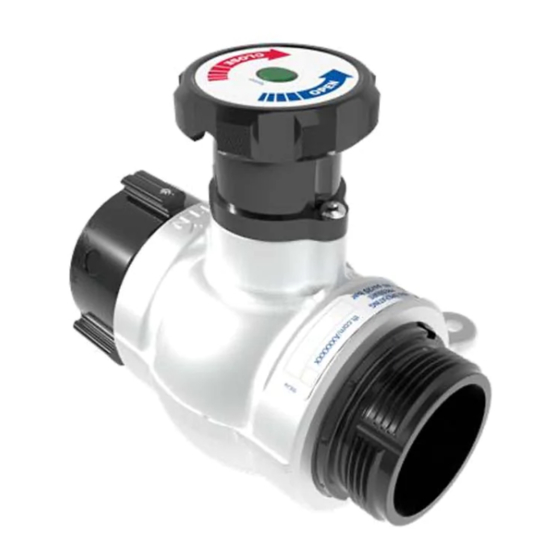

2.5" Slow Close Hydrant Valve
AV5NJ-NJ-SC
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 • 219-462-6161 • Fax 219-464-7155
LIA-355 May 26, 2016 Rev06
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TFT AV5NJ-NJ
Summary of Contents for TFT AV5NJ-NJ
- Page 1 INSTRUCTIONS FOR SAFE OPERATION AND MAINTENANCE Understand manual before use. Operation of this device without understanding the manual and receiving WARNING proper training is a misuse of this equipment. Obtain safety information at www.tft.com/serial-number OPERATING RANGE Pressure Max 300 PSI Pressure Min Full Vac.
- Page 2 DANGER PERSONAL RESPONSIBILITY CODE The member companies of FEMSA that provide emergency response equipment and services want responders to know and understand the following: 1. Firefi ghting and Emergency Response are inherently dangerous activities requiring proper training in their hazards and the use of extreme caution at all times.
- Page 3 If corrosion exists, the couplings shall be cleaned and an anticorrosive lubricant specifi ed by the coupling manufacturer shall be applied to the threads,” TFT recommends Dow Corning 111 or 112 Silicone.
- Page 4 EXPLODED VIEW AND PARTS LIST 39 40 PART NUMBER LOCATION ADAPTER AND CAP NOT INCLUDED WITH ALL ASSEMBLIES ©Copyright Task Force Tips, Inc. 2008-2016 LIA-355 May 26, 2016 Rev06...
- Page 5 DESCRIPTION QTY PART# STAINLESS KEY RING X342 BLIND CAP 1.5"NHF W/ 19" LANYARD P412 ADAPTER 2.5"NHF X 1.5"NHM ROCKERLUG P411 SIDE A ADAPTER 2 1/2 NH AY360* O-RING-234 VO-234 LOWER TRUNNION AY353 3/4"NPTM HEX SOCKET PLUG XG410 O-RING-115 VO-115 2.5" HYDRANT VALVE BODY AY301 2.5"...
- Page 6 SECTION C DESCRIPTION QTY PART# LABEL AY370L INDICATOR AY375 O-RING-113 VO-113 KNOB AY370 QUAD-RING-214 VOQ-4214 SLEEVE AY371L 1/4-20 X 3/4 BUTTON HEAD SCREW VT25-20BH750 STATOR AY371R O-RING-033 VO-033 LOWER TRUNNION AY374L O-RING-115 VO-115 RETAINER AY372 1/4-28 X 1/4 SOCKET SET SCREW VT25-28SS250 3/16"...
- Page 7 SLOW CLOSE VALVE TIMING Blue Loctite Timing marks aligned when splines engage Approximately four turns out Timing marks aligned when tops flush Blue Loctite Aligned with eliptical hole in knob 3-1/2 Turns Full Closed to Full Open Indicator flush Valve postion indicator when fully closed raises 1/2”...
- Page 8 TFT, at 3701 Innovation Way, Valparaiso, Indiana 46383-9327 USA, within a reasonable time after discovery of the defect. TFT will examine the equipment. If TFT determines that there is a defect attributable to it, TFT will correct the problem within a reasonable time.
