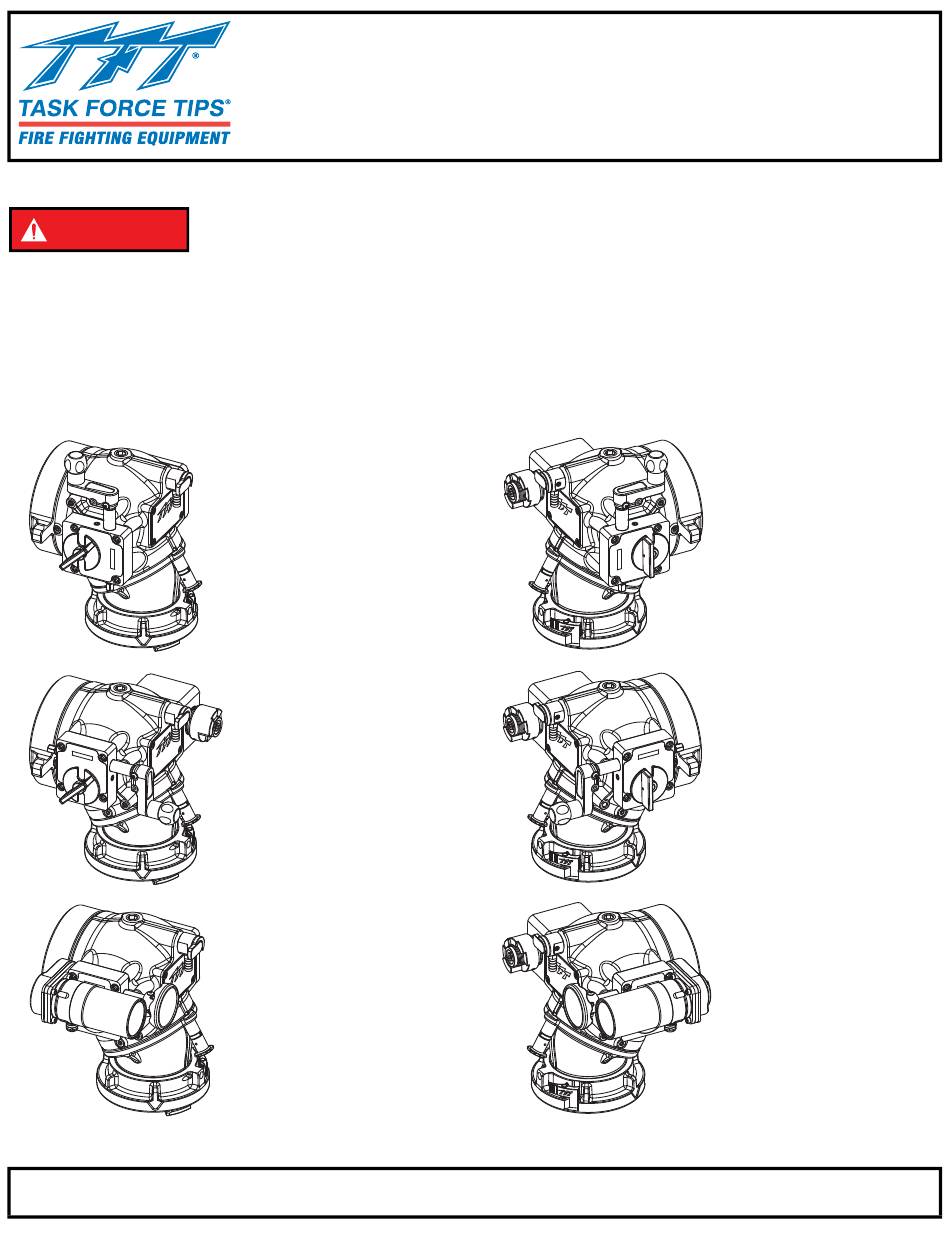

INSTRUCTION FOR INSTALLATION, OPERATION, AND MAINTENANCE
DANGER
LEFT DRIVE
TASK FORCE TIPS LLC
MADE IN USA · tft.com
©Copyright Task Force Tips LLC 2014-2021
Understand manual before use. Operation of this device without understanding the manual and
receiving proper training is a misuse of this equipment. Obtain safety information at tft.com/
serial-number.
This equipment is intended for use by trained and qualified emergency services personnel for
firefighting. All personnel using this equipment shall have completed a course of education
approved by the Authority Having Jurisdiction (AHJ).
This instruction manual is intended to familiarize firefighters and maintenance personnel with the
operation, servicing, and safety procedures associated with this product. This manual should be
kept available to all operating and maintenance personnel.
AXD1ST-NX-T
Jumbo Low Profile
Ball Intake Valve
Top Crank
with Pressure Relief Valve
AZD1ST-NX-T
without Pressure Relief Valve
(not shown)
AXD1ST-NX-F
Jumbo Low Profile
Ball Intake Valve
Front Crank
with Pressure Relief Valve
AZD1ST-NX-F
without Pressure Relief Valve
(not shown)
AXD1ST-NX-RC
Jumbo Low Profile
Ball Intake Valve
Electrically Actuated
with Pressure Relief Valve
AZD1ST-NX-RC
without Pressure Relief Valve
(not shown)
JUMBO LOW PROFILE
BALL INTAKE VALVE (BIV)
RIGHT DRIVE
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
1
AXE1ST-NX-T
Jumbo Low Profile
Ball Intake Valve
Top Crank
with Pressure Relief Valve
AZE1ST-NX-T
without Pressure Relief Valve
(not shown)
AXE1ST-NX-F
Jumbo Low Profile
Ball Intake Valve
Front Crank
with Pressure Relief Valve
AZE1ST-NX-F
without Pressure Relief Valve
(not shown)
AXE1ST-NX-RC
Jumbo Low Profile
Ball Intake Valve
Electrically Actuated
with Pressure Relief Valve
AZE1ST-NX-F
without Pressure Relief Valve
(not shown)
800-348-2686 · 219-462-6161 · Fax 219-464-7155
LIA-208 May 19, 2021 Rev05
