Noctua NA-IS1-12 Sx2 Installation Manual

Designed to replace the fan's stock NA-AVP1

anti-vibration pads, the NA-IS1-12 are compatible with

all current square-frame Noctua 120x25mm fans and

extremely straightforward to install:

For case fan applications, either the supplied self-tapping

screws or the included NA-AV3 anti-vibration

mounts can be used to sandwich the spacer between

the fan and the case panel. For radiator mounting, both

M3 and UNC 6-32 screws are supplied.

Included mounting parts:

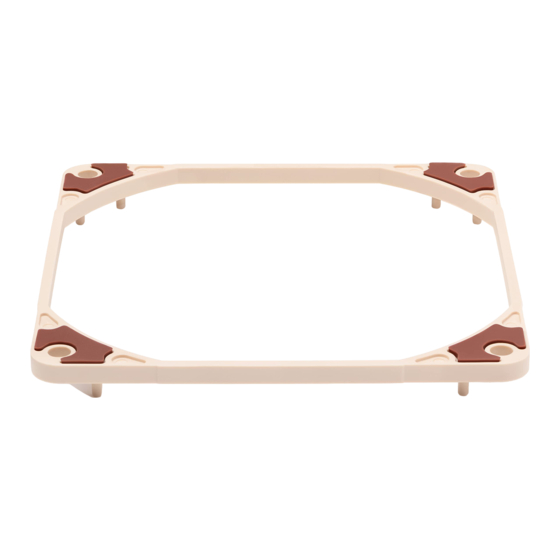

2x NA-IS1-12 inlet spacers

8x NA-AV3

8x NM-SFS4-BK

anti-vibrations mounts

long fan screws

8x NM-SFS5-BK

8x NM-SFS6-BK

radiator screws (M3)

radiator screws (UNC)

NOCTUA NA-IS1-12 Sx2

INSTALLATION MANUAL

2 Case fan installation with screws

Table of Contents

Do you have a question about the NA-IS1-12 Sx2 and is the answer not in the manual?

Page 1 INSTALLATION MANUAL Designed to replace the fan’s stock NA-AVP1 anti-vibration pads, the NA-IS1-12 are compatible with all current square-frame Noctua 120x25mm fans and extremely straightforward to install: For case fan applications, either the supplied self-tapping screws or the included NA-AV3 anti-vibration mounts can be used to sandwich the spacer between the fan and the case panel.
Page 2 6 years and direct, fast and straightforward RMA service. Should you encounter any problems with your NA-IS1-12 Sx2, please don’t hesitate to contact our support team at support@noctua.at. Please also consult the FAQ section on our website:...
