Conviron CMP6010 Quick Start

CMP6010 |
This document is intended as a supplement to the CMP6010 Operator's Manual. Please read both
documents completely before operating Conviron equipment.
The CMP6010 controller has been developed to provide simple programming and precision control. This 'Quick Start'
guide will help users to quickly familiarize themselves with the controller and its operation. For a complete explanation of
creating and scheduling programs, please consult the CMP6010 Operator's Manual.
Current
Menu Location
Alarm
Program
Escape
Menu Instruction

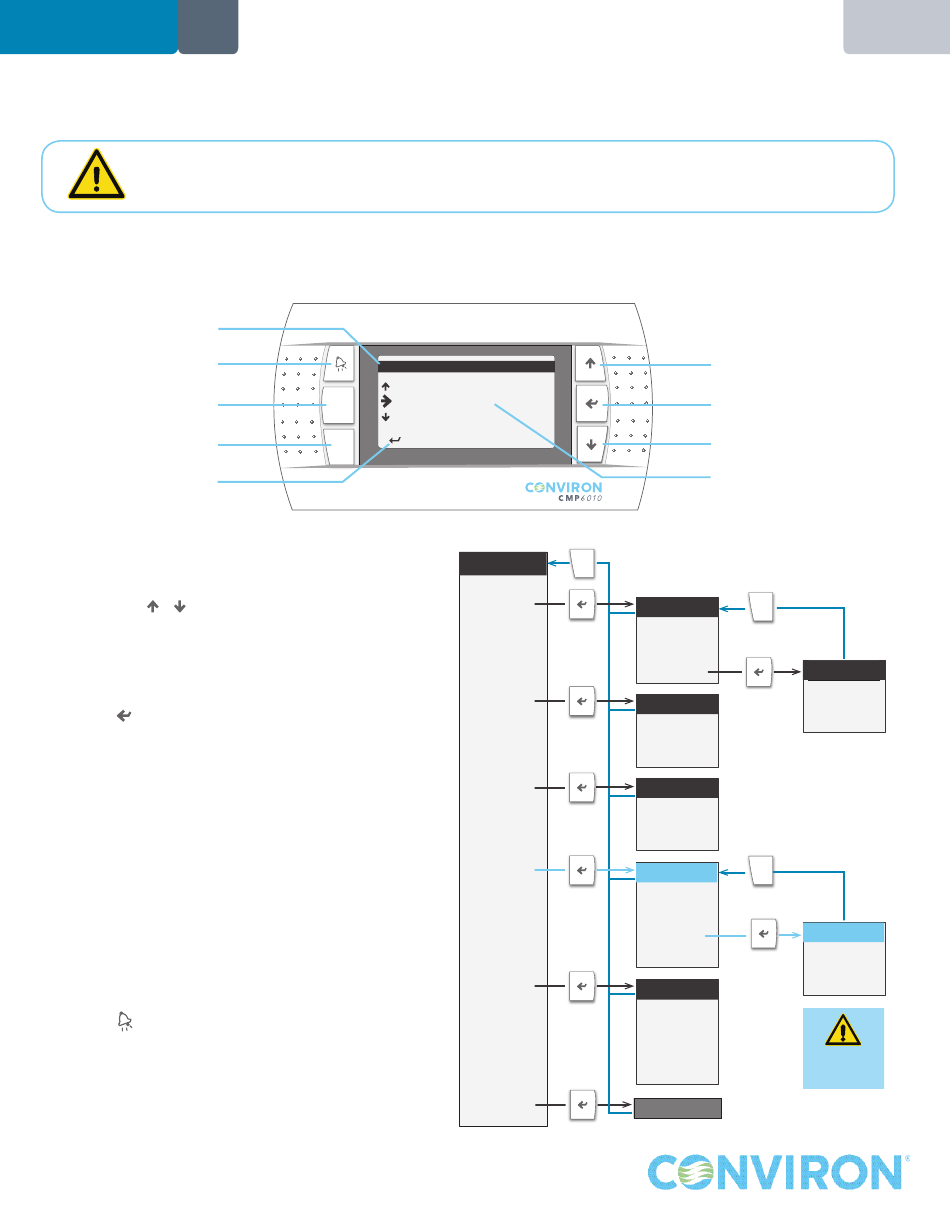

CONTROLLER NAVIGATION
Up/Down ( / ):
• Navigate between menu items
• Change the value of a configurable parameter
• Move to next screen within selected menu item
Enter ( )
• Open selected menu item
• Move cursor to the next configurable
parameter on the page
Escape ( Esc )
• Return to previous menu/screen
• Save schedule/program
Program ( Prg )
• Flashes yellow to indicate when a schedule
is running. When flashing, press to view
running schedule.
• Toggles between Edit-Add-Delete-Sort functions
in 'Edit Program' and 'Edit Schedule' screens
Alarm ( )
• Flashes red to indicate an active alarm. When
flashing, press to view alarm.
Copyright © 2013 by Controlled Environments Limited. All rights Reserved.
01-28-13 Rev. 00
Quick Start
- - - M A I N M E N U - - -
Status
Program
Prg
Security
< > to Select
Esc
Esc
MAIN MENU
PROGRAM
PROGRAM MENU
SCHEDULE
SECURITY
SECURITY MENU
PASSWORDS
ALARM
ALARM MENU
SETTINGS
SERVICE
SERVICE MENU
IO STATUS
RESET USER
OPTIONS
OPTIONS MENU
TIME/DATE
ON DELAY
SECURITY
NETWORK
STATUS
STATUS SCREEN
Up
Enter
Down
Selected
Menu Item
Esc
CREATE
DELETE
EDIT
SCHEDULE MENU
EDIT
CLEAR
LOGIN
LOGOUT
VIEW
CLEAR
Esc
SYSTEM
PID SETS
CONFIG MENU
CONFIG
TEMP
ALARMS
HUM
AUTHORIZED
PERSONNEL
SETUP
ONLY
1 of 2
RUN
