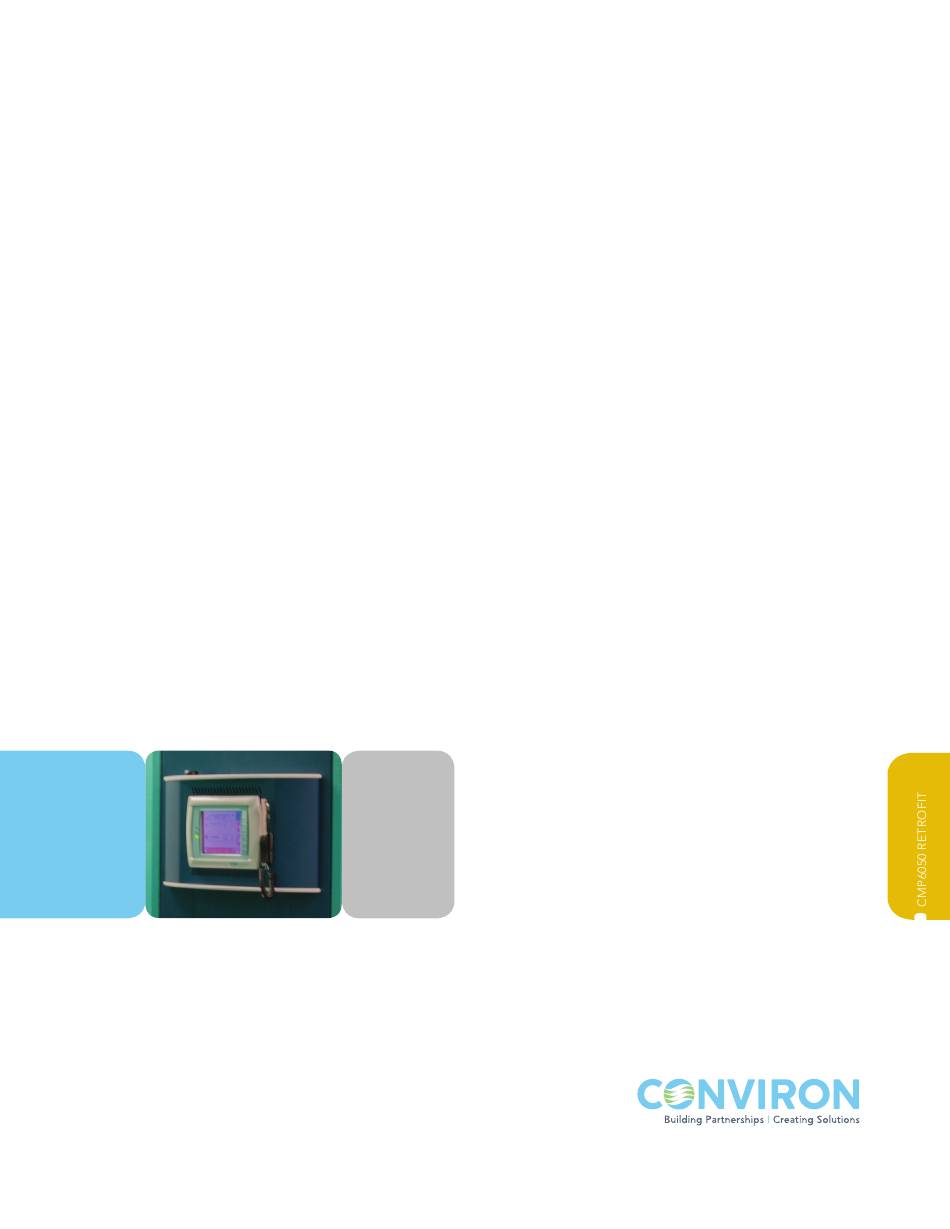

- Page 1 CMP6050 RETROFIT FOR 4000/5000 SERIES CONTROLLER INSTALLATION INSTRUCTIONS ®...
-
Page 3: Service And Technical Support
SERVICE AND TECHNICAL SUPPORT Guidelines Conviron welcomes the opportunity to provide assistance and to answer any questions related to the installation of retrofit hardware. If problems arise during installation, refer to the relevant section in these instructions and included/original schematics to determine a solution. If further information or assistance is required, please collect the following information prior to contacting Conviron: •... - Page 5 PRECAUTIONS CMP6050 Retrofit installation requires working with high voltages and sensitive electronic equipment. The procedure outlined in this document should only be performed by trained and qualified personnel. Contact Conviron Technical Support for more information (see Page iii). May 2013 |...
- Page 7 CMP6050 Retrofit Installation Instructions Required Parts and Materials: F Control panel assembly F Zip ties F Retrofit cover panel F Tool kit appropriate for servicing Conviron chambers F Control panel bezel assembly F Anti-static wrist strap F Control driver boards...
- Page 8 Mounted to existing • Mounted to existing controller assembly controller assembly Figure 2 Input board Relay board Figure 3 Locate and remove all controller communications cables (RJ11 modular jacks) from control panel (Figure 4). Figure 4 May 2013 | 257775R00 CONVIRON...
- Page 9 Using pre-drilled holes (Figure 7), place new control panel assembly on threaded studs after cover panel and mount using hardware removed from old controller panel in step four. Do not over tighten. Control panel Bezel assembly assembly upper mounting holes mounting holes (Red) (Green) Figure 7 May 2013 | 257775R00 CONVIRON...
- Page 10 (Figure 10) as shown on schematics 231106 and 257349 page one. Upper wire bundle Lower wire bundle Figure 9 May 2013 | 257775R00 CONVIRON...
- Page 11 1 - Control panel door 2 - Retrofit cover panel 3 - New control panel assembly 4 - Star washer and nut 5 - Ground wire ring connector 4 5 6 6 - Star washer and nut Figure 11 May 2013 | 257775R00 CONVIRON...
- Page 12 1 terminal and wire to the 3 terminal and remove wires to the start/stop switch. If use of the start/stop switch is required, run the wire labelled 1 from the power supply breaker to the start/stop switch replacing the wire labelled 2, and remove the wire labelled 2 from the panel. May 2013 | 257775R00 CONVIRON...
- Page 13 Install new humidity sensor in aspirator box and route cables for new humidity sensor identically to previously installed sensor Wire new humidity sensor to terminal blocks J1, +V and CG (Figure 16) as indicated in schematic 228124. BROWN WHITE HUMIDITY SENSOR HUMMITTER BLUE ONLY Figure 16 May 2013 | 257775R00 CONVIRON...
- Page 14 (e.g. in a 6’ long chamber the pilaster should be installed 2’ in from any of the four corners on either of the two 6’ walls). If installing in a larger walk-in room, consult Conviron for assistance.
- Page 15 Retrofit Hardware Package Figure 20 Using a continuity tester or multimeter, run a continuity test from the 3 terminal on the new controller panel assembly to both neutral and ground. NO continuity should be found. Important May 2013 | 257775R00 CONVIRON...
- Page 16 If it does not, contact Conviron Technical Support (see Page iii). Input information retrieved in Step 1 to the new CMP6050 controller. The chamber is now ready to be used.
- Page 18 Canada Head Office 590 Berry Street Winnipeg, MB R3H 0R9 tel 204.786.6451 toll free 1.800.363.6451 fax 204.786.7736 Sales Office PO Box 347 Pembina, ND 58271 toll free 1.800.363.6451 fax 204.786.7736 United Kingdom Unit 1 Hall Barn Road Industrial Estate...
