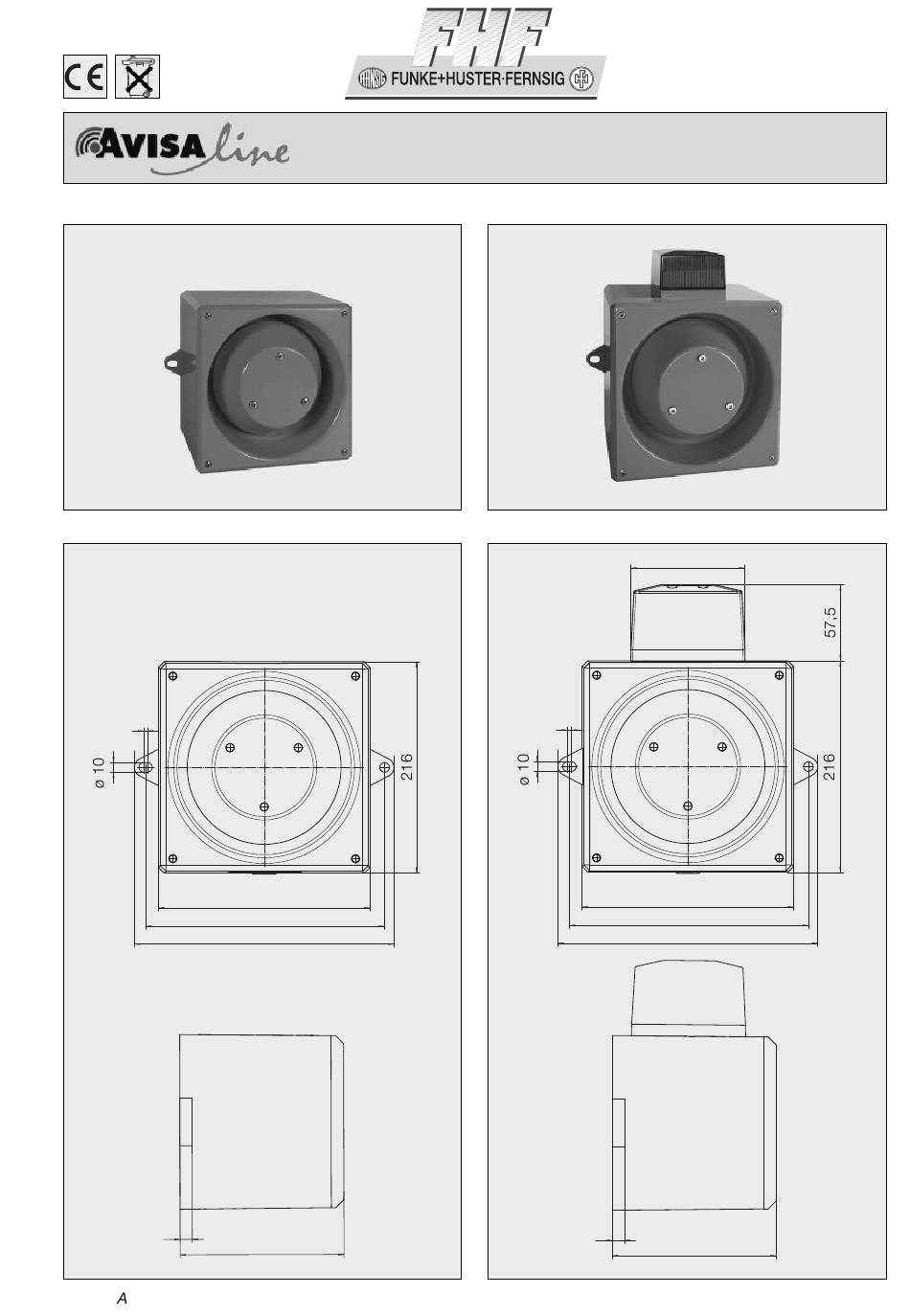

- Page 1 Sounder AX08 and Sounder-Strobe-Combination AXL08 AX08 AXL08 Dimensions AX08 Dimensions AXL08 FHF B 6032-10 04/11...
- Page 2 Installation and TB4, see Fig. 2. For ac units the second stage is The sounder or combined sounder strobe units can be available upon the application of a third wire L to TB3, affixed to most surfaces using screws through the exter- see Fig.
- Page 3 Sound selection table First and Second Stage Frequency / Rept. Switches Special rate 1 2 3 4 5 Application 1 Alternate two-tone 800 - 1000 1 1 1 1 1 Fire Alarms 2 Alternate two-tone 2500 - 3100 0 1 1 1 1 Security Alarms 3 Alternate fast two-tone 800 - 1000...
- Page 4 Figure 1 Figure 2 DC Input - second stage with third wire DC Input - second stage by supply reversal Line integrity: monitor via reverse polarity Line integrity: monitor via threshold (applied voltage 1 V) An end-of-line (E.O.L) resistor is required for line monitoring and it should be a minimum resistance of 3K3 ohms and 0.5 watts.
- Page 5 Figure 5 Wiring details for XL units (opt. /acoust. combination) Warning: high voltages are present bipolar within the beacon when operational bipolar 3. Wire – – Strobe Sounder User information 1. The appliance has been designed for insulation class I and is only to be connected to, and operated with, the specified voltage.
- Page 6 Subject to alterations or errors FHF Funke + Huster Fernsig GmbH Gewerbeallee 15-19 · D-45478 Mülheim an der Ruhr Phone +49 / 208 / 82 68-0 · Fax +49 / 208 / 82 68-286 http://www.fhf.de · e-mail: info@fhf.de...
