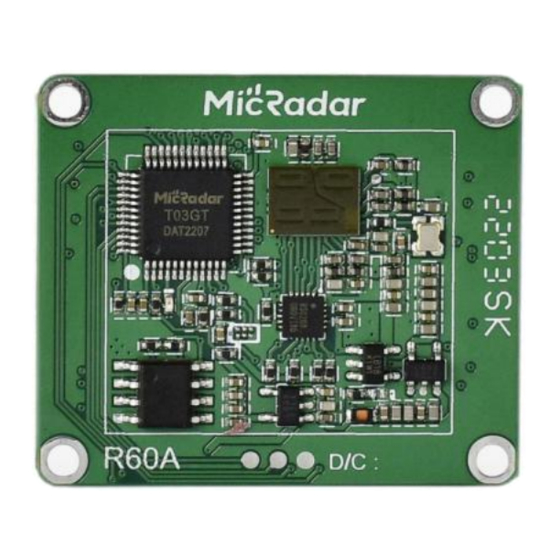

- Page 1 60GMilimeterwave Bio-sensing radar R60AFD2-Fall detection module using guide Please read the product instructions carefully before use and keep them properlyV1.0 MicRadar Technology (Shenzhen) Co. ,LTD...
- Page 2 R60AFD2-Fall detection module using guide 1. Product description The fall detection radar makes algorithm judgment based on the characteristics of personnel attitude parameters. It detects the falling state of the target person through changes in speed, distance, attitude and other motions, continuously records whether the target is in danger of falling, and responds to the stationary residence alarm for long-term abnormal stay.
- Page 3 R60AFD2-Fall detection module using guide 5 minutes DP6: Installation height The default setting is 240 cm, and it can be set to 200 setting cm - 300 cm DP7: Fall alarm switch Control whether the fall alarm is reported DP8: Static parking alarm...
- Page 4 R60AFD2-Fall detection module using guide Note: 1 )GP1~GP6 are parameter selection control terminals, which can be redefined according to user needs. 2 ) The output signals of this interface are all 3.3V level . Use wiring diagrams Module wiring diagram 5.
- Page 5 7. Radar Installation Instructions 7.1. Working range of radar module beam coverage of the R60AFD2 radar module is shown in the figure below. The radar coverage is a three-dimensional sector of 100 ° horizontally and 100 ° vertically. R60AFD2 radar coverage area 7.2.
- Page 6 R60AFD2-Fall detection module using guide Guide to the actual installation steps of the radar Step 1 : Confirm the main activity area of the person ( fall detection area) , the middle of this position is the installation position of the...
- Page 7 R60AFD2-Fall detection module using guide Space size: 3.5 ㎡ - 6 ㎡ Possible sources of interference: exhaust fans /metal shutters/ blackout coated curtains Installation orientation: the long side faces the door 9. Layout Requirements for Antenna and Housing PCBA: Need to keep the height of the radar patch ≥ 1mm than other devices...
- Page 8 R60AFD2-Fall detection module using guide to the radar, and the shaking of metal curtains can cause false positives. Radar needs to be planned in terms of installation angle. Non-interfering factors: radar electromagnetic waves will penetrate human clothing, curtains, thin wood, and glass. The installation angle and performance of the radar need to be determined according to the application.
