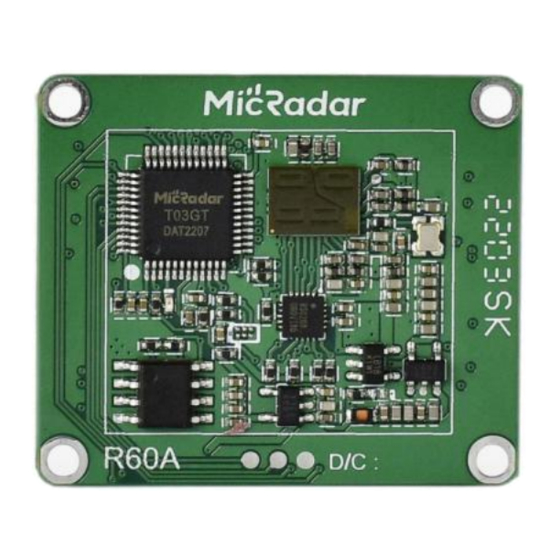

- Page 1 60GMilimeterwave Bio-sensing radar R60AFD1-Fall detection module using guide Please read the product instructions carefully before use and keep them properlyV1.0 MicRadar Technology (Shenzhen) Co. ,LTD...
- Page 2 R60AFD1-Fall detection module using guide 1. Product description The fall detection radar makes algorithm judgment based on the characteristics of personnel attitude parameters. It detects the falling state of the target person through changes in speed, distance, attitude and other motions, continuously records whether the target is in danger of falling, and responds to the stationary residence alarm for long-term abnormal stay.
- Page 3 R60AFD1-Fall detection module using guide DP5: Stationary park alarm Report static parking alarm when it is stationary for 5 minutes DP6: Installation height The default setting is 240 cm, and it can be set setting to 200 cm - 300 cm...
- Page 4 R60AFD1-Fall detection module using guide Note: 1 ) GP1~GP6 are parameter selection control terminals, which can be redefined according to user needs. 2 ) The output signals of this interface are all 3.3V level. Use wiring diagrams Module wiring diagram 5.
- Page 5 R60AFD1-Fall detection module using guide 7. Radar Installation Instructions 7.1. Working range of radar module The beam coverage of the R60AFD1 radar module is shown in the figure below. The radar coverage is a three-dimensional sector of 100 ° horizontally and 100 ° vertically.
- Page 6 R60AFD1-Fall detection module using guide 8. Guide to the actual installation steps of the radar Step 1: Confirm the main activity and stay area of the person (fall detection area), and the center of this position is the installation position of the...
- Page 7 R60AFD1-Fall detection module using guide Space size: 3.5 ㎡ - 6 ㎡ Possible sources of interference: exhaust fans/metal shutters/blackout coated curtains Recommended scene mode: kitchen/bathroom Installation orientation: the long side faces the door 9. Layout Requirements for Antenna and Housing PCBA: Need to keep the height of the radar patch ≥...
- Page 8 R60AFD1-Fall detection module using guide to the radar, and the shaking of metal curtains can cause false positives. Radar needs to be planned in terms of installation angle. Non-interfering factors: radar electromagnetic waves will penetrate human clothing, curtains, thin wood, and glass. The installation angle and performance of the radar need to be determined according to the application.
