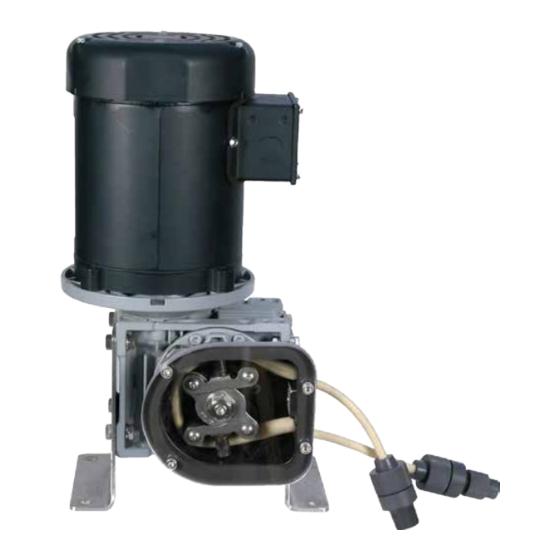

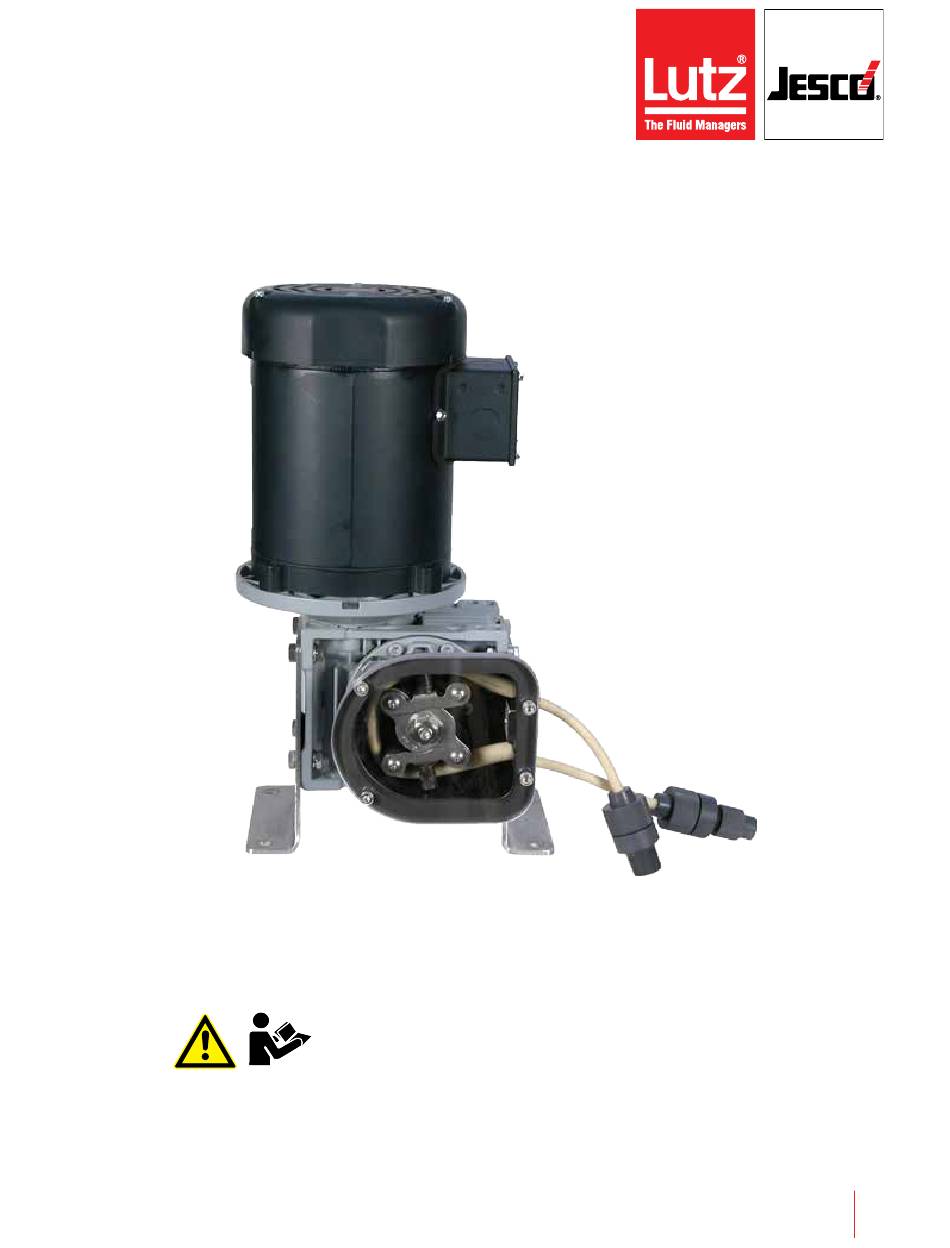

- Page 1 PERIDOS Series Operating instructions Read the operating manual! The user is responsible for installation and operation related mistakes! Original operating manual Dosing Liquids Conveying © Lutz-JESCO Americs Corp. 2020 Gases Control Systems...
-
Page 2: Table Of Contents
1.3 Receiving ..........................3 1.4 Customer Modification ......................3 1.5 Information for Returning Pumps ....................3 2 PERIDOS Series Pump and Pumphead ................4 2.1 Tubing, Spindle and Cover Installation ..................5 2.2 Mounting Pump on Gearbox, Installation of Collett ............... 6 2.3 Pump Mounting and Collet Installation Procedure ............... -
Page 3: System Overview
This warranty is in lieu of all other warranties, ex- pressed or implied. No other person, firm or corporation is autho- rized to assume, for Lutz-JESCO America, Inc., any other liability in connection with the demonstration or sale of its products. -
Page 4: Peridos Series Pump And Pumphead
The PERIDOS Series pumphead has two spring-loaded working rollers, which automatically compensate for minor variations in tubing wall thickness, giving extended tube life. IMPORTANT: The PERIDOS Series is equipped with a pump cover for safety and protection against chemical spills. The cover must be installed whenever the pump is in use. -
Page 5: Tubing, Spindle And Cover Installation
2.1 Tubing, Spindle and Cover Installation ! IMPORTANT: Disconnect pump controller from power supply BEFORE changing tubing! Item No. Qty. Part No. Description Pump Collet & Hose Assy. 100329 Roller Assembly 100330 Cover 100324 Collet Screw 100305C Cover Gasket 100307C Cover Screw Tube Varies with tubing selection*... -
Page 6: Mounting Pump On Gearbox, Installation Of Collett
2.2 Mounting Pump on Gearbox, Installation of Collett Item No. Part No. Description Pump Housing with Tube Seal 100306 Collet 100330 Pump Mounting Screws Tubing P h o n e : ( 5 8 5 ) 4 2 6 - 0 9 9 0 www.lutzjescoamerica.com Fax: (585) -
Page 7: Pump Mounting And Collet Installation Procedure
2.3 Pump Mounting and Collet Installation Pro- cedure To install the pump housing on the gearbox, slide it over the central pilot on the gearbox adaptor plate. Next install and torque the mounting screws to 5 NT.M (45 in. oz). Next install the collet on the gearbox shaft. - Page 8 3. Remove 5mm collet screw. 4. Remove the roller assembly. 5. Remove worn pump tubing from pumphead. P h o n e : ( 5 8 5 ) 4 2 6 - 0 9 9 0 www.lutzjescoamerica.com Fax: (585) 426-4025 ...
- Page 9 Remove and inspect collet for wear. Note that the collet may remain in the roller assembly when the roller assembly is removed from the pump shaft. Clean inside of pump housing with damp rag or an appro- priate cleaning solution to remove any chemical or tubing residue.
- Page 10 2. Mark an 11” section of hose, which will be the portion contained within the pump. Leave sufficient excess on the suction and discharge sides of the pump for the desired connections. If you leave the excess intake hose in a coil near the pump it will make it easy to feed a new section of hose through the rollers when the section in the pump becomes worn.
- Page 11 4. Loop tubing around roller assembly between guides as shown. Remove slack in tubing while rotating roller assembly and sliding onto collet. 5. Align marks on tubing with outside edge of the tubing clamp. 6. Reinstall collet screw firmly. P h o n e : ( 5 8 5 ) 4 2 6 - 0 9 9 0 www.lutzjescoamerica.com...
- Page 12 7. Tighten hose seal clamp screw. Be sure to tighten firmly to prevent “tubing walk.” Tubing walk can occur when the hose seal is the wrong size or is not sufficiently tight to keep the roll- ers from pulling the hose through the pump as it rotates. 8.
-
Page 13: Tubing & Connections
2.5 Tubing & Connections Tubing adapters are available for many configurations. See the drawing below for details. P h o n e : ( 5 8 5 ) 4 2 6 - 0 9 9 0 www.lutzjescoamerica.com Fax: (585) 426-4025 ... -
Page 14: Peridos Series Gearbox
The gearbox is sealed and does not require additional lubrication. 3.2 PERIDOS Series Motor Wiring • Motor type: Permanent Split Capacitor or 3-Phase Inverter Duty •... -
Page 15: Peridos Pump Controller
• Large hose pumps - Boost Value 3.11 default 7, up to 12 or higher • 6.05 = 1010 reset to Lutz-Jesco Defaults P h o n e : ( 5 8 5 ) 4 2 6 - 0 9 9 0 www.lutzjescoamerica.com... -
Page 16: To Display In Gph
4.3 To Display in GPH • Fill a calibration cylinder (best to use water, not chemical for testing and calibration) • Run the pump at full speed and time the drawdown for 30 sec. (from zero level in cylinder). • Note the level in the calibration cylinder when 30 seconds has elapsed. -
Page 17: Controller Wiring Examples
4.5 Controller Wiring Examples P h o n e : ( 5 8 5 ) 4 2 6 - 0 9 9 0 www.lutzjescoamerica.com Fax: (585) 426-4025 August 2020... -
Page 18: Peridos Series Tubing Rupture Detector
5 PERIDOS Series Tubing Rupture Detector Rupture Detector System Overview 5.1 Alarm Causes A rupture alarm is triggered by the presence of a conductive fluid in the pump. When the fluid bridges the two stainless steel elec- trodes in the LIQUID SENSOR in the pump the alarm is triggered. - Page 19 This Page Intentionally Left Blank. P h o n e : ( 5 8 5 ) 4 2 6 - 0 9 9 0 www.lutzjescoamerica.com Fax: (585) 426-4025 August 2020...
- Page 20 Total Fluid Management Lutz-JESCO America is your reliable partner for all of your chemical metering and transfer applications. Our Distribution Program inclu- des our state-of-the-art Metering Pumps, the Lutz industry-standard Drum and Container Pumps, and our time-proven AODD Pumps. Please contact us for more information! Lutz-JESCO, Corp.
