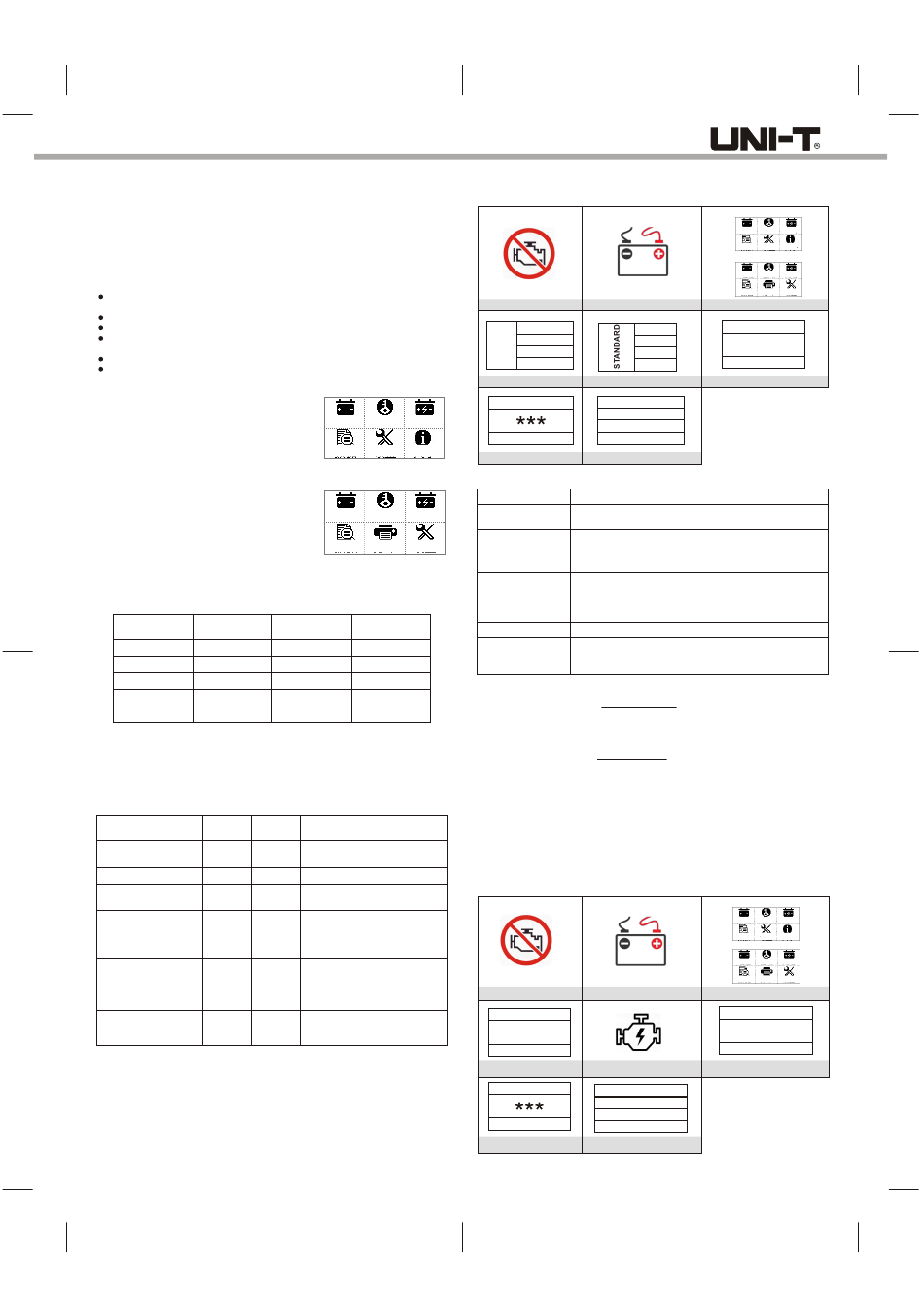

UT673A/UT675A Battery Tester
Overview
UT673A/UT675A battery tester, with its leading-edge conductivity test technology,
accurately and rapidly helps users to measure the cold cranking amps capability of the
vehicle starting battery, healthy state of the battery itself, detect the common fault of
vehicle starting and charging system, which helps repair vehicle quickly.
Safety information
Please carefully read this manual and follow the warning and safety information before
use.
To avoid fire and overcurrent, please read all rated values and symbol descriptions
before use.
Do not open the case cover. Do not turn on the tester if its cover or front panel is open.
Do not touch the connectors and components if the tester is powered on.
Please contact the authorized repair personnel to detect, repair, maintain the tester
if you find any fault on it.
Do not use in humid, explosive or inflammable environment.
Keep the tester surface clean and dry. Keep it well-ventilated.
Product introduction
Interface
UT673A
1) Battery: Battery test.
2) Crank: Vehicle Cranking system test.
3) Charge: Vehicle Charging system test.
4) Data: The last test result can be viewed.
5) Setting: Language setting.
6) About: View the system information.
UT675A
1) Battery: Battery test.
2) Crank: Vehicle Cranking system test.
3) Charge: Vehicle Charging system test.
4) Data: The last test result can be viewed or upload.
5) Print: Print test data.
6) Setting: Language and time setting, view the system information.
Feature
1) Applicable to 12V battery testing and 12V/24V vehicle cranking/charging system test.
2) Measurement standard and range:
Measurement
Measurement
range
standard
100-2000
CCA
BCI 100-2000
CA 100-2000
MCA 100-2000
JIS 26A17—245H52
3) Working temperature: -20°C 50°C. —
4) Special test clip: Double-conductor Kelvin clip.
5) Case material: Acid-resistant ABS plastic.
6) Measurement range of battery: 30Ah — 200Ah.
7) Measurement range of voltage: 7V — 16V.
8) Portable.
Example for selecting standard
Battery
Battery identification
Standard
parameter
12V/60Ah/CCA 500A CCA 500
300A EN EN 300
12V 250Ah 60Ah DIN DIN 250A
26A19R 12V 60Ah JIS#
200
26A19RMF 12V 60Ah JIS# 220
12V/60Ah AH 60Ah
Operation instruction
1. Connect the red and black clips of tester to the measured battery, red is positive,
black is negative, the tester screen will display startup interface. If the battery voltage
is lower than 7.0V, the test will become abnormal.
2. According to the prompts, press up and down button to select:
UT673A: ① Battery test, ②
Cranking test,
⑤ System setting, ⑥ About.
UT675A: ① Battery test, ②
Cranking test,
⑤ Print test result, ⑥ Setting.
UT673A
Charge
Battery
Crank
About
Setting
Data
UT675A
Charge
Battery
Crank
Setting
Data
Print
Measurement
Measurement
range
standard
DIN 100-1400
IEC 100-1400
EN 100-2000
SAE 100-2000
Ah 30-200Ah
Remark
12V battery, the capacity is 60Ah,
the cold-start current is 500A.
The standard value is 300A.
12V battery, the capacity is 60Ah,
the standard value is 250A.
12V battery, the capacity is 60Ah,
check JIS CODE conversion table
and find that 26A19R corresponds
to 220A for CCA.
12V battery, the capacity is 60Ah,
check JIS CODE conversion table
and find that 26A19R corresponds
to 220A for MF CCA.
If the standard is not found,
estimate CCA value according to
the battery capacity.
③ Charging test, ④ View test results,
③ Charging test, ④ View test results,
Tests below are based on 12V, 60Ah, CCA580A:
1. Battery test
1. Make sure engine is off. 2. Connect to the correct polarity.
NORMAL BAT.
CCA
AGM ATTERY B
DIN
TYPE
EFB ATTERY B
JIS
GEL ATTERY B
EN
4. Select "NORMAL BAT" 5. Select standard,CCA for example.
TESTING GOOD BATTERY
SOH 75%
SOC 100%
R= 3.35mΩ
8. Display test result.
7. Press ENTER to start the test.
Battery Test results
Description
The battery is in The performance of storage battery is good,
good condition. please continue using the battery.
Because the voltage of storage battery is lower
The battery is in
than 12.3V, so the performance of storage
good condition,
battery is good, please continue using the
please charge
storage battery after it is fully charged.
the battery.
Because the battery voltage is lower than 12V, so please
retest after it is fully charged. Incorrect reading may occur
Retest after charging
if the battery is not fully charged. Please replace the battery
if "Retest after charging" displays again after charging.
Replace the battery Replace the storage battery.
The battery is in bad
condition, replace Battery inside is damaged, replace the storage battery.
the battery.
1) Battery capacity (SOC): The percentage of remaining battery capacity,
Remaining capacity
SOC=
Actual capacity
2) Battery voltage (VOLTAGE): The voltage value of storage battery (Unit: V).
3) Battery life (SOH): State of health of battery storage,
Actual capacity
SOH=
Nominal capacity
4) The measured cold-start current: The measured cold-start current of tester.
5) Nominal cold-start current: Nominal cold-start current of storage battery
6) Internal resistance of battery (R): The measured internal resistance of storage battery.
NOTE: For low-capacity battery (For example, the vehicle is shut down for a long
time, the battery is not charged in time, the battery power is significantly lost
because the vehicle door is not closed.), the tester may prompt you to "Replace
battery" during actual measurement, please consult the storage battery factory
and charge the battery according to the designated method, and then retest.
2. Cranking test
1. Make sure engine is off. 2. Connect to the correct polarity.
CRANKING TEST
START ENGINE
4. Enter the interfaceof
5. Start engine.
starting engine.
TESTING
CRANKING NORMAL
CRANKING 11.34V
TIME 243ms
7. Automatically enter the test. 8. Display test result.
UT673A
Battery Crank Charge
About
Data Setting
UT675A
Battery Charge
Crank
Setting
Data Print
3. Select "Battery"
SET RATING
580 A
CCA
6. Set rated capacity of battery.
495A
12.8V
Interpretation
×100%.
×100%.
UT673A
Battery Crank Charge
Setting About
Data
UT675A
Battery Charge
Crank
Setting
Data
Print
3. Select "Crank"
CRANKING TEST
RPM DETECTED
6. Engine RPM is detected.
