施工说明书
Instructions for construction
安装产品前请仔细阅读本施工说明书,并保留备用。
Before product installation, read these instructions for
construction carefully and retain it for future reference.
0G4631Y
2018.02

Advertisement

loading
Need help?

Need help?

Do you have a question about the TBW01003B1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Toto TBW01003B1

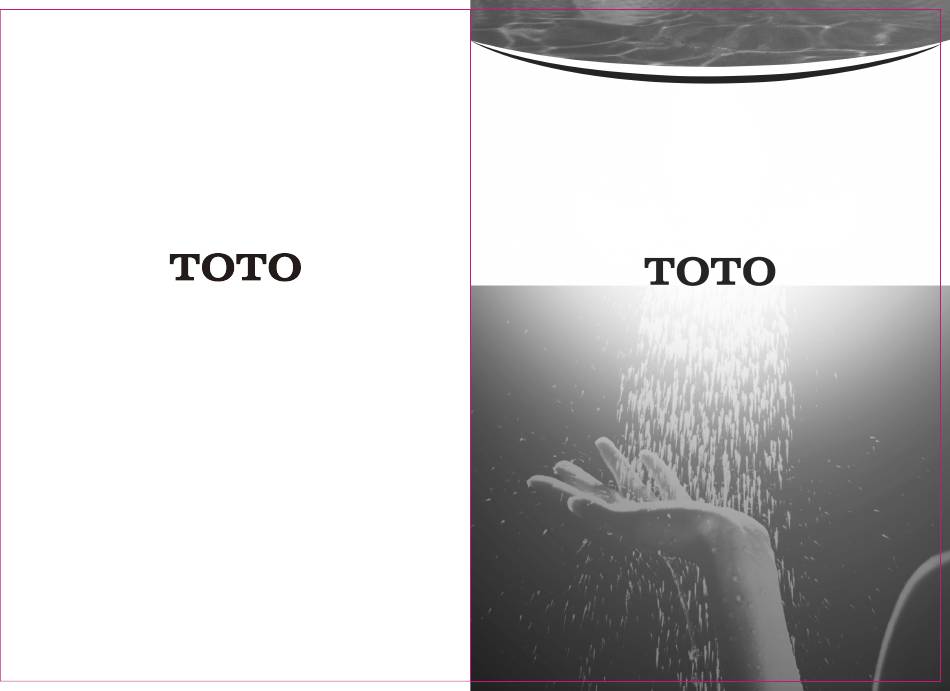

  • Page 1 施工说明书 Instructions for construction 安装产品前请仔细阅读本施工说明书,并保留备用。 Before product installation, read these instructions for construction carefully and retain it for future reference. 0G4631Y 2018.02...
  • Page 2: Table Of Contents

    目录 明细单 明细单 目 录 目 录………………………… …………1 散水板部…………………………………1套 连接管……………………………………1个 明细单……………………………………2 装饰盖部…………………………………1套 使用条件与施工上的注意…… …………3 弯头………………………………………1个 施工上的注意与保养……………………4 施工说明书………………………………1本 安装完成图………………………………5-6 使用说明书………………………………1本 水嘴的安装…………… …………………7-8 生产厂家与销售商…… …………………9 使用此明细单的产品包括: TBW01003B1 固定式淋浴头 TBW02003B1 固定式淋浴头...
  • Page 3: 使用条件与施工上的注意

    使用条件与施工上的注意 保养 ! 注意 使 用 条 件 1.供冷水*热水压力: 1.由于陶瓷阀芯是较精密的部件,请勿擅自分解,否则可能会造成 最低压力………………0.05MPa(流动压) 漏水等不良。 最高压力………………0.75MPa(静压) 2.请勿撞击本产品,否则可能会造成故障、漏水。 推荐使用压力…………0.12MPa(流动压)-0.5MPa(流动压) 3.随着产品式样的不断更新,实物存在与图示不符的情况,但基本 2.供水温度在4℃~60℃,建议使用热水温度60℃以下,供热水请勿使用蒸汽。 安装、使用原理相同。 3.使用环境温度1~40℃。如果低于0℃,水嘴会出现变形、冻裂等现象。 4.为防止花洒内部损坏,花洒吐水温度不得超过60℃,建议使用温度45℃ 以下。 5.长时间不使用时,可能导致水嘴内部及外部锈蚀不能使用等现象。 保养 6.如果您需要废弃本产品,请勿将其作为一般生活垃圾处理,请依照法规经 由独立的回收体系进行合适的处理、恢复和回收。 为长期保持产品的美观,请用户按以下方法维护保养。 7.本说明书中的产品具有清洗功能。 1.经常用软布擦拭,间或用软布蘸水擦拭。 2.当有污垢且比较明显时,请用中性洗涤剂擦拭后充分进行水洗。 施 工 上 的 注 意 ! 警告 表示如果无视此标志而误操作时,有造成人员重伤或死亡。 ! 注意 表示如果无视此标志而误操作时,有造成人身伤害或财产损失。...
  • Page 4: 安装完成图

    安装完成图 安装完成图 TBW01003B1 固定式淋浴头 TBW02003B1 固定式淋浴头 膨胀螺丝(由客户自己提供) 膨胀螺丝(由客户自己提供) PT1/2 PT1/2 固定管掐 固定管掐 (由客户自 (由客户自 完成天棚面 完成天棚面 己提供) 己提供) 注:上记尺寸单位为mm;( )内尺寸为参考尺寸。 注:上记尺寸单位为mm;( )内尺寸为参考尺寸。...
  • Page 5: 水嘴的安装

    水嘴的安装 水嘴的安装 事前准备的工具 水嘴的安装(以TBW01003B1为例) 首先进行供水管路的清洗及耐压检查,安装过程中也应充分注意 勿使泥沙等杂质进入花洒或供水管内部。 ※必须使用强度足够 密封带 螺丝刀 六角棒扳手 扳手 大的膨胀螺丝和固定 弯头(※注意带倒角的一端与 安装前确认 管掐来固定此弯头 连接管连接,切勿装反。) ■确认供水管已经关闭,确认安装前水路进行清洗了。 ■仔细阅读施工说明书并按照说明书的安装要领来进行安装。 ■确认您所看到的包装盒内的部件同下图相同。 装饰盖 此处缠上 弯头 O型圈 密封带 连接管 装饰盖 内部有节水器、 过滤网、 小螺钉 垫片 O型圈 连接管 花洒头 一、水嘴的安装: 1、 先将0型圈安装在装饰盖上后套在连接管上; 2、 将弯头旋入供水管接头中,在连接管螺纹处缠上适量密封带,并旋 入弯头中(带倒角的一端与连接管连接),调整弯头和连接管使连 接管竖直向下;...
  • Page 6 生产厂家与销售商 执行标准:GB/T 23447-2009、GB 28378-2012 产品型号:见包装箱上的标签 产品名称:见包装箱上的标签 生产日期:见包装箱上的标签 组装工厂:东陶(大连)有限公司 电 话:(0411)87624383 厂 址:大连经济技术开发区东北二街17号 东陶(中国)有限公司 全国售后服务电话:800-820-9787(固定电话)          400-820-9787(手机用户) 销售商:东陶(中国)有限公司 地 址:北京市朝阳区光华路1号 北京嘉里中心北楼1915室 网 址:www.toto.com.cn...

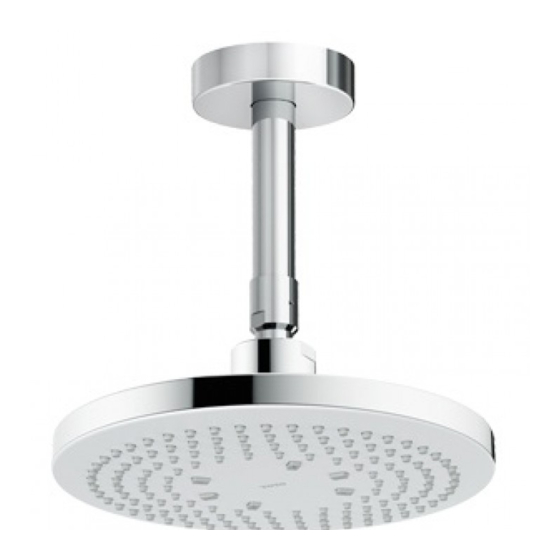

  • Page 7 1 copy Attentions in construction and maintenance Instructions for operation 1 copy Installation completion figure The products using this detailed list include: TBW01003B1 "G Shower " 1mode Over Head Shower Faucet installation TBW02003B1 "G Shower " 1mode Over Head Shower...
  • Page 8 Use condition and attentions in construction Attentions in construction and maintenance Attentions Use condition Cold water supply*hot water supply pressure: As the ceramic cartridge is a precise component,do not dismantle it without Minimum pressure………………0.05MPa(flow pressure) authorization.Otherwise,such poor conditions as water leakage,etc. may be Maximum pressure………………0.75MPa(static pressure)...
  • Page 9 Installation completion figure Installation completion figure TBW02003B1 series fixed shower head TBW01003B1 series fixed shower head Expansion bolt (to be provided by Expansion bolt (to be provided by customers themselves) customers themselves) PT1/2 PT1/2 Pipe securing clamp Pipe securing clamp...
  • Page 10 (3) Connect the shower head with the connection tube. Take care not to drop out the filter screw and the gasket. Adjust the direction of “TOTO” with reference to the completion drawing. Use the hexagon wrench to fit and tighten the small screw Shower head into the screw thread hole.
  • Page 11 TOTO Asia Oceania Pte. Ltd. Telephone:65-6744-6955 FAX: 65-6841-0819 Address:10 Eunos Road 8 #12-07 Singapore Post Centre Singapore 408600 Website:asia.toto.com TOTO KOREA LTD. 전화번호 : (02)-3141-8236 FAX 번호 : (02)-3141-8240 주소 : 서울시 마포구 상수동 351-16번지 로이코빌딩 3층 홈페이지 : http://www.totokr.co.kr...

This manual is also suitable for:

Tbw02003b1
