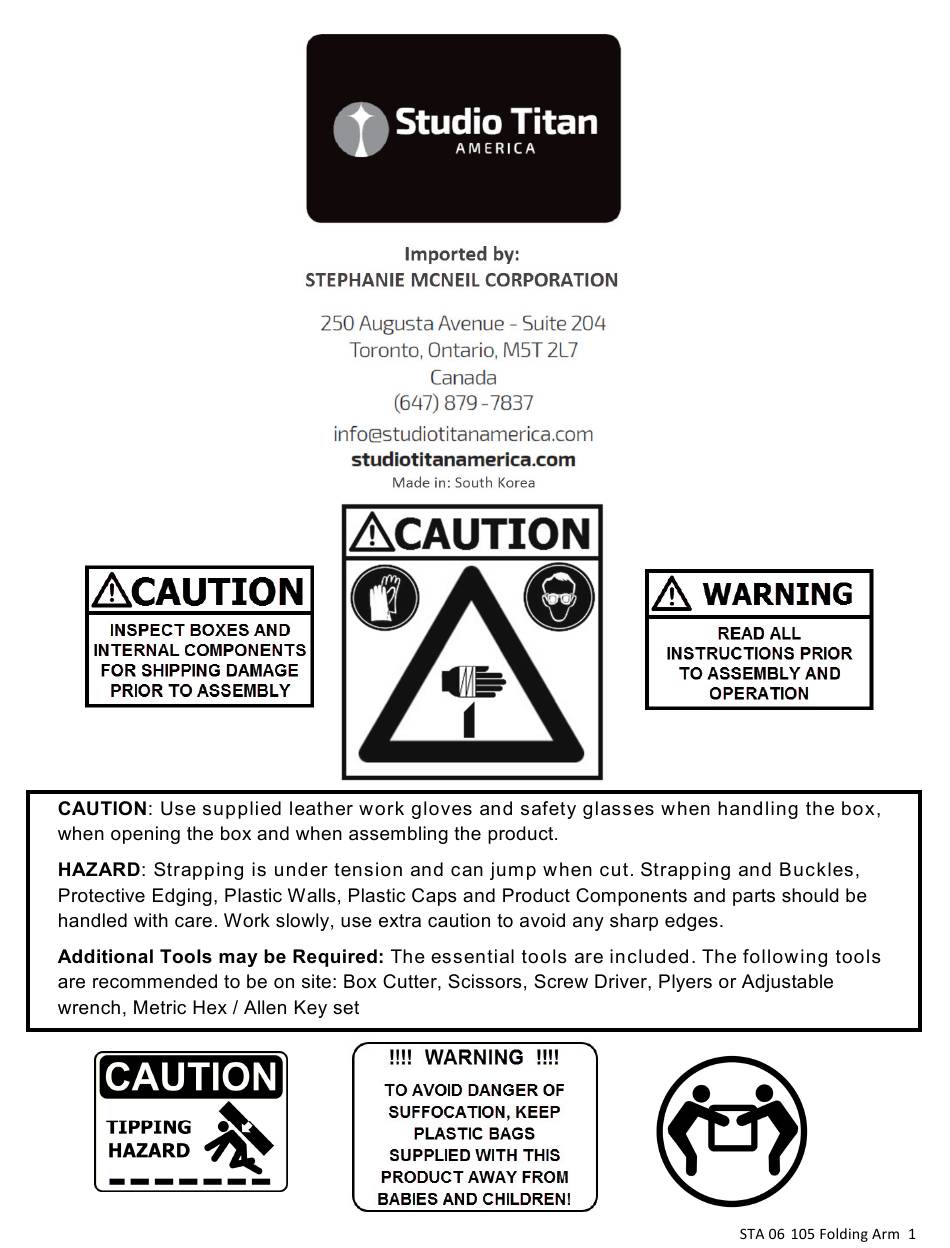

- Page 2 Transit Damage: Each package is inspected prior to being shipped from the warehouse to insure that is in perfect condition. The shipping boxes are constructed using extra thick cardboard. Some packaging includes engineered plastic walls and dense foam to protect and absorb energy from reasonable drops and im- pacts.
- Page 3 Product Identification:...
- Page 4 Intended use: This product is intended for use by professional and commercial photographers in a studio envi- ronment with a high ceiling. The products are designed to be used indoors on a floor that is smooth, hard, flat and unobstructed. CAUTION: This product is not recommended for use by hobbyists or in a household environ- ment with a low ceiling or carpeted floors.
- Page 5 Component Identification: STA 06-105 Folding Arm...
- Page 6 ! CAUTION ! Cross Threading Components: Cross-threading components during assembly is not covered under war- ranty. Cross-threading is a term that describes damage that is caused when a misaligned screw or knob thread is forced into a threaded hole. When this occurs, threads are damaged and are no longer capable of proper opera- tion.
- Page 7 Component Identification: STA 06-105 Arm Pre-load Adjust- ment Hex Screw...
- Page 8 Component Identification: STA 06-105 Mounting Plates...
- Page 9 Component Identification: STA 01-350R-MK2 Vertical Locking Lever and Head Mount Plate...
- Page 10 Assembly Steps: 1. The STA 06-105 Folding Arm is designed to be Configuration: A used with the STA 01-350R-MK2 (Rotation) Com- mercial Studio Camera Stand. The STA 06-105 folding arm can be attached to the Vertical car- riage in two configurations, explained below and on the next page.
- Page 11 STA 06-105 folding arm. 4. Configuration B: This configuration uses the Mount- ing bracket that is supplied with STA 06-105 folding arm. This Mounting bracket will be attached to the rear of the stand sharing the same rear mounting...
- Page 12 Operation, Use & Maintenance: 6. The STA 06-105 folding arm must be used in conjunction with the optional leg weight set. The recommended leg weight set is: Leg Weight Set STA-01-350LW-15. Without the optional leg weight set the STA 06-105 folding arm may cause the Camera Stand to tip over when extended and loaded.
- Page 13 Operation, Use & Maintenance: 8. Vertical Locking Lever: Turn Counter Clockwise to unlock. Turn Clockwise to lock. When unlocked the ARM can be moved vertically between its up- per and lower travel range. 9. Mid Arm Locking Knob: Turn Counter Clock- wise to unlock.
- Page 14 The STA 06-105 folding arm was developed in con- junction with the MET in NYC, USA. The primary design objective was to facilitate 360 spin photog- raphy of large permanent statues and installations using two 180 degree set-ups around the subject.
- Page 15 • Options and accessories can be purchased through your preferred authorized retailer or the studiotitanamerica.com website. Options: STA 01-350LW-15 [3 x 15KG/33lb /ea BOLT UNDER - steel leg weights for 01-350MK2 series]...
- Page 16 • The column box blue out- er plastic material is Poly- propylene, abbreviated as PP, is a recyclable thermo- plastic polymer widely used in many different products. PP is rugged. PP's resin identification code is 5, and it is recyclable. •...
