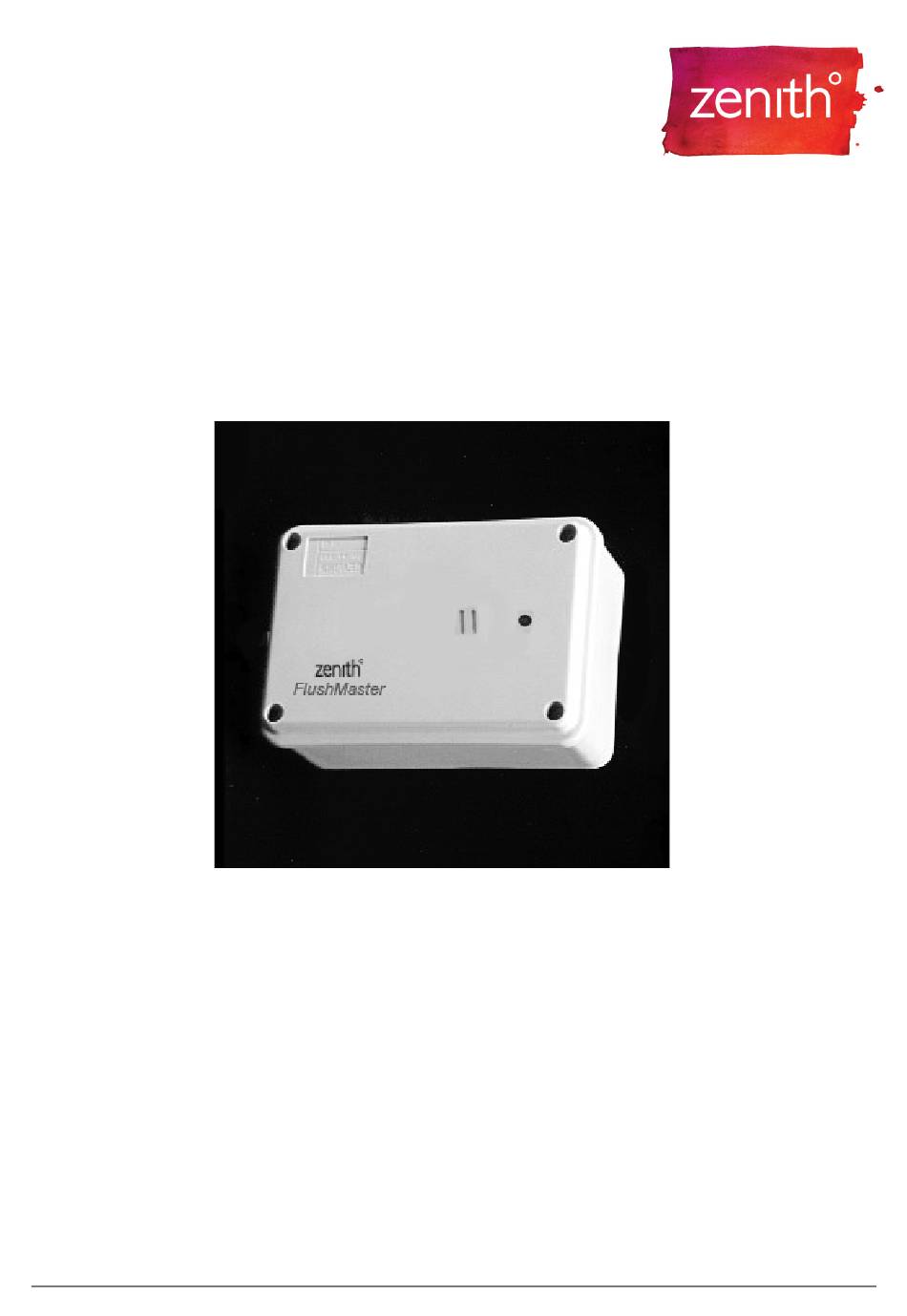

Zenith FlushMaster 40090NZ Installation Instructions & User Manual

Surface-mounted sensor, water-saver urinal flushing system

Advertisement

Quick Links

Installation instructions & user manual
Zenith
FlushMaster
Surface-mounted sensor
Water-saver urinal flushing system
Product code: 40090NZ
87100NZ v1.12 09.22 WR FlushMaster
Page 1 of 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FlushMaster 40090NZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Zenith FlushMaster 40090NZ

  • Page 1 Installation instructions & user manual Zenith FlushMaster Surface-mounted sensor Water-saver urinal flushing system Product code: 40090NZ 87100NZ v1.12 09.22 WR FlushMaster Page 1 of 12...
  • Page 2: Table Of Contents

    Contents Warnings ..................2 Key features .................3 Parts & accessories ...............3 1. Set up water discharge ............. 4 2. Install sensor ................6 3. Connect latching valve to sensor ..........7 4. Connect power pack (optional) ..........8 5. Set timing using switches ............8 6.
  • Page 3: Key Features

    Surface mounted sensor with latching valve, 6V battery and brass fittings with Restrictaflow Spares and accessories: 99021NZ - Zenith FlushMaster Cistern Autosyphon 1.00 inch BSP/ 25 mm 99022NZ - Zenith FlushMaster Cistern Autosyphon 1.25 inch BSP/ 32 mm 99023NZ - Zenith FlushMaster Cistern Autosyphon 1.50 inch BSP/ 38 mm 99024NZ - Zenith FlushMaster Direct Injection Airbreak 1.00”...
  • Page 4: Set Up Water Discharge

    Installation 1. Set up water discharge Typical Installation with Cistern Single stall Twin stall Triple stall 1.5 to 2.5 Litre 3.0 to 5.0 Litre 4.0 to 7.5 Litre Discharge Capacity Discharge Capacity Discharge Capacity Single trough Single trough Single trough 1.5 to 2.5 litre 3.0 to 5.0 litre 4.0 to 7.5 litre...
  • Page 5 Installation Latching valve (solenoid) Turn off the mains water supply. An isolating valve must be Latching supplied and installed in accordance with AS/NZS3500. valve Position the latching valve as near to the cistern as possible, and preferably upright, as shown in the diagram. Cut the supply pipe and purge any debris or swarf.
  • Page 6: Install Sensor

    Installation • Fit the air break to the top of the urinal sparge pipe (in place of a cistern), as shown in the diagram. • Do not use sealing tape in the joints. Both the air break and the latching valve use compression connections fittings.
  • Page 7: Connect Latching Valve To Sensor

    Installation 3. Connect latching valve to sensor Run the latching valve cable to the sensor in conduit or within the building wall and ceiling. Do not extend the cable as this will affect correct operation. To fasten the latching valve cable to the circuit board, first remove the valve output connector on the circuit board by lifting it directly upwards.
  • Page 8: Connect Power Pack (Optional)

    Installation Surface Mounted Sensor Drill a 12 mm hole in the side of the box, fit cable gland and thread cable through the cable gland into the sensor as shown. Connect to 4. Connect power pack (optional) circuit board Locate battery holder and battery supplied with the system. If connected, remove the battery cable plug from the circuit board.
  • Page 9: Set Fill Timing Using Fill Time Button

    Installation 6. Set fill timing using Fill Time Button (alternatively, set the timing using switches as detailed in step 5) Fill Time Fill LED Button To establish the time, start with an empty cistern. The board will run Test Mode defaults (approximately 35 seconds delay, 5 seconds flush) until the time values have been set up.
  • Page 10: Maintenance

    Wipe with a soft cloth, warm water and dish washing liquid. Never hose or spray any part of the flushing system. Where the Zenith FlushMaster is powered by a long life lithium battery a life of up to three years can be anticipated depending on frequency of activation.
  • Page 11: Troubleshooting

    Troubleshooting Symptom Possible Cause Recommended action Cistern does not fill or direct Cistern does not fill or direct Check water supply, turn on tap. inject does not flush. inject does not flush. Back off regulator screw. Reinstall latching valve correctly. Check cable and replug into sensor circuit board.
  • Page 12 Zenith products described in this publication are manufactured under one or more patents and further patent applications are pending. As Zenith policy is one of continuous product improvement, changes to specifications may be made without prior notice. Images in this booklet have been modified and may not be true representations of the finished goods.
