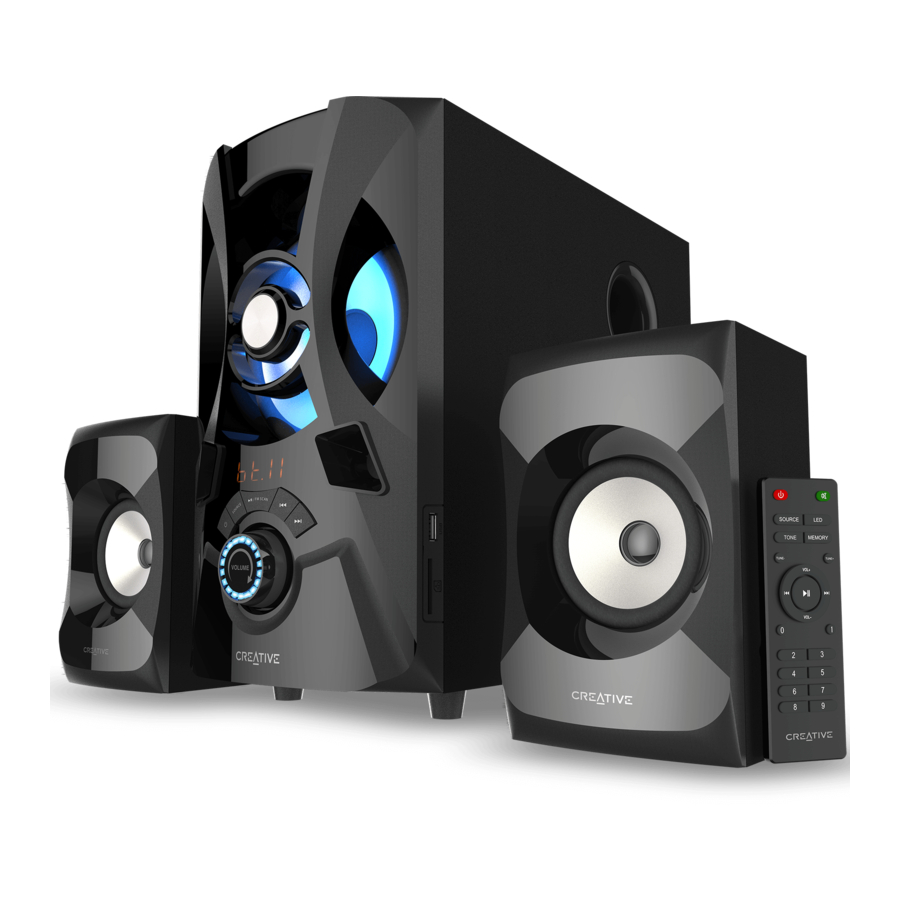

Creative SBS E2900 - 2.1 Bluetooth Speaker System Manual

1. Button
2. SOURCE Button
3. Button
4. Previous track / Previous FM station button
5. Next track / Next FM station button
6. LED Display
7. Volume Control Knob
8. LED Lights
9. Subwoofer Port Tube
10. USB Port
11. SD Card Slot
12. FM Antenna Port
13. Aux-in / DVD-in Ports
14. Left Satellite
15. Right Satellite
16. AC Power Port
17. FM Antenna

To Power ON/OFF Speaker

• Speaker is in "Standby" mode when power supply is switched on and the LED Display shows "_ _ _ _". Exit "Standby" mode to turn the speaker on by pressing the "" button.
  Press and hold "" button to enter "Standby" mode again.

To Switch between Sources

• Press "SOURCE" button to switch sources. Cycle through "BT / AUX / DVD / USB / SD Card / FM" input modes with each press of a button.
  ("bt" stands for Bluetooth connectivity; "AU" stands for AUX input; "DUD" stands for DVD input; "Ub" stands for USB; "Sd" stands for SD Card input; "F and 87.5" stands for FM radio mode.)

Button	Action	Inputs
		AUX Input	Bluetooth ®	USB/SD Input	FM Tuner
	Press		Track Selection Previous / Next	Track Selection Previous / Next	Channel Selection Previous / Next
	Press	Mute	Play / Pause	Play / Pause	Mute
	Press and hold		To initiate Bluetooth Pairing		Automatic Search for FM Radio Stations

Infrared Remote Control

2 x AAA batteries (not included)

1. Power On / Standby Mode
2. Mute : Press once to turn volume off. Press once again to turn volume on.
3. Source : Press to cycle through sources - BT / AUX / DVD / USB / SD Card / FM
4. LED : Press to toggle between Red / Blue / Purple color presets
5. Tone : Press to adjust Bass & Treble settings by using VOL +/- buttons. Bass & Treble levels: - 6 (min) – +6 (max)
6. Memory : Press to save favorite FM radio stations after manual FM tuning
7. Tuning-: For FM Radio's use only
8. Tuning+ : For FM Radio's use and to toggle between repeat ALL, repeat once, OFF for USB flash and SD card playback
9. Volume+ : + Volume level
10. Previous Track / FM station
11. Play / Pause / FM Auto Scan
12. Next Track / FM Station
13. Volume-: - Volume level
14. 0 - 9 Numeric Keypad: Use the keypad to select desired track or stored FM radio stations.
    Press the button to play selected track / FM station

• In FM mode, press and hold " " to automatically search for FM radio stations.
• Press "TUNING+/-" to manually search for FM radio stations step-by-step (each step = 0.1 MHz). Press and hold "TUNING+/-" to search for next available channel. Once found, the FM radio station will automatically play. To save the FM channel, press on Memory button. Press " " or " " to toggle between saved FM radio stations.
• In USB and SD Card modes, press "TUNING+" to cycle through repeat mode - Repeat All / Repeat Once / Repeat Off.
• In Bluetooth mode, voice and front-LED Display cues will prompt to initiate Bluetooth Pairing.
  By default, the system will search for last paired device (if available) while still remaining discoverable as long as the speaker system is not connected to any Bluetooth device.

Safety instructions

Please read the following before using the product:

• Use only approved mains plug supported in your country or region
• Detach mains plug from socket to ensure complete disconnection from the power supply
• If device will not be in use for over a week, please detach the mains plug from socket

Technical Specifications

Creative SBS E2900
Bluetooth® Version: Bluetooth® 5.0
Operating Frequency: 2402 - 2480 MHz
Operating Range: Up to 10 meters
Supported Bluetooth® Profiles: A2DP (Wireless Stereo Bluetooth®), AVRCP (Bluetooth® Remote Control)
Supported Codec: SBC
Supported Audio Formats (USB Mass Storage Devices / SD Cards*): MP3
Input: 110V - 230V ~ 50 / 60 Hz 700mA
Speaker Power:

• 15W RMS per channel (2 channels)
• 30W RMS subwoofer
• Total: 60W
• Peak: 120W Frequency Response: 50 Hz ~ 20 KHz

SNR: ≥ 75 dB FM
Radio Scanning Frequency: 87.5 MHz - 108 MHz

*Supports up to 32GB (max) FAT16 and FAT32
*Does not support SDXC memory cards

Important Notice:
The serial number for your Creative SBS E2900 is located on the subwoofer. Please write this number down and keep it in a secure place.

© 2019 Creative Technology Ltd. All rights reserved. Creative and the Creative Logo are trademarks or registered trademarks of Creative Technology Ltd in the United States and/or other countries. SD logo is a trademark of SD-3C, LLC. All other trademarks are the property of their respective owners and are hereby recongnized as such. All specifications are subject to change without notice. Actual contents may differ slightly from those pictured. Use of this product is subject to a limited warranty.
